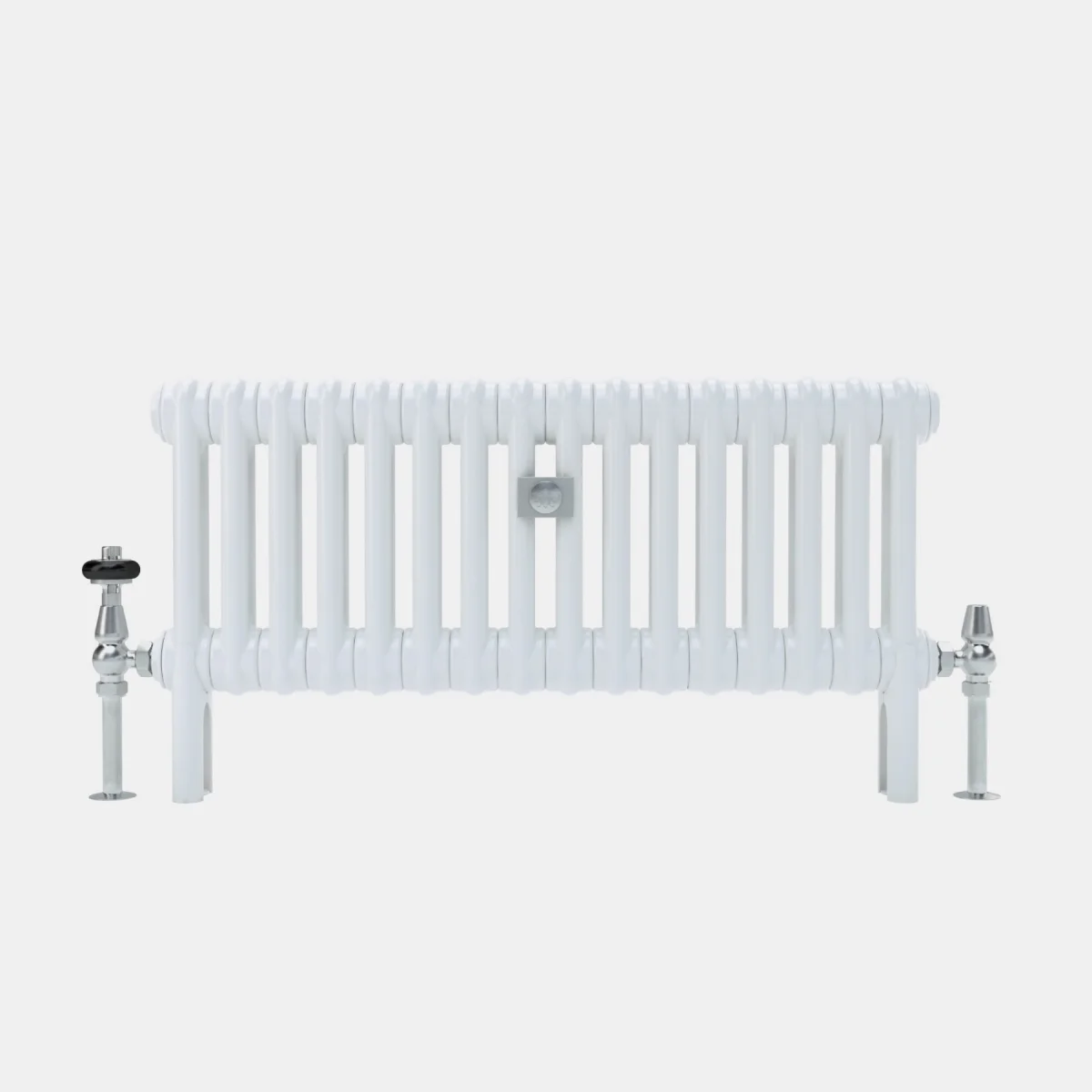

Curved Florence 2 Column 300mm
Made to order
Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.
CUR-F2C-302
Specifications
| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 402mm |
| B | Pipe centre to floor | 134mm |
| C | Max section depth | 67mm |
| D | Interaxis distance | 235mm |
| E | Height without legs | 302mm |
| F | Mid section depth | 65mm |
| G | Pipe centre to wall (Atlas bracket) | 63mm |
| L | Section length | 45mm |
| – | Internal volume per section | 0.4L |
| – | Leg section weight | 0.8kg |
| – | Mid section weight | 0.5kg |
| – | Max single-piece delivery size | 25sections |
| – | Output at ΔT30 | 12.4W |
| – | Output at ΔT50 | 23.4W |
φ = Km × ΔTn · Km = 0.184 · n = 1.239
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_A
Declaration of Performance: 202009-1014 · CE marked
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints |
|---|---|---|---|---|---|---|---|
| CUR-F2C-302-03 | 3 | 165 | 70 | 37 | One piece | — | — |
| CUR-F2C-302-04 | 4 | 210 | 94 | 50 | One piece | — | — |
| CUR-F2C-302-05 | 5 | 255 | 117 | 62 | One piece | — | — |
| CUR-F2C-302-06 | 6 | 300 | 141 | 75 | One piece | — | — |
| CUR-F2C-302-07 | 7 | 345 | 164 | 87 | One piece | — | — |
| CUR-F2C-302-08 | 8 | 390 | 187 | 100 | One piece | — | — |
| CUR-F2C-302-09 | 9 | 435 | 211 | 112 | One piece | — | — |
| CUR-F2C-302-10 | 10 | 480 | 234 | 124 | One piece | — | — |
| CUR-F2C-302-11 | 11 | 525 | 258 | 137 | One piece | — | — |
| CUR-F2C-302-12 | 12 | 570 | 281 | 149 | One piece | — | — |
| CUR-F2C-302-13 | 13 | 615 | 305 | 162 | One piece | — | — |
| CUR-F2C-302-14 | 14 | 660 | 328 | 174 | One piece | — | — |
| CUR-F2C-302-15 | 15 | 705 | 352 | 187 | One piece | — | — |
| CUR-F2C-302-16 | 16 | 750 | 375 | 199 | One piece | — | — |
| CUR-F2C-302-17 | 17 | 795 | 398 | 212 | One piece | — | — |
| CUR-F2C-302-18 | 18 | 840 | 422 | 224 | One piece | — | — |
| CUR-F2C-302-19 | 19 | 885 | 445 | 236 | One piece | — | — |
| CUR-F2C-302-20 | 20 | 930 | 469 | 249 | One piece | — | — |
| CUR-F2C-302-21 | 21 | 975 | 492 | 261 | One piece | — | — |
| CUR-F2C-302-22 | 22 | 1020 | 516 | 274 | One piece | — | — |
| CUR-F2C-302-23 | 23 | 1065 | 539 | 286 | One piece | — | — |
| CUR-F2C-302-24 | 24 | 1110 | 562 | 299 | One piece | — | — |
| CUR-F2C-302-25 | 25 | 1155 | 586 | 311 | One piece | — | — |
| CUR-F2C-302-26 | 26 | 1200 | 609 | 324 | 2 pieces | — | — |
| CUR-F2C-302-27 | 27 | 1245 | 633 | 336 | 2 pieces | — | — |
| CUR-F2C-302-28 | 28 | 1290 | 656 | 348 | 2 pieces | — | — |
| CUR-F2C-302-29 | 29 | 1335 | 680 | 361 | 2 pieces | — | — |
| CUR-F2C-302-30 | 30 | 1380 | 703 | 373 | 2 pieces | — | — |
| CUR-F2C-302-31 | 31 | 1425 | 726 | 386 | 2 pieces | — | — |
| CUR-F2C-302-32 | 32 | 1470 | 750 | 398 | 2 pieces | — | — |
| CUR-F2C-302-33 | 33 | 1515 | 773 | 411 | 2 pieces | — | — |
| CUR-F2C-302-34 | 34 | 1560 | 797 | 423 | 2 pieces | — | — |
| CUR-F2C-302-35 | 35 | 1605 | 820 | 436 | 2 pieces | — | — |
| CUR-F2C-302-36 | 36 | 1650 | 844 | 448 | 2 pieces | — | — |
| CUR-F2C-302-37 | 37 | 1695 | 867 | 460 | 2 pieces | — | — |
| CUR-F2C-302-38 | 38 | 1740 | 890 | 473 | 2 pieces | — | — |
| CUR-F2C-302-39 | 39 | 1785 | 914 | 485 | 2 pieces | — | — |
| CUR-F2C-302-40 | 40 | 1830 | 937 | 498 | 2 pieces | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 5.3 |
| ΔT20 | 7.5 |
| ΔT25 | 9.9 |
| ΔT30 | 12.4 |
| ΔT35 | 15.1 |
| ΔT40 | 17.8 |
| ΔT45 | 20.6 |
| ΔT50 | 23.4 |
