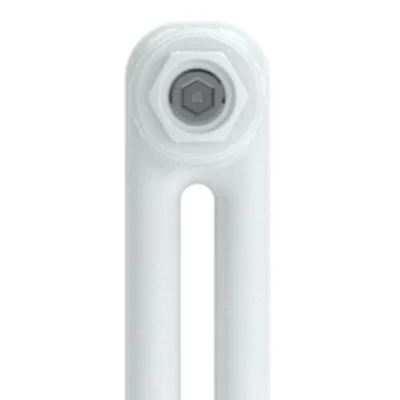

Curved Florence 2 Column 400mm
Made to order
Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.
CUR-F2C-402
Specifications
| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 502mm |
| B | Pipe centre to floor | 134mm |
| C | Max section depth | 67mm |
| D | Interaxis distance | 335mm |
| E | Height without legs | 402mm |
| F | Mid section depth | 65mm |
| G | Pipe centre to wall (Atlas bracket) | 63mm |
| L | Section length | 45mm |
| – | Internal volume per section | 0.5L |
| – | Leg section weight | 0.9kg |
| – | Mid section weight | 0.6kg |
| – | Max single-piece delivery size | 25sections |
| – | Output at ΔT30 | 15.9W |
| – | Output at ΔT50 | 30.1W |
φ = Km × ΔTn · Km = 0.229 · n = 1.247
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_A
Declaration of Performance: 202009-1015 · CE marked
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints |
|---|---|---|---|---|---|---|---|
| CUR-F2C-402-03 | 3 | 165 | 90 | 48 | One piece | — | — |
| CUR-F2C-402-04 | 4 | 210 | 120 | 64 | One piece | — | — |
| CUR-F2C-402-05 | 5 | 255 | 150 | 80 | One piece | — | — |
| CUR-F2C-402-06 | 6 | 300 | 181 | 95 | One piece | — | — |
| CUR-F2C-402-07 | 7 | 345 | 211 | 111 | One piece | — | — |
| CUR-F2C-402-08 | 8 | 390 | 241 | 127 | One piece | — | — |
| CUR-F2C-402-09 | 9 | 435 | 271 | 143 | One piece | — | — |
| CUR-F2C-402-10 | 10 | 480 | 301 | 159 | One piece | — | — |
| CUR-F2C-402-11 | 11 | 525 | 331 | 175 | One piece | — | — |
| CUR-F2C-402-12 | 12 | 570 | 361 | 191 | One piece | — | — |
| CUR-F2C-402-13 | 13 | 615 | 391 | 207 | One piece | — | — |
| CUR-F2C-402-14 | 14 | 660 | 421 | 223 | One piece | — | — |
| CUR-F2C-402-15 | 15 | 705 | 451 | 239 | One piece | — | — |
| CUR-F2C-402-16 | 16 | 750 | 481 | 255 | One piece | — | — |
| CUR-F2C-402-17 | 17 | 795 | 512 | 271 | One piece | — | — |
| CUR-F2C-402-18 | 18 | 840 | 542 | 286 | One piece | — | — |
| CUR-F2C-402-19 | 19 | 885 | 572 | 302 | One piece | — | — |
| CUR-F2C-402-20 | 20 | 930 | 602 | 318 | One piece | — | — |
| CUR-F2C-402-21 | 21 | 975 | 632 | 334 | One piece | — | — |
| CUR-F2C-402-22 | 22 | 1020 | 662 | 350 | One piece | — | — |
| CUR-F2C-402-23 | 23 | 1065 | 692 | 366 | One piece | — | — |
| CUR-F2C-402-24 | 24 | 1110 | 722 | 382 | One piece | — | — |
| CUR-F2C-402-25 | 25 | 1155 | 752 | 398 | One piece | — | — |
| CUR-F2C-402-26 | 26 | 1200 | 782 | 414 | 2 pieces | — | — |
| CUR-F2C-402-27 | 27 | 1245 | 812 | 430 | 2 pieces | — | — |
| CUR-F2C-402-28 | 28 | 1290 | 843 | 446 | 2 pieces | — | — |
| CUR-F2C-402-29 | 29 | 1335 | 873 | 462 | 2 pieces | — | — |
| CUR-F2C-402-30 | 30 | 1380 | 903 | 477 | 2 pieces | — | — |
| CUR-F2C-402-31 | 31 | 1425 | 933 | 493 | 2 pieces | — | — |
| CUR-F2C-402-32 | 32 | 1470 | 963 | 509 | 2 pieces | — | — |
| CUR-F2C-402-33 | 33 | 1515 | 993 | 525 | 2 pieces | — | — |
| CUR-F2C-402-34 | 34 | 1560 | 1023 | 541 | 2 pieces | — | — |
| CUR-F2C-402-35 | 35 | 1605 | 1053 | 557 | 2 pieces | — | — |
| CUR-F2C-402-36 | 36 | 1650 | 1083 | 573 | 2 pieces | — | — |
| CUR-F2C-402-37 | 37 | 1695 | 1113 | 589 | 2 pieces | — | — |
| CUR-F2C-402-38 | 38 | 1740 | 1143 | 605 | 2 pieces | — | — |
| CUR-F2C-402-39 | 39 | 1785 | 1174 | 621 | 2 pieces | — | — |
| CUR-F2C-402-40 | 40 | 1830 | 1204 | 637 | 2 pieces | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 6.7 |
| ΔT20 | 9.6 |
| ΔT25 | 12.7 |
| ΔT30 | 15.9 |
| ΔT35 | 19.3 |
| ΔT40 | 22.8 |
| ΔT45 | 26.4 |
| ΔT50 | 30.1 |
