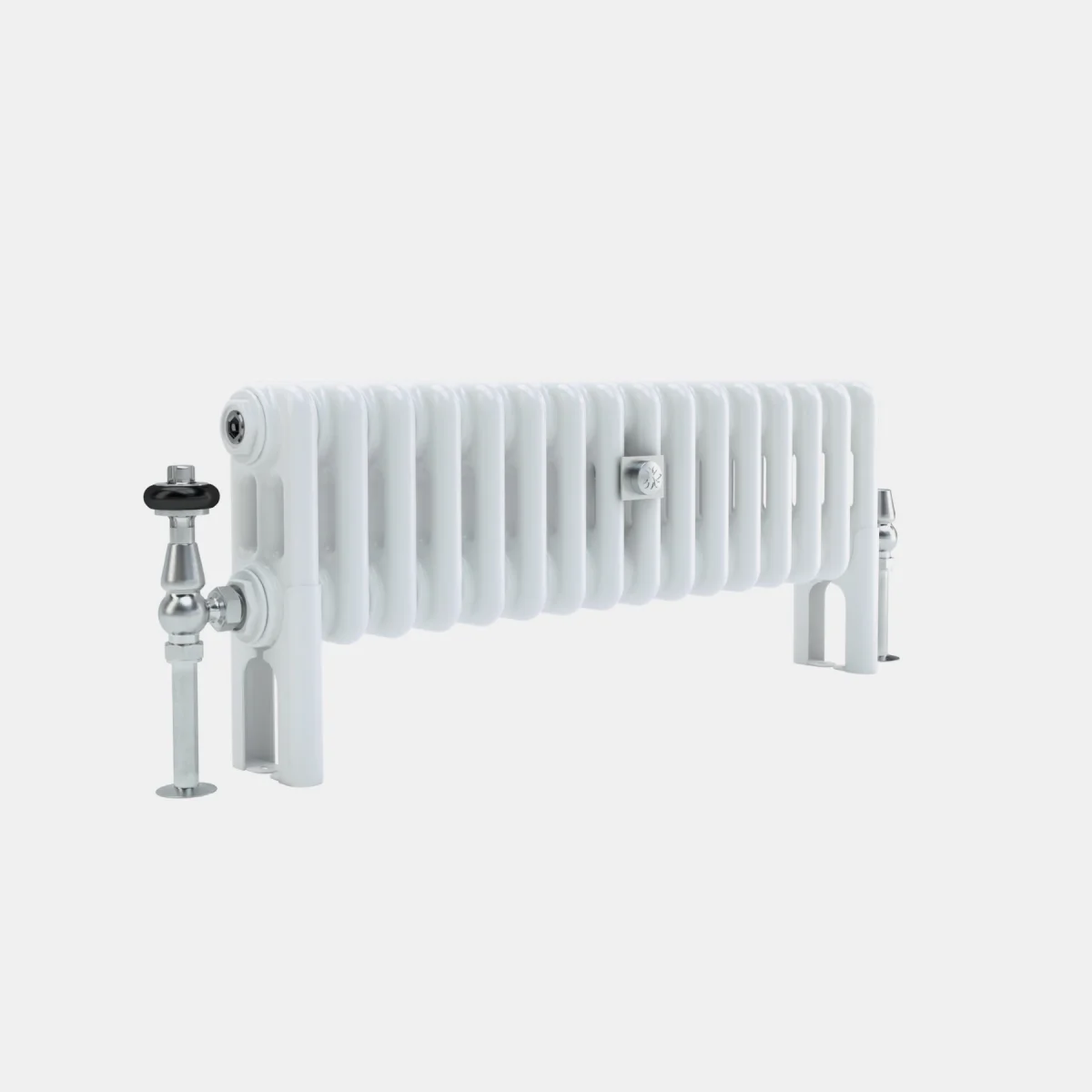

Curved Florence 3 Column 300mm
Made to order
Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.
CUR-F3C-302
Specifications
| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 402mm |
| B | Pipe centre to floor | 134mm |
| C | Max section depth | 103mm |
| D | Interaxis distance | 235mm |
| E | Height without legs | 302mm |
| F | Mid section depth | 101mm |
| G | Pipe centre to wall (Atlas bracket) | 63mm |
| L | Section length | 45mm |
| – | Internal volume per section | 0.6L |
| – | Leg section weight | 0.9kg |
| – | Mid section weight | 0.6kg |
| – | Max single-piece delivery size | 25sections |
| – | Output at ΔT30 | 17.2W |
| – | Output at ΔT50 | 32.5W |
φ = Km × ΔTn · Km = 0.246 · n = 1.248
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.ITPL.01004
Declaration of Performance: 202009-1029 · CE marked
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints |
|---|---|---|---|---|---|---|---|
| CUR-F3C-302-03 | 3 | 165 | 97 | 51 | One piece | — | — |
| CUR-F3C-302-04 | 4 | 210 | 130 | 69 | One piece | — | — |
| CUR-F3C-302-05 | 5 | 255 | 162 | 86 | One piece | — | — |
| CUR-F3C-302-06 | 6 | 300 | 195 | 103 | One piece | — | — |
| CUR-F3C-302-07 | 7 | 345 | 227 | 120 | One piece | — | — |
| CUR-F3C-302-08 | 8 | 390 | 260 | 137 | One piece | — | — |
| CUR-F3C-302-09 | 9 | 435 | 292 | 154 | One piece | — | — |
| CUR-F3C-302-10 | 10 | 480 | 325 | 172 | One piece | — | — |
| CUR-F3C-302-11 | 11 | 525 | 357 | 189 | One piece | — | — |
| CUR-F3C-302-12 | 12 | 570 | 389 | 206 | One piece | — | — |
| CUR-F3C-302-13 | 13 | 615 | 422 | 223 | One piece | — | — |
| CUR-F3C-302-14 | 14 | 660 | 454 | 240 | One piece | — | — |
| CUR-F3C-302-15 | 15 | 705 | 487 | 257 | One piece | — | — |
| CUR-F3C-302-16 | 16 | 750 | 519 | 274 | One piece | — | — |
| CUR-F3C-302-17 | 17 | 795 | 552 | 292 | One piece | — | — |
| CUR-F3C-302-18 | 18 | 840 | 584 | 309 | One piece | — | — |
| CUR-F3C-302-19 | 19 | 885 | 617 | 326 | One piece | — | — |
| CUR-F3C-302-20 | 20 | 930 | 649 | 343 | One piece | — | — |
| CUR-F3C-302-21 | 21 | 975 | 682 | 360 | One piece | — | — |
| CUR-F3C-302-22 | 22 | 1020 | 714 | 377 | One piece | — | — |
| CUR-F3C-302-23 | 23 | 1065 | 746 | 395 | One piece | — | — |
| CUR-F3C-302-24 | 24 | 1110 | 779 | 412 | One piece | — | — |
| CUR-F3C-302-25 | 25 | 1155 | 811 | 429 | One piece | — | — |
| CUR-F3C-302-26 | 26 | 1200 | 844 | 446 | 2 pieces | — | — |
| CUR-F3C-302-27 | 27 | 1245 | 876 | 463 | 2 pieces | — | — |
| CUR-F3C-302-28 | 28 | 1290 | 909 | 480 | 2 pieces | — | — |
| CUR-F3C-302-29 | 29 | 1335 | 941 | 497 | 2 pieces | — | — |
| CUR-F3C-302-30 | 30 | 1380 | 974 | 515 | 2 pieces | — | — |
| CUR-F3C-302-31 | 31 | 1425 | 1006 | 532 | 2 pieces | — | — |
| CUR-F3C-302-32 | 32 | 1470 | 1038 | 549 | 2 pieces | — | — |
| CUR-F3C-302-33 | 33 | 1515 | 1071 | 566 | 2 pieces | — | — |
| CUR-F3C-302-34 | 34 | 1560 | 1103 | 583 | 2 pieces | — | — |
| CUR-F3C-302-35 | 35 | 1605 | 1136 | 600 | 2 pieces | — | — |
| CUR-F3C-302-36 | 36 | 1650 | 1168 | 618 | 2 pieces | — | — |
| CUR-F3C-302-37 | 37 | 1695 | 1201 | 635 | 2 pieces | — | — |
| CUR-F3C-302-38 | 38 | 1740 | 1233 | 652 | 2 pieces | — | — |
| CUR-F3C-302-39 | 39 | 1785 | 1266 | 669 | 2 pieces | — | — |
| CUR-F3C-302-40 | 40 | 1830 | 1298 | 686 | 2 pieces | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 7.2 |
| ΔT20 | 10.3 |
| ΔT25 | 13.7 |
| ΔT30 | 17.2 |
| ΔT35 | 20.8 |
| ΔT40 | 24.6 |
| ΔT45 | 28.5 |
| ΔT50 | 32.5 |
