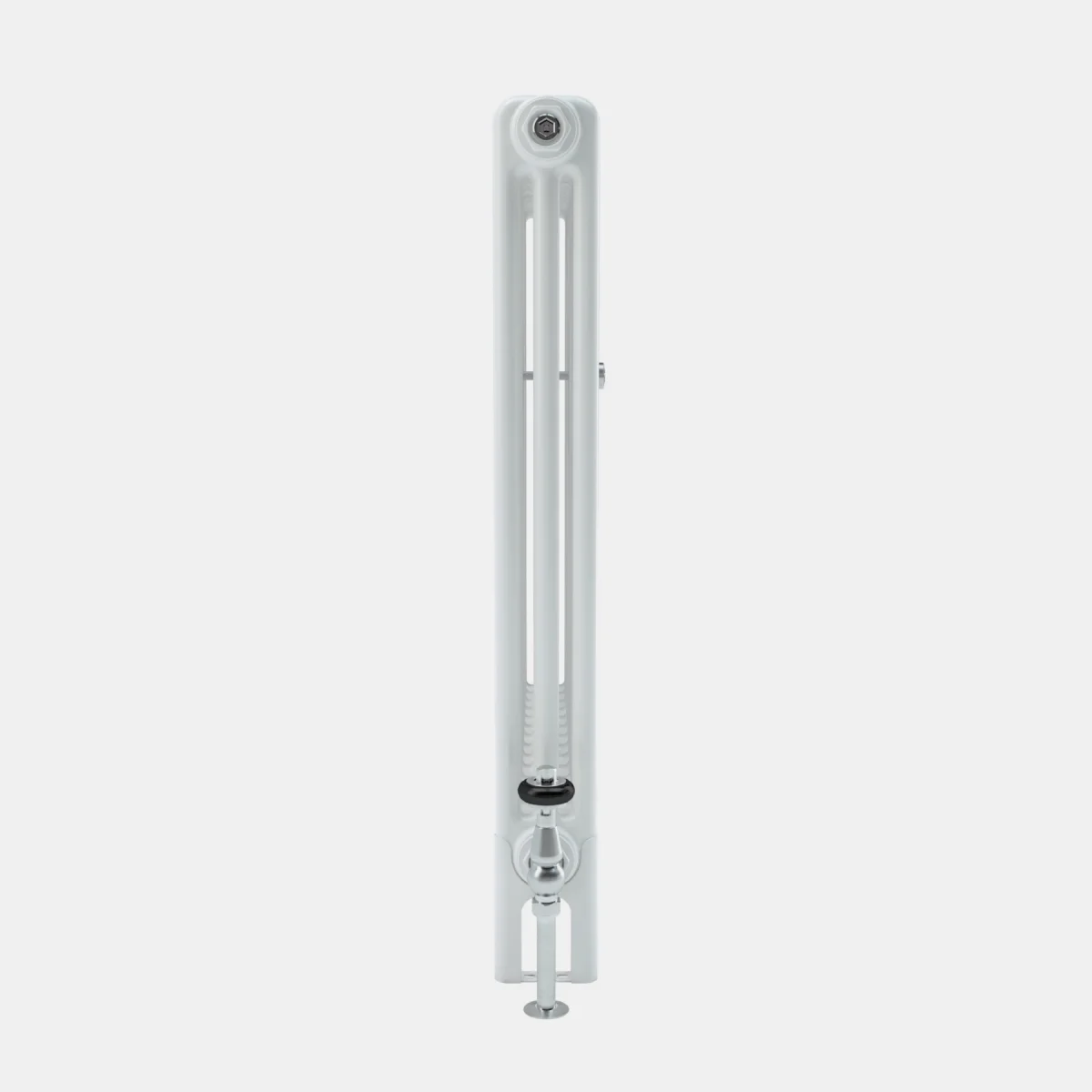

Curved Florence 3 Column 765mm
Made to order
Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.
CUR-F3C-767
Specifications
| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 867mm |
| B | Pipe centre to floor | 134mm |
| C | Max section depth | 103mm |
| D | Interaxis distance | 700mm |
| E | Height without legs | 767mm |
| F | Mid section depth | 101mm |
| G | Pipe centre to wall (Atlas bracket) | 63mm |
| L | Section length | 45mm |
| – | Internal volume per section | 1.2L |
| – | Leg section weight | 1.7kg |
| – | Mid section weight | 1.4kg |
| – | Max single-piece delivery size | 25sections |
| – | Output at ΔT30 | 38.9W |
| – | Output at ΔT50 | 75.5W |
φ = Km × ΔTn · Km = 0.469 · n = 1.299
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.ITPL.01004
Declaration of Performance: 202009-1034 · CE marked
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints |
|---|---|---|---|---|---|---|---|
| CUR-F3C-767-03 | 3 | 165 | 227 | 117 | One piece | — | — |
| CUR-F3C-767-04 | 4 | 210 | 302 | 156 | One piece | — | — |
| CUR-F3C-767-05 | 5 | 255 | 378 | 195 | One piece | — | — |
| CUR-F3C-767-06 | 6 | 300 | 453 | 233 | One piece | — | — |
| CUR-F3C-767-07 | 7 | 345 | 529 | 272 | One piece | — | — |
| CUR-F3C-767-08 | 8 | 390 | 604 | 311 | One piece | — | — |
| CUR-F3C-767-09 | 9 | 435 | 680 | 350 | One piece | — | — |
| CUR-F3C-767-10 | 10 | 480 | 755 | 389 | One piece | — | — |
| CUR-F3C-767-11 | 11 | 525 | 831 | 428 | One piece | — | — |
| CUR-F3C-767-12 | 12 | 570 | 906 | 467 | One piece | — | — |
| CUR-F3C-767-13 | 13 | 615 | 982 | 506 | One piece | — | — |
| CUR-F3C-767-14 | 14 | 660 | 1057 | 545 | One piece | — | — |
| CUR-F3C-767-15 | 15 | 705 | 1133 | 584 | One piece | — | — |
| CUR-F3C-767-16 | 16 | 750 | 1209 | 622 | One piece | — | — |
| CUR-F3C-767-17 | 17 | 795 | 1284 | 661 | One piece | — | — |
| CUR-F3C-767-18 | 18 | 840 | 1360 | 700 | One piece | — | — |
| CUR-F3C-767-19 | 19 | 885 | 1435 | 739 | One piece | — | — |
| CUR-F3C-767-20 | 20 | 930 | 1511 | 778 | One piece | — | — |
| CUR-F3C-767-21 | 21 | 975 | 1586 | 817 | One piece | — | — |
| CUR-F3C-767-22 | 22 | 1020 | 1662 | 856 | One piece | — | — |
| CUR-F3C-767-23 | 23 | 1065 | 1737 | 895 | One piece | — | — |
| CUR-F3C-767-24 | 24 | 1110 | 1813 | 934 | One piece | — | — |
| CUR-F3C-767-25 | 25 | 1155 | 1888 | 973 | One piece | — | — |
| CUR-F3C-767-26 | 26 | 1200 | 1964 | 1011 | 2 pieces | — | — |
| CUR-F3C-767-27 | 27 | 1245 | 2039 | 1050 | 2 pieces | — | — |
| CUR-F3C-767-28 | 28 | 1290 | 2115 | 1089 | 2 pieces | — | — |
| CUR-F3C-767-29 | 29 | 1335 | 2190 | 1128 | 2 pieces | — | — |
| CUR-F3C-767-30 | 30 | 1380 | 2266 | 1167 | 2 pieces | — | — |
| CUR-F3C-767-31 | 31 | 1425 | 2342 | 1206 | 2 pieces | — | — |
| CUR-F3C-767-32 | 32 | 1470 | 2417 | 1245 | 2 pieces | — | — |
| CUR-F3C-767-33 | 33 | 1515 | 2493 | 1284 | 2 pieces | — | — |
| CUR-F3C-767-34 | 34 | 1560 | 2568 | 1323 | 2 pieces | — | — |
| CUR-F3C-767-35 | 35 | 1605 | 2644 | 1362 | 2 pieces | — | — |
| CUR-F3C-767-36 | 36 | 1650 | 2719 | 1400 | 2 pieces | — | — |
| CUR-F3C-767-37 | 37 | 1695 | 2795 | 1439 | 2 pieces | — | — |
| CUR-F3C-767-38 | 38 | 1740 | 2870 | 1478 | 2 pieces | — | — |
| CUR-F3C-767-39 | 39 | 1785 | 2946 | 1517 | 2 pieces | — | — |
| CUR-F3C-767-40 | 40 | 1830 | 3021 | 1556 | 2 pieces | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 15.8 |
| ΔT20 | 23 |
| ΔT25 | 30.7 |
| ΔT30 | 38.9 |
| ΔT35 | 47.5 |
| ΔT40 | 56.5 |
| ΔT45 | 65.9 |
| ΔT50 | 75.5 |
