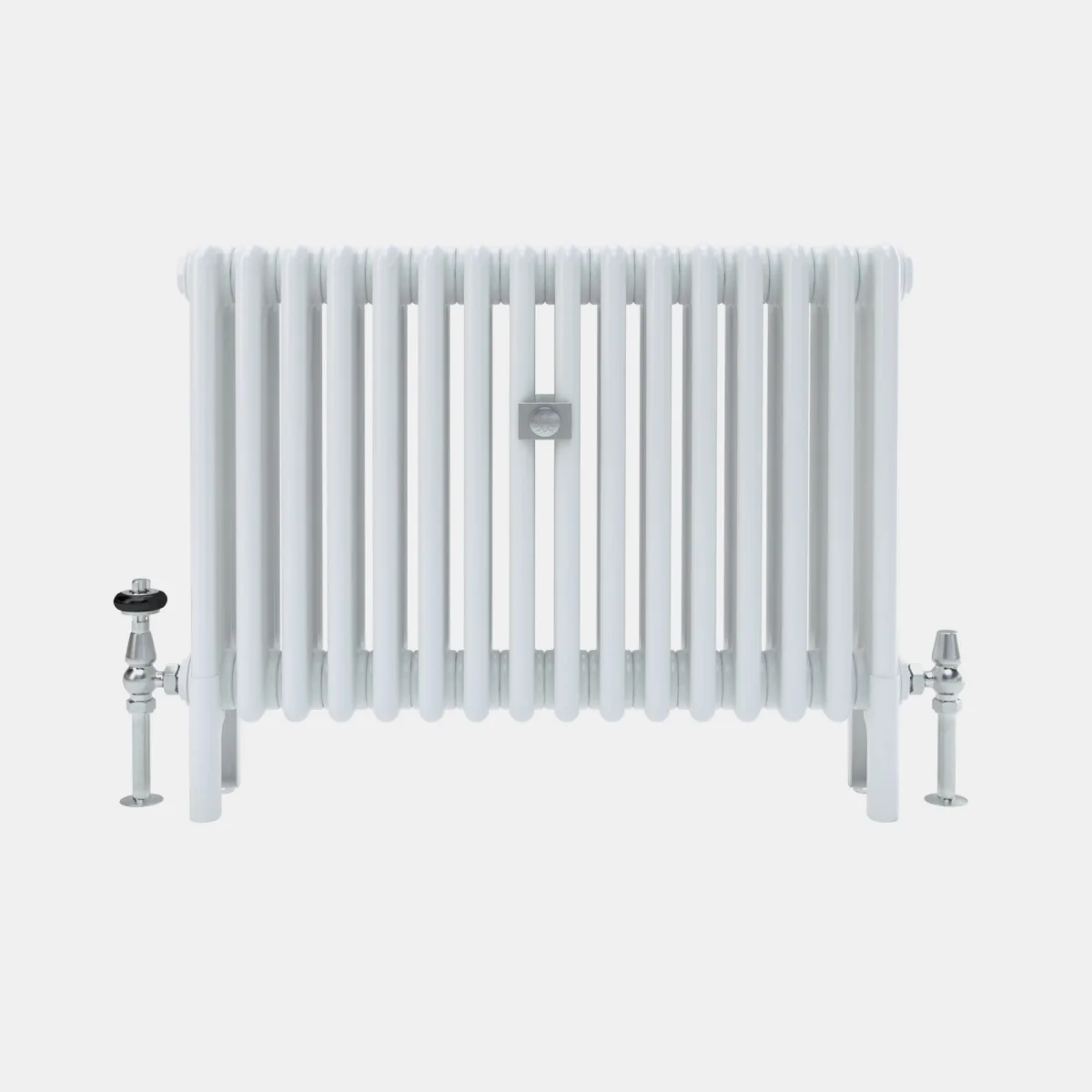

Curved Florence 4 Column 500mm
Made to order
Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.
CUR-F4C-502
Specifications
| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 602mm |
| B | Pipe centre to floor | 134mm |
| C | Max section depth | 141mm |
| D | Interaxis distance | 435mm |
| E | Height without legs | 502mm |
| F | Mid section depth | 139mm |
| G | Pipe centre to wall (Atlas bracket) | 93mm |
| L | Section length | 45mm |
| – | Internal volume per section | 1.11L |
| – | Leg section weight | 1.6kg |
| – | Mid section weight | 1.3kg |
| – | Max single-piece delivery size | 25sections |
| – | Output at ΔT30 | 34.7W |
| – | Output at ΔT50 | 66.9W |
φ = Km × ΔTn · Km = 0.437 · n = 1.286
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.ITPL.01005
Declaration of Performance: 202009-1046 · CE marked
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints |
|---|---|---|---|---|---|---|---|
| CUR-F4C-502-03 | 3 | 165 | 201 | 104 | One piece | — | — |
| CUR-F4C-502-04 | 4 | 210 | 268 | 139 | One piece | — | — |
| CUR-F4C-502-05 | 5 | 255 | 334 | 173 | One piece | — | — |
| CUR-F4C-502-06 | 6 | 300 | 401 | 208 | One piece | — | — |
| CUR-F4C-502-07 | 7 | 345 | 468 | 243 | One piece | — | — |
| CUR-F4C-502-08 | 8 | 390 | 535 | 277 | One piece | — | — |
| CUR-F4C-502-09 | 9 | 435 | 602 | 312 | One piece | — | — |
| CUR-F4C-502-10 | 10 | 480 | 669 | 347 | One piece | — | — |
| CUR-F4C-502-11 | 11 | 525 | 736 | 381 | One piece | — | — |
| CUR-F4C-502-12 | 12 | 570 | 803 | 416 | One piece | — | — |
| CUR-F4C-502-13 | 13 | 615 | 870 | 451 | One piece | — | — |
| CUR-F4C-502-14 | 14 | 660 | 936 | 485 | One piece | — | — |
| CUR-F4C-502-15 | 15 | 705 | 1003 | 520 | One piece | — | — |
| CUR-F4C-502-16 | 16 | 750 | 1070 | 555 | One piece | — | — |
| CUR-F4C-502-17 | 17 | 795 | 1137 | 590 | One piece | — | — |
| CUR-F4C-502-18 | 18 | 840 | 1204 | 624 | One piece | — | — |
| CUR-F4C-502-19 | 19 | 885 | 1271 | 659 | One piece | — | — |
| CUR-F4C-502-20 | 20 | 930 | 1338 | 694 | One piece | — | — |
| CUR-F4C-502-21 | 21 | 975 | 1405 | 728 | One piece | — | — |
| CUR-F4C-502-22 | 22 | 1020 | 1472 | 763 | One piece | — | — |
| CUR-F4C-502-23 | 23 | 1065 | 1538 | 798 | One piece | — | — |
| CUR-F4C-502-24 | 24 | 1110 | 1605 | 832 | One piece | — | — |
| CUR-F4C-502-25 | 25 | 1155 | 1672 | 867 | One piece | — | — |
| CUR-F4C-502-26 | 26 | 1200 | 1739 | 902 | 2 pieces | — | — |
| CUR-F4C-502-27 | 27 | 1245 | 1806 | 936 | 2 pieces | — | — |
| CUR-F4C-502-28 | 28 | 1290 | 1873 | 971 | 2 pieces | — | — |
| CUR-F4C-502-29 | 29 | 1335 | 1940 | 1006 | 2 pieces | — | — |
| CUR-F4C-502-30 | 30 | 1380 | 2007 | 1040 | 2 pieces | — | — |
| CUR-F4C-502-31 | 31 | 1425 | 2074 | 1075 | 2 pieces | — | — |
| CUR-F4C-502-32 | 32 | 1470 | 2140 | 1110 | 2 pieces | — | — |
| CUR-F4C-502-33 | 33 | 1515 | 2207 | 1144 | 2 pieces | — | — |
| CUR-F4C-502-34 | 34 | 1560 | 2274 | 1179 | 2 pieces | — | — |
| CUR-F4C-502-35 | 35 | 1605 | 2341 | 1214 | 2 pieces | — | — |
| CUR-F4C-502-36 | 36 | 1650 | 2408 | 1248 | 2 pieces | — | — |
| CUR-F4C-502-37 | 37 | 1695 | 2475 | 1283 | 2 pieces | — | — |
| CUR-F4C-502-38 | 38 | 1740 | 2542 | 1318 | 2 pieces | — | — |
| CUR-F4C-502-39 | 39 | 1785 | 2609 | 1352 | 2 pieces | — | — |
| CUR-F4C-502-40 | 40 | 1830 | 2676 | 1387 | 2 pieces | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 14.2 |
| ΔT20 | 20.6 |
| ΔT25 | 27.4 |
| ΔT30 | 34.7 |
| ΔT35 | 42.3 |
| ΔT40 | 50.2 |
| ΔT45 | 58.4 |
| ΔT50 | 66.9 |
