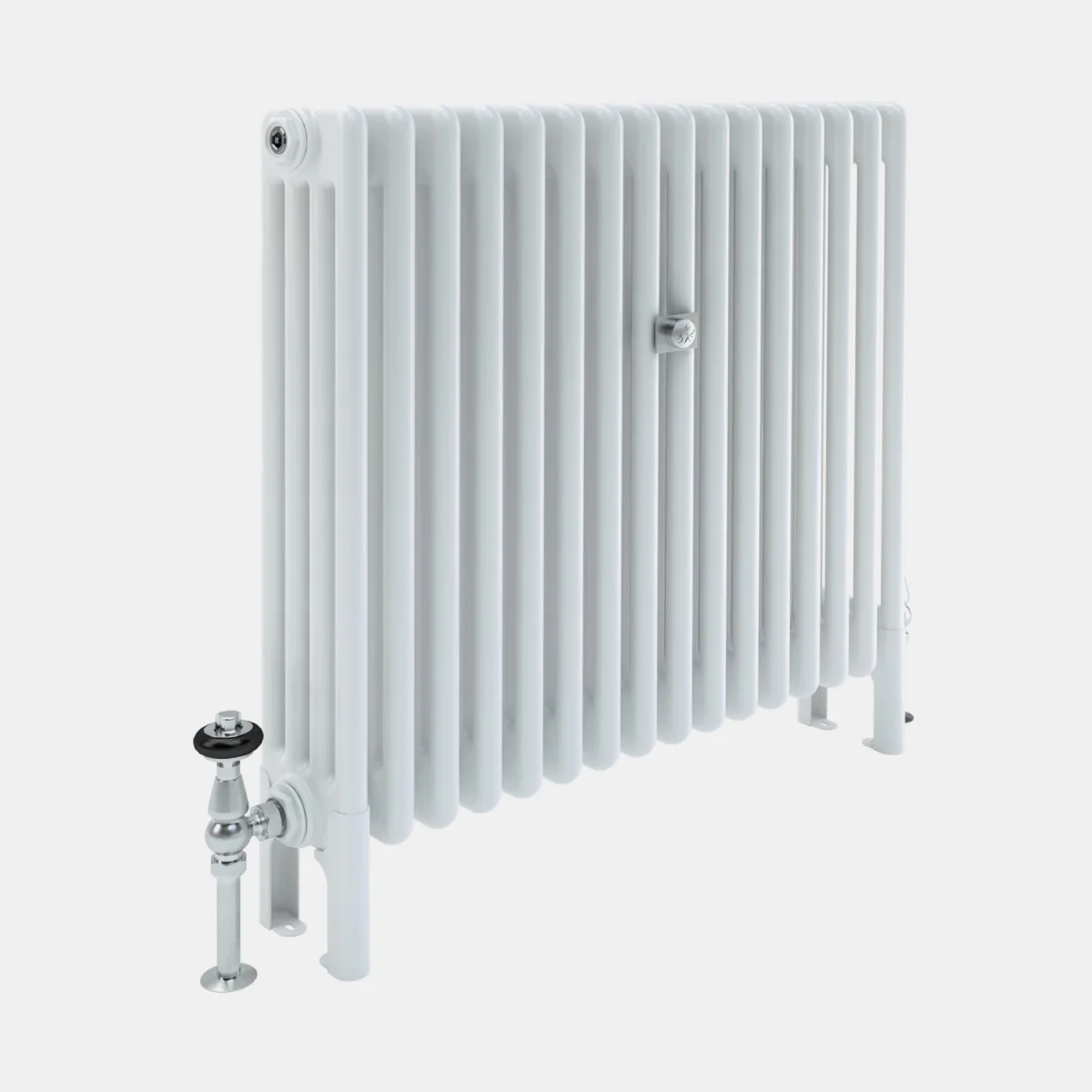

Curved Florence 4 Column 685mm
Made to order
Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.
CUR-F4C-687
Specifications
| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 787mm |
| B | Pipe centre to floor | 134mm |
| C | Max section depth | 141mm |
| D | Interaxis distance | 620mm |
| E | Height without legs | 687mm |
| F | Mid section depth | 139mm |
| G | Pipe centre to wall (Atlas bracket) | 93mm |
| L | Section length | 45mm |
| – | Internal volume per section | 1.42L |
| – | Leg section weight | 2.04kg |
| – | Mid section weight | 1.74kg |
| – | Max single-piece delivery size | 25sections |
| – | Output at ΔT30 | 45.5W |
| – | Output at ΔT50 | 89.0W |
φ = Km × ΔTn · Km = 0.525 · n = 1.312
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.ITPL.01005
Declaration of Performance: 202009-1048 · CE marked
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints |
|---|---|---|---|---|---|---|---|
| CUR-F4C-687-03 | 3 | 165 | 267 | 137 | One piece | — | — |
| CUR-F4C-687-04 | 4 | 210 | 356 | 182 | One piece | — | — |
| CUR-F4C-687-05 | 5 | 255 | 445 | 228 | One piece | — | — |
| CUR-F4C-687-06 | 6 | 300 | 534 | 273 | One piece | — | — |
| CUR-F4C-687-07 | 7 | 345 | 623 | 319 | One piece | — | — |
| CUR-F4C-687-08 | 8 | 390 | 712 | 364 | One piece | — | — |
| CUR-F4C-687-09 | 9 | 435 | 801 | 410 | One piece | — | — |
| CUR-F4C-687-10 | 10 | 480 | 890 | 455 | One piece | — | — |
| CUR-F4C-687-11 | 11 | 525 | 979 | 501 | One piece | — | — |
| CUR-F4C-687-12 | 12 | 570 | 1068 | 546 | One piece | — | — |
| CUR-F4C-687-13 | 13 | 615 | 1157 | 592 | One piece | — | — |
| CUR-F4C-687-14 | 14 | 660 | 1245 | 637 | One piece | — | — |
| CUR-F4C-687-15 | 15 | 705 | 1334 | 683 | One piece | — | — |
| CUR-F4C-687-16 | 16 | 750 | 1423 | 728 | One piece | — | — |
| CUR-F4C-687-17 | 17 | 795 | 1512 | 774 | One piece | — | — |
| CUR-F4C-687-18 | 18 | 840 | 1601 | 819 | One piece | — | — |
| CUR-F4C-687-19 | 19 | 885 | 1690 | 865 | One piece | — | — |
| CUR-F4C-687-20 | 20 | 930 | 1779 | 910 | One piece | — | — |
| CUR-F4C-687-21 | 21 | 975 | 1868 | 956 | One piece | — | — |
| CUR-F4C-687-22 | 22 | 1020 | 1957 | 1001 | One piece | — | — |
| CUR-F4C-687-23 | 23 | 1065 | 2046 | 1047 | One piece | — | — |
| CUR-F4C-687-24 | 24 | 1110 | 2135 | 1092 | One piece | — | — |
| CUR-F4C-687-25 | 25 | 1155 | 2224 | 1138 | One piece | — | — |
| CUR-F4C-687-26 | 26 | 1200 | 2313 | 1183 | 2 pieces | — | — |
| CUR-F4C-687-27 | 27 | 1245 | 2402 | 1229 | 2 pieces | — | — |
| CUR-F4C-687-28 | 28 | 1290 | 2491 | 1274 | 2 pieces | — | — |
| CUR-F4C-687-29 | 29 | 1335 | 2580 | 1320 | 2 pieces | — | — |
| CUR-F4C-687-30 | 30 | 1380 | 2669 | 1365 | 2 pieces | — | — |
| CUR-F4C-687-31 | 31 | 1425 | 2758 | 1411 | 2 pieces | — | — |
| CUR-F4C-687-32 | 32 | 1470 | 2847 | 1456 | 2 pieces | — | — |
| CUR-F4C-687-33 | 33 | 1515 | 2936 | 1502 | 2 pieces | — | — |
| CUR-F4C-687-34 | 34 | 1560 | 3025 | 1547 | 2 pieces | — | — |
| CUR-F4C-687-35 | 35 | 1605 | 3114 | 1593 | 2 pieces | — | — |
| CUR-F4C-687-36 | 36 | 1650 | 3203 | 1638 | 2 pieces | — | — |
| CUR-F4C-687-37 | 37 | 1695 | 3292 | 1684 | 2 pieces | — | — |
| CUR-F4C-687-38 | 38 | 1740 | 3381 | 1730 | 2 pieces | — | — |
| CUR-F4C-687-39 | 39 | 1785 | 3470 | 1775 | 2 pieces | — | — |
| CUR-F4C-687-40 | 40 | 1830 | 3559 | 1821 | 2 pieces | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 18.3 |
| ΔT20 | 26.7 |
| ΔT25 | 35.8 |
| ΔT30 | 45.5 |
| ΔT35 | 55.7 |
| ΔT40 | 66.4 |
| ΔT45 | 77.5 |
| ΔT50 | 89 |
