Emmeline III 470mm
Emmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmEmmeline III 470mmTwo low Emmeline III cast iron radiators in Little Greene Affogato 342 under a bay window with stained glass, green walls and a dark wood floor.Low Emmeline III cast iron radiator in Little Greene Affogato 342 on feet, below leaded bay windows in a green room with dark floorboards.Close-up of the foot of an Emmeline III cast iron radiator in a dark metallic finish, with a satin nickel angled thermostatic valve and black head.End view of an Emmeline III 470mm three-column cast iron radiator on feet in a dark textured finish, with a nickel valve and wall stay.End view of an Emmeline III 470mm three-column cast iron radiator on feet in a dark metallic finish, with satin nickel valve and bleed key.End view of an Emmeline III three-column cast iron radiator on feet in a dark pewter-grey finish, with a satin nickel angled valve and bleed valve.Close-up of the top corner of an Emmeline III cast iron radiator in a dark graphite finish, showing rounded columns and a brass bleed plug.Close-up of the Emmeline III 470mm cast iron radiator foot in a dark metallic finish, fitted with a satin nickel angled thermostatic valve.Close-up of the top corner of an Emmeline III cast iron radiator in a dark graphite finish, showing rounded column tops and an end plug.Emmeline III cast iron radiator, eight sections on feet, in a dark metallic grey finish with satin nickel valves and a wall stay, on white.Emmeline III 470mm cast iron radiator with eight rounded sections on feet, dark metallic finish, satin nickel valves and a wall stay.End view of an Emmeline III 470mm cast iron radiator on feet in a dark grey textured finish, with a satin nickel valve and wall stay.Emmeline III 470mm cast iron radiator on feet, eight sections in a dark pewter-like finish, with satin nickel thermostatic valves and a small decorative wall stay.Eight-section Emmeline III cast iron radiator on feet in a dark metallic finish, with a satin nickel wall stay and thermostatic valves.Emmeline III 470mm cast iron radiator with eight sections on feet in a dark metallic finish, with brushed nickel valves and a wall stay.End view of an Emmeline III 470mm cast iron radiator on feet in a textured dark grey finish, with a satin nickel valve and wall stay.End view of an Emmeline III 470mm three-column cast iron radiator on feet in a dark metallic finish, with a satin nickel valve and wall stay.Close-up of an Emmeline III cast iron radiator foot in a dark pewter-grey finish, fitted with a satin nickel angled valve with a black head.Close-up of the Emmeline III 470mm cast iron radiator in a dark metallic finish, with a satin nickel angled thermostatic valve and black head.Close-up of the top corner of an Emmeline III cast iron radiator in a dark textured finish, showing rounded plain columns and an end plug.End view of an Emmeline III three-column cast iron radiator on feet in a dark pewter-grey finish, with a nickel valve and wall stay.Close-up of the top corner of an Emmeline III cast iron radiator in a textured dark grey finish, showing plain rounded columns and a brass bleed plug.Eight-section Emmeline III cast iron radiator on feet in a dark metallic finish, with a satin nickel thermostatic valve and angled valve.End view of an Emmeline III 470mm three-column cast iron radiator on feet, dark grey textured finish, with a nickel valve and wall stay.Emmeline III 470mm eight-section cast iron radiator in a dark metallic finish on feet, with satin nickel valves and a centre wall stay.Emmeline III 470mm cast iron radiator with eight sections in a dark graphite finish on feet, with satin nickel valves and a wall stay.Emmeline III 470mm in Black Iron - angled viewEmmeline III 470mm in Black Iron - shoulder detail viewEmmeline III 470mm Castrads bay window radiator in Black Iron finishEmmeline III 470mm in Black Iron - side viewEight-section Emmeline III 470mm cast iron radiator on feet in a dark graphite finish, with nickel thermostatic and lockshield valves.End view of an Emmeline III 470mm cast iron radiator on feet in a textured dark grey finish, with a nickel valve and wall stay.Emmeline III 470mm cast iron radiator with eight curved sections on feet, dark metallic finish, satin nickel valves and wall stay, on white.End view of an Emmeline III 470mm three-column cast iron radiator on feet in a dark pewter-grey finish with a satin nickel valve.Emmeline III 470mm cast iron radiator, eight sections on feet, dark graphite finish, satin nickel valves and a central badge, on white.Close-up of the top corner of an Emmeline III cast iron radiator in a textured dark grey finish, showing rounded columns and a brass-centred end plug.Close-up of the top corner of an Emmeline III cast iron radiator in a textured dark grey finish, with a brass bleed valve in the end plug.Close-up of an Emmeline III cast iron radiator foot in a dark pewter-grey finish with a satin nickel thermostatic angled valve and black head.Close-up of an Emmeline III cast iron radiator foot in a dark metallic finish with a brushed nickel angled thermostatic valve and black head.End view of an Emmeline III 470mm three-column cast iron radiator on feet in a dark pewter-grey finish, with a satin nickel valve and bleed key.Emmeline III 470mm cast iron radiator with eight rounded sections on feet, in a dark metallic finish, with nickel valves and a wall stay.End view of an Emmeline III 470mm cast iron radiator on feet in a textured dark grey finish, with a satin nickel valve and wall stay.Two low Emmeline III cast iron radiators in Little Greene Affogato 342 on feet beneath a stained glass bay window in a green-walled room with dark floorboards.

Emmeline III 470mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

CI-EML3-470

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded PaintsBare Metal
CI-EML3-470-033230244128One piece———
CI-EML3-470-044296325170One piece———
CI-EML3-470-055363406213One piece———
CI-EML3-470-066429487255One piece———
CI-EML3-470-077496568298One piece———
CI-EML3-470-088562650340One piece———
CI-EML3-470-099629731383One piece———
CI-EML3-470-1010695812426One piece———
CI-EML3-470-1111762893468One piece———
CI-EML3-470-1212828975511One piece———
CI-EML3-470-13138951056553One piece———
CI-EML3-470-14149611137596One piece———
CI-EML3-470-1515102812186382 pieces———
CI-EML3-470-1616109412996812 pieces———
CI-EML3-470-1717116113817232 pieces———
CI-EML3-470-1818122714627662 pieces———
CI-EML3-470-1919129415438092 pieces———
CI-EML3-470-2020136016248512 pieces———
CI-EML3-470-2121142717058942 pieces———
CI-EML3-470-2222149317879362 pieces———
CI-EML3-470-2323156018689792 pieces———
CI-EML3-470-24241626194910212 pieces———
CI-EML3-470-25251693203010642 pieces———
CI-EML3-470-26261759211211072 pieces———
CI-EML3-470-27271826219311492 pieces———
CI-EML3-470-28281892227411922 pieces———
CI-EML3-470-29291959235512343 pieces———
CI-EML3-470-30302025243612773 pieces———
CI-EML3-470-31312092251813193 pieces———
CI-EML3-470-32322158259913623 pieces———
CI-EML3-470-33332225268014043 pieces———
CI-EML3-470-34342291276114473 pieces———
CI-EML3-470-35352358284214903 pieces———
CI-EML3-470-36362424292415323 pieces———
CI-EML3-470-37372491300515753 pieces———
CI-EML3-470-38382557308616173 pieces———
CI-EML3-470-39392624316716603 pieces———
CI-EML3-470-40402690324817023 pieces———

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

0234568901520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1517.7
ΔT2025.5
ΔT2533.8
ΔT3042.6
ΔT3551.7
ΔT4061.2
ΔT4571.1
ΔT5081.2

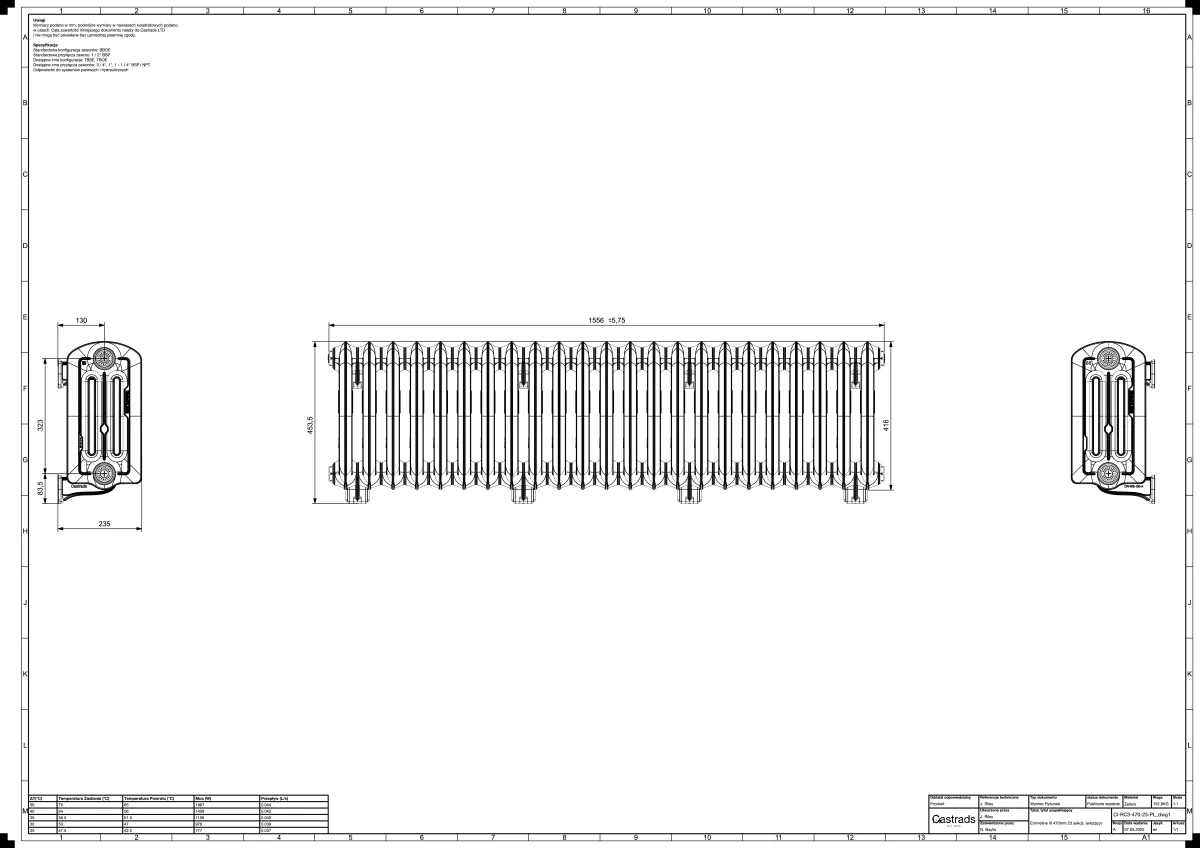

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs470mm
BPipe centre to floor100mm
CMax section depth230mm
DInteraxis distance322.5mm
EHeight without legs416mm
FMid section depth210mm
GPipe centre to wall (Atlas bracket)130mm
LSection length66.5mm
–Internal volume per section1.34L
–Leg section weight7.6kg
–Mid section weight6.5kg
–Max single-piece delivery size14sections
–Output at ΔT3042.6W
–Output at ΔT5081.2W

φ = Km × ΔTn · Km = 0.576 · n = 1.265
Tested to EN 442 · BSRIA · Test ref: 104331/2
Declaration of Performance: 202309-1087 · CE marked
