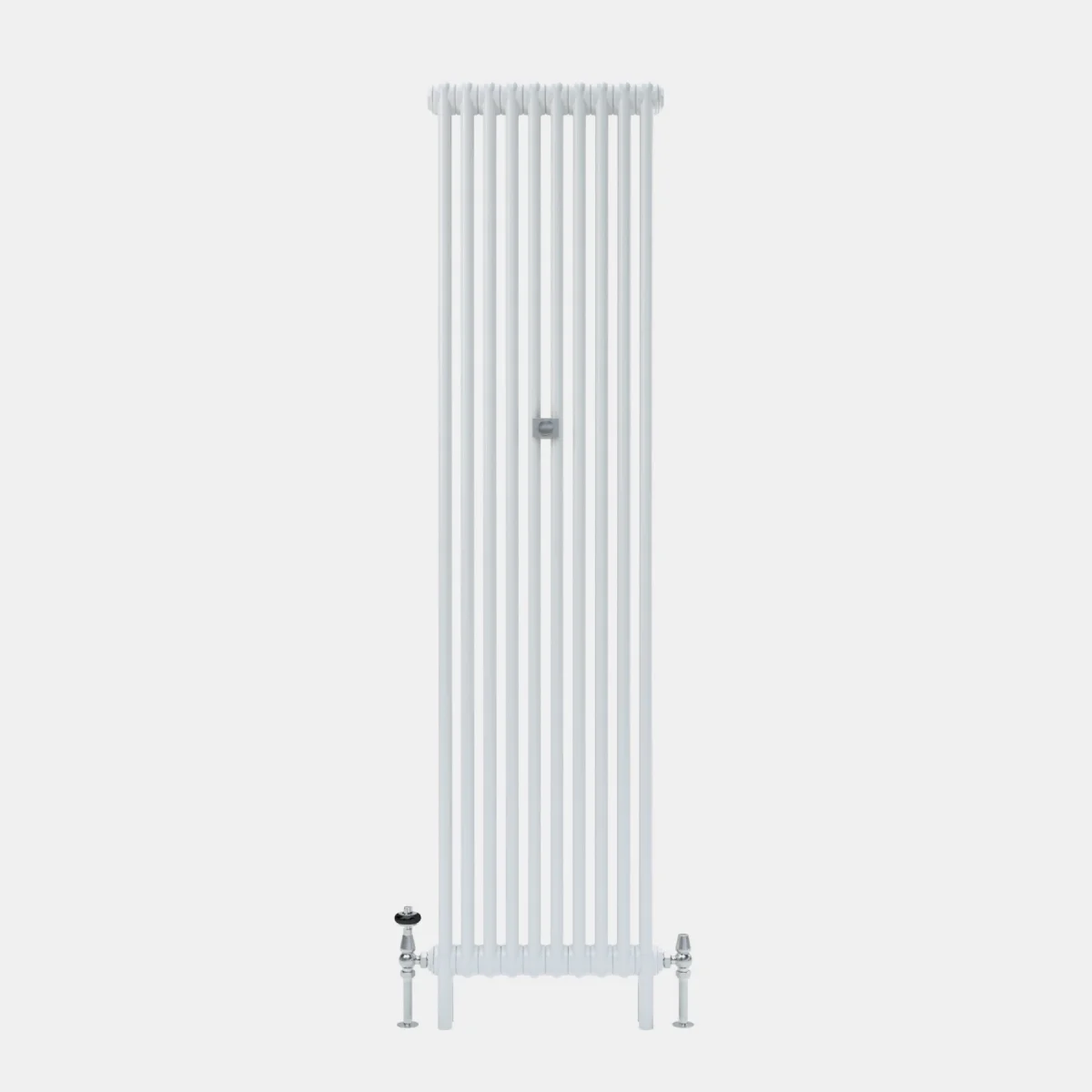

Tall white Florence 2 Column steel radiator on feet, front view, with chrome thermostatic and lockshield valves and a central wall stay.

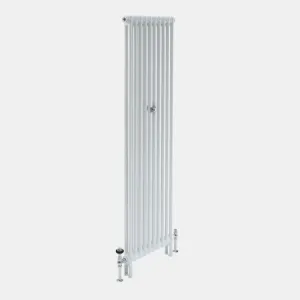

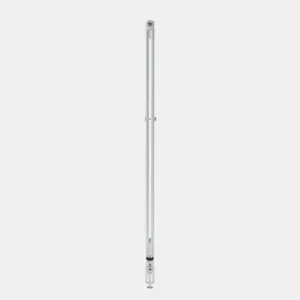

Side view of a tall white Florence 2 Column steel column radiator with a central wall stay, a top bleed valve and a valve at the base.Tall plain Florence 2 Column steel radiator in white, standing on feet, with chrome valves, a black-topped wheelhead and a central wall stay.Technical drawing: Florence 2 Column 1800mm steel column radiatorTechnical drawing: Florence 2 Column 1800mm steel column radiatorTechnical drawing: Florence 2 Column 1800mm steel column radiatorTechnical drawing: Florence 2 Column 1800mm steel column radiator

Florence 2 Column 1800mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F2C-1802

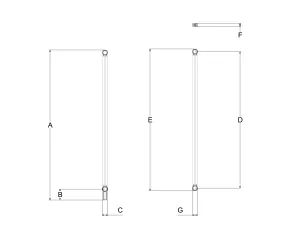

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs1902mm
BPipe centre to floor134mm
CMax section depth67mm
DInteraxis distance1735mm
EHeight without legs1802mm
FMid section depth65mm
GPipe centre to wall (Atlas bracket)63mm
LSection length45mm
–Internal volume per section1.64L
–Leg section weight2.71kg
–Mid section weight2.41kg
–Max single-piece delivery size25sections
–Output at ΔT3062.9W
–Output at ΔT50124.1W

φ = Km × ΔTn · Km = 0.685 · n = 1.329
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_A
Declaration of Performance: 202009-1009 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F2C-1802-033165372189One piece——
SMC-F2C-1802-044210496252One piece——
SMC-F2C-1802-055255620315One piece——
SMC-F2C-1802-066300744378One piece——
SMC-F2C-1802-077345868440One piece——
SMC-F2C-1802-088390992503One piece——
SMC-F2C-1802-0994351117566One piece——
SMC-F2C-1802-10104801241629One piece——
SMC-F2C-1802-11115251365692One piece——
SMC-F2C-1802-12125701489755One piece——
SMC-F2C-1802-13136151613818One piece——
SMC-F2C-1802-14146601737881One piece——
SMC-F2C-1802-15157051861944One piece——
SMC-F2C-1802-161675019851007One piece——
SMC-F2C-1802-171779521091070One piece——
SMC-F2C-1802-181884022331133One piece——
SMC-F2C-1802-191988523571195One piece——
SMC-F2C-1802-202093024811258One piece——
SMC-F2C-1802-212197526051321One piece——
SMC-F2C-1802-2222102027291384One piece——
SMC-F2C-1802-2323106528531447One piece——
SMC-F2C-1802-2424111029771510One piece——
SMC-F2C-1802-2525115531011573One piece——
SMC-F2C-1802-26261200322516362 pieces——
SMC-F2C-1802-27271245335016992 pieces——
SMC-F2C-1802-28281290347417622 pieces——
SMC-F2C-1802-29291335359818252 pieces——
SMC-F2C-1802-30301380372218882 pieces——
SMC-F2C-1802-31311425384619512 pieces——
SMC-F2C-1802-32321470397020132 pieces——
SMC-F2C-1802-33331515409420762 pieces——
SMC-F2C-1802-34341560421821392 pieces——
SMC-F2C-1802-35351605434222022 pieces——
SMC-F2C-1802-36361650446622652 pieces——
SMC-F2C-1802-37371695459023282 pieces——
SMC-F2C-1802-38381740471423912 pieces——
SMC-F2C-1802-39391785483824542 pieces——
SMC-F2C-1802-40401830496225172 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

03365981301520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1525
ΔT2036.7
ΔT2549.4
ΔT3062.9
ΔT3577.2
ΔT4092.2
ΔT45107.8
ΔT50124.1
