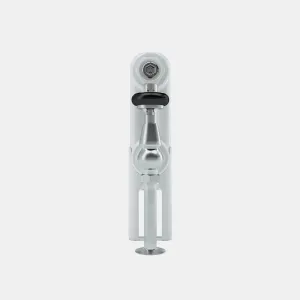

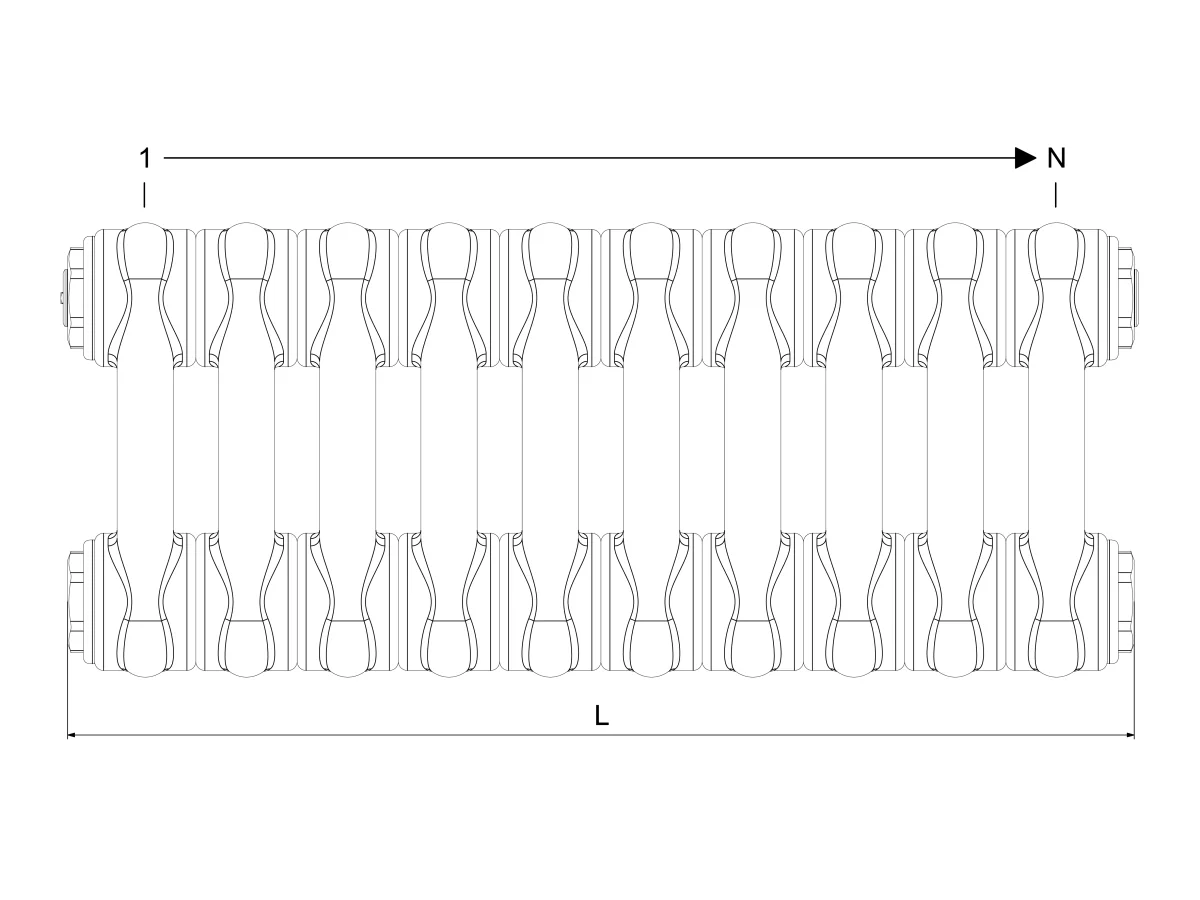

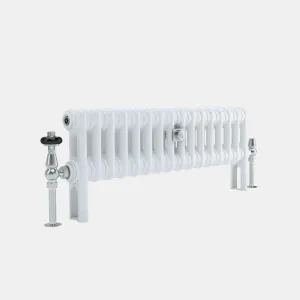

Technical drawing: Florence 2 Column 200mm steel column radiatorTechnical drawing: Florence 2 Column 200mm steel column radiatorTechnical drawing: Florence 2 Column 200mm steel column radiatorEnd view of a white Florence 2 Column steel radiator with a chrome valve, black collar and pipe dropping to a chrome floor plate.Florence 2Col 300mmLow white Florence 2 Column steel radiator on feet, with a chrome angled valve with black head, a chrome lockshield and a central wall stay.

Florence 2 Column 200mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F2C-194

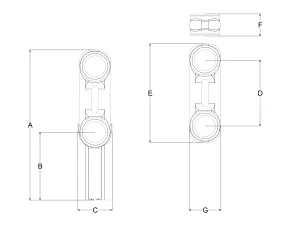

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs294mm
BPipe centre to floor134mm
CMax section depth67mm
DInteraxis distance127mm
EHeight without legs194mm
FMid section depth65mm
GPipe centre to wall (Atlas bracket)63mm
LSection length45mm
–Internal volume per section0.3L
–Leg section weight0.6kg
–Mid section weight0.3kg
–Max single-piece delivery size25sections
–Output at ΔT307.8W
–Output at ΔT5014.9W

φ = Km × ΔTn · Km = 0.111 · n = 1.252
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_A
Declaration of Performance: 202009-1010 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F2C-194-0331654524One piece——
SMC-F2C-194-0442105931One piece——
SMC-F2C-194-0552557439One piece——
SMC-F2C-194-0663008947One piece——
SMC-F2C-194-07734510455One piece——
SMC-F2C-194-08839011963One piece——
SMC-F2C-194-09943513471One piece——
SMC-F2C-194-101048014978One piece——
SMC-F2C-194-111152516486One piece——
SMC-F2C-194-121257017894One piece——
SMC-F2C-194-1313615193102One piece——
SMC-F2C-194-1414660208110One piece——
SMC-F2C-194-1515705223118One piece——
SMC-F2C-194-1616750238126One piece——
SMC-F2C-194-1717795253133One piece——
SMC-F2C-194-1818840268141One piece——
SMC-F2C-194-1919885283149One piece——
SMC-F2C-194-2020930297157One piece——
SMC-F2C-194-2121975312165One piece——
SMC-F2C-194-22221020327173One piece——
SMC-F2C-194-23231065342180One piece——
SMC-F2C-194-24241110357188One piece——
SMC-F2C-194-25251155372196One piece——
SMC-F2C-194-262612003872042 pieces——
SMC-F2C-194-272712454022122 pieces——
SMC-F2C-194-282812904162202 pieces——
SMC-F2C-194-292913354312282 pieces——
SMC-F2C-194-303013804462352 pieces——
SMC-F2C-194-313114254612432 pieces——
SMC-F2C-194-323214704762512 pieces——
SMC-F2C-194-333315154912592 pieces——
SMC-F2C-194-343415605062672 pieces——
SMC-F2C-194-353516055212752 pieces——
SMC-F2C-194-363616505352822 pieces——
SMC-F2C-194-373716955502902 pieces——
SMC-F2C-194-383817405652982 pieces——
SMC-F2C-194-393917855803062 pieces——
SMC-F2C-194-404018305953142 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

051015201520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT153.3
ΔT204.7
ΔT256.2
ΔT307.8
ΔT359.5
ΔT4011.2
ΔT4513
ΔT5014.9
