Tall, plain Florence 4 Column steel radiator in white on feet, with a chrome angled valve at the base and a central wall stay.

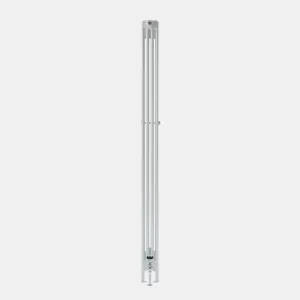

Tall white Florence 4 Column steel radiator on feet, with a central wall stay and chrome valves at both bottom ends, on a plain grey background.Side view of a tall, plain Florence 4 Column steel radiator in white, with a mid-height wall stay and a chrome valve at the base.Technical drawing: Florence 4 Column 2000mm steel column radiatorTechnical drawing: Florence 4 Column 2000mm steel column radiatorTechnical drawing: Florence 4 Column 2000mm steel column radiatorTechnical drawing: Florence 4 Column 2000mm steel column radiator

Florence 4 Column 2000mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F4C-2002

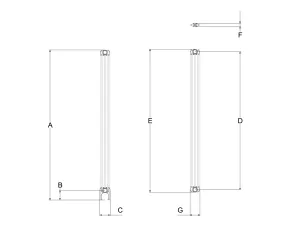

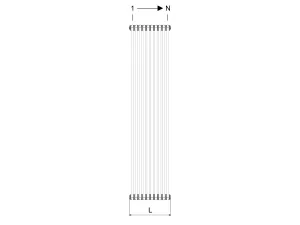

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs2102mm
BPipe centre to floor134mm
CMax section depth141mm
DInteraxis distance1935mm
EHeight without legs2002mm
FMid section depth139mm
GPipe centre to wall (Atlas bracket)93mm
LSection length45mm
–Internal volume per section3.55L
–Leg section weight5.56kg
–Mid section weight5.26kg
–Max single-piece delivery size25sections
–Output at ΔT30121.7W
–Output at ΔT50238.5W

φ = Km × ΔTn · Km = 1.38 · n = 1.317
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.ITPL.01005
Declaration of Performance: 202009-1041 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F4C-2002-033165715365One piece——
SMC-F4C-2002-044210954487One piece——
SMC-F4C-2002-0552551192608One piece——
SMC-F4C-2002-0663001431730One piece——
SMC-F4C-2002-0773451669852One piece——
SMC-F4C-2002-0883901908974One piece——
SMC-F4C-2002-09943521461095One piece——
SMC-F4C-2002-101048023851217One piece——
SMC-F4C-2002-111152526231339One piece——
SMC-F4C-2002-121257028621460One piece——
SMC-F4C-2002-131361531001582One piece——
SMC-F4C-2002-141466033381704One piece——
SMC-F4C-2002-151570535771825One piece——
SMC-F4C-2002-161675038151947One piece——
SMC-F4C-2002-171779540542069One piece——
SMC-F4C-2002-181884042922190One piece——
SMC-F4C-2002-191988545312312One piece——
SMC-F4C-2002-202093047692434One piece——
SMC-F4C-2002-212197550082555One piece——
SMC-F4C-2002-2222102052462677One piece——
SMC-F4C-2002-2323106554852799One piece——
SMC-F4C-2002-2424111057232921One piece——
SMC-F4C-2002-2525115559623042One piece——
SMC-F4C-2002-26261200620031642 pieces——
SMC-F4C-2002-27271245643932862 pieces——
SMC-F4C-2002-28281290667734072 pieces——
SMC-F4C-2002-29291335691535292 pieces——
SMC-F4C-2002-30301380715436512 pieces——
SMC-F4C-2002-31311425739237722 pieces——
SMC-F4C-2002-32321470763138942 pieces——
SMC-F4C-2002-33331515786940162 pieces——
SMC-F4C-2002-34341560810841372 pieces——
SMC-F4C-2002-35351605834642592 pieces——
SMC-F4C-2002-36361650858543812 pieces——
SMC-F4C-2002-37371695882345022 pieces——
SMC-F4C-2002-38381740906246242 pieces——
SMC-F4C-2002-39391785930047462 pieces——
SMC-F4C-2002-40401830953948682 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

0601201802401520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1548.8
ΔT2071.3
ΔT2595.7
ΔT30121.7
ΔT35149.1
ΔT40177.7
ΔT45207.6
ΔT50238.5
