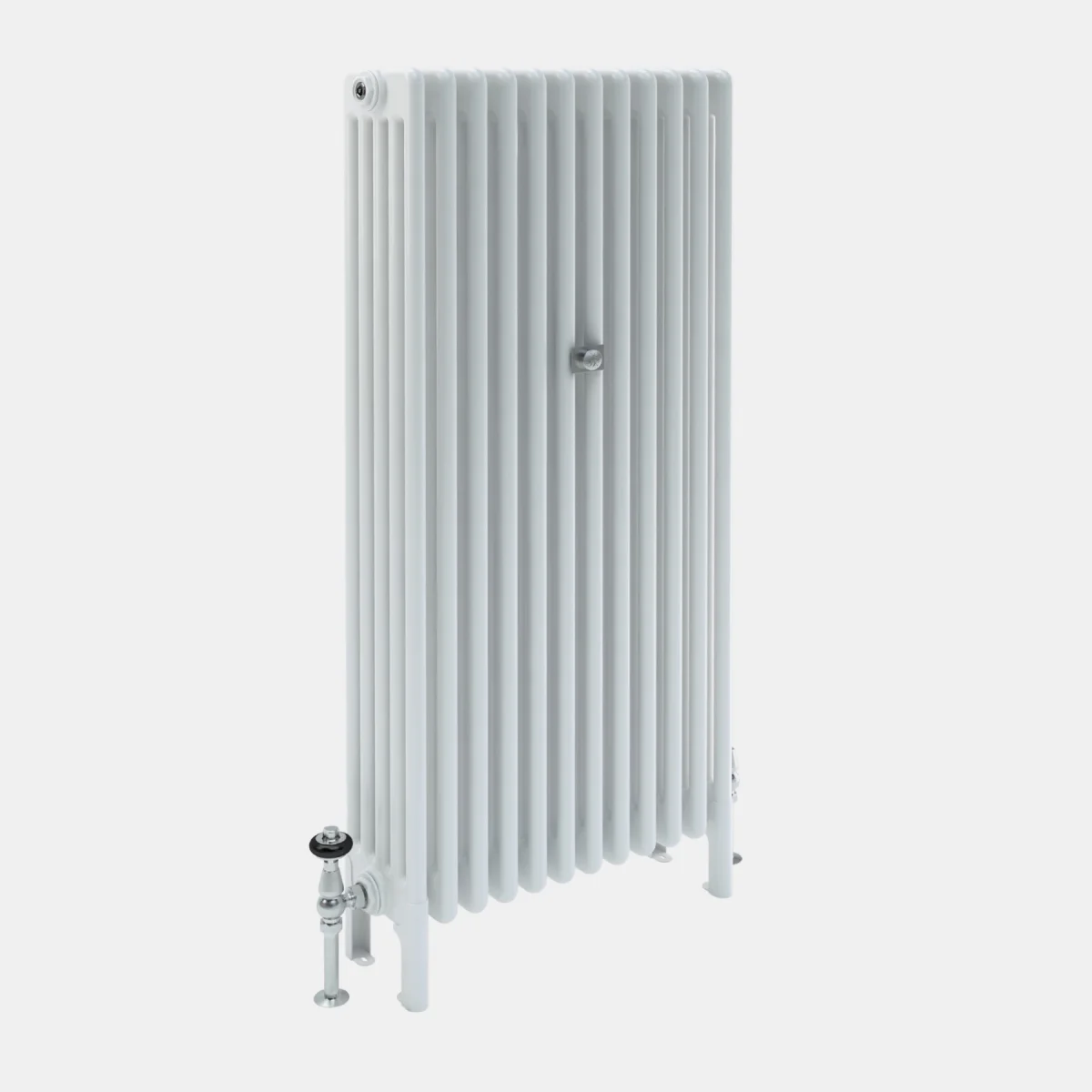

Tall Florence 5 Column steel radiator in white on feet, with a chrome angled valve and a central wall stay, on a plain grey background.

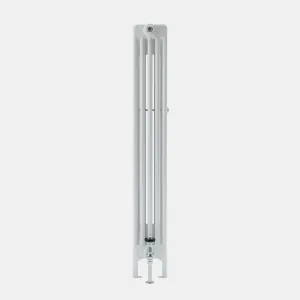

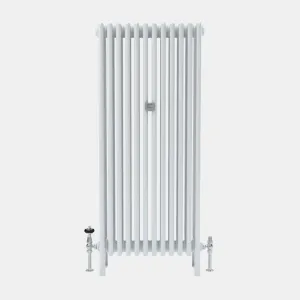

Tall plain Florence 5 Column steel radiator in white on feet, with a central wall stay and chrome valves at each end.End view of a tall white Florence 5 Column steel radiator on feet, with a chrome valve at the base and a bleed valve at the top.Technical drawing: Florence 5 Column 1200mm steel column radiatorTechnical drawing: Florence 5 Column 1200mm steel column radiatorTechnical drawing: Florence 5 Column 1200mm steel column radiatorTechnical drawing: Florence 5 Column 1200mm steel column radiator

Florence 5 Column 1200mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F5C-1202

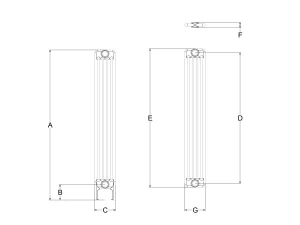

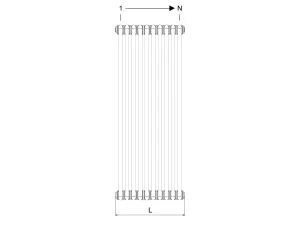

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs1302mm
BPipe centre to floor134mm
CMax section depth179mm
DInteraxis distance1135mm
EHeight without legs1202mm
FMid section depth177mm
GPipe centre to wall (Atlas bracket)130mm
LSection length45mm
–Internal volume per section2.78L
–Leg section weight4.38kg
–Mid section weight4.08kg
–Max single-piece delivery size25sections
–Output at ΔT3090.2W
–Output at ΔT50180.0W

φ = Km × ΔTn · Km = 0.905 · n = 1.353
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_C
Declaration of Performance: 202009-1052 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F5C-1202-033165540271One piece——
SMC-F5C-1202-044210720361One piece——
SMC-F5C-1202-055255900451One piece——
SMC-F5C-1202-0663001080541One piece——
SMC-F5C-1202-0773451260631One piece——
SMC-F5C-1202-0883901440722One piece——
SMC-F5C-1202-0994351620812One piece——
SMC-F5C-1202-10104801800902One piece——
SMC-F5C-1202-11115251980992One piece——
SMC-F5C-1202-121257021601082One piece——
SMC-F5C-1202-131361523401173One piece——
SMC-F5C-1202-141466025201263One piece——
SMC-F5C-1202-151570527011353One piece——
SMC-F5C-1202-161675028811443One piece——
SMC-F5C-1202-171779530611533One piece——
SMC-F5C-1202-181884032411624One piece——
SMC-F5C-1202-191988534211714One piece——
SMC-F5C-1202-202093036011804One piece——
SMC-F5C-1202-212197537811894One piece——
SMC-F5C-1202-2222102039611984One piece——
SMC-F5C-1202-2323106541412075One piece——
SMC-F5C-1202-2424111043212165One piece——
SMC-F5C-1202-2525115545012255One piece——
SMC-F5C-1202-26261200468123452 pieces——
SMC-F5C-1202-27271245486124352 pieces——
SMC-F5C-1202-28281290504125262 pieces——
SMC-F5C-1202-29291335522126162 pieces——
SMC-F5C-1202-30301380540127062 pieces——
SMC-F5C-1202-31311425558127962 pieces——
SMC-F5C-1202-32321470576128862 pieces——
SMC-F5C-1202-33331515594129772 pieces——
SMC-F5C-1202-34341560612130672 pieces——
SMC-F5C-1202-35351605630131572 pieces——
SMC-F5C-1202-36361650648132472 pieces——
SMC-F5C-1202-37371695666133372 pieces——
SMC-F5C-1202-38381740684134272 pieces——
SMC-F5C-1202-39391785702135182 pieces——
SMC-F5C-1202-40401830720136082 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

045901351801520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1535.3
ΔT2052.1
ΔT2570.5
ΔT3090.2
ΔT35111.1
ΔT40133.1
ΔT45156.1
ΔT50180
