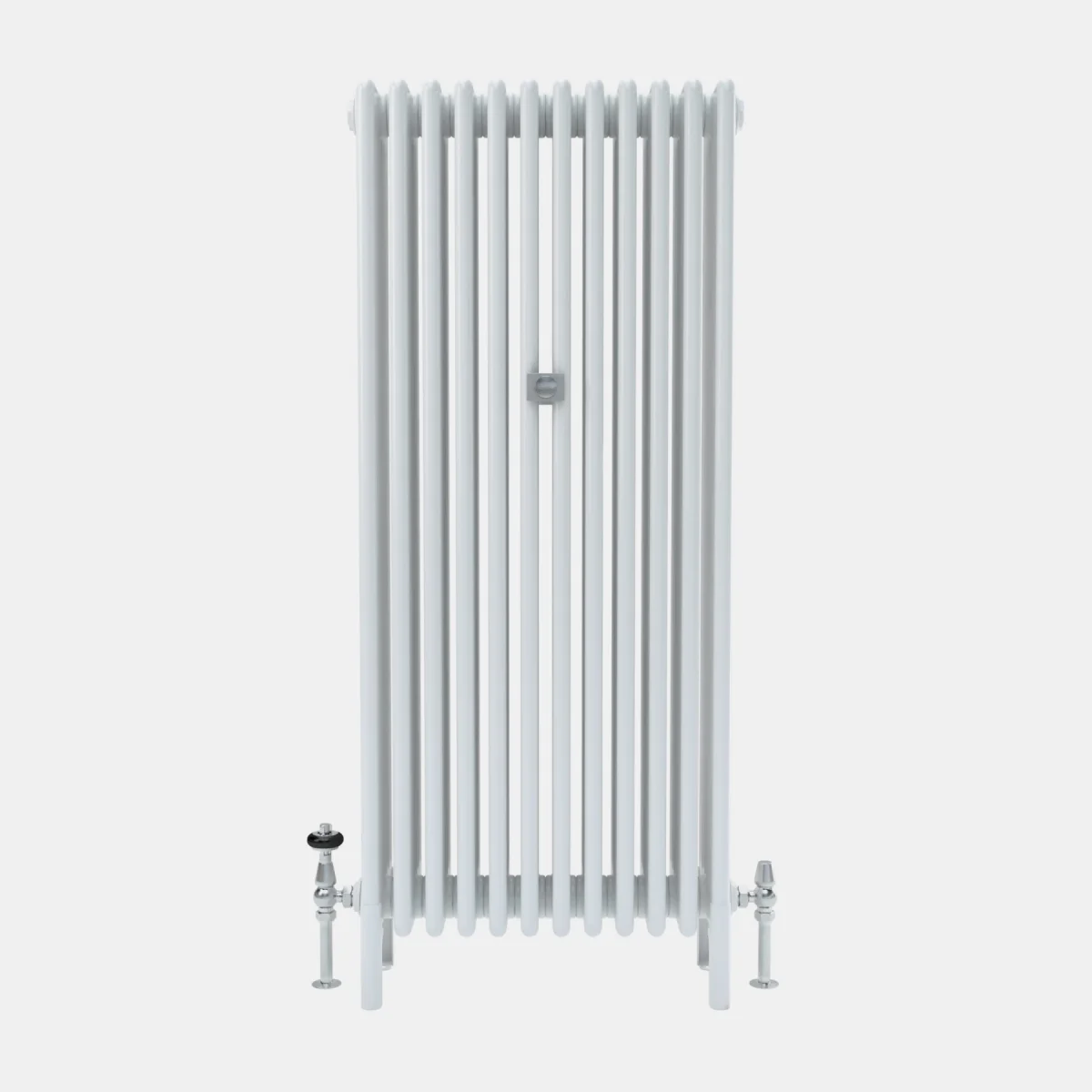

Florence 6 column 1200mm steel column radiator

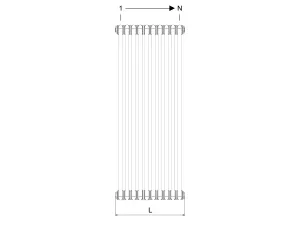

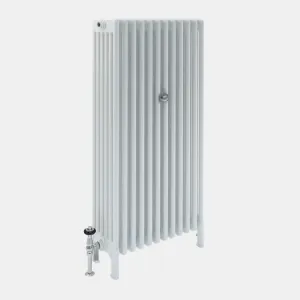

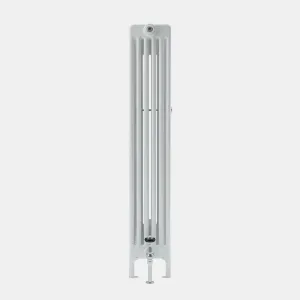

Tall white Florence 6 Column steel radiator on feet, with a chrome valve and black head at the base and a wall stay, on a plain grey background.Side view of a tall white Florence 6 Column steel radiator standing on feet, with a chrome valve at the base and a bleed valve at the top.Technical drawing: Florence 6 Column 1200mm steel column radiatorTechnical drawing: Florence 6 Column 1200mm steel column radiatorTechnical drawing: Florence 6 Column 1200mm steel column radiatorTechnical drawing: Florence 6 Column 1200mm steel column radiator

Florence 6 Column 1200mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F6C-1202

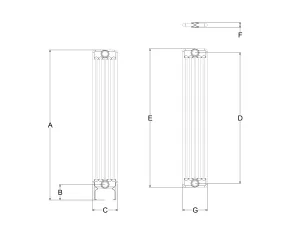

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs1302mm
BPipe centre to floor134mm
CMax section depth217mm
DInteraxis distance1135mm
EHeight without legs1202mm
FMid section depth215mm
GPipe centre to wall (Atlas bracket)130mm
LSection length45mm
–Internal volume per section3.33L
–Leg section weight5.19kg
–Mid section weight4.89kg
–Max single-piece delivery size25sections
–Output at ΔT30104.9W
–Output at ΔT50211.3W

φ = Km × ΔTn · Km = 0.99 · n = 1.371
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_C
Declaration of Performance: 202009-1067 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F6C-1202-033165634315One piece——
SMC-F6C-1202-044210845420One piece——
SMC-F6C-1202-0552551057524One piece——
SMC-F6C-1202-0663001268629One piece——
SMC-F6C-1202-0773451479734One piece——
SMC-F6C-1202-0883901690839One piece——
SMC-F6C-1202-0994351902944One piece——
SMC-F6C-1202-101048021131049One piece——
SMC-F6C-1202-111152523241154One piece——
SMC-F6C-1202-121257025361259One piece——
SMC-F6C-1202-131361527471364One piece——
SMC-F6C-1202-141466029581469One piece——
SMC-F6C-1202-151570531701573One piece——
SMC-F6C-1202-161675033811678One piece——
SMC-F6C-1202-171779535921783One piece——
SMC-F6C-1202-181884038041888One piece——
SMC-F6C-1202-191988540151993One piece——
SMC-F6C-1202-202093042262098One piece——
SMC-F6C-1202-212197544382203One piece——
SMC-F6C-1202-2222102046492308One piece——
SMC-F6C-1202-2323106548602413One piece——
SMC-F6C-1202-2424111050712518One piece——
SMC-F6C-1202-2525115552832622One piece——
SMC-F6C-1202-26261200549427272 pieces——
SMC-F6C-1202-27271245570528322 pieces——
SMC-F6C-1202-28281290591729372 pieces——
SMC-F6C-1202-29291335612830422 pieces——
SMC-F6C-1202-30301380633931472 pieces——
SMC-F6C-1202-31311425655132522 pieces——
SMC-F6C-1202-32321470676233572 pieces——
SMC-F6C-1202-33331515697334622 pieces——
SMC-F6C-1202-34341560718535672 pieces——
SMC-F6C-1202-35351605739636712 pieces——
SMC-F6C-1202-36361650760737762 pieces——
SMC-F6C-1202-37371695781938812 pieces——
SMC-F6C-1202-38381740803039862 pieces——
SMC-F6C-1202-39391785824140912 pieces——
SMC-F6C-1202-40401830845241962 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

0551101652201520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1540.6
ΔT2060.2
ΔT2581.7
ΔT30104.9
ΔT35129.6
ΔT40155.6
ΔT45182.9
ΔT50211.3
