Florence 6 column 2000mm steel column vertical radiator

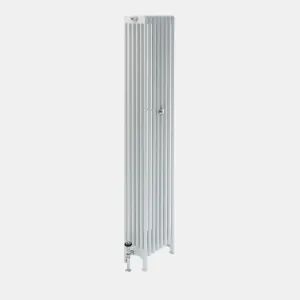

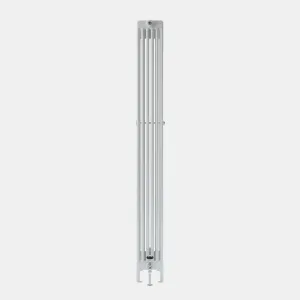

Side view of a tall, narrow white Florence 6 Column steel radiator on feet, with a chrome valve at the base and a bleed valve at the top.Tall, plain white Florence 6 Column steel radiator on feet, with a chrome valve at the bottom left and a wall stay halfway up.Technical drawing: Florence 6 Column 2000mm steel column radiatorTechnical drawing: Florence 6 Column 2000mm steel column radiatorTechnical drawing: Florence 6 Column 2000mm steel column radiatorTechnical drawing: Florence 6 Column 2000mm steel column radiator

Florence 6 Column 2000mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F6C-2002

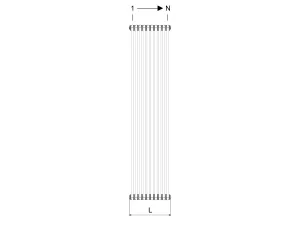

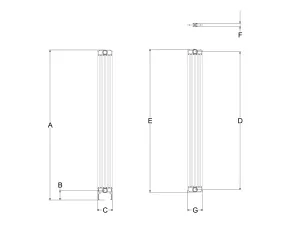

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs2102mm
BPipe centre to floor134mm
CMax section depth217mm
DInteraxis distance1935mm
EHeight without legs2002mm
FMid section depth215mm
GPipe centre to wall (Atlas bracket)130mm
LSection length45mm
–Internal volume per section5.29L
–Leg section weight8.3kg
–Mid section weight8kg
–Max single-piece delivery size25sections
–Output at ΔT30171.1W
–Output at ΔT50337.4W

φ = Km × ΔTn · Km = 1.856 · n = 1.33
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_C
Declaration of Performance: 202009-1071 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F6C-2002-0331651012513One piece——
SMC-F6C-2002-0442101350684One piece——
SMC-F6C-2002-0552551687855One piece——
SMC-F6C-2002-06630020251026One piece——
SMC-F6C-2002-07734523621197One piece——
SMC-F6C-2002-08839027001368One piece——
SMC-F6C-2002-09943530371540One piece——
SMC-F6C-2002-101048033741711One piece——
SMC-F6C-2002-111152537121882One piece——
SMC-F6C-2002-121257040492053One piece——
SMC-F6C-2002-131361543872224One piece——
SMC-F6C-2002-141466047242395One piece——
SMC-F6C-2002-151570550622566One piece——
SMC-F6C-2002-161675053992737One piece——
SMC-F6C-2002-171779557372908One piece——
SMC-F6C-2002-181884060743079One piece——
SMC-F6C-2002-191988564123250One piece——
SMC-F6C-2002-202093067493421One piece——
SMC-F6C-2002-212197570863592One piece——
SMC-F6C-2002-2222102074243763One piece——
SMC-F6C-2002-2323106577613934One piece——
SMC-F6C-2002-2424111080994105One piece——
SMC-F6C-2002-2525115584364277One piece——
SMC-F6C-2002-26261200877444482 pieces——
SMC-F6C-2002-27271245911146192 pieces——
SMC-F6C-2002-28281290944947902 pieces——
SMC-F6C-2002-29291335978649612 pieces——
SMC-F6C-2002-303013801012351322 pieces——
SMC-F6C-2002-313114251046153032 pieces——
SMC-F6C-2002-323214701079854742 pieces——
SMC-F6C-2002-333315151113656452 pieces——
SMC-F6C-2002-343415601147358162 pieces——
SMC-F6C-2002-353516051181159872 pieces——
SMC-F6C-2002-363616501214861582 pieces——
SMC-F6C-2002-373716951248663292 pieces——
SMC-F6C-2002-383817401282365002 pieces——
SMC-F6C-2002-393917851316166712 pieces——
SMC-F6C-2002-404018301349868422 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

0851702553401520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1568
ΔT2099.8
ΔT25134.2
ΔT30171.1
ΔT35210
ΔT40250.8
ΔT45293.3
ΔT50337.4
