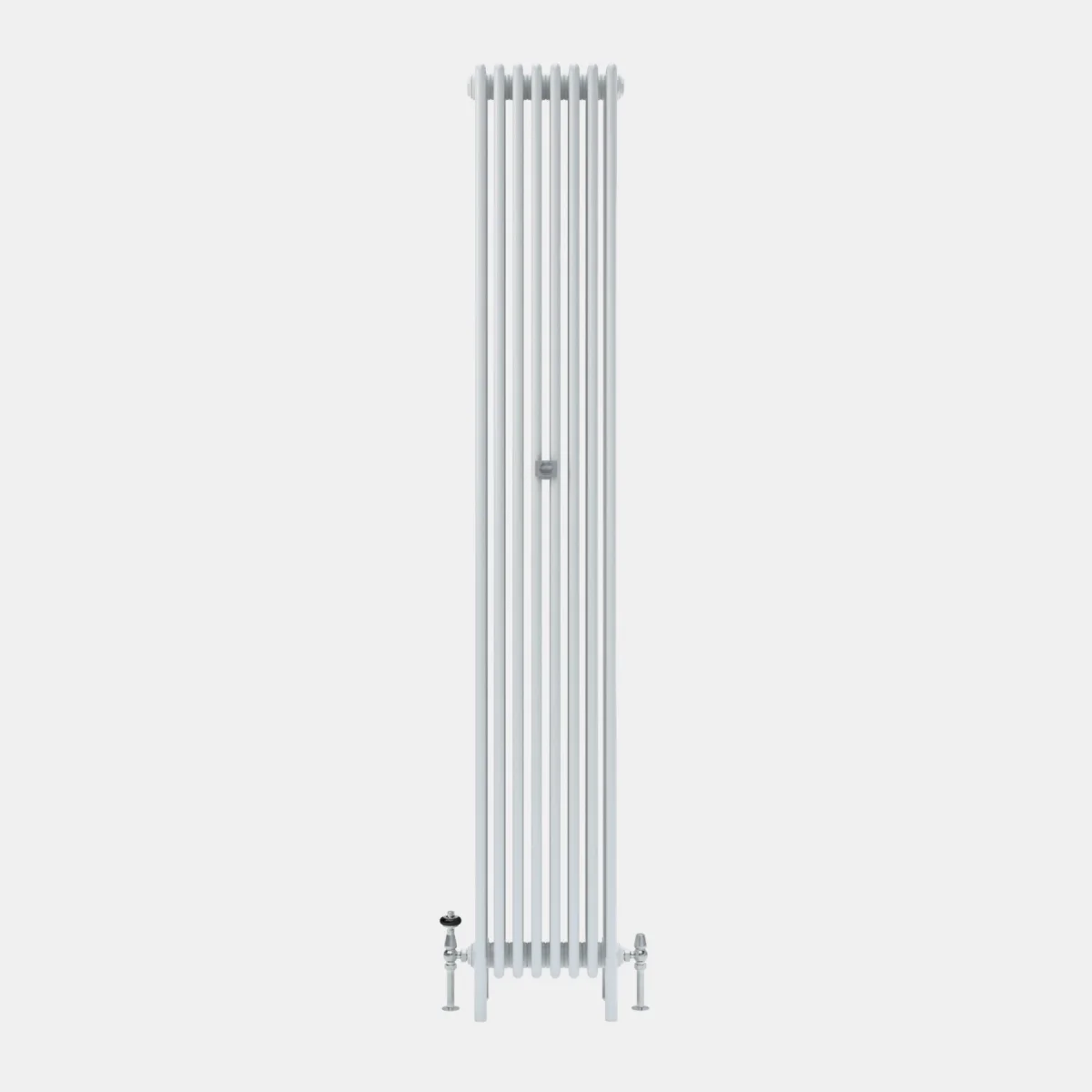

Florence 6 column 2200mm steel column radiator

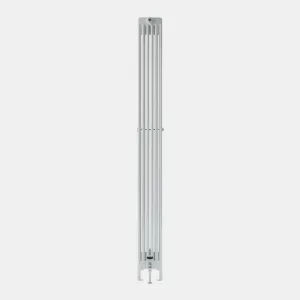

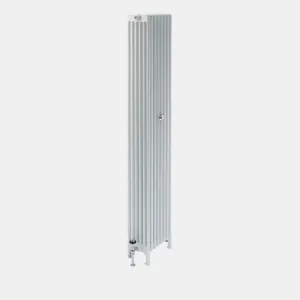

Tall, narrow Florence 6 Column steel radiator in white on feet, with a chrome valve at the base and a wall stay halfway up.Tall Florence 6 Column steel radiator in white, seen from the side on feet, with a valve at the base and a stay at mid-height.Technical drawing: Florence 6 Column 2200mm steel column radiatorTechnical drawing: Florence 6 Column 2200mm steel column radiatorTechnical drawing: Florence 6 Column 2200mm steel column radiatorTechnical drawing: Florence 6 Column 2200mm steel column radiator

Florence 6 Column 2200mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F6C-2202

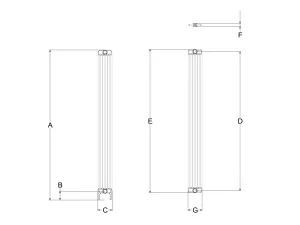

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs2302mm
BPipe centre to floor134mm
CMax section depth217mm
DInteraxis distance2135mm
EHeight without legs2202mm
FMid section depth215mm
GPipe centre to wall (Atlas bracket)130mm

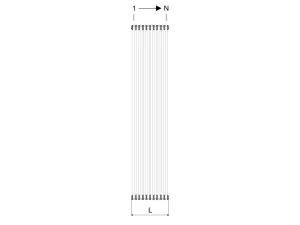

LSection length45mm
–Internal volume per section5.78L
–Leg section weight9.08kg
–Mid section weight8.78kg
–Max single-piece delivery size25sections
–Output at ΔT30187.6W
–Output at ΔT50369.5W

φ = Km × ΔTn · Km = 2.056 · n = 1.327
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_C
Declaration of Performance: 202009-1072 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F6C-2202-0331651108563One piece——
SMC-F6C-2202-0442101478750One piece——
SMC-F6C-2202-0552551847938One piece——
SMC-F6C-2202-06630022171125One piece——
SMC-F6C-2202-07734525861313One piece——
SMC-F6C-2202-08839029561501One piece——
SMC-F6C-2202-09943533251688One piece——
SMC-F6C-2202-101048036951876One piece——
SMC-F6C-2202-111152540642063One piece——
SMC-F6C-2202-121257044332251One piece——
SMC-F6C-2202-131361548032438One piece——
SMC-F6C-2202-141466051722626One piece——
SMC-F6C-2202-151570555422814One piece——
SMC-F6C-2202-161675059113001One piece——
SMC-F6C-2202-171779562813189One piece——
SMC-F6C-2202-181884066503376One piece——
SMC-F6C-2202-191988570203564One piece——
SMC-F6C-2202-202093073893751One piece——
SMC-F6C-2202-212197577583939One piece——
SMC-F6C-2202-2222102081284127One piece——
SMC-F6C-2202-2323106584974314One piece——
SMC-F6C-2202-2424111088674502One piece——
SMC-F6C-2202-2525115592364689One piece——
SMC-F6C-2202-26261200960648772 pieces——
SMC-F6C-2202-27271245997550642 pieces——
SMC-F6C-2202-282812901034552522 pieces——
SMC-F6C-2202-292913351071454402 pieces——
SMC-F6C-2202-303013801108456272 pieces——
SMC-F6C-2202-313114251145358152 pieces——
SMC-F6C-2202-323214701182260022 pieces——
SMC-F6C-2202-333315151219261902 pieces——
SMC-F6C-2202-343415601256163772 pieces——
SMC-F6C-2202-353516051293165652 pieces——
SMC-F6C-2202-363616501330067532 pieces——
SMC-F6C-2202-373716951367069402 pieces——
SMC-F6C-2202-383817401403971282 pieces——
SMC-F6C-2202-393917851440973152 pieces——
SMC-F6C-2202-404018301477875032 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

0931852783701520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1574.8
ΔT20109.5
ΔT25147.3
ΔT30187.6
ΔT35230.1
ΔT40274.8
ΔT45321.2
ΔT50369.5
