Technical drawing: Florence 6 Column 300mm steel column radiator

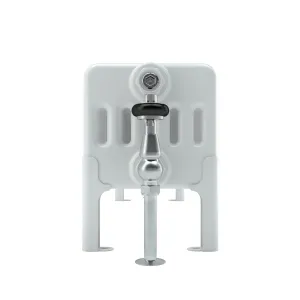

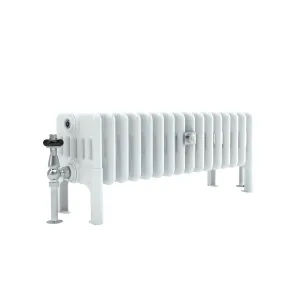

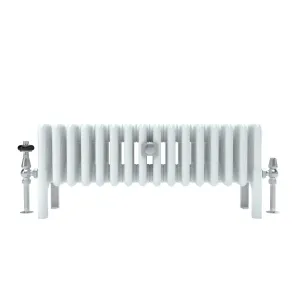

Technical drawing: Florence 6 Column 300mm steel column radiatorTechnical drawing: Florence 6 Column 300mm steel column radiatorTechnical drawing: Florence 6 Column 300mm steel column radiatorEnd view of a white Florence 6 Column steel radiator on floor-mounted feet, with a chrome valve and pipe running down to the floor.Low Florence 6 column steel radiator in white on feet, with a chrome thermostatic valve with black head and a central wall stay.Florence 6 column 200mm steel column radiatorLow Florence 6 Column 300mm steel column radiator in white on feet, with chrome thermostatic and lockshield valves, on a white background.End view of a white Florence 6 column 300mm steel column radiator on feet, with a chrome angled valve, black wheel head and floor pipe.Low Florence 6 Column 300mm steel column radiator in white on feet, with a chrome thermostatic valve and black head, on a white background.End view of a white Florence 6 Column steel radiator on floor feet, with a chrome valve with black head and a pipe to the floor.Florence 6 column steel radiator in white on feet, with a chrome thermostatic valve with black head and a chrome wall stay, angled view.Florence 6 column 300mm steel column radiator

Florence 6 Column 300mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F6C-302

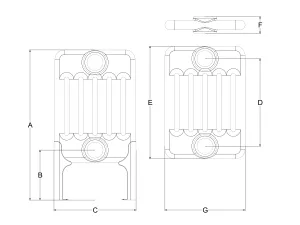

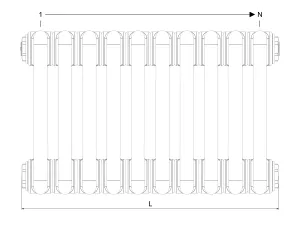

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs402mm
BPipe centre to floor134mm
CMax section depth217mm
DInteraxis distance235mm
EHeight without legs302mm
FMid section depth215mm
GPipe centre to wall (Atlas bracket)130mm
LSection length45mm
–Internal volume per section1.13L
–Leg section weight1.65kg
–Mid section weight1.35kg
–Max single-piece delivery size25sections
–Output at ΔT3031.4W
–Output at ΔT5060.7W

φ = Km × ΔTn · Km = 0.386 · n = 1.293
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_C
Declaration of Performance: 202009-1074 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F6C-302-03316518294One piece——
SMC-F6C-302-044210243125One piece——
SMC-F6C-302-055255304157One piece——
SMC-F6C-302-066300364188One piece——
SMC-F6C-302-077345425220One piece——
SMC-F6C-302-088390486251One piece——
SMC-F6C-302-099435547282One piece——
SMC-F6C-302-1010480607314One piece——
SMC-F6C-302-1111525668345One piece——
SMC-F6C-302-1212570729376One piece——
SMC-F6C-302-1313615789408One piece——
SMC-F6C-302-1414660850439One piece——
SMC-F6C-302-1515705911471One piece——
SMC-F6C-302-1616750972502One piece——
SMC-F6C-302-17177951032533One piece——
SMC-F6C-302-18188401093565One piece——
SMC-F6C-302-19198851154596One piece——
SMC-F6C-302-20209301214627One piece——
SMC-F6C-302-21219751275659One piece——
SMC-F6C-302-222210201336690One piece——
SMC-F6C-302-232310651397721One piece——
SMC-F6C-302-242411101457753One piece——
SMC-F6C-302-252511551518784One piece——
SMC-F6C-302-2626120015798162 pieces——
SMC-F6C-302-2727124516408472 pieces——
SMC-F6C-302-2828129017008782 pieces——
SMC-F6C-302-2929133517619102 pieces——
SMC-F6C-302-3030138018229412 pieces——
SMC-F6C-302-3131142518829722 pieces——
SMC-F6C-302-32321470194310042 pieces——
SMC-F6C-302-33331515200410352 pieces——
SMC-F6C-302-34341560206510672 pieces——
SMC-F6C-302-35351605212510982 pieces——
SMC-F6C-302-36361650218611292 pieces——
SMC-F6C-302-37371695224711612 pieces——
SMC-F6C-302-38381740230711922 pieces——
SMC-F6C-302-39391785236812232 pieces——
SMC-F6C-302-40401830242912552 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

0183553701520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1512.8
ΔT2018.6
ΔT2524.8
ΔT3031.4
ΔT3538.3
ΔT4045.5
ΔT4553
ΔT5060.7
