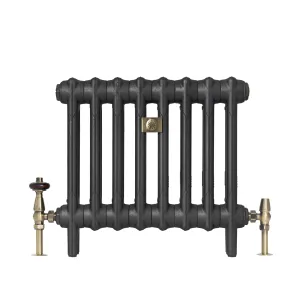

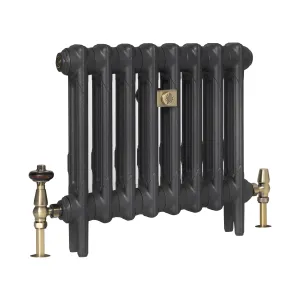

Mercury 2 Column 460mm
Made to order
Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.
CI-M2C-460
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints | Bare Metal |
|---|---|---|---|---|---|---|---|---|
| CI-M2C-460-03 | 3 | 205 | 106 | 57 | One piece | — | — | — |
| CI-M2C-460-04 | 4 | 263 | 141 | 77 | One piece | — | — | — |
| CI-M2C-460-05 | 5 | 322 | 177 | 96 | One piece | — | — | — |
| CI-M2C-460-06 | 6 | 380 | 212 | 115 | One piece | — | — | — |
| CI-M2C-460-07 | 7 | 438 | 247 | 134 | One piece | — | — | — |
| CI-M2C-460-08 | 8 | 496 | 283 | 153 | One piece | — | — | — |
| CI-M2C-460-09 | 9 | 555 | 318 | 172 | One piece | — | — | — |
| CI-M2C-460-10 | 10 | 613 | 353 | 191 | One piece | — | — | — |
| CI-M2C-460-11 | 11 | 671 | 389 | 211 | One piece | — | — | — |
| CI-M2C-460-12 | 12 | 730 | 424 | 230 | One piece | — | — | — |
| CI-M2C-460-13 | 13 | 788 | 459 | 249 | One piece | — | — | — |
| CI-M2C-460-14 | 14 | 846 | 495 | 268 | One piece | — | — | — |
| CI-M2C-460-15 | 15 | 905 | 530 | 287 | One piece | — | — | — |
| CI-M2C-460-16 | 16 | 963 | 566 | 306 | One piece | — | — | — |
| CI-M2C-460-17 | 17 | 1021 | 601 | 325 | 2 pieces | — | — | — |
| CI-M2C-460-18 | 18 | 1079 | 636 | 344 | 2 pieces | — | — | — |
| CI-M2C-460-19 | 19 | 1138 | 672 | 364 | 2 pieces | — | — | — |
| CI-M2C-460-20 | 20 | 1196 | 707 | 383 | 2 pieces | — | — | — |
| CI-M2C-460-21 | 21 | 1254 | 742 | 402 | 2 pieces | — | — | — |
| CI-M2C-460-22 | 22 | 1313 | 778 | 421 | 2 pieces | — | — | — |
| CI-M2C-460-23 | 23 | 1371 | 813 | 440 | 2 pieces | — | — | — |
| CI-M2C-460-24 | 24 | 1429 | 848 | 459 | 2 pieces | — | — | — |
| CI-M2C-460-25 | 25 | 1488 | 884 | 478 | 2 pieces | — | — | — |
| CI-M2C-460-26 | 26 | 1546 | 919 | 498 | 2 pieces | — | — | — |
| CI-M2C-460-27 | 27 | 1604 | 954 | 517 | 2 pieces | — | — | — |
| CI-M2C-460-28 | 28 | 1662 | 990 | 536 | 2 pieces | — | — | — |
| CI-M2C-460-29 | 29 | 1721 | 1025 | 555 | 2 pieces | — | — | — |
| CI-M2C-460-30 | 30 | 1779 | 1060 | 574 | 2 pieces | — | — | — |
| CI-M2C-460-31 | 31 | 1837 | 1096 | 593 | 2 pieces | — | — | — |
| CI-M2C-460-32 | 32 | 1896 | 1131 | 612 | 2 pieces | — | — | — |
| CI-M2C-460-33 | 33 | 1954 | 1166 | 632 | 3 pieces | — | — | — |
| CI-M2C-460-34 | 34 | 2012 | 1202 | 651 | 3 pieces | — | — | — |
| CI-M2C-460-35 | 35 | 2071 | 1237 | 670 | 3 pieces | — | — | — |
| CI-M2C-460-36 | 36 | 2129 | 1272 | 689 | 3 pieces | — | — | — |
| CI-M2C-460-37 | 37 | 2187 | 1308 | 708 | 3 pieces | — | — | — |
| CI-M2C-460-38 | 38 | 2245 | 1343 | 727 | 3 pieces | — | — | — |
| CI-M2C-460-39 | 39 | 2304 | 1378 | 746 | 3 pieces | — | — | — |
| CI-M2C-460-40 | 40 | 2362 | 1414 | 765 | 3 pieces | — | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 8.3 |
| ΔT20 | 11.8 |
| ΔT25 | 15.4 |
| ΔT30 | 19.1 |
| ΔT35 | 23 |
| ΔT40 | 27 |
| ΔT45 | 31.1 |
| ΔT50 | 35.3 |

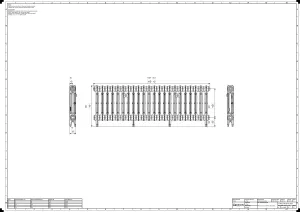

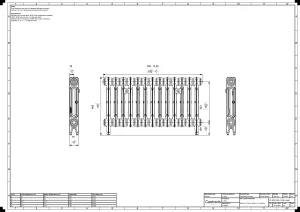

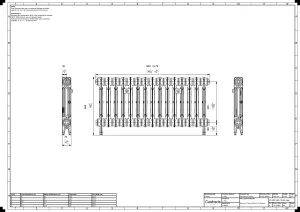

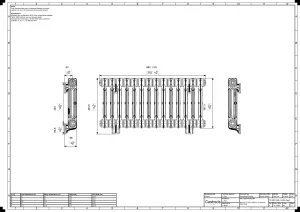

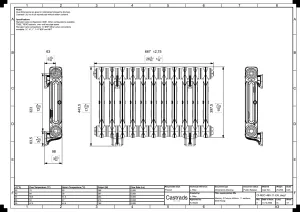

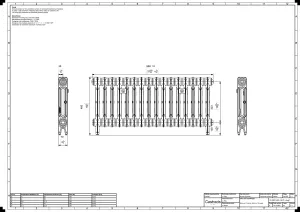

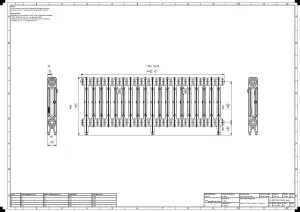

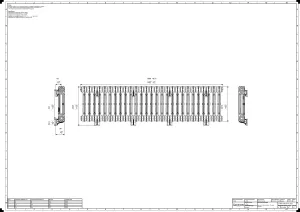

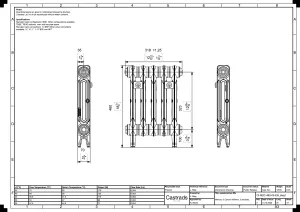

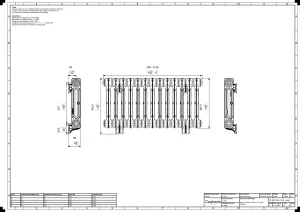

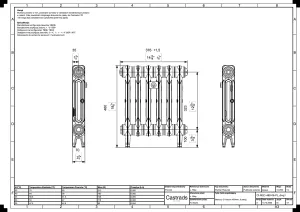

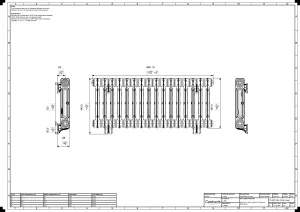

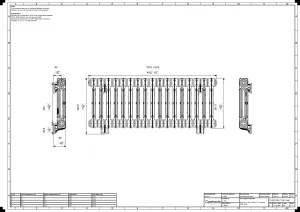

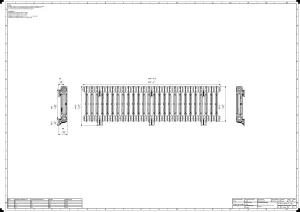

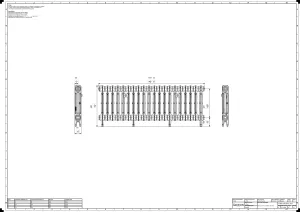

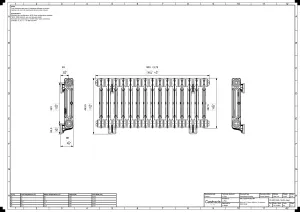

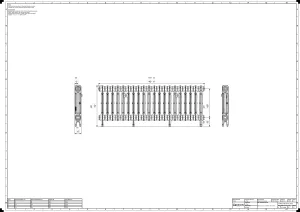

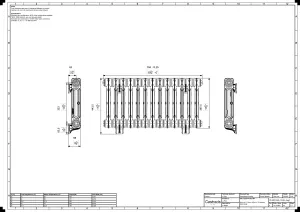

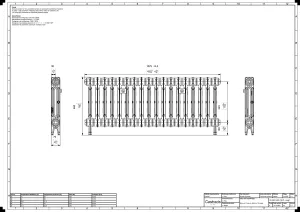

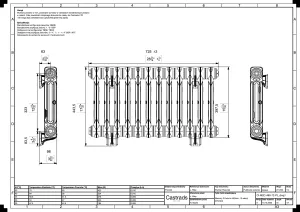

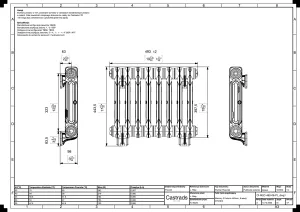

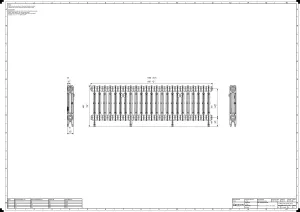

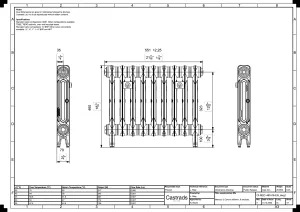

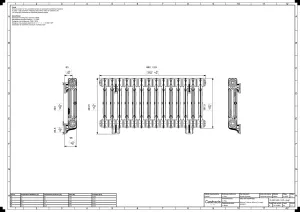

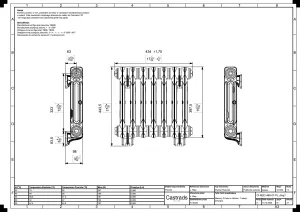

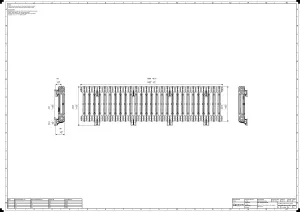

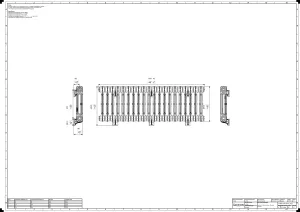

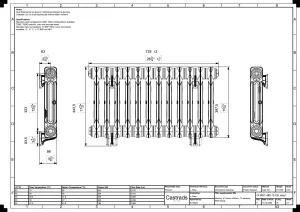

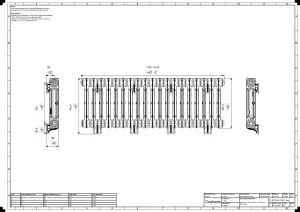

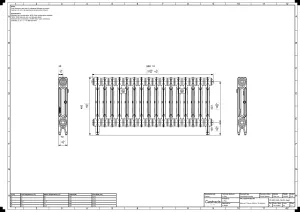

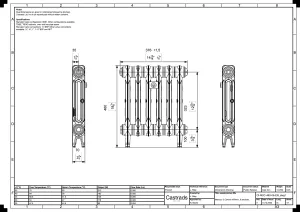

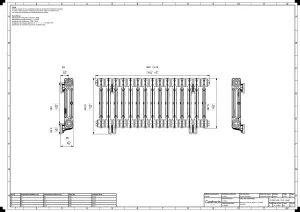

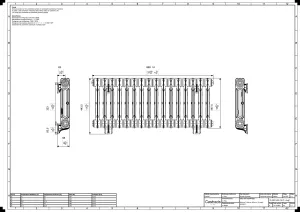

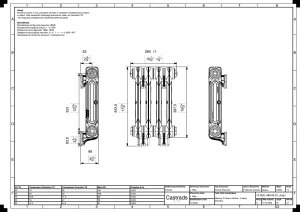

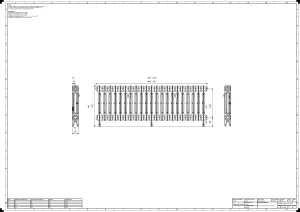

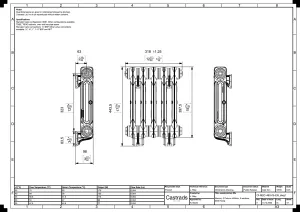

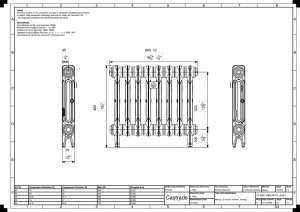

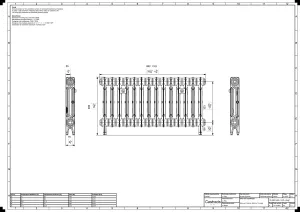

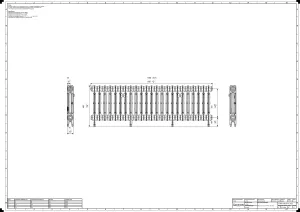

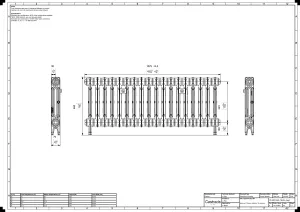

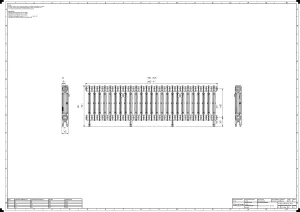

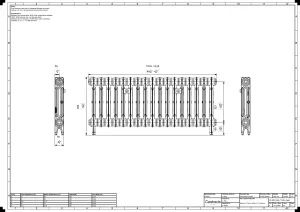

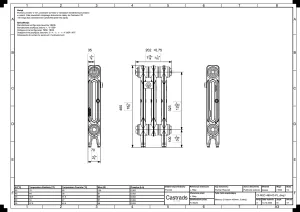

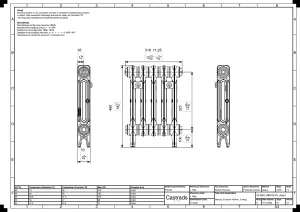

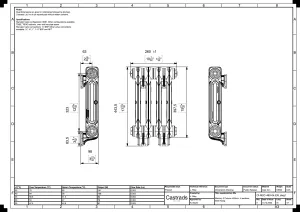

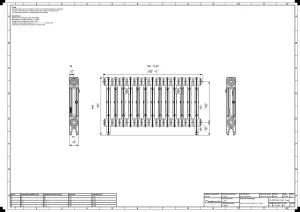

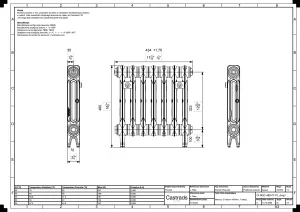

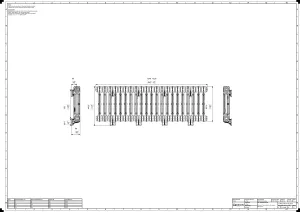

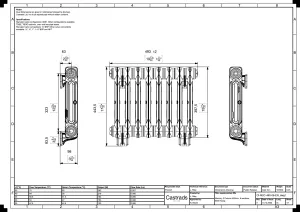

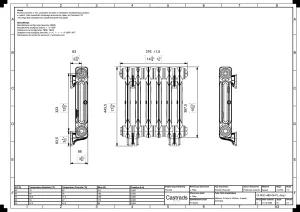

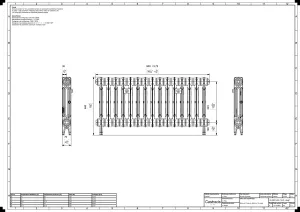

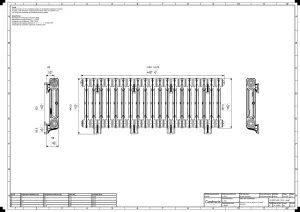

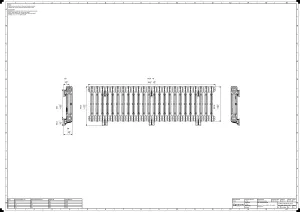

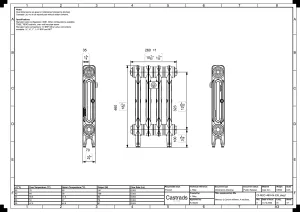

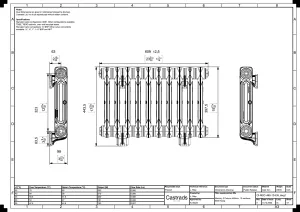

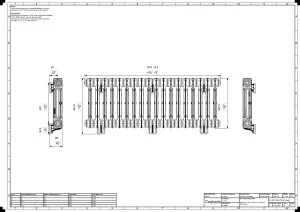

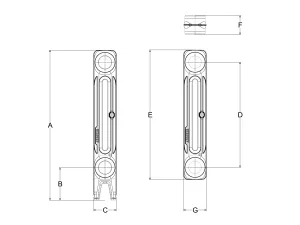

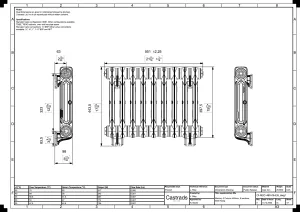

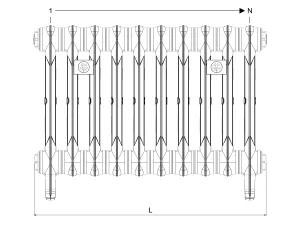

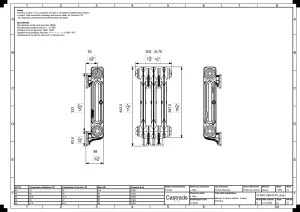

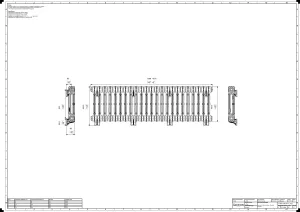

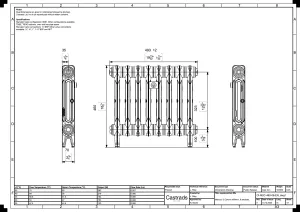

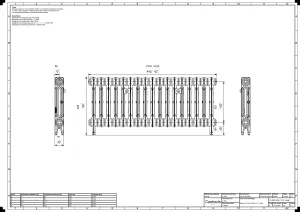

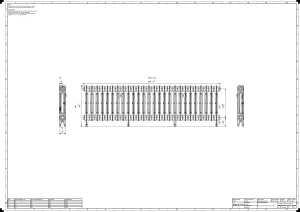

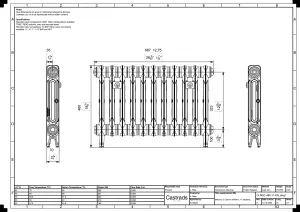

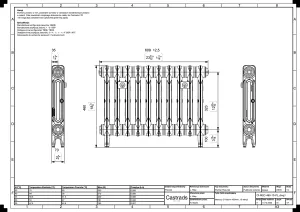

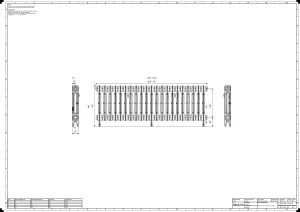

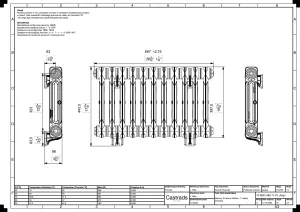

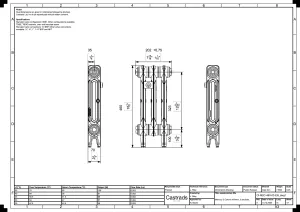

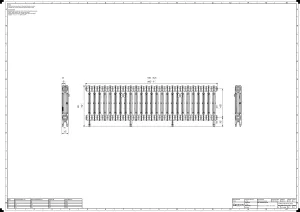

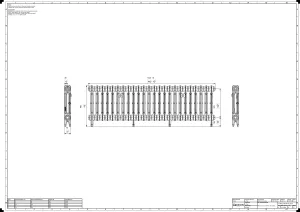

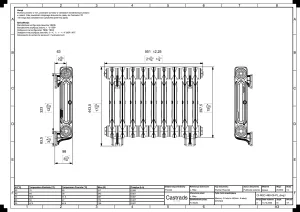

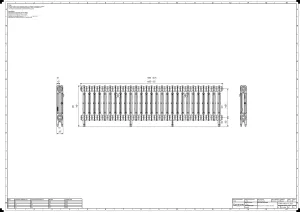

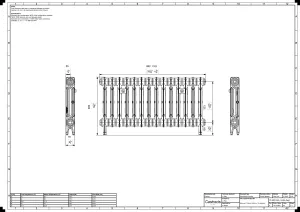

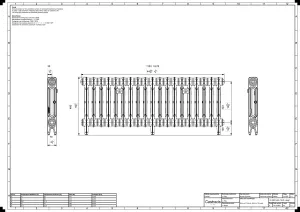

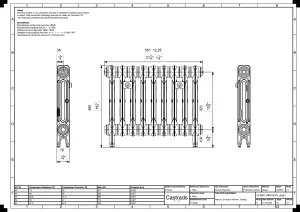

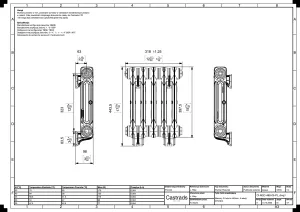

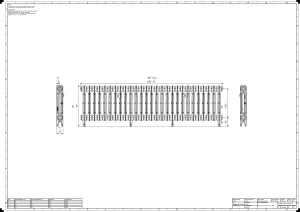

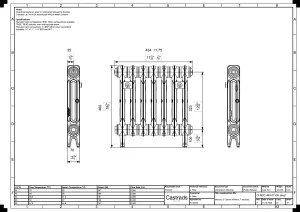

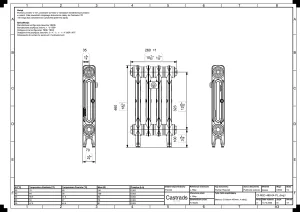

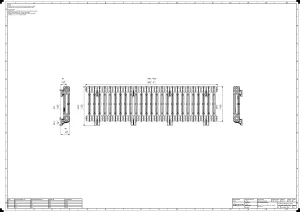

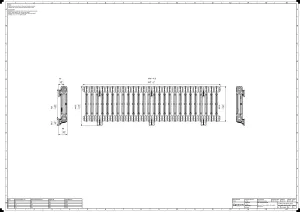

Specifications
| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 460mm |
| B | Pipe centre to floor | 102.1mm |
| C | Max section depth | 70mm |
| D | Interaxis distance | 323mm |
| E | Height without legs | 398mm |
| F | Mid section depth | 70mm |
| G | Pipe centre to wall (Atlas bracket) | 63mm |
| L | Section length | 58.3mm |
| – | Internal volume per section | 0.4L |
| – | Leg section weight | 2.8kg |
| – | Mid section weight | 2.3kg |
| – | Max single-piece delivery size | 16sections |
| – | Output at ΔT30 | 19.1W |
| – | Output at ΔT50 | 35.3W |
φ = Km × ΔTn · Km = 0.322 · n = 1.201
Tested to EN 442 · BSRIA · Test ref: 101534
Declaration of Performance: 202009-1094 · CE marked
