Mercury 2 Column 960mm
Made to order
Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.
CI-M2C-960
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints | Bare Metal |
|---|---|---|---|---|---|---|---|---|
| CI-M2C-960-03 | 3 | 205 | 221 | 114 | One piece | — | — | — |
| CI-M2C-960-04 | 4 | 263 | 294 | 152 | One piece | — | — | — |
| CI-M2C-960-05 | 5 | 322 | 368 | 190 | One piece | — | — | — |
| CI-M2C-960-06 | 6 | 380 | 442 | 227 | One piece | — | — | — |
| CI-M2C-960-07 | 7 | 438 | 515 | 265 | One piece | — | — | — |
| CI-M2C-960-08 | 8 | 496 | 589 | 303 | One piece | — | — | — |
| CI-M2C-960-09 | 9 | 555 | 662 | 341 | One piece | — | — | — |
| CI-M2C-960-10 | 10 | 613 | 736 | 379 | One piece | — | — | — |
| CI-M2C-960-11 | 11 | 671 | 810 | 417 | One piece | — | — | — |
| CI-M2C-960-12 | 12 | 730 | 883 | 455 | One piece | — | — | — |
| CI-M2C-960-13 | 13 | 788 | 957 | 493 | One piece | — | — | — |
| CI-M2C-960-14 | 14 | 846 | 1030 | 531 | One piece | — | — | — |
| CI-M2C-960-15 | 15 | 905 | 1104 | 569 | One piece | — | — | — |
| CI-M2C-960-16 | 16 | 963 | 1178 | 606 | One piece | — | — | — |
| CI-M2C-960-17 | 17 | 1021 | 1251 | 644 | 2 pieces | — | — | — |
| CI-M2C-960-18 | 18 | 1079 | 1325 | 682 | 2 pieces | — | — | — |
| CI-M2C-960-19 | 19 | 1138 | 1398 | 720 | 2 pieces | — | — | — |
| CI-M2C-960-20 | 20 | 1196 | 1472 | 758 | 2 pieces | — | — | — |
| CI-M2C-960-21 | 21 | 1254 | 1546 | 796 | 2 pieces | — | — | — |
| CI-M2C-960-22 | 22 | 1313 | 1619 | 834 | 2 pieces | — | — | — |
| CI-M2C-960-23 | 23 | 1371 | 1693 | 872 | 2 pieces | — | — | — |
| CI-M2C-960-24 | 24 | 1429 | 1766 | 910 | 2 pieces | — | — | — |
| CI-M2C-960-25 | 25 | 1488 | 1840 | 948 | 2 pieces | — | — | — |
| CI-M2C-960-26 | 26 | 1546 | 1914 | 986 | 2 pieces | — | — | — |
| CI-M2C-960-27 | 27 | 1604 | 1987 | 1023 | 2 pieces | — | — | — |
| CI-M2C-960-28 | 28 | 1662 | 2061 | 1061 | 2 pieces | — | — | — |
| CI-M2C-960-29 | 29 | 1721 | 2134 | 1099 | 2 pieces | — | — | — |
| CI-M2C-960-30 | 30 | 1779 | 2208 | 1137 | 2 pieces | — | — | — |
| CI-M2C-960-31 | 31 | 1837 | 2282 | 1175 | 2 pieces | — | — | — |
| CI-M2C-960-32 | 32 | 1896 | 2355 | 1213 | 2 pieces | — | — | — |
| CI-M2C-960-33 | 33 | 1954 | 2429 | 1251 | 3 pieces | — | — | — |
| CI-M2C-960-34 | 34 | 2012 | 2502 | 1289 | 3 pieces | — | — | — |
| CI-M2C-960-35 | 35 | 2071 | 2576 | 1327 | 3 pieces | — | — | — |
| CI-M2C-960-36 | 36 | 2129 | 2650 | 1365 | 3 pieces | — | — | — |
| CI-M2C-960-37 | 37 | 2187 | 2723 | 1402 | 3 pieces | — | — | — |
| CI-M2C-960-38 | 38 | 2245 | 2797 | 1440 | 3 pieces | — | — | — |
| CI-M2C-960-39 | 39 | 2304 | 2870 | 1478 | 3 pieces | — | — | — |
| CI-M2C-960-40 | 40 | 2362 | 2944 | 1516 | 3 pieces | — | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 15.4 |
| ΔT20 | 22.4 |
| ΔT25 | 29.9 |
| ΔT30 | 37.9 |
| ΔT35 | 46.3 |
| ΔT40 | 55.1 |
| ΔT45 | 64.2 |
| ΔT50 | 73.6 |

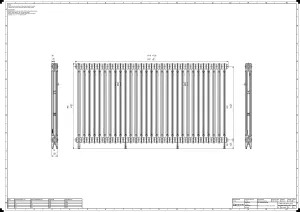

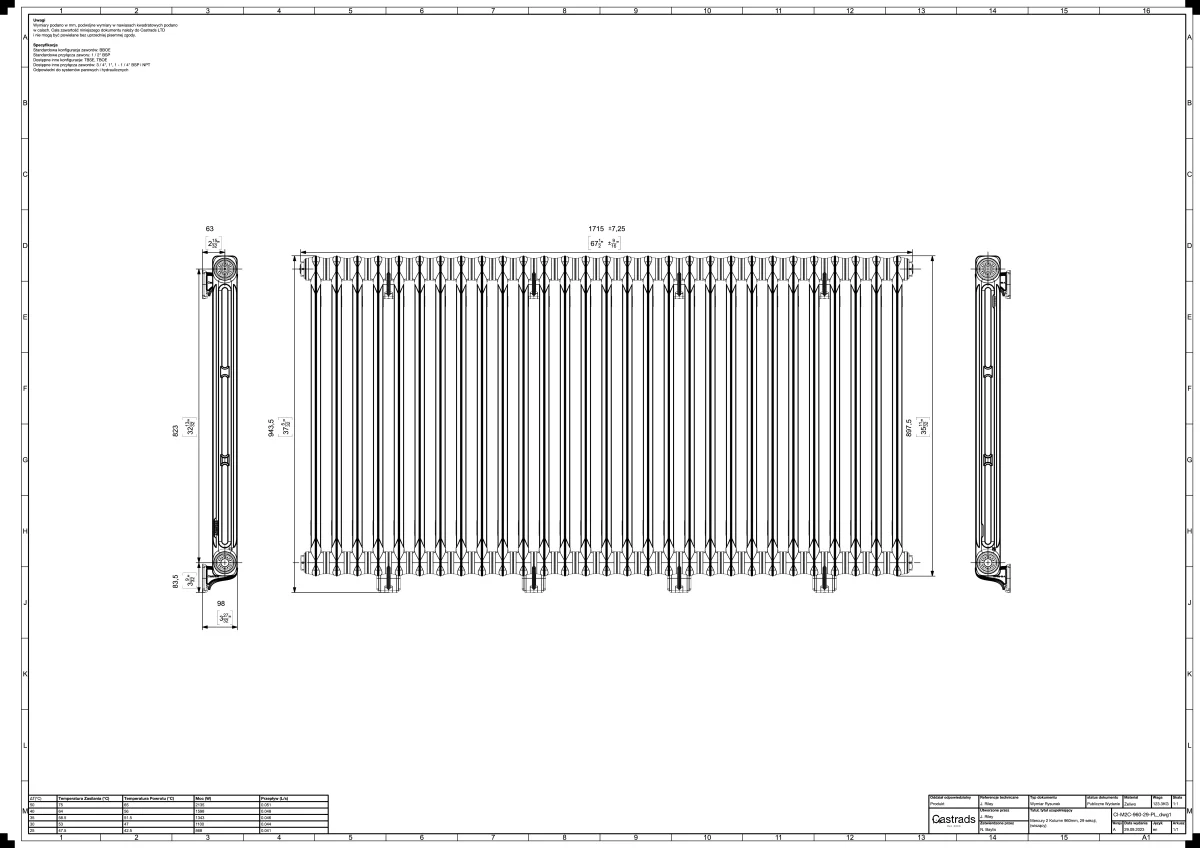

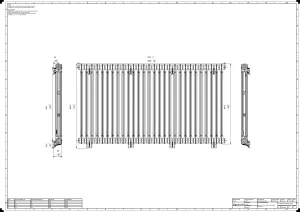

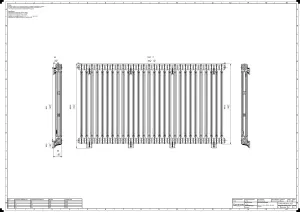

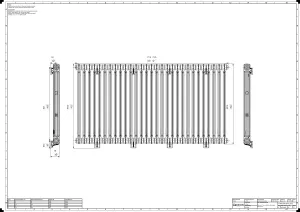

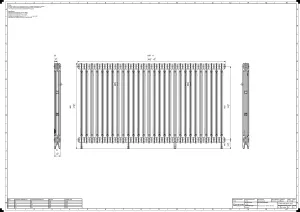

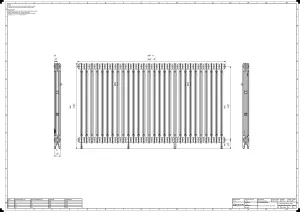

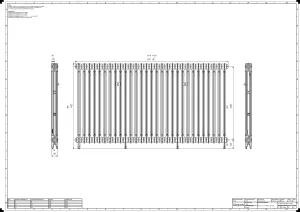

Specifications
| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 960mm |
| B | Pipe centre to floor | 102.1mm |
| C | Max section depth | 70mm |
| D | Interaxis distance | 823mm |
| E | Height without legs | 898mm |
| F | Mid section depth | 70mm |
| G | Pipe centre to wall (Atlas bracket) | 63mm |
| L | Section length | 58.3mm |
| – | Internal volume per section | 0.66L |
| – | Leg section weight | 4.6kg |
| – | Mid section weight | 4.3kg |
| – | Max single-piece delivery size | 16sections |
| – | Output at ΔT30 | 37.9W |
| – | Output at ΔT50 | 73.6W |
φ = Km × ΔTn · Km = 0.457 · n = 1.299
Tested to EN 442 · BSRIA · Test ref: 101534
Declaration of Performance: 202009-1096 · CE marked
