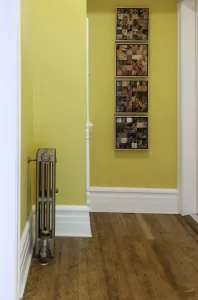

Narrow plain Mercury 4 Column cast iron radiator in Bronze Gold on feet with a valve and wall stay, in a yellow hallway with wooden floorboards.

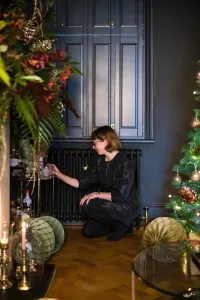

Plain Mercury cast iron radiator in Matt Black beneath a shuttered window in a dark room, a woman kneeling by a drinks trolley and Christmas tree.

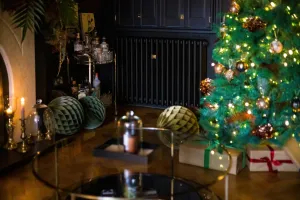

Mercury 4 Column cast iron radiator in Matt Black beneath dark cabinets, behind a drinks trolley and a lit Christmas tree with presents.

A woman kneels by a plain Mercury 4 Column cast iron radiator in Matt Black, beside a drinks trolley on a herringbone parquet floor.

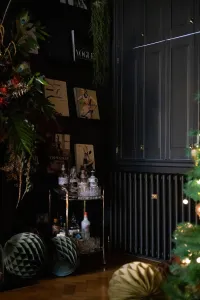

Plain Mercury 4 Column cast iron radiator in Matt Black beneath dark panelled cupboards, beside a brass drinks trolley and Christmas tree.

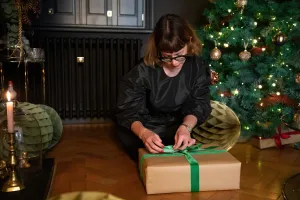

A woman wraps a gift in green ribbon on a parquet floor beside a Christmas tree, a plain Mercury 4 Column radiator in Matt Black behind her.

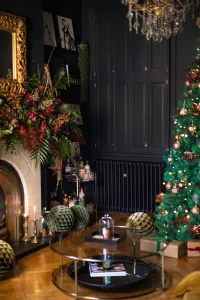

Plain Mercury 4 Column cast iron radiator in Matt Black under dark panelled cupboards, beside a Christmas tree and glass coffee table.

A woman wraps a gift by a Christmas tree, with a plain Matt Black Mercury cast iron radiator on the dark wall behind her.

Plain Mercury cast iron radiator in Matt Black under a dark panelled window, beside a Christmas tree and a woman wrapping a gift on parquet.

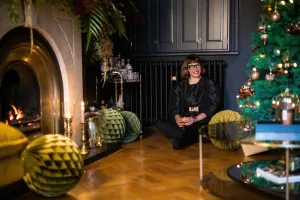

A plain black Mercury cast iron radiator below dark cabinets, with a woman seated on a parquet floor beside a fireplace and Christmas tree.

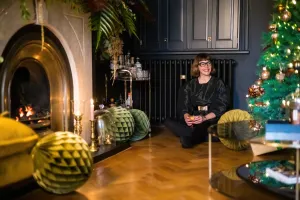

Plain Mercury cast iron radiator in Matt Black beneath dark cupboards, with a woman seated on a parquet floor beside a Christmas tree and fireplace.

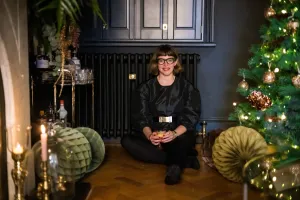

Plain Mercury cast iron radiator in Matt Black under dark cabinets, a woman seated on herringbone floor beside a Christmas tree and drinks trolley.

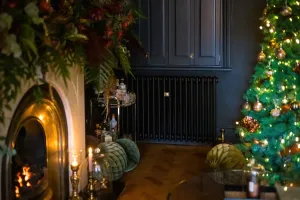

Plain Mercury 4 Column cast iron radiator in Matt Black on a dark wall beside a lit fireplace, drinks trolley and Christmas tree on parquet.

A plain Mercury cast iron radiator in Matt Black against a dark panelled wall beside a Christmas tree, a marble fireplace and a woman wrapping a gift.

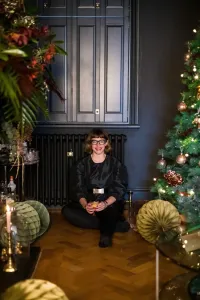

A plain Mercury cast iron radiator in Matt Black under a shuttered window, a woman seated on herringbone parquet beside a Christmas tree.

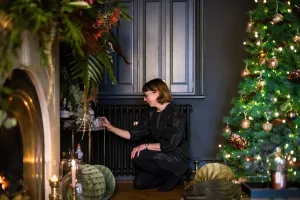

Plain Mercury cast iron radiator in Matt Black on a dark wall below panelled shutters, beside a fireplace, drinks trolley and Christmas tree.

Plain Mercury cast iron radiator in Matt Black against a dark wall, beside a brass drinks trolley, Christmas tree and lit fireplace on parquet.

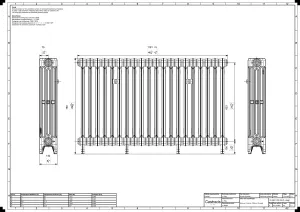

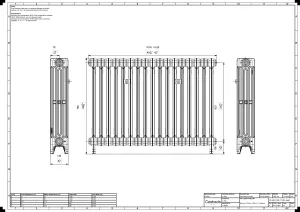

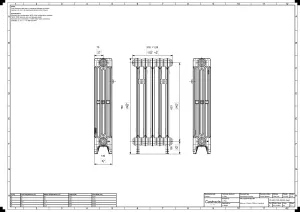

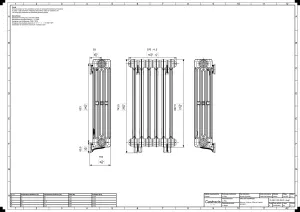

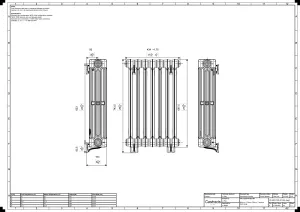

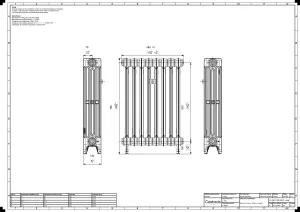

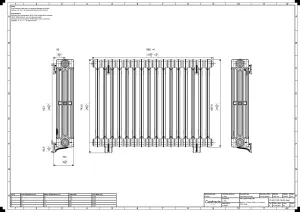

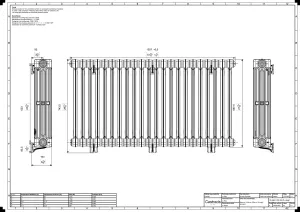

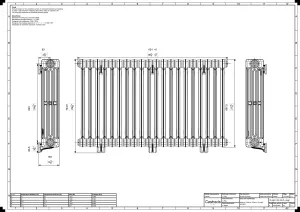

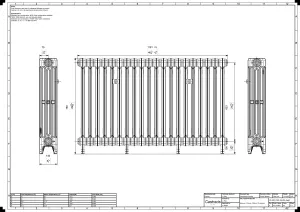

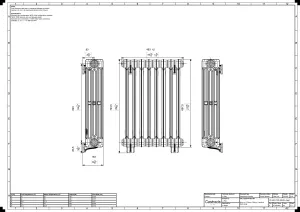

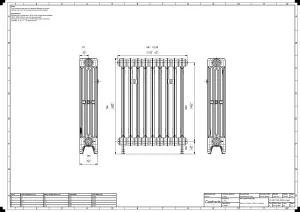

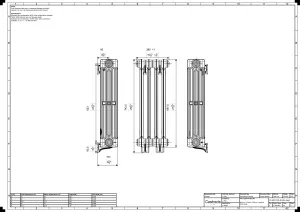

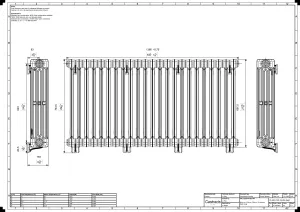

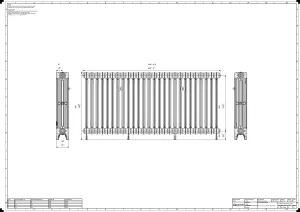

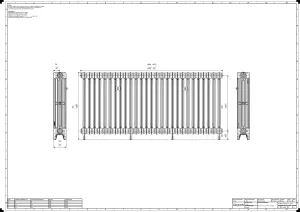

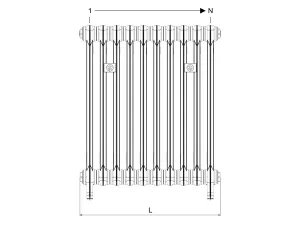

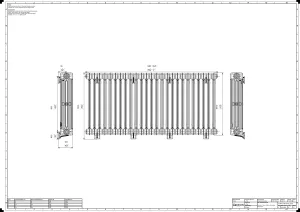

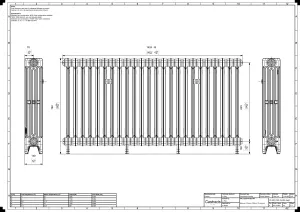

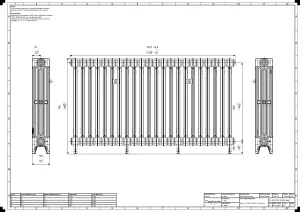

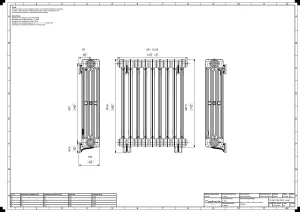

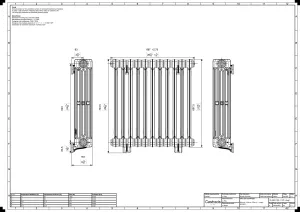

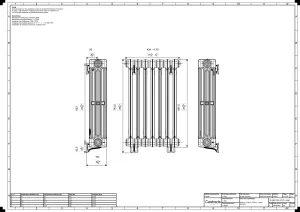

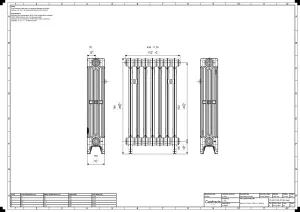

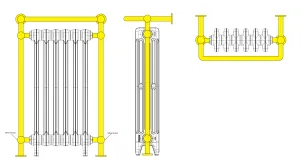

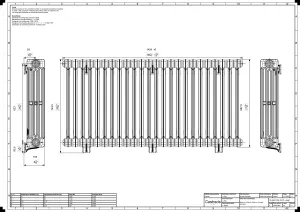

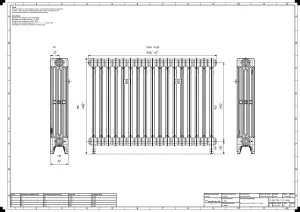

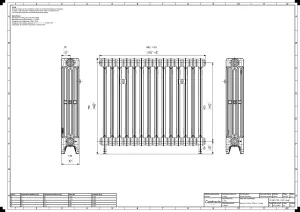

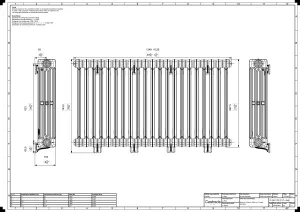

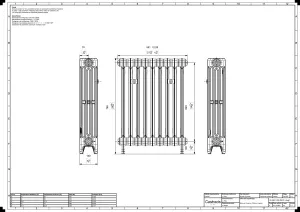

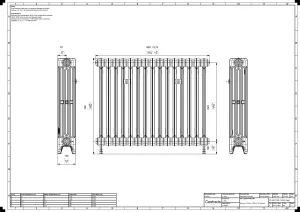

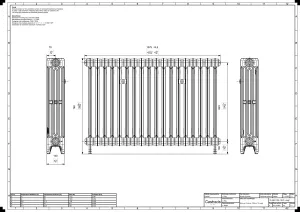

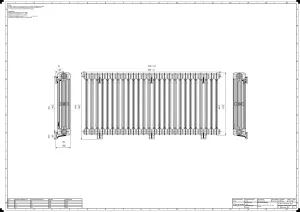

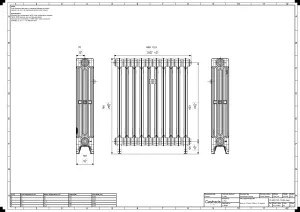

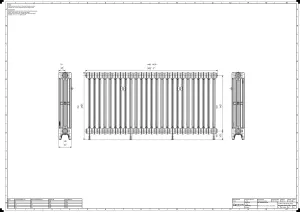

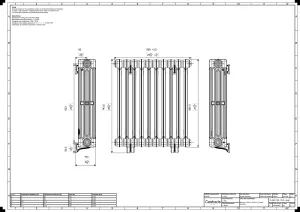

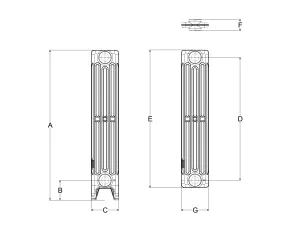

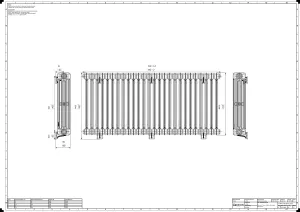

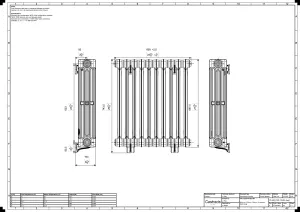

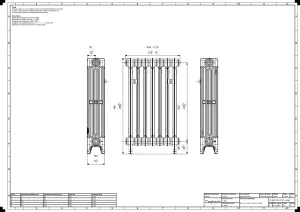

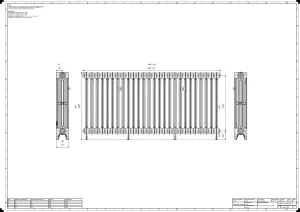

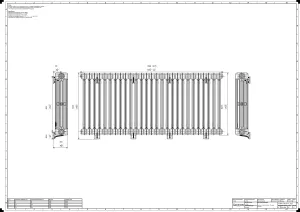

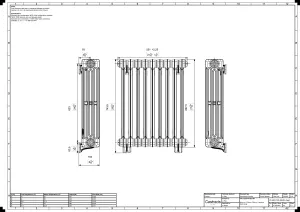

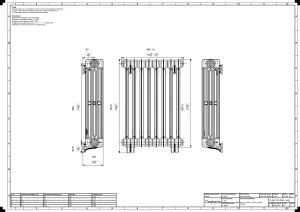

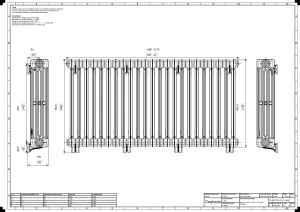

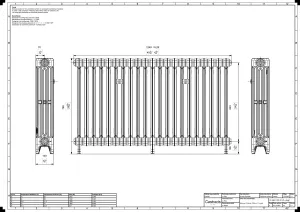

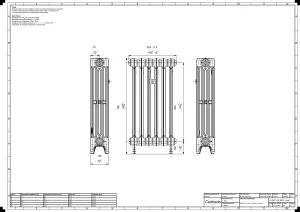

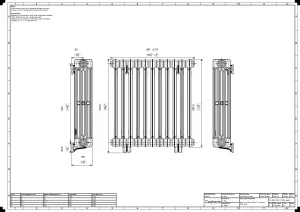

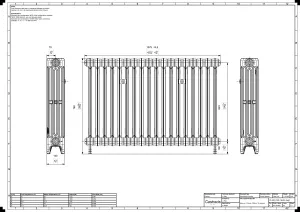

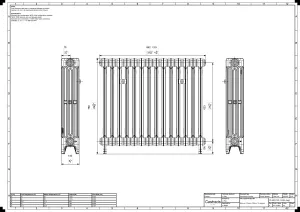

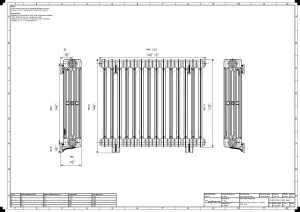

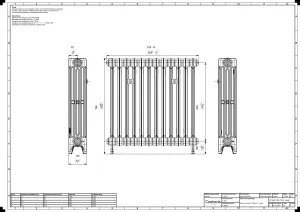

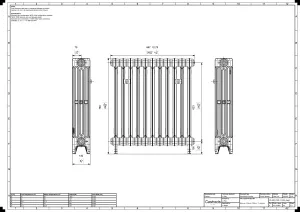

Technical drawing: Mercury 4 Column 760mm cast iron radiator

Plain Mercury cast iron radiator in Matt Black against a dark wall, beside a drinks trolley, with a lit Christmas tree in the foreground.

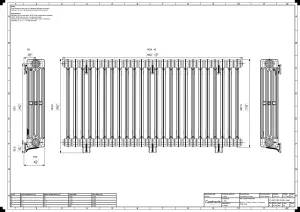

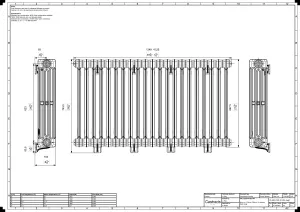

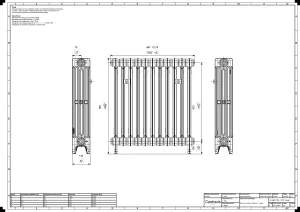

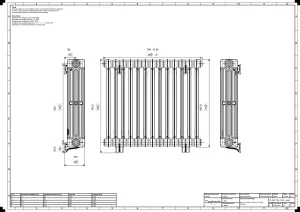

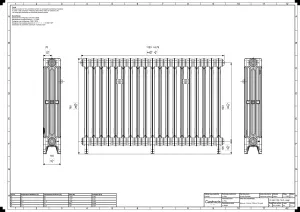

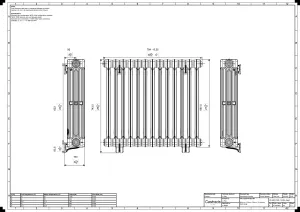

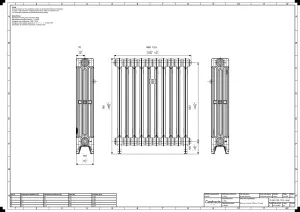

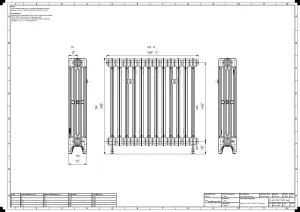

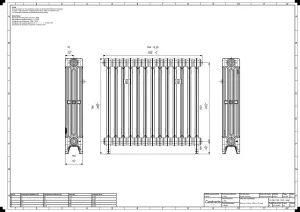

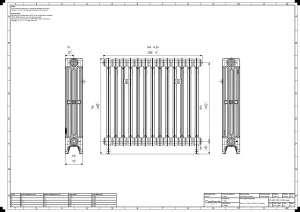

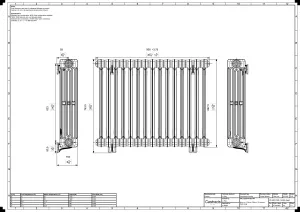

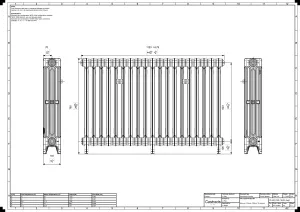

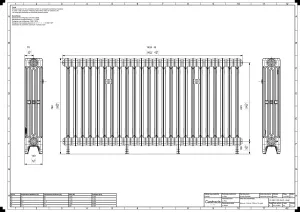

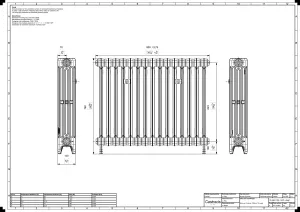

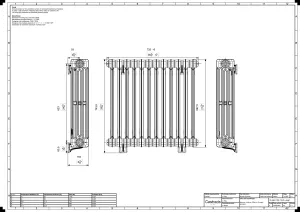

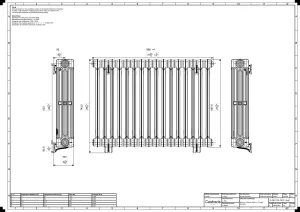

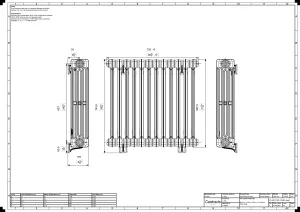

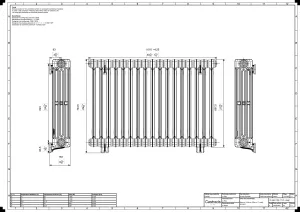

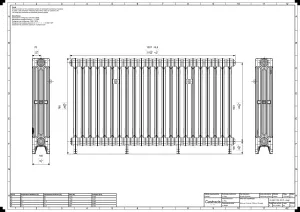

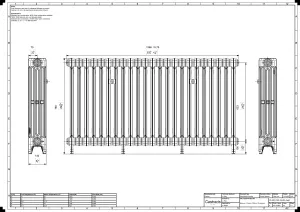

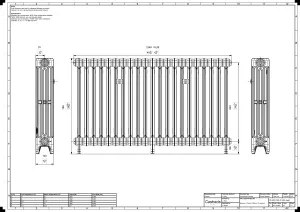

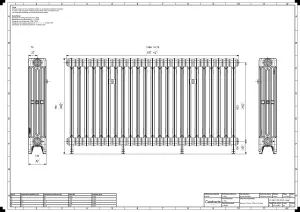

Mercury 4 Column 760mm - 10 Section Battery Technical Drawing - SVG

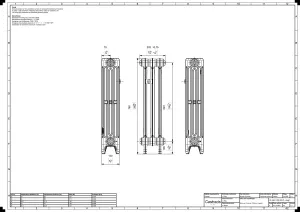

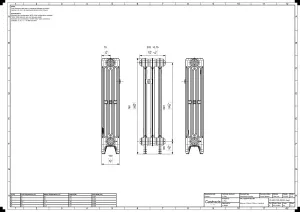

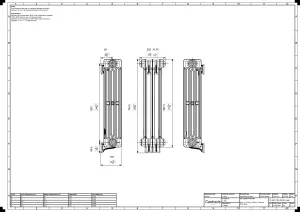

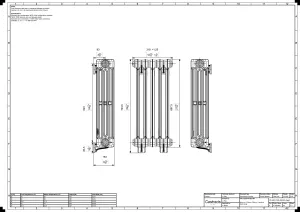

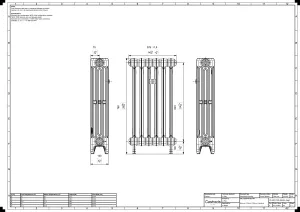

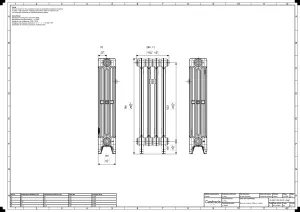

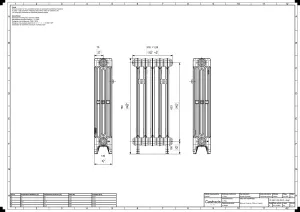

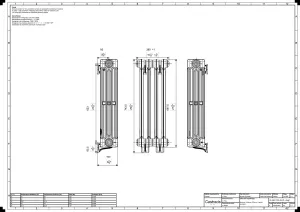

Mercury 4 Column 760mm - Single Section Technical Drawing - SVG

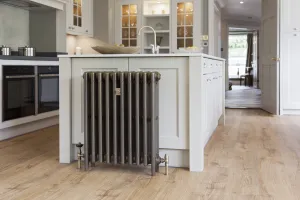

Plain Mercury 4 Column cast iron radiator in Beaten Brass on feet against a pale kitchen island, with angled valves and an oak floor.

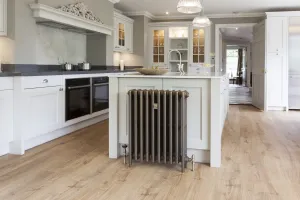

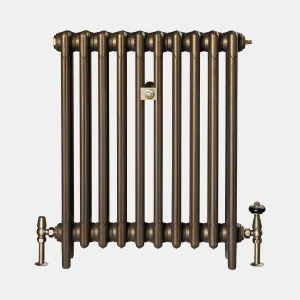

Mercury 4 Column 760mm cast iron radiator in Beaten Brass on feet with angled valves, against a white kitchen island on an oak floor.

Mercury 4 Column 760mm

Name: Mercury 4 Column 760mm
SKU: CI-M4C-760

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiator Find a radiator to fit

Mercury represents the new global standard in cast iron radiators, with curves that fall gracefully into the shadows and lines as crisp and straight as a die. Mercury 4 Column 760mm is the ultimare all-rounder: hip-height with plenty of heat output.

CI-M4C-760

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKU	Sections	Length (mm)	ΔT50 (W)	ΔT30 (W)	Delivered in	Signature	Branded Paints	Bare Metal
CI-M4C-760-03	3	205	287	152	One piece	—	—	—
CI-M4C-760-04	4	263	382	202	One piece	—	—	—
CI-M4C-760-05	5	322	478	253	One piece	—	—	—
CI-M4C-760-06	6	380	573	304	One piece	—	—	—
CI-M4C-760-07	7	438	669	354	One piece	—	—	—
CI-M4C-760-08	8	496	765	405	One piece	—	—	—
CI-M4C-760-09	9	555	860	455	One piece	—	—	—
CI-M4C-760-10	10	613	956	506	One piece	—	—	—
CI-M4C-760-11	11	671	1051	557	One piece	—	—	—
CI-M4C-760-12	12	730	1147	607	One piece	—	—	—
CI-M4C-760-13	13	788	1242	658	One piece	—	—	—
CI-M4C-760-14	14	846	1338	708	One piece	—	—	—
CI-M4C-760-15	15	905	1434	759	One piece	—	—	—
CI-M4C-760-16	16	963	1529	810	One piece	—	—	—
CI-M4C-760-17	17	1021	1625	860	2 pieces	—	—	—
CI-M4C-760-18	18	1079	1720	911	2 pieces	—	—	—
CI-M4C-760-19	19	1138	1816	961	2 pieces	—	—	—
CI-M4C-760-20	20	1196	1911	1012	2 pieces	—	—	—
CI-M4C-760-21	21	1254	2007	1063	2 pieces	—	—	—
CI-M4C-760-22	22	1313	2103	1113	2 pieces	—	—	—
CI-M4C-760-23	23	1371	2198	1164	2 pieces	—	—	—
CI-M4C-760-24	24	1429	2294	1214	2 pieces	—	—	—
CI-M4C-760-25	25	1488	2389	1265	2 pieces	—	—	—
CI-M4C-760-26	26	1546	2485	1316	2 pieces	—	—	—
CI-M4C-760-27	27	1604	2580	1366	2 pieces	—	—	—
CI-M4C-760-28	28	1662	2676	1417	2 pieces	—	—	—
CI-M4C-760-29	29	1721	2772	1467	2 pieces	—	—	—
CI-M4C-760-30	30	1779	2867	1518	2 pieces	—	—	—
CI-M4C-760-31	31	1837	2963	1568	2 pieces	—	—	—
CI-M4C-760-32	32	1896	3058	1619	2 pieces	—	—	—
CI-M4C-760-33	33	1954	3154	1670	3 pieces	—	—	—
CI-M4C-760-34	34	2012	3249	1720	3 pieces	—	—	—
CI-M4C-760-35	35	2071	3345	1771	3 pieces	—	—	—
CI-M4C-760-36	36	2129	3441	1821	3 pieces	—	—	—
CI-M4C-760-37	37	2187	3536	1872	3 pieces	—	—	—
CI-M4C-760-38	38	2245	3632	1923	3 pieces	—	—	—
CI-M4C-760-39	39	2304	3727	1973	3 pieces	—	—	—
CI-M4C-760-40	40	2362	3823	2024	3 pieces	—	—	—

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

Heat output in watts per section at each temperature difference
ΔT (K)	Output per section (W)
ΔT15	21.3
ΔT20	30.5
ΔT25	40.3
ΔT30	50.6
ΔT35	61.3
ΔT40	72.4
ΔT45	83.8
ΔT50	95.6

Specifications

Dimensions, weights and heat outputs for this model
Ref	Attribute	Value
A	Height with legs	760mm
B	Pipe centre to floor	101.3mm
C	Max section depth	140mm
D	Interaxis distance	623mm
E	Height without legs	698mm
F	Mid section depth	140mm
G	Pipe centre to wall (Atlas bracket)	93mm
L	Section length	58.3mm
–	Internal volume per section	0.9L
–	Leg section weight	6.7kg
–	Mid section weight	5.8kg
–	Max single-piece delivery size	16sections
–	Output at ΔT30	50.6W
–	Output at ΔT50	95.6W

φ = K_m × ΔTⁿ · K_m = 0.733 · n = 1.245
Tested to EN 442 · BSRIA · Test ref: 61431
Declaration of Performance: 202009-1104 · CE marked
