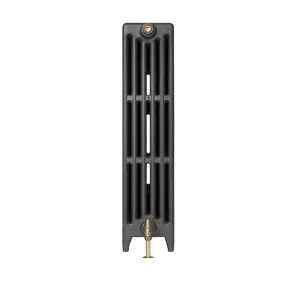

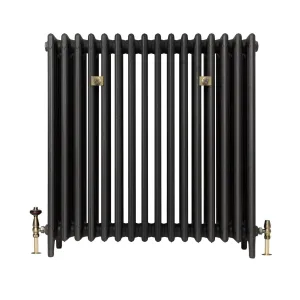

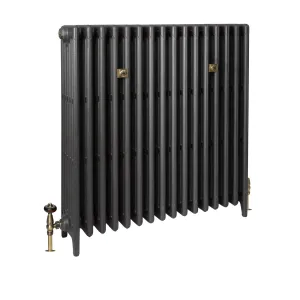

Mercury 6 Column 960mm
Made to order
Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.
CI-M6C-960
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints | Bare Metal |
|---|---|---|---|---|---|---|---|---|
| CI-M6C-960-03 | 3 | 205 | 513 | 254 | One piece | — | — | — |
| CI-M6C-960-04 | 4 | 263 | 684 | 339 | One piece | — | — | — |
| CI-M6C-960-05 | 5 | 322 | 855 | 424 | One piece | — | — | — |
| CI-M6C-960-06 | 6 | 380 | 1026 | 508 | One piece | — | — | — |
| CI-M6C-960-07 | 7 | 438 | 1197 | 593 | One piece | — | — | — |
| CI-M6C-960-08 | 8 | 496 | 1369 | 678 | 2 pieces | — | — | — |
| CI-M6C-960-09 | 9 | 555 | 1540 | 763 | 2 pieces | — | — | — |
| CI-M6C-960-10 | 10 | 613 | 1711 | 847 | 2 pieces | — | — | — |
| CI-M6C-960-11 | 11 | 671 | 1882 | 932 | 2 pieces | — | — | — |
| CI-M6C-960-12 | 12 | 730 | 2053 | 1017 | 2 pieces | — | — | — |
| CI-M6C-960-13 | 13 | 788 | 2224 | 1102 | 2 pieces | — | — | — |
| CI-M6C-960-14 | 14 | 846 | 2395 | 1186 | 2 pieces | — | — | — |
| CI-M6C-960-15 | 15 | 905 | 2566 | 1271 | 3 pieces | — | — | — |
| CI-M6C-960-16 | 16 | 963 | 2737 | 1356 | 3 pieces | — | — | — |
| CI-M6C-960-17 | 17 | 1021 | 2908 | 1441 | 3 pieces | — | — | — |
| CI-M6C-960-18 | 18 | 1079 | 3079 | 1525 | 3 pieces | — | — | — |
| CI-M6C-960-19 | 19 | 1138 | 3250 | 1610 | 3 pieces | — | — | — |
| CI-M6C-960-20 | 20 | 1196 | 3421 | 1695 | 3 pieces | — | — | — |
| CI-M6C-960-21 | 21 | 1254 | 3592 | 1780 | 3 pieces | — | — | — |
| CI-M6C-960-22 | 22 | 1313 | 3763 | 1864 | 4 pieces | — | — | — |
| CI-M6C-960-23 | 23 | 1371 | 3934 | 1949 | 4 pieces | — | — | — |
| CI-M6C-960-24 | 24 | 1429 | 4106 | 2034 | 4 pieces | — | — | — |
| CI-M6C-960-25 | 25 | 1488 | 4277 | 2119 | 4 pieces | — | — | — |
| CI-M6C-960-26 | 26 | 1546 | 4448 | 2203 | 4 pieces | — | — | — |
| CI-M6C-960-27 | 27 | 1604 | 4619 | 2288 | 4 pieces | — | — | — |
| CI-M6C-960-28 | 28 | 1662 | 4790 | 2373 | 4 pieces | — | — | — |
| CI-M6C-960-29 | 29 | 1721 | 4961 | 2458 | 5 pieces | — | — | — |
| CI-M6C-960-30 | 30 | 1779 | 5132 | 2542 | 5 pieces | — | — | — |
| CI-M6C-960-31 | 31 | 1837 | 5303 | 2627 | 5 pieces | — | — | — |
| CI-M6C-960-32 | 32 | 1896 | 5474 | 2712 | 5 pieces | — | — | — |
| CI-M6C-960-33 | 33 | 1954 | 5645 | 2797 | 5 pieces | — | — | — |
| CI-M6C-960-34 | 34 | 2012 | 5816 | 2881 | 5 pieces | — | — | — |
| CI-M6C-960-35 | 35 | 2071 | 5987 | 2966 | 5 pieces | — | — | — |
| CI-M6C-960-36 | 36 | 2129 | 6158 | 3051 | 6 pieces | — | — | — |
| CI-M6C-960-37 | 37 | 2187 | 6329 | 3136 | 6 pieces | — | — | — |
| CI-M6C-960-38 | 38 | 2245 | 6500 | 3220 | 6 pieces | — | — | — |
| CI-M6C-960-39 | 39 | 2304 | 6672 | 3305 | 6 pieces | — | — | — |
| CI-M6C-960-40 | 40 | 2362 | 6843 | 3390 | 6 pieces | — | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 32.7 |
| ΔT20 | 48.5 |
| ΔT25 | 66 |
| ΔT30 | 84.7 |
| ΔT35 | 104.8 |
| ΔT40 | 125.9 |
| ΔT45 | 148 |
| ΔT50 | 171.1 |

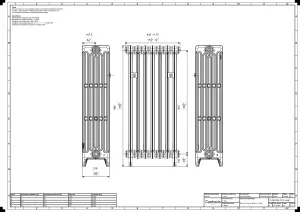

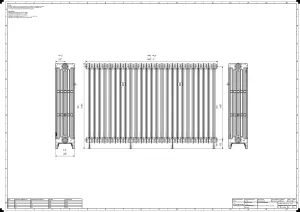

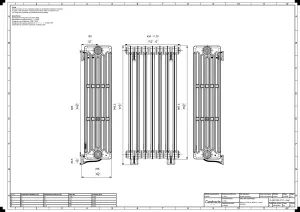

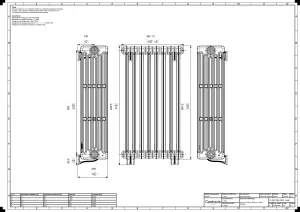

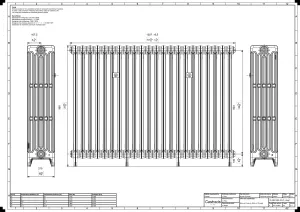

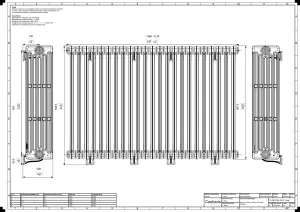

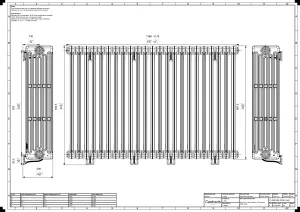

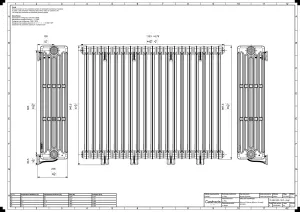

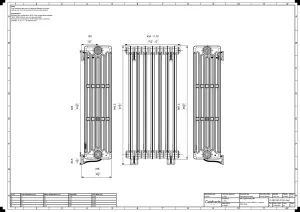

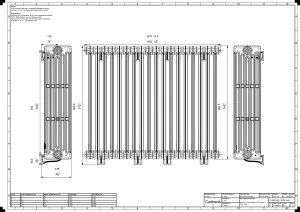

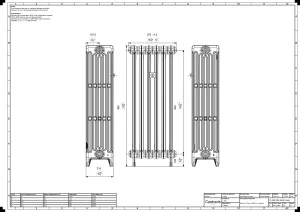

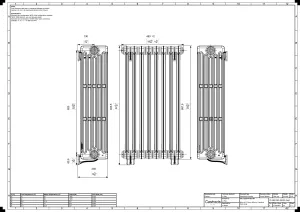

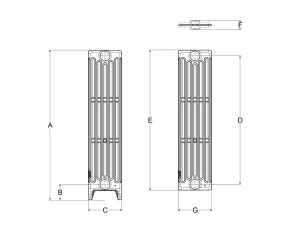

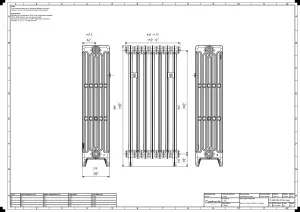

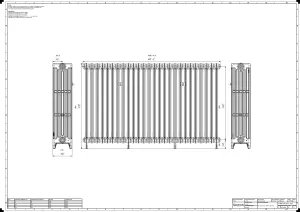

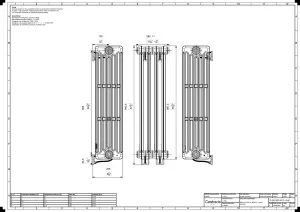

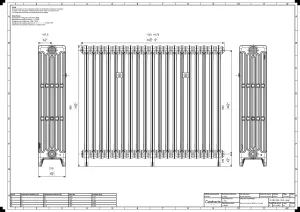

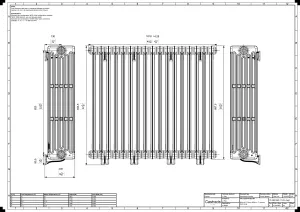

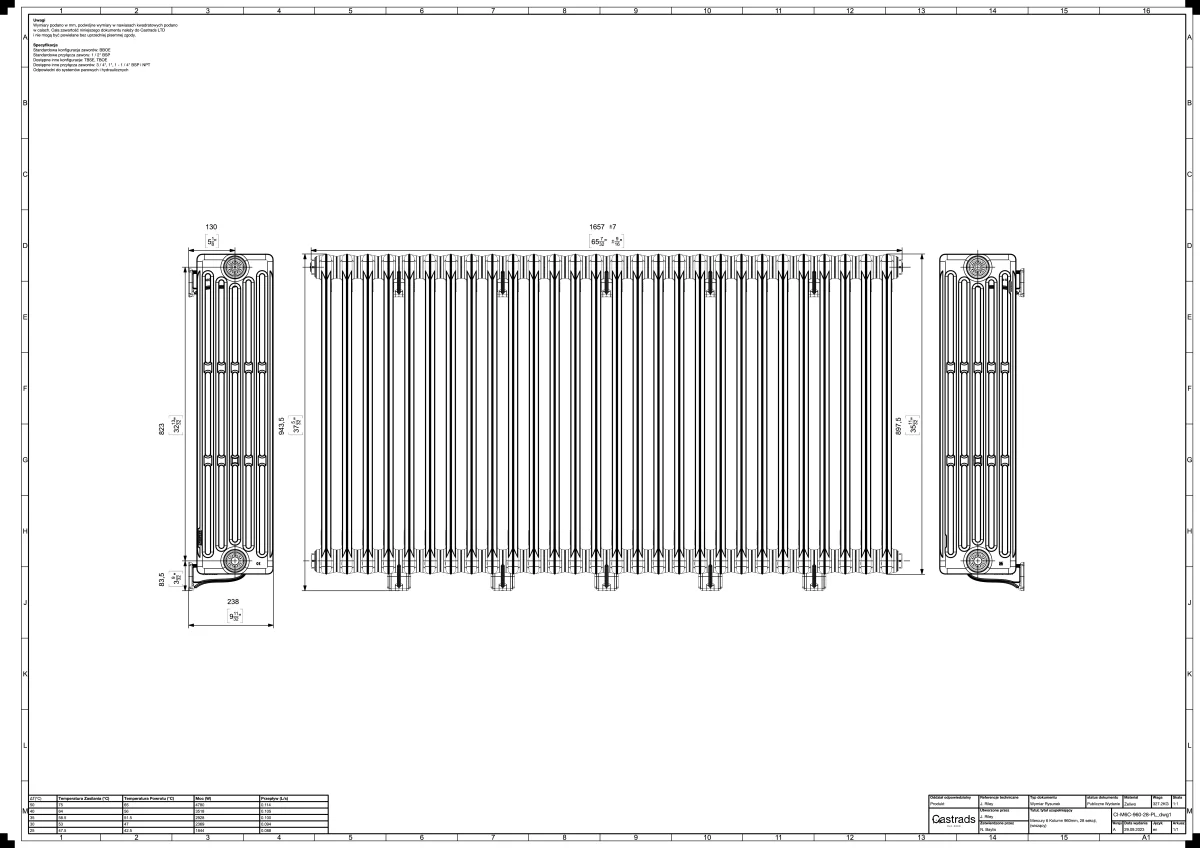

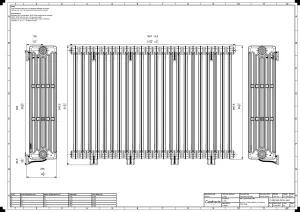

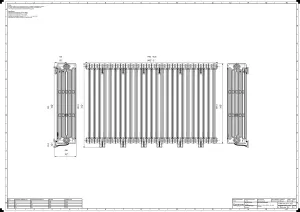

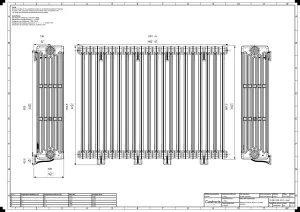

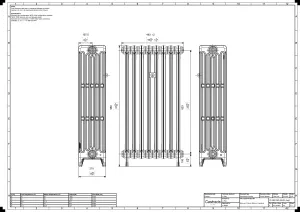

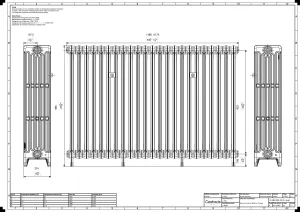

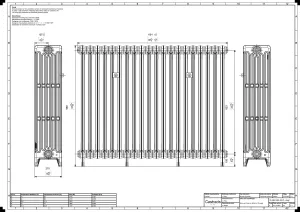

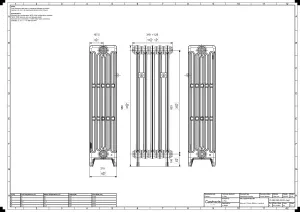

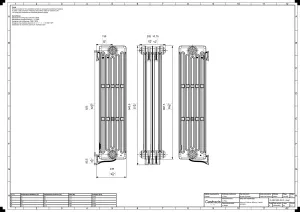

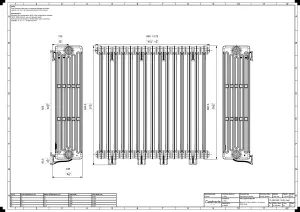

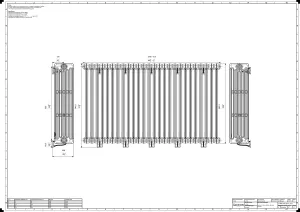

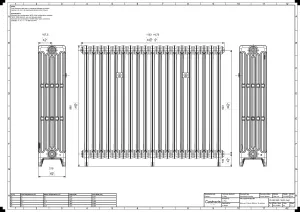

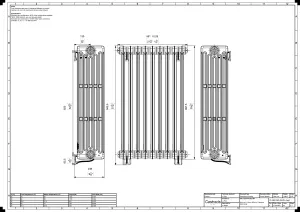

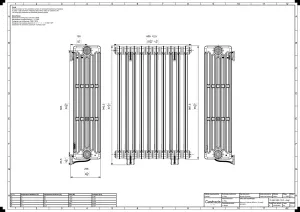

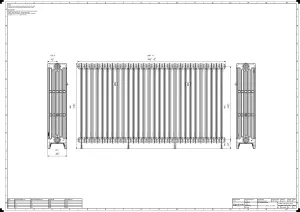

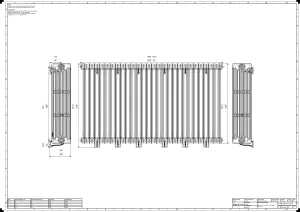

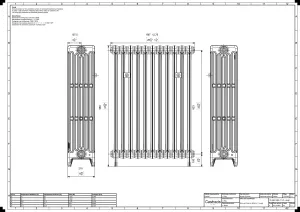

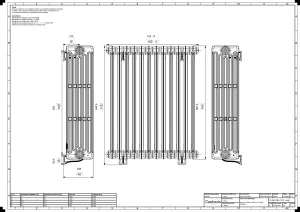

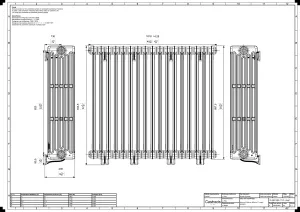

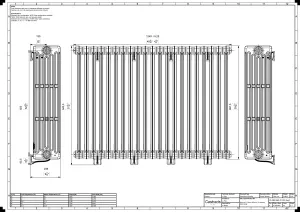

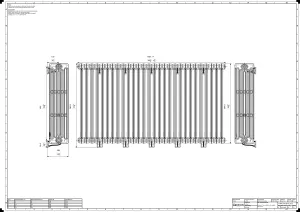

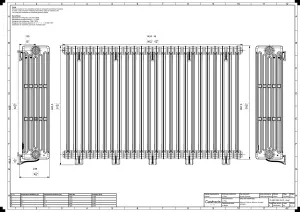

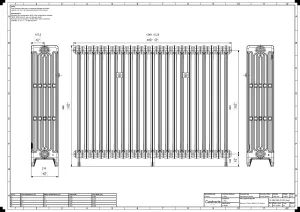

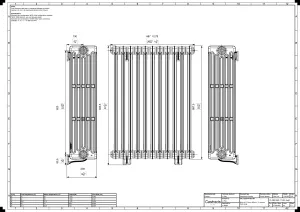

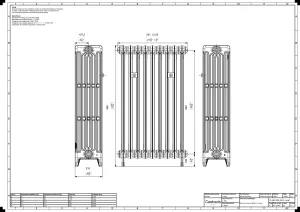

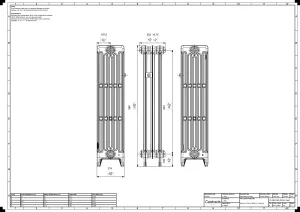

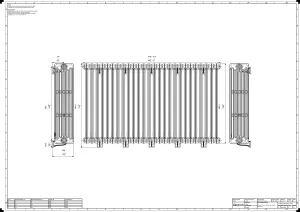

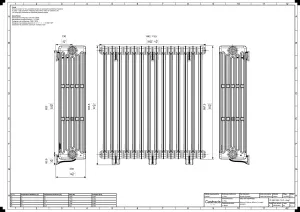

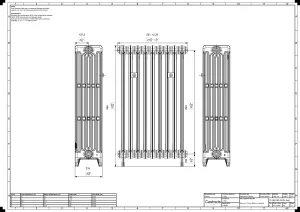

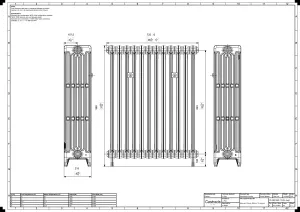

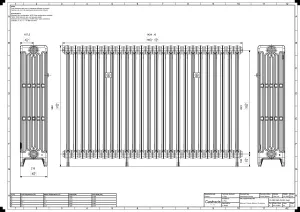

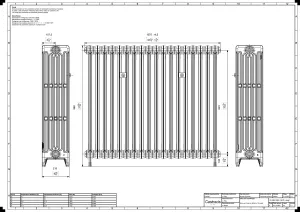

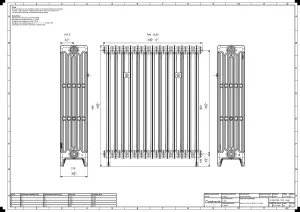

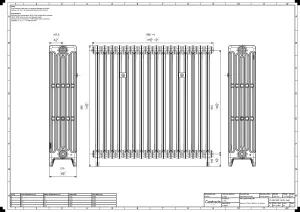

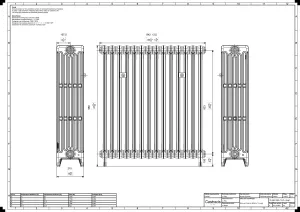

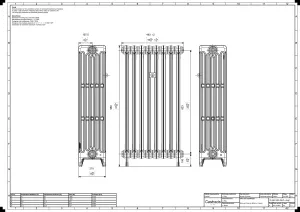

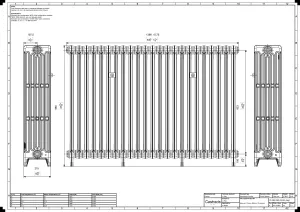

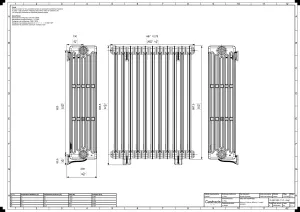

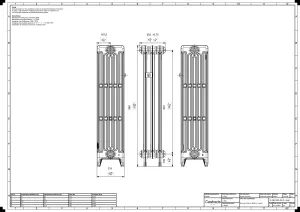

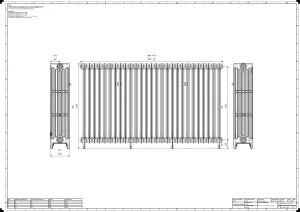

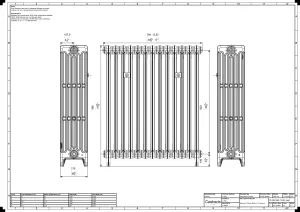

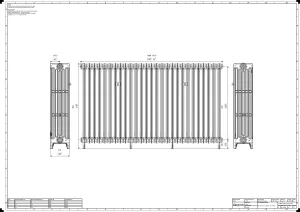

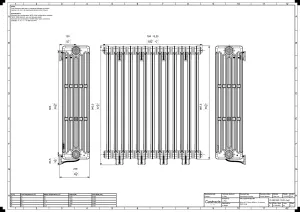

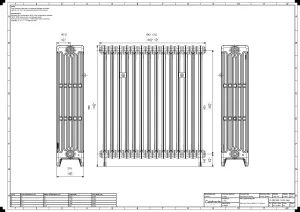

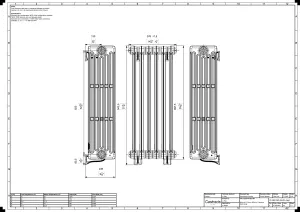

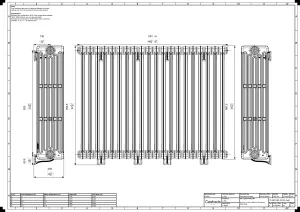

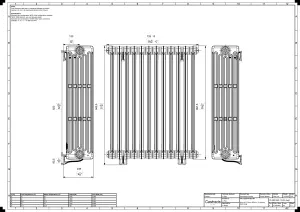

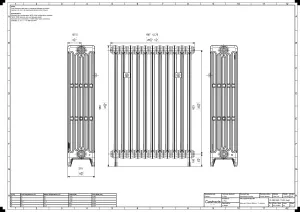

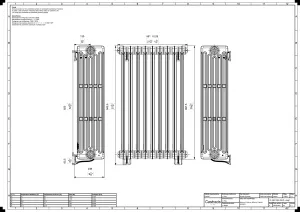

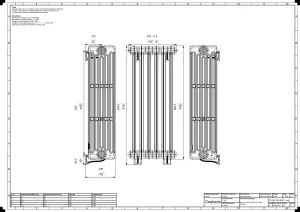

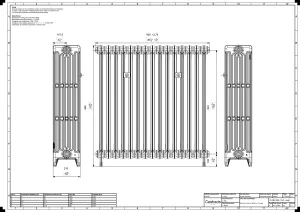

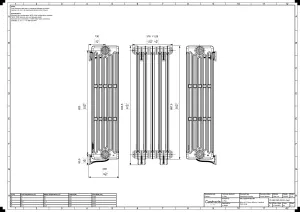

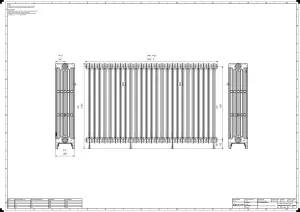

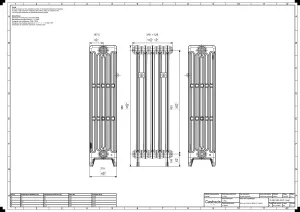

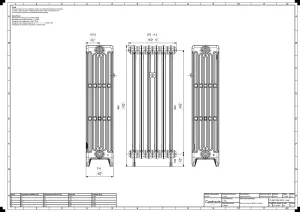

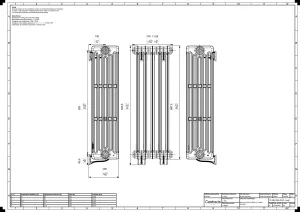

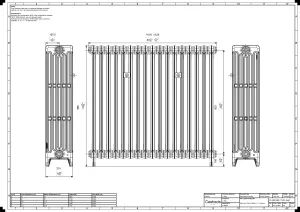

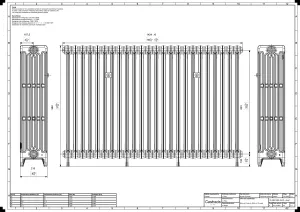

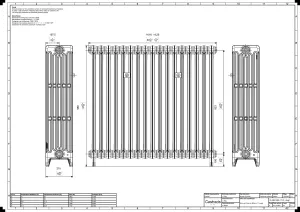

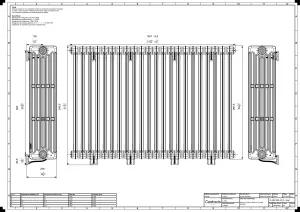

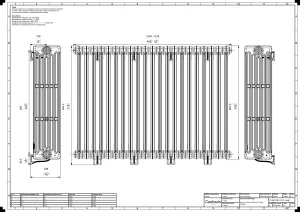

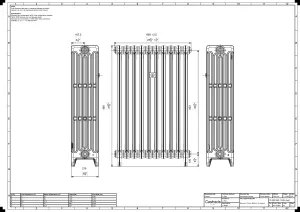

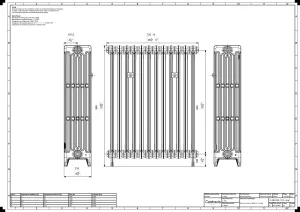

Specifications

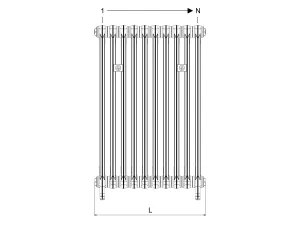

| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 960mm |
| B | Pipe centre to floor | 100.5mm |
| C | Max section depth | 215mm |
| D | Interaxis distance | 823mm |
| E | Height without legs | 898mm |
| F | Mid section depth | 215mm |
| G | Pipe centre to wall (Atlas bracket) | 130mm |
| L | Section length | 58.3mm |
| – | Internal volume per section | 1.5L |
| – | Leg section weight | 12.6kg |
| – | Mid section weight | 11.7kg |
| – | Max single-piece delivery size | 7sections |
| – | Output at ΔT30 | 84.7W |
| – | Output at ΔT50 | 171.1W |
φ = Km × ΔTn · Km = 0.789 · n = 1.375
Tested to EN 442 · BSRIA · Test ref: 103146A2PS
Declaration of Performance: 202009-1109 · CE marked
