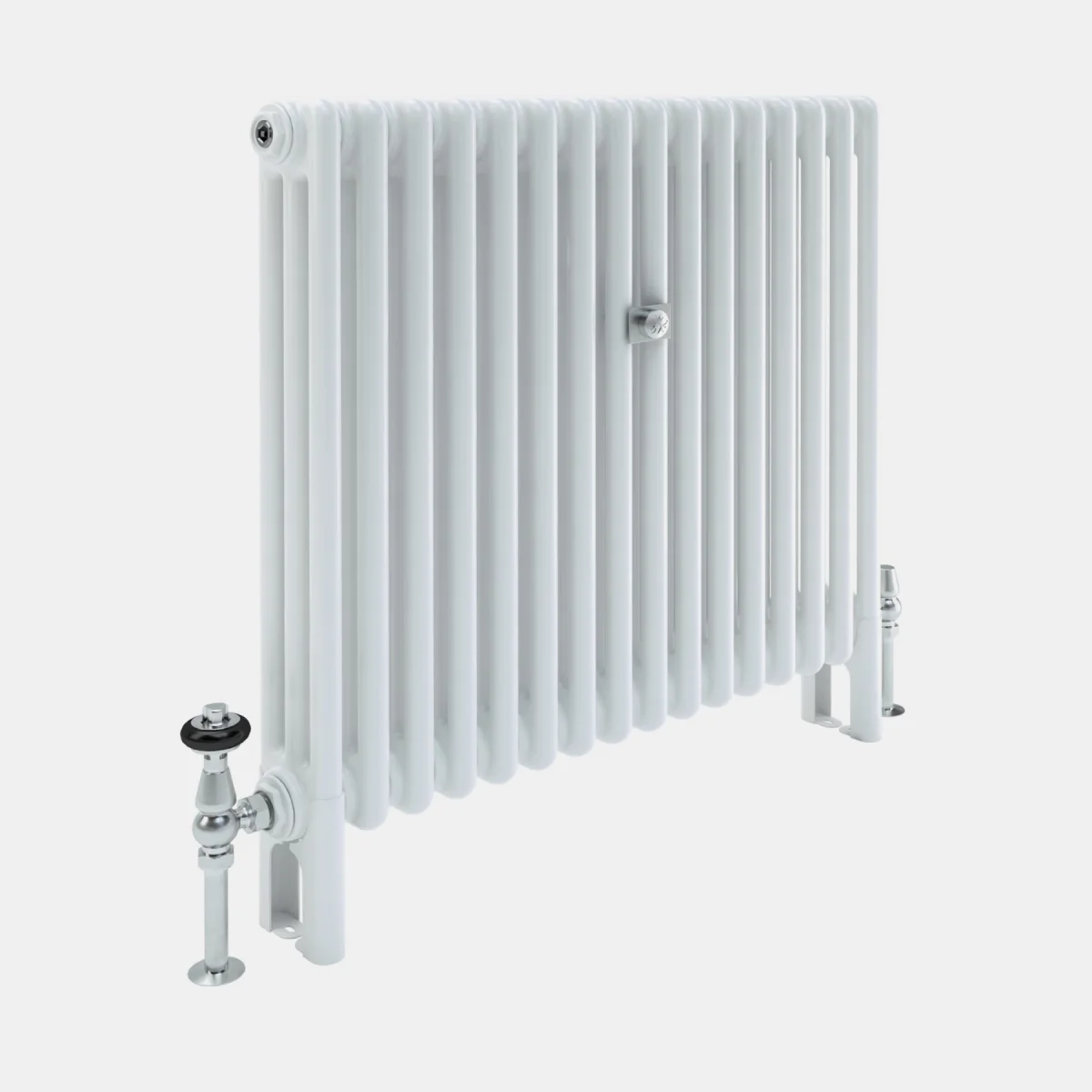

Curved Florence 3 Column 685mm
Na zamówienie
Każdy grzejnik powstaje w rozmiarze dopasowanym do pomieszczenia. Wybierz liczbę żeberek, wykończenie i zawory w konfiguratorze lub pozwól wyszukiwarce dobrać model do Twojej przestrzeni.
CUR-F3C-687
Specifications
| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 787mm |
| B | Pipe centre to floor | 134mm |
| C | Max section depth | 103mm |
| D | Interaxis distance | 620mm |
| E | Height without legs | 687mm |
| F | Mid section depth | 101mm |
| G | Pipe centre to wall (Atlas bracket) | 63mm |
| L | Section length | 45mm |
| – | Internal volume per section | 1.1L |
| – | Leg section weight | 1.6kg |
| – | Mid section weight | 1.3kg |
| – | Max single-piece delivery size | 25sections |
| – | Output at ΔT30 | 35.3W |
| – | Output at ΔT50 | 68.3W |
φ = Km × ΔTn · Km = 0.439 · n = 1.29
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.ITPL.01004
Declaration of Performance: 202009-1033 · CE marked
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints |
|---|---|---|---|---|---|---|---|
| CUR-F3C-687-03 | 3 | 165 | 205 | 106 | One piece | — | — |
| CUR-F3C-687-04 | 4 | 210 | 273 | 141 | One piece | — | — |
| CUR-F3C-687-05 | 5 | 255 | 341 | 177 | One piece | — | — |
| CUR-F3C-687-06 | 6 | 300 | 410 | 212 | One piece | — | — |
| CUR-F3C-687-07 | 7 | 345 | 478 | 247 | One piece | — | — |
| CUR-F3C-687-08 | 8 | 390 | 546 | 283 | One piece | — | — |
| CUR-F3C-687-09 | 9 | 435 | 614 | 318 | One piece | — | — |
| CUR-F3C-687-10 | 10 | 480 | 683 | 353 | One piece | — | — |
| CUR-F3C-687-11 | 11 | 525 | 751 | 388 | One piece | — | — |
| CUR-F3C-687-12 | 12 | 570 | 819 | 424 | One piece | — | — |
| CUR-F3C-687-13 | 13 | 615 | 887 | 459 | One piece | — | — |
| CUR-F3C-687-14 | 14 | 660 | 956 | 494 | One piece | — | — |
| CUR-F3C-687-15 | 15 | 705 | 1024 | 530 | One piece | — | — |
| CUR-F3C-687-16 | 16 | 750 | 1092 | 565 | One piece | — | — |
| CUR-F3C-687-17 | 17 | 795 | 1160 | 600 | One piece | — | — |
| CUR-F3C-687-18 | 18 | 840 | 1229 | 636 | One piece | — | — |
| CUR-F3C-687-19 | 19 | 885 | 1297 | 671 | One piece | — | — |
| CUR-F3C-687-20 | 20 | 930 | 1365 | 706 | One piece | — | — |
| CUR-F3C-687-21 | 21 | 975 | 1433 | 742 | One piece | — | — |
| CUR-F3C-687-22 | 22 | 1020 | 1502 | 777 | One piece | — | — |
| CUR-F3C-687-23 | 23 | 1065 | 1570 | 812 | One piece | — | — |
| CUR-F3C-687-24 | 24 | 1110 | 1638 | 848 | One piece | — | — |
| CUR-F3C-687-25 | 25 | 1155 | 1706 | 883 | One piece | — | — |
| CUR-F3C-687-26 | 26 | 1200 | 1775 | 918 | 2 pieces | — | — |
| CUR-F3C-687-27 | 27 | 1245 | 1843 | 953 | 2 pieces | — | — |
| CUR-F3C-687-28 | 28 | 1290 | 1911 | 989 | 2 pieces | — | — |
| CUR-F3C-687-29 | 29 | 1335 | 1979 | 1024 | 2 pieces | — | — |
| CUR-F3C-687-30 | 30 | 1380 | 2048 | 1059 | 2 pieces | — | — |
| CUR-F3C-687-31 | 31 | 1425 | 2116 | 1095 | 2 pieces | — | — |
| CUR-F3C-687-32 | 32 | 1470 | 2184 | 1130 | 2 pieces | — | — |
| CUR-F3C-687-33 | 33 | 1515 | 2252 | 1165 | 2 pieces | — | — |
| CUR-F3C-687-34 | 34 | 1560 | 2321 | 1201 | 2 pieces | — | — |
| CUR-F3C-687-35 | 35 | 1605 | 2389 | 1236 | 2 pieces | — | — |
| CUR-F3C-687-36 | 36 | 1650 | 2457 | 1271 | 2 pieces | — | — |
| CUR-F3C-687-37 | 37 | 1695 | 2525 | 1307 | 2 pieces | — | — |
| CUR-F3C-687-38 | 38 | 1740 | 2594 | 1342 | 2 pieces | — | — |
| CUR-F3C-687-39 | 39 | 1785 | 2662 | 1377 | 2 pieces | — | — |
| CUR-F3C-687-40 | 40 | 1830 | 2730 | 1413 | 2 pieces | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 14.4 |
| ΔT20 | 20.9 |
| ΔT25 | 27.9 |
| ΔT30 | 35.3 |
| ΔT35 | 43.1 |
| ΔT40 | 51.2 |
| ΔT45 | 59.6 |
| ΔT50 | 68.3 |
