Emmeline I 465mm

Name: Emmeline I 465mm
SKU: CI-EML1-465

Na zamówienie

Każdy grzejnik powstaje w rozmiarze dopasowanym do pomieszczenia. Wybierz liczbę żeberek, wykończenie i zawory w konfiguratorze lub pozwól wyszukiwarce dobrać model do Twojej przestrzeni.

Skonfiguruj grzejnik Znajdź pasujący grzejnik

CI-EML1-465

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKU	Sections	Length (mm)	ΔT50 (W)	ΔT30 (W)	Delivered in	Signature	Branded Paints	Bare Metal
CI-EML1-465-03	3	230	133	70	One piece	—	—	—
CI-EML1-465-04	4	296	178	94	One piece	—	—	—
CI-EML1-465-05	5	363	222	117	One piece	—	—	—
CI-EML1-465-06	6	429	267	141	One piece	—	—	—
CI-EML1-465-07	7	496	311	164	One piece	—	—	—
CI-EML1-465-08	8	562	356	187	One piece	—	—	—
CI-EML1-465-09	9	629	400	211	One piece	—	—	—
CI-EML1-465-10	10	695	445	234	One piece	—	—	—
CI-EML1-465-11	11	762	489	258	One piece	—	—	—
CI-EML1-465-12	12	828	534	281	One piece	—	—	—
CI-EML1-465-13	13	895	578	305	One piece	—	—	—
CI-EML1-465-14	14	961	623	328	One piece	—	—	—
CI-EML1-465-15	15	1028	667	351	2 pieces	—	—	—
CI-EML1-465-16	16	1094	712	375	2 pieces	—	—	—
CI-EML1-465-17	17	1161	756	398	2 pieces	—	—	—
CI-EML1-465-18	18	1227	800	422	2 pieces	—	—	—
CI-EML1-465-19	19	1294	845	445	2 pieces	—	—	—
CI-EML1-465-20	20	1360	889	468	2 pieces	—	—	—
CI-EML1-465-21	21	1427	934	492	2 pieces	—	—	—
CI-EML1-465-22	22	1493	978	515	2 pieces	—	—	—
CI-EML1-465-23	23	1560	1023	539	2 pieces	—	—	—
CI-EML1-465-24	24	1626	1067	562	2 pieces	—	—	—
CI-EML1-465-25	25	1693	1112	586	2 pieces	—	—	—
CI-EML1-465-26	26	1759	1156	609	2 pieces	—	—	—
CI-EML1-465-27	27	1826	1201	632	2 pieces	—	—	—
CI-EML1-465-28	28	1892	1245	656	2 pieces	—	—	—
CI-EML1-465-29	29	1959	1290	679	3 pieces	—	—	—
CI-EML1-465-30	30	2025	1334	703	3 pieces	—	—	—
CI-EML1-465-31	31	2092	1379	726	3 pieces	—	—	—
CI-EML1-465-32	32	2158	1423	750	3 pieces	—	—	—
CI-EML1-465-33	33	2225	1468	773	3 pieces	—	—	—
CI-EML1-465-34	34	2291	1512	796	3 pieces	—	—	—
CI-EML1-465-35	35	2358	1557	820	3 pieces	—	—	—
CI-EML1-465-36	36	2424	1601	843	3 pieces	—	—	—
CI-EML1-465-37	37	2491	1645	867	3 pieces	—	—	—
CI-EML1-465-38	38	2557	1690	890	3 pieces	—	—	—
CI-EML1-465-39	39	2624	1734	914	3 pieces	—	—	—
CI-EML1-465-40	40	2690	1779	937	3 pieces	—	—	—

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

Heat output in watts per section at each temperature difference
ΔT (K)	Output per section (W)
ΔT15	9.8
ΔT20	14.1
ΔT25	18.6
ΔT30	23.4
ΔT35	28.4
ΔT40	33.6
ΔT45	39
ΔT50	44.5

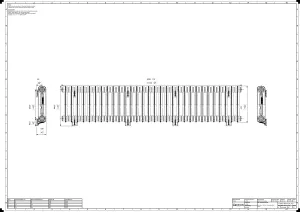

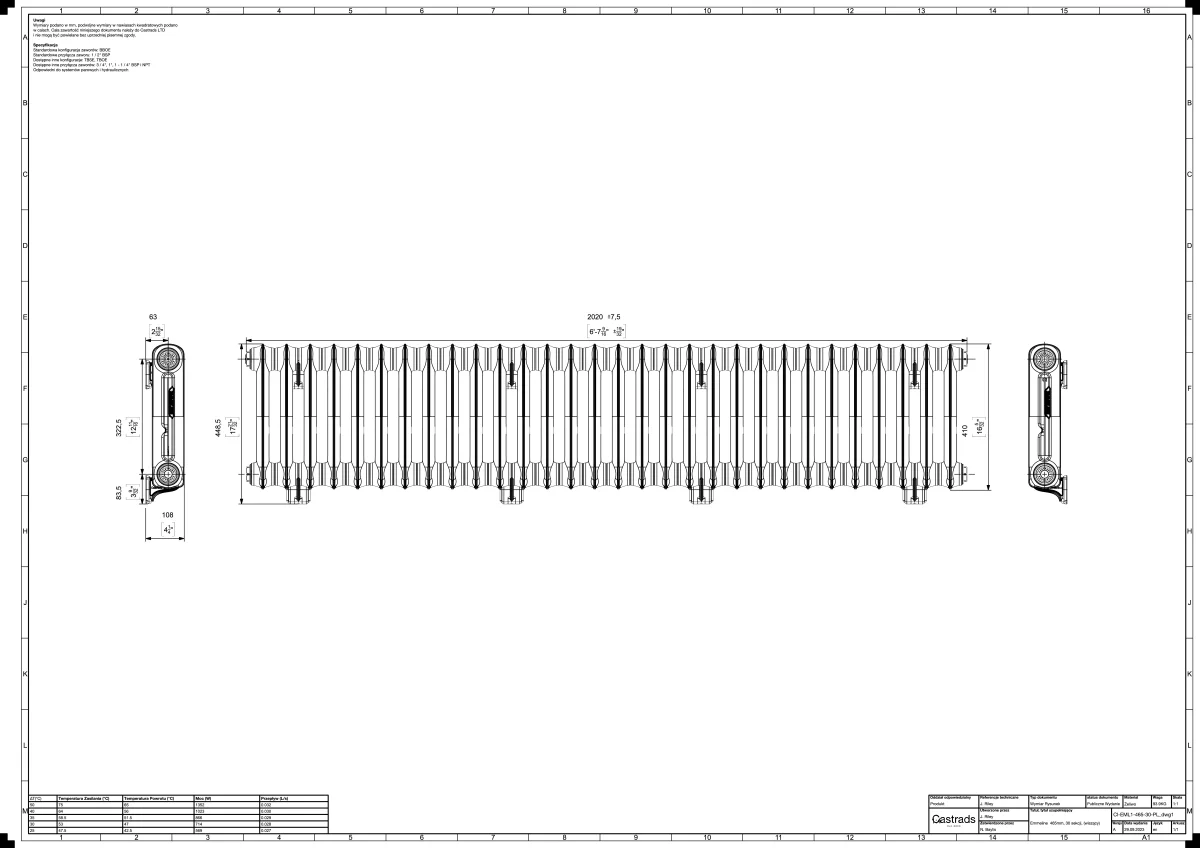

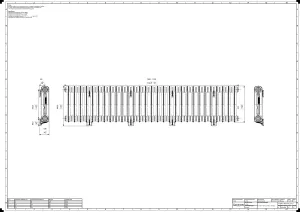

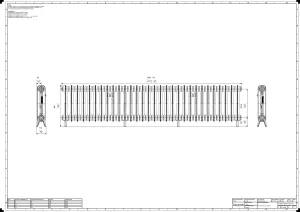

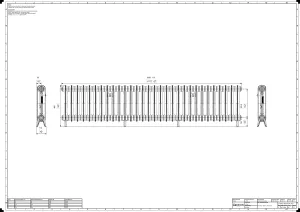

Specifications

Dimensions, weights and heat outputs for this model
Ref	Attribute	Value
A	Height with legs	465mm
B	Pipe centre to floor	100mm
C	Max section depth	110mm
D	Interaxis distance	325mm
E	Height without legs	407mm
F	Mid section depth	90mm
G	Pipe centre to wall (Atlas bracket)	63mm
L	Section length	66.5mm
–	Internal volume per section	0.6L
–	Leg section weight	3.5kg
–	Mid section weight	3.2kg
–	Max single-piece delivery size	14sections
–	Output at ΔT30	23.4W
–	Output at ΔT50	44.5W

φ = K_m × ΔTⁿ · K_m = 0.328 · n = 1.255
Tested to EN 442 · BSRIA · Test ref: 104331/2
Declaration of Performance: 202201-1081 · CE marked
