Emmeline I 665mm

Name: Emmeline I 665mm
SKU: CI-EML1-665

Na zamówienie

Każdy grzejnik powstaje w rozmiarze dopasowanym do pomieszczenia. Wybierz liczbę żeberek, wykończenie i zawory w konfiguratorze lub pozwól wyszukiwarce dobrać model do Twojej przestrzeni.

Skonfiguruj grzejnik Znajdź pasujący grzejnik

CI-EML1-665

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKU	Sections	Length (mm)	ΔT50 (W)	ΔT30 (W)	Delivered in	Signature	Branded Paints	Bare Metal
CI-EML1-665-03	3	230	187	98	One piece	—	—	—
CI-EML1-665-04	4	296	250	131	One piece	—	—	—
CI-EML1-665-05	5	363	312	164	One piece	—	—	—
CI-EML1-665-06	6	429	375	197	One piece	—	—	—
CI-EML1-665-07	7	496	437	230	One piece	—	—	—
CI-EML1-665-08	8	562	500	263	One piece	—	—	—
CI-EML1-665-09	9	629	562	295	One piece	—	—	—
CI-EML1-665-10	10	695	625	328	One piece	—	—	—
CI-EML1-665-11	11	762	687	361	One piece	—	—	—
CI-EML1-665-12	12	828	750	394	One piece	—	—	—
CI-EML1-665-13	13	895	812	427	One piece	—	—	—
CI-EML1-665-14	14	961	875	460	One piece	—	—	—
CI-EML1-665-15	15	1028	937	492	2 pieces	—	—	—
CI-EML1-665-16	16	1094	1000	525	2 pieces	—	—	—
CI-EML1-665-17	17	1161	1062	558	2 pieces	—	—	—
CI-EML1-665-18	18	1227	1125	591	2 pieces	—	—	—
CI-EML1-665-19	19	1294	1187	624	2 pieces	—	—	—
CI-EML1-665-20	20	1360	1250	657	2 pieces	—	—	—
CI-EML1-665-21	21	1427	1312	689	2 pieces	—	—	—
CI-EML1-665-22	22	1493	1375	722	2 pieces	—	—	—
CI-EML1-665-23	23	1560	1437	755	2 pieces	—	—	—
CI-EML1-665-24	24	1626	1500	788	2 pieces	—	—	—
CI-EML1-665-25	25	1693	1562	821	2 pieces	—	—	—
CI-EML1-665-26	26	1759	1625	854	2 pieces	—	—	—
CI-EML1-665-27	27	1826	1687	886	2 pieces	—	—	—
CI-EML1-665-28	28	1892	1750	919	2 pieces	—	—	—
CI-EML1-665-29	29	1959	1812	952	3 pieces	—	—	—
CI-EML1-665-30	30	2025	1875	985	3 pieces	—	—	—
CI-EML1-665-31	31	2092	1937	1018	3 pieces	—	—	—
CI-EML1-665-32	32	2158	2000	1051	3 pieces	—	—	—
CI-EML1-665-33	33	2225	2062	1083	3 pieces	—	—	—
CI-EML1-665-34	34	2291	2125	1116	3 pieces	—	—	—
CI-EML1-665-35	35	2358	2187	1149	3 pieces	—	—	—
CI-EML1-665-36	36	2424	2250	1182	3 pieces	—	—	—
CI-EML1-665-37	37	2491	2312	1215	3 pieces	—	—	—
CI-EML1-665-38	38	2557	2375	1248	3 pieces	—	—	—
CI-EML1-665-39	39	2624	2437	1280	3 pieces	—	—	—
CI-EML1-665-40	40	2690	2500	1313	3 pieces	—	—	—

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

Heat output in watts per section at each temperature difference
ΔT (K)	Output per section (W)
ΔT15	13.7
ΔT20	19.7
ΔT25	26.1
ΔT30	32.8
ΔT35	39.9
ΔT40	47.2
ΔT45	54.7
ΔT50	62.5

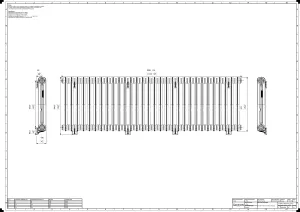

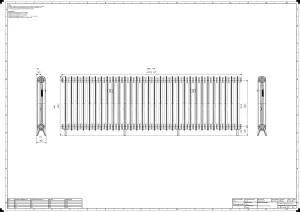

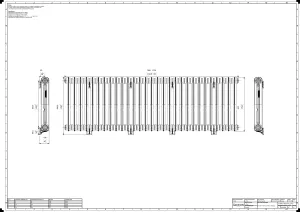

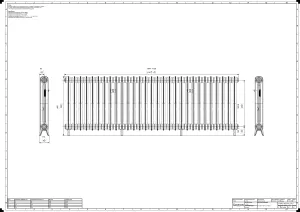

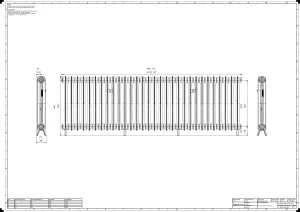

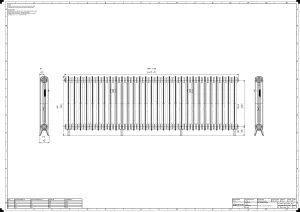

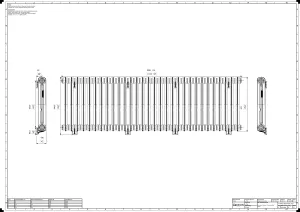

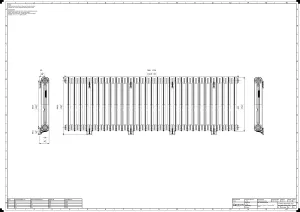

Specifications

Dimensions, weights and heat outputs for this model
Ref	Attribute	Value
A	Height with legs	665mm
B	Pipe centre to floor	100mm
C	Max section depth	110mm
D	Interaxis distance	522mm
E	Height without legs	607mm
F	Mid section depth	90mm
G	Pipe centre to wall (Atlas bracket)	63mm
L	Section length	66.5mm
–	Internal volume per section	0.8L
–	Leg section weight	4.8kg
–	Mid section weight	4.5kg
–	Max single-piece delivery size	14sections
–	Output at ΔT30	32.8W
–	Output at ΔT50	62.5W

φ = K_m × ΔTⁿ · K_m = 0.452 · n = 1.26
Tested to EN 442 · BSRIA · Test ref: 104331/2
Declaration of Performance: 202201-1082 · CE marked
