Emmeline I 865mm
Na zamówienie
Każdy grzejnik powstaje w rozmiarze dopasowanym do pomieszczenia. Wybierz liczbę żeberek, wykończenie i zawory w konfiguratorze lub pozwól wyszukiwarce dobrać model do Twojej przestrzeni.
CI-EML1-865
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints | Bare Metal |
|---|---|---|---|---|---|---|---|---|
| CI-EML1-865-03 | 3 | 230 | 237 | 124 | One piece | — | — | — |
| CI-EML1-865-04 | 4 | 296 | 317 | 165 | One piece | — | — | — |
| CI-EML1-865-05 | 5 | 363 | 396 | 206 | One piece | — | — | — |
| CI-EML1-865-06 | 6 | 429 | 475 | 248 | One piece | — | — | — |
| CI-EML1-865-07 | 7 | 496 | 554 | 289 | One piece | — | — | — |
| CI-EML1-865-08 | 8 | 562 | 633 | 330 | One piece | — | — | — |
| CI-EML1-865-09 | 9 | 629 | 712 | 372 | One piece | — | — | — |
| CI-EML1-865-10 | 10 | 695 | 792 | 413 | One piece | — | — | — |
| CI-EML1-865-11 | 11 | 762 | 871 | 454 | One piece | — | — | — |
| CI-EML1-865-12 | 12 | 828 | 950 | 495 | One piece | — | — | — |
| CI-EML1-865-13 | 13 | 895 | 1029 | 537 | One piece | — | — | — |
| CI-EML1-865-14 | 14 | 961 | 1108 | 578 | One piece | — | — | — |
| CI-EML1-865-15 | 15 | 1028 | 1187 | 619 | 2 pieces | — | — | — |
| CI-EML1-865-16 | 16 | 1094 | 1267 | 661 | 2 pieces | — | — | — |
| CI-EML1-865-17 | 17 | 1161 | 1346 | 702 | 2 pieces | — | — | — |
| CI-EML1-865-18 | 18 | 1227 | 1425 | 743 | 2 pieces | — | — | — |
| CI-EML1-865-19 | 19 | 1294 | 1504 | 785 | 2 pieces | — | — | — |
| CI-EML1-865-20 | 20 | 1360 | 1583 | 826 | 2 pieces | — | — | — |
| CI-EML1-865-21 | 21 | 1427 | 1662 | 867 | 2 pieces | — | — | — |
| CI-EML1-865-22 | 22 | 1493 | 1741 | 908 | 2 pieces | — | — | — |
| CI-EML1-865-23 | 23 | 1560 | 1821 | 950 | 2 pieces | — | — | — |
| CI-EML1-865-24 | 24 | 1626 | 1900 | 991 | 2 pieces | — | — | — |
| CI-EML1-865-25 | 25 | 1693 | 1979 | 1032 | 2 pieces | — | — | — |
| CI-EML1-865-26 | 26 | 1759 | 2058 | 1074 | 2 pieces | — | — | — |
| CI-EML1-865-27 | 27 | 1826 | 2137 | 1115 | 2 pieces | — | — | — |
| CI-EML1-865-28 | 28 | 1892 | 2216 | 1156 | 2 pieces | — | — | — |
| CI-EML1-865-29 | 29 | 1959 | 2296 | 1197 | 3 pieces | — | — | — |
| CI-EML1-865-30 | 30 | 2025 | 2375 | 1239 | 3 pieces | — | — | — |
| CI-EML1-865-31 | 31 | 2092 | 2454 | 1280 | 3 pieces | — | — | — |
| CI-EML1-865-32 | 32 | 2158 | 2533 | 1321 | 3 pieces | — | — | — |
| CI-EML1-865-33 | 33 | 2225 | 2612 | 1363 | 3 pieces | — | — | — |
| CI-EML1-865-34 | 34 | 2291 | 2691 | 1404 | 3 pieces | — | — | — |
| CI-EML1-865-35 | 35 | 2358 | 2770 | 1445 | 3 pieces | — | — | — |
| CI-EML1-865-36 | 36 | 2424 | 2850 | 1486 | 3 pieces | — | — | — |
| CI-EML1-865-37 | 37 | 2491 | 2929 | 1528 | 3 pieces | — | — | — |
| CI-EML1-865-38 | 38 | 2557 | 3008 | 1569 | 3 pieces | — | — | — |
| CI-EML1-865-39 | 39 | 2624 | 3087 | 1610 | 3 pieces | — | — | — |
| CI-EML1-865-40 | 40 | 2690 | 3166 | 1652 | 3 pieces | — | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 17.1 |
| ΔT20 | 24.6 |
| ΔT25 | 32.7 |
| ΔT30 | 41.3 |
| ΔT35 | 50.3 |
| ΔT40 | 59.6 |
| ΔT45 | 69.2 |
| ΔT50 | 79.2 |

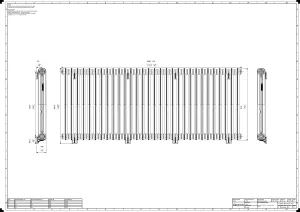

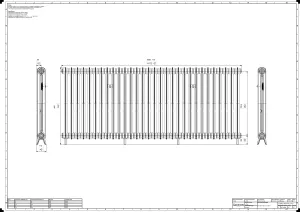

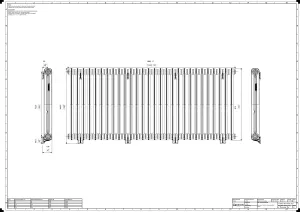

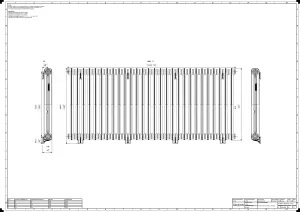

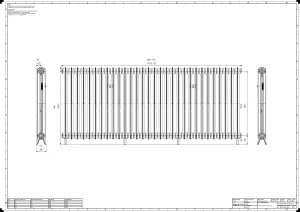

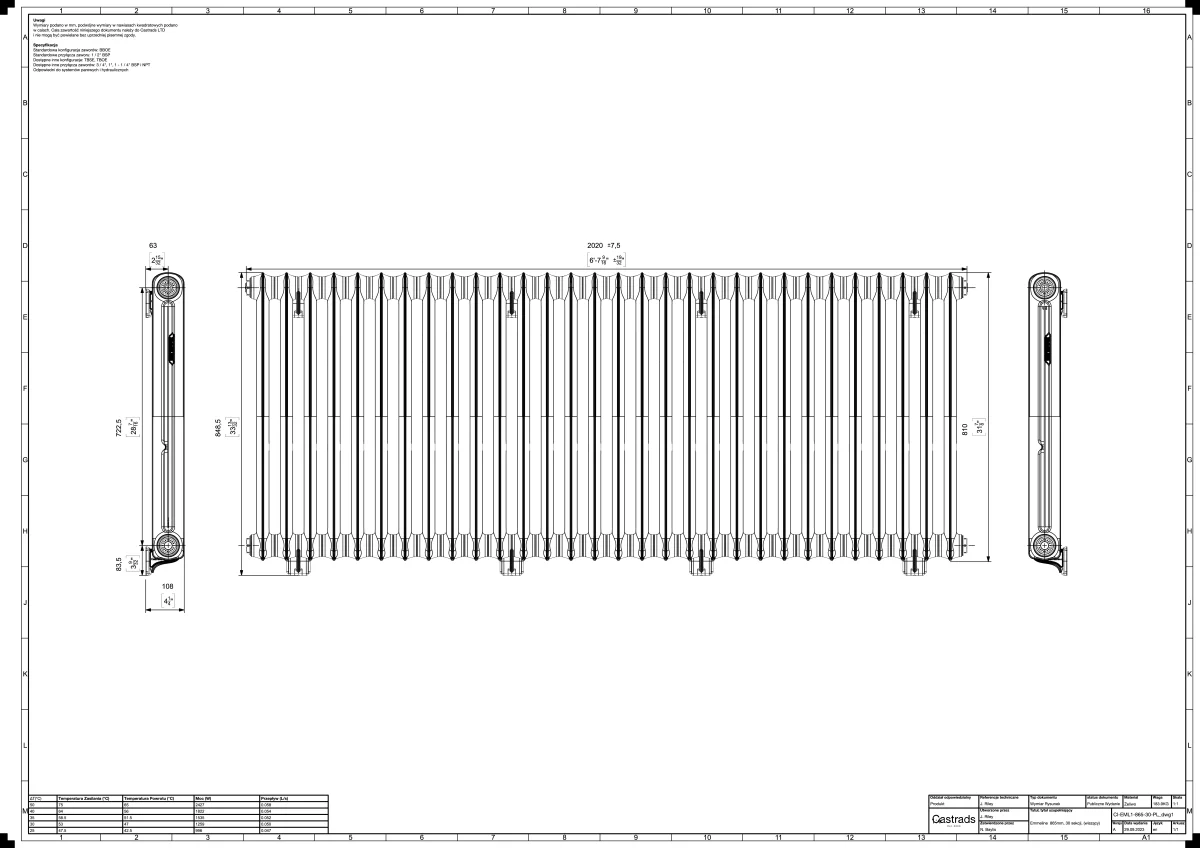

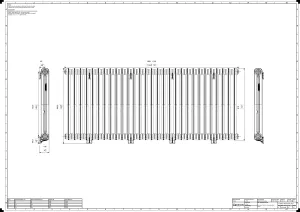

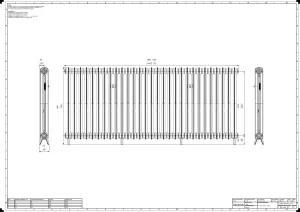

Specifications
| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 865mm |
| B | Pipe centre to floor | 100mm |
| C | Max section depth | 110mm |
| D | Interaxis distance | 722mm |
| E | Height without legs | 807mm |
| F | Mid section depth | 90mm |
| G | Pipe centre to wall (Atlas bracket) | 63mm |
| L | Section length | 66.5mm |
| – | Internal volume per section | 0.93L |
| – | Leg section weight | 6.4kg |
| – | Mid section weight | 6.1kg |
| – | Max single-piece delivery size | 14sections |
| – | Output at ΔT30 | 41.3W |
| – | Output at ΔT50 | 79.2W |
φ = Km × ΔTn · Km = 0.542 · n = 1.274
Tested to EN 442 · BSRIA · Test ref: 104331/2
Declaration of Performance: 202201-1083 · CE marked
