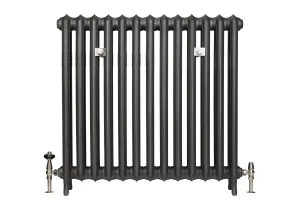

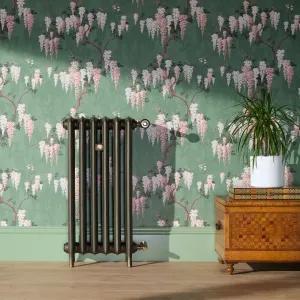

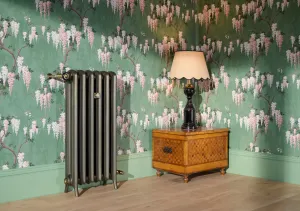

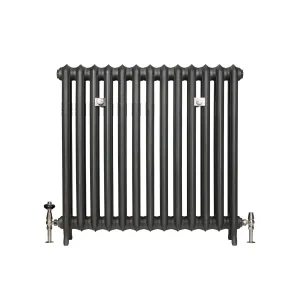

Emmeline II 870mm
Na zamówienie
Każdy grzejnik powstaje w rozmiarze dopasowanym do pomieszczenia. Wybierz liczbę żeberek, wykończenie i zawory w konfiguratorze lub pozwól wyszukiwarce dobrać model do Twojej przestrzeni.
CI-EML2-870
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints | Bare Metal |
|---|---|---|---|---|---|---|---|---|
| CI-EML2-870-03 | 3 | 230 | 341 | 177 | One piece | — | — | — |
| CI-EML2-870-04 | 4 | 296 | 455 | 236 | One piece | — | — | — |
| CI-EML2-870-05 | 5 | 363 | 568 | 296 | One piece | — | — | — |
| CI-EML2-870-06 | 6 | 429 | 682 | 355 | One piece | — | — | — |
| CI-EML2-870-07 | 7 | 496 | 795 | 414 | One piece | — | — | — |
| CI-EML2-870-08 | 8 | 562 | 909 | 473 | One piece | — | — | — |
| CI-EML2-870-09 | 9 | 629 | 1023 | 532 | One piece | — | — | — |
| CI-EML2-870-10 | 10 | 695 | 1136 | 591 | One piece | — | — | — |
| CI-EML2-870-11 | 11 | 762 | 1250 | 650 | One piece | — | — | — |
| CI-EML2-870-12 | 12 | 828 | 1364 | 709 | 2 pieces | — | — | — |
| CI-EML2-870-13 | 13 | 895 | 1477 | 769 | 2 pieces | — | — | — |
| CI-EML2-870-14 | 14 | 961 | 1591 | 828 | 2 pieces | — | — | — |
| CI-EML2-870-15 | 15 | 1028 | 1705 | 887 | 2 pieces | — | — | — |
| CI-EML2-870-16 | 16 | 1094 | 1818 | 946 | 2 pieces | — | — | — |
| CI-EML2-870-17 | 17 | 1161 | 1932 | 1005 | 2 pieces | — | — | — |
| CI-EML2-870-18 | 18 | 1227 | 2045 | 1064 | 2 pieces | — | — | — |
| CI-EML2-870-19 | 19 | 1294 | 2159 | 1123 | 2 pieces | — | — | — |
| CI-EML2-870-20 | 20 | 1360 | 2273 | 1182 | 2 pieces | — | — | — |
| CI-EML2-870-21 | 21 | 1427 | 2386 | 1242 | 2 pieces | — | — | — |
| CI-EML2-870-22 | 22 | 1493 | 2500 | 1301 | 2 pieces | — | — | — |
| CI-EML2-870-23 | 23 | 1560 | 2614 | 1360 | 3 pieces | — | — | — |
| CI-EML2-870-24 | 24 | 1626 | 2727 | 1419 | 3 pieces | — | — | — |
| CI-EML2-870-25 | 25 | 1693 | 2841 | 1478 | 3 pieces | — | — | — |
| CI-EML2-870-26 | 26 | 1759 | 2954 | 1537 | 3 pieces | — | — | — |
| CI-EML2-870-27 | 27 | 1826 | 3068 | 1596 | 3 pieces | — | — | — |
| CI-EML2-870-28 | 28 | 1892 | 3182 | 1655 | 3 pieces | — | — | — |
| CI-EML2-870-29 | 29 | 1959 | 3295 | 1715 | 3 pieces | — | — | — |
| CI-EML2-870-30 | 30 | 2025 | 3409 | 1774 | 3 pieces | — | — | — |
| CI-EML2-870-31 | 31 | 2092 | 3523 | 1833 | 3 pieces | — | — | — |
| CI-EML2-870-32 | 32 | 2158 | 3636 | 1892 | 3 pieces | — | — | — |
| CI-EML2-870-33 | 33 | 2225 | 3750 | 1951 | 3 pieces | — | — | — |
| CI-EML2-870-34 | 34 | 2291 | 3864 | 2010 | 4 pieces | — | — | — |
| CI-EML2-870-35 | 35 | 2358 | 3977 | 2069 | 4 pieces | — | — | — |
| CI-EML2-870-36 | 36 | 2424 | 4091 | 2128 | 4 pieces | — | — | — |
| CI-EML2-870-37 | 37 | 2491 | 4204 | 2188 | 4 pieces | — | — | — |
| CI-EML2-870-38 | 38 | 2557 | 4318 | 2247 | 4 pieces | — | — | — |
| CI-EML2-870-39 | 39 | 2624 | 4432 | 2306 | 4 pieces | — | — | — |
| CI-EML2-870-40 | 40 | 2690 | 4545 | 2365 | 4 pieces | — | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 24.4 |
| ΔT20 | 35.2 |
| ΔT25 | 46.8 |
| ΔT30 | 59.1 |
| ΔT35 | 72 |
| ΔT40 | 85.4 |
| ΔT45 | 99.3 |
| ΔT50 | 113.6 |

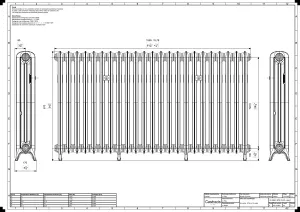

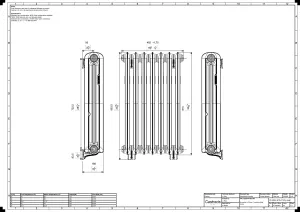

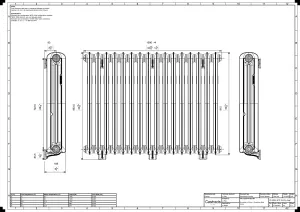

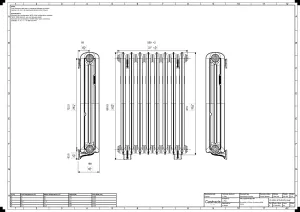

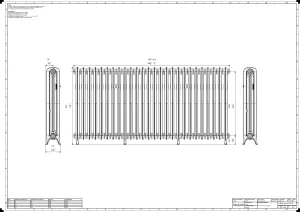

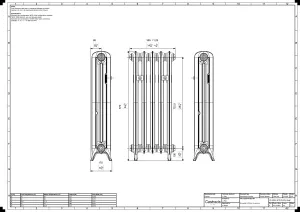

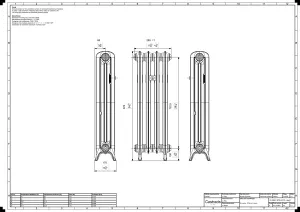

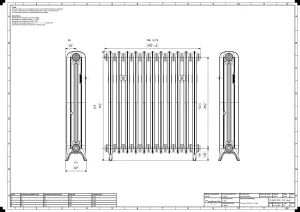

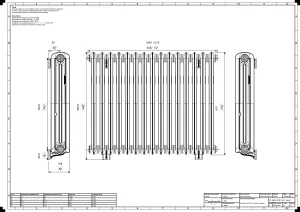

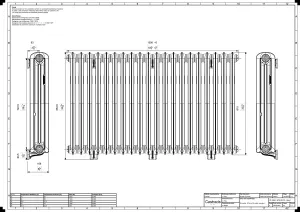

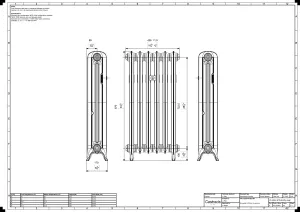

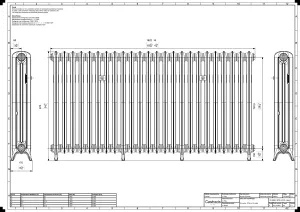

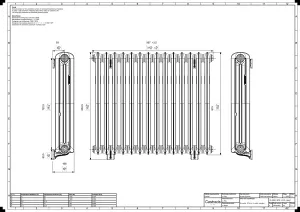

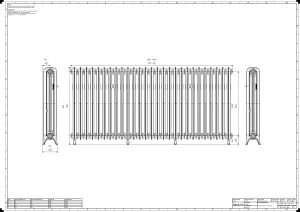

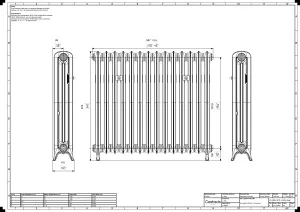

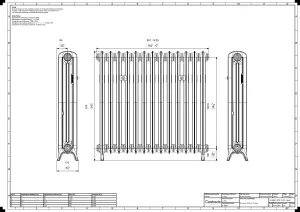

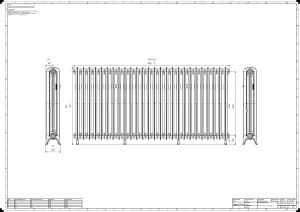

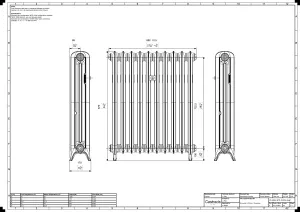

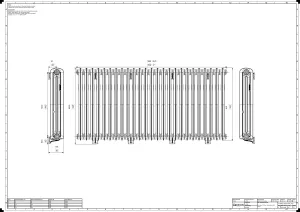

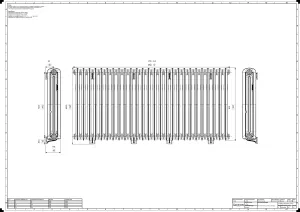

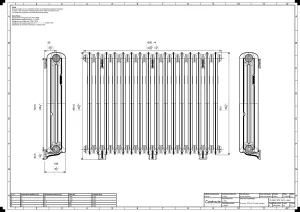

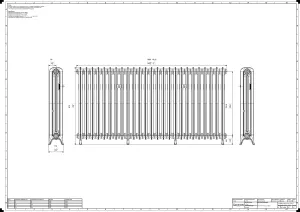

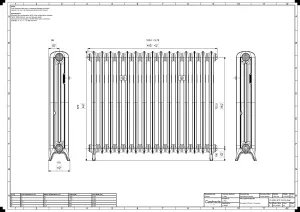

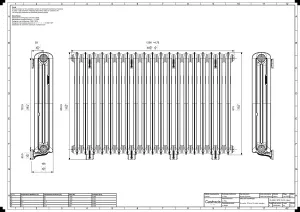

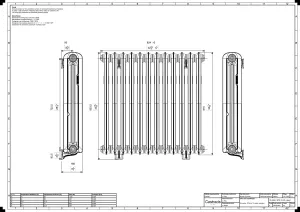

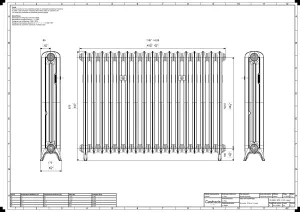

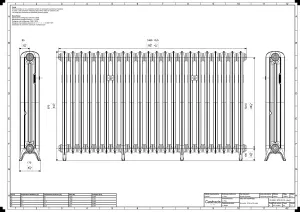

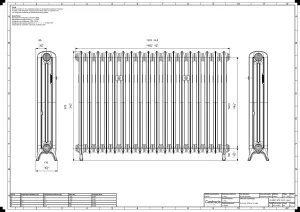

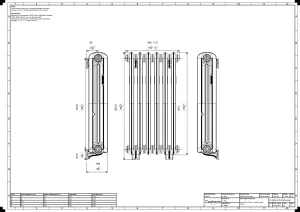

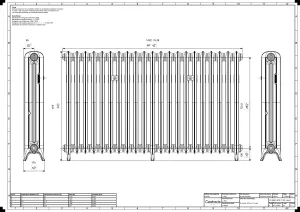

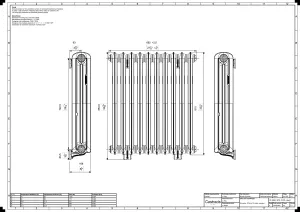

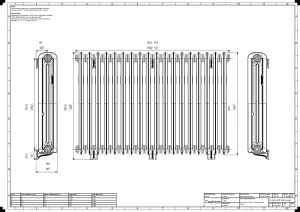

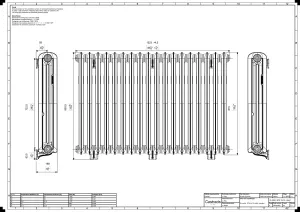

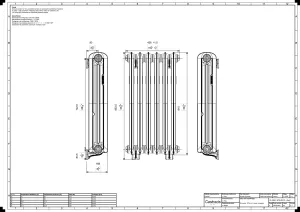

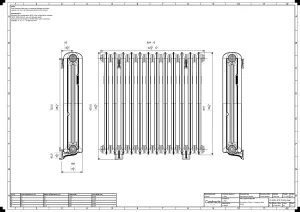

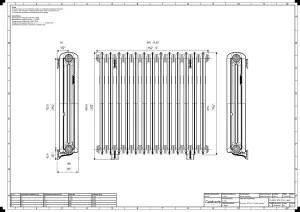

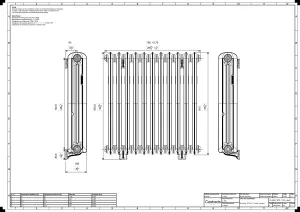

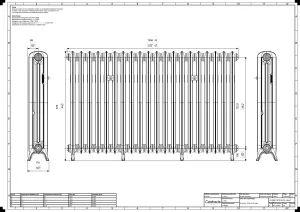

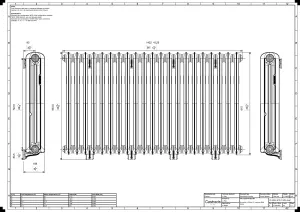

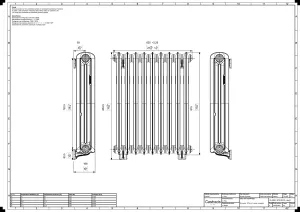

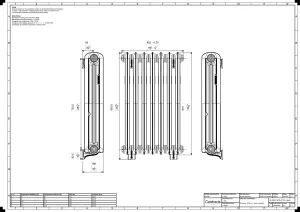

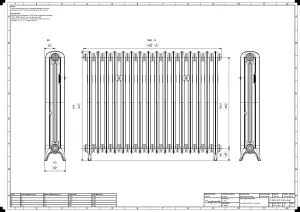

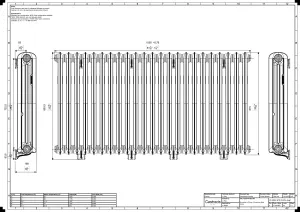

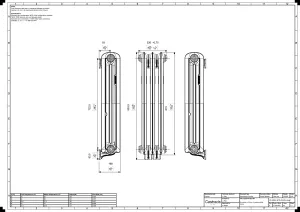

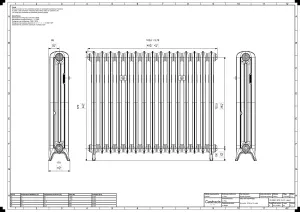

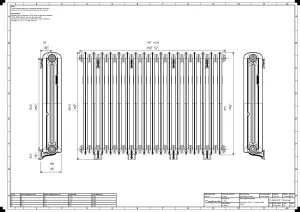

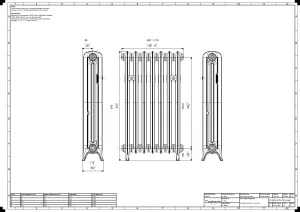

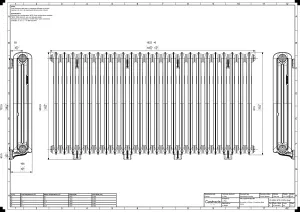

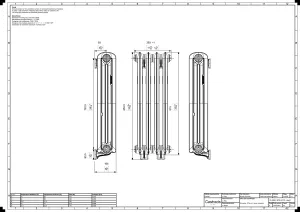

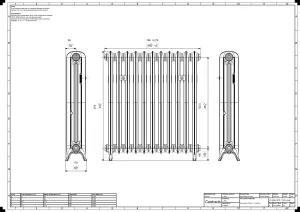

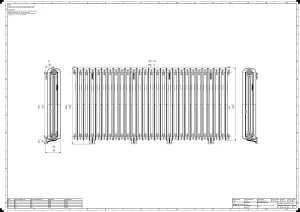

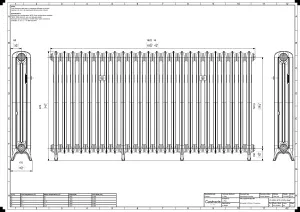

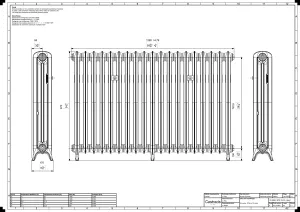

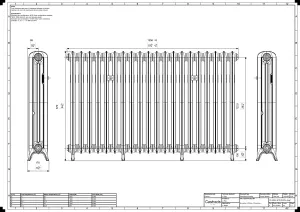

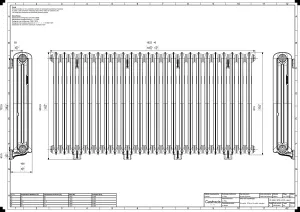

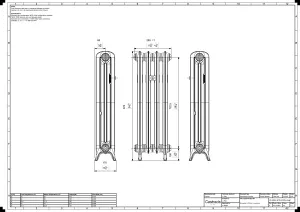

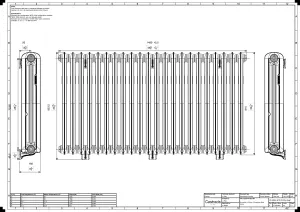

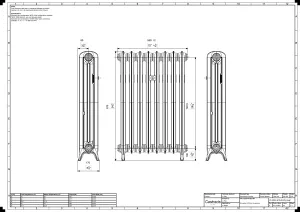

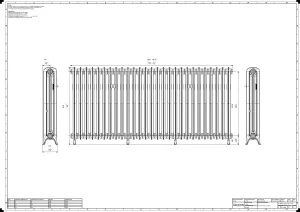

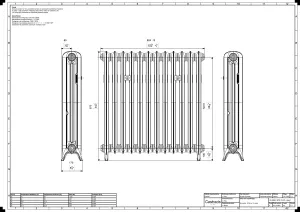

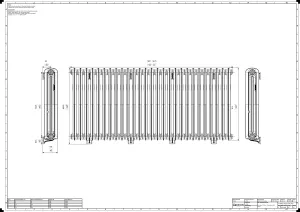

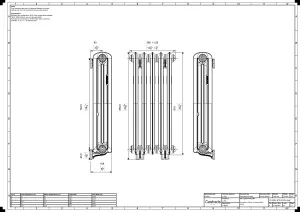

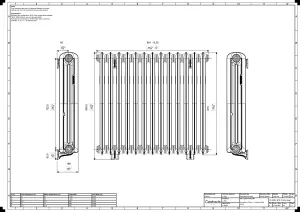

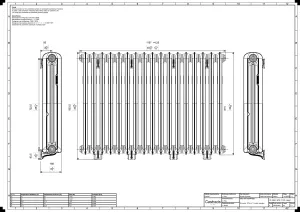

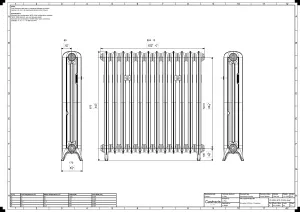

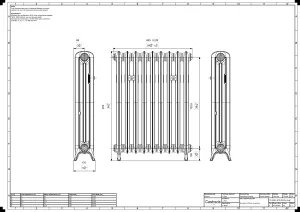

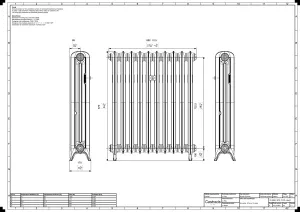

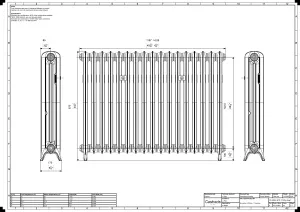

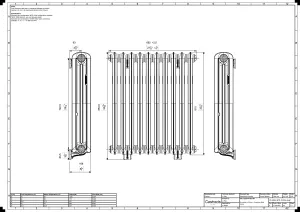

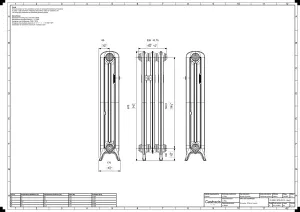

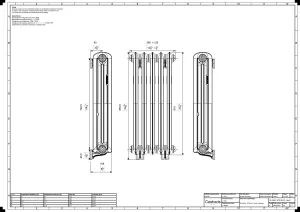

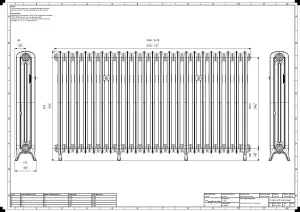

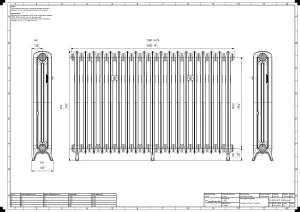

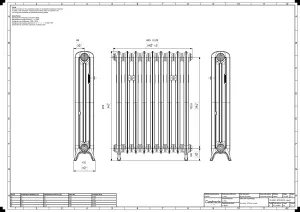

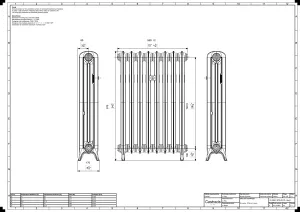

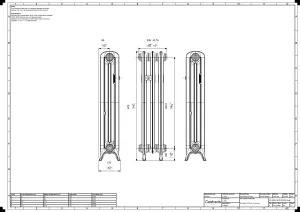

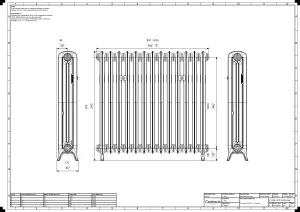

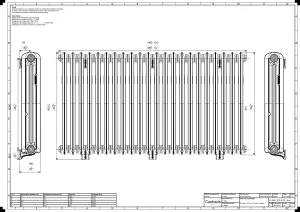

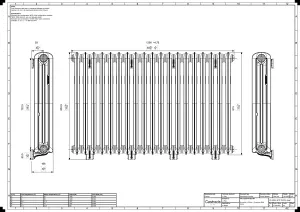

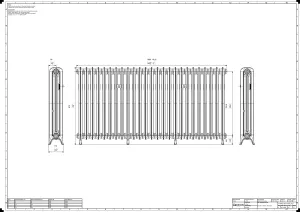

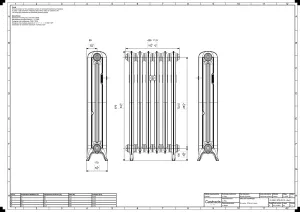

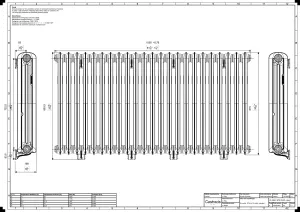

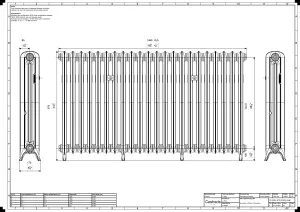

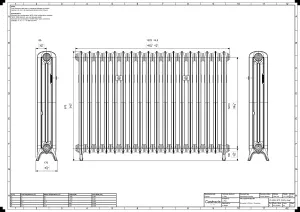

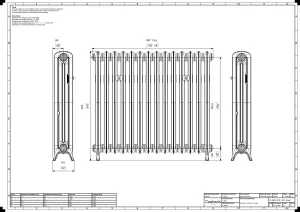

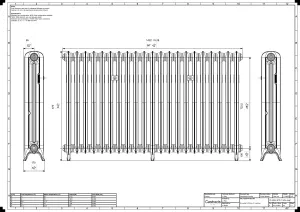

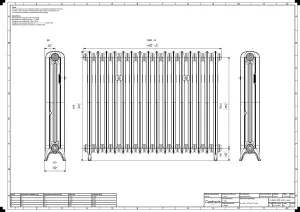

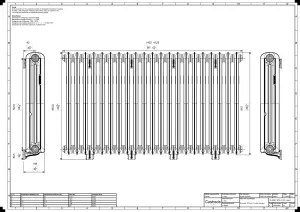

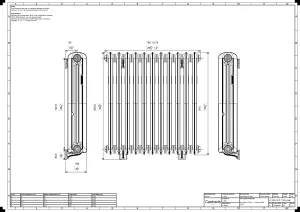

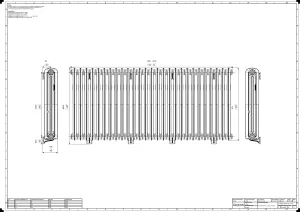

Specifications
| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 870mm |
| B | Pipe centre to floor | 102.3mm |
| C | Max section depth | 170mm |
| D | Interaxis distance | 722mm |
| E | Height without legs | 813mm |
| F | Mid section depth | 150mm |
| G | Pipe centre to wall (Atlas bracket) | 93mm |
| L | Section length | 66.5mm |
| – | Internal volume per section | 1.9L |
| – | Leg section weight | 9.1kg |
| – | Mid section weight | 8.3kg |
| – | Max single-piece delivery size | 11sections |
| – | Output at ΔT30 | 59.1W |
| – | Output at ΔT50 | 113.6W |
φ = Km × ΔTn · Km = 0.763 · n = 1.279
Tested to EN 442 · BSRIA · Test ref: 104331/2
Declaration of Performance: 202209-1086 · CE marked
