Emmeline III 670mm
Na zamówienie
Każdy grzejnik powstaje w rozmiarze dopasowanym do pomieszczenia. Wybierz liczbę żeberek, wykończenie i zawory w konfiguratorze lub pozwól wyszukiwarce dobrać model do Twojej przestrzeni.
CI-EML3-670
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints | Bare Metal |
|---|---|---|---|---|---|---|---|---|
| CI-EML3-670-03 | 3 | 230 | 337 | 174 | One piece | — | — | — |
| CI-EML3-670-04 | 4 | 296 | 449 | 232 | One piece | — | — | — |
| CI-EML3-670-05 | 5 | 363 | 561 | 291 | One piece | — | — | — |
| CI-EML3-670-06 | 6 | 429 | 674 | 349 | One piece | — | — | — |
| CI-EML3-670-07 | 7 | 496 | 786 | 407 | One piece | — | — | — |
| CI-EML3-670-08 | 8 | 562 | 898 | 465 | One piece | — | — | — |
| CI-EML3-670-09 | 9 | 629 | 1011 | 523 | One piece | — | — | — |
| CI-EML3-670-10 | 10 | 695 | 1123 | 581 | 2 pieces | — | — | — |
| CI-EML3-670-11 | 11 | 762 | 1235 | 639 | 2 pieces | — | — | — |
| CI-EML3-670-12 | 12 | 828 | 1347 | 697 | 2 pieces | — | — | — |
| CI-EML3-670-13 | 13 | 895 | 1460 | 756 | 2 pieces | — | — | — |
| CI-EML3-670-14 | 14 | 961 | 1572 | 814 | 2 pieces | — | — | — |
| CI-EML3-670-15 | 15 | 1028 | 1684 | 872 | 2 pieces | — | — | — |
| CI-EML3-670-16 | 16 | 1094 | 1797 | 930 | 2 pieces | — | — | — |
| CI-EML3-670-17 | 17 | 1161 | 1909 | 988 | 2 pieces | — | — | — |
| CI-EML3-670-18 | 18 | 1227 | 2021 | 1046 | 2 pieces | — | — | — |
| CI-EML3-670-19 | 19 | 1294 | 2133 | 1104 | 3 pieces | — | — | — |
| CI-EML3-670-20 | 20 | 1360 | 2246 | 1162 | 3 pieces | — | — | — |
| CI-EML3-670-21 | 21 | 1427 | 2358 | 1221 | 3 pieces | — | — | — |
| CI-EML3-670-22 | 22 | 1493 | 2470 | 1279 | 3 pieces | — | — | — |
| CI-EML3-670-23 | 23 | 1560 | 2582 | 1337 | 3 pieces | — | — | — |
| CI-EML3-670-24 | 24 | 1626 | 2695 | 1395 | 3 pieces | — | — | — |
| CI-EML3-670-25 | 25 | 1693 | 2807 | 1453 | 3 pieces | — | — | — |
| CI-EML3-670-26 | 26 | 1759 | 2919 | 1511 | 3 pieces | — | — | — |
| CI-EML3-670-27 | 27 | 1826 | 3032 | 1569 | 3 pieces | — | — | — |
| CI-EML3-670-28 | 28 | 1892 | 3144 | 1627 | 4 pieces | — | — | — |
| CI-EML3-670-29 | 29 | 1959 | 3256 | 1686 | 4 pieces | — | — | — |
| CI-EML3-670-30 | 30 | 2025 | 3368 | 1744 | 4 pieces | — | — | — |
| CI-EML3-670-31 | 31 | 2092 | 3481 | 1802 | 4 pieces | — | — | — |
| CI-EML3-670-32 | 32 | 2158 | 3593 | 1860 | 4 pieces | — | — | — |
| CI-EML3-670-33 | 33 | 2225 | 3705 | 1918 | 4 pieces | — | — | — |
| CI-EML3-670-34 | 34 | 2291 | 3818 | 1976 | 4 pieces | — | — | — |
| CI-EML3-670-35 | 35 | 2358 | 3930 | 2034 | 4 pieces | — | — | — |
| CI-EML3-670-36 | 36 | 2424 | 4042 | 2092 | 4 pieces | — | — | — |
| CI-EML3-670-37 | 37 | 2491 | 4154 | 2151 | 5 pieces | — | — | — |
| CI-EML3-670-38 | 38 | 2557 | 4267 | 2209 | 5 pieces | — | — | — |
| CI-EML3-670-39 | 39 | 2624 | 4379 | 2267 | 5 pieces | — | — | — |
| CI-EML3-670-40 | 40 | 2690 | 4491 | 2325 | 5 pieces | — | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 23.8 |
| ΔT20 | 34.5 |
| ΔT25 | 45.9 |
| ΔT30 | 58.1 |
| ΔT35 | 70.9 |
| ΔT40 | 84.2 |
| ΔT45 | 98 |
| ΔT50 | 112.3 |

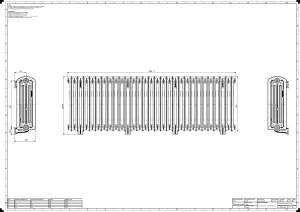

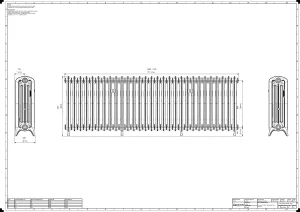

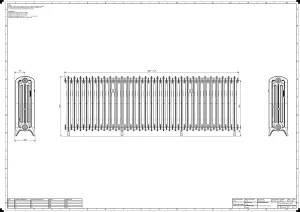

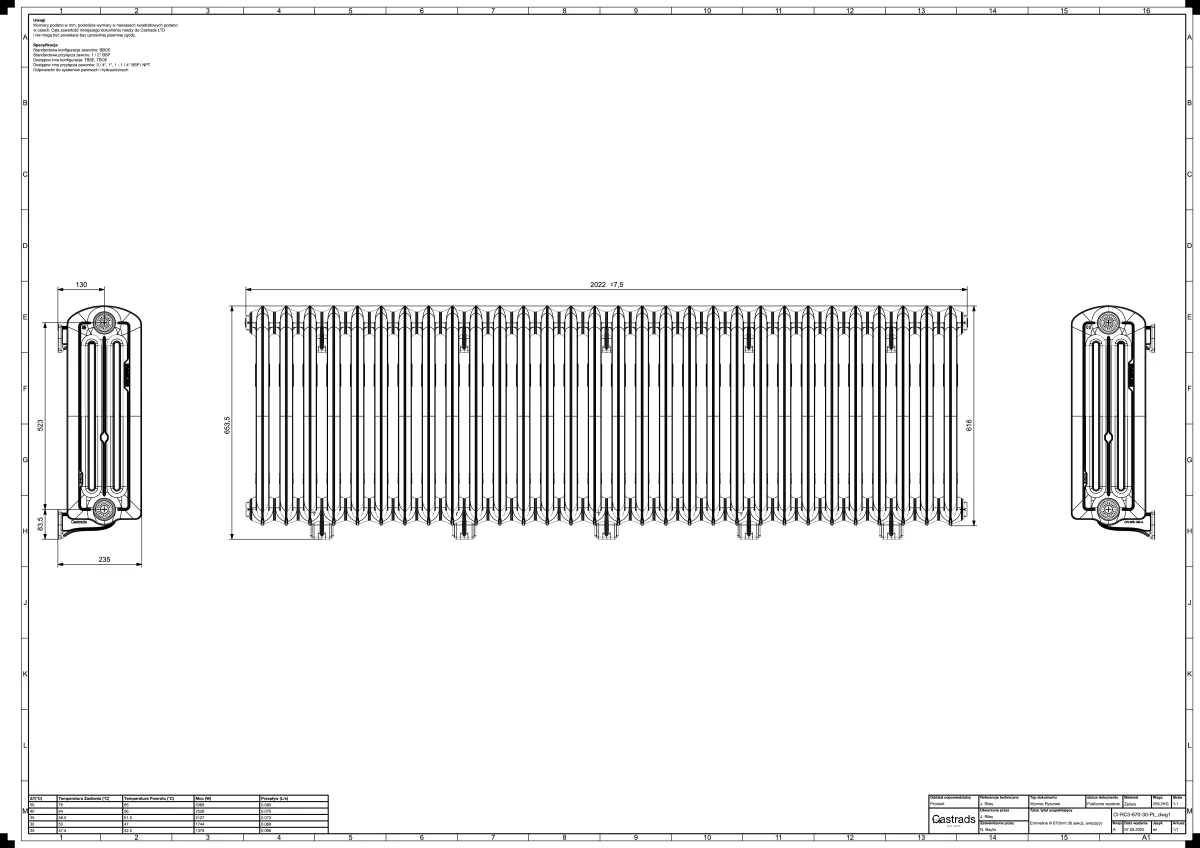

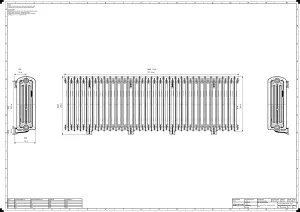

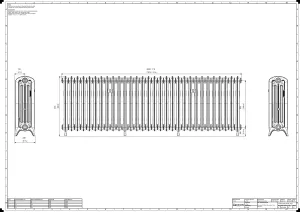

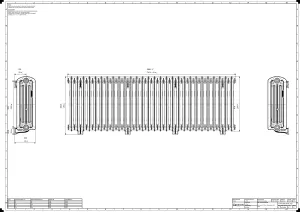

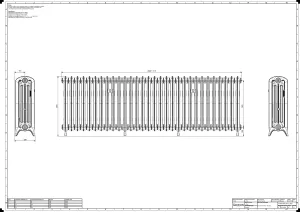

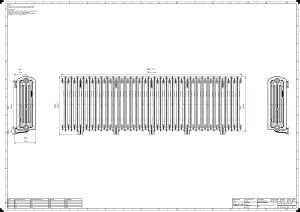

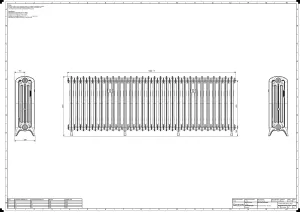

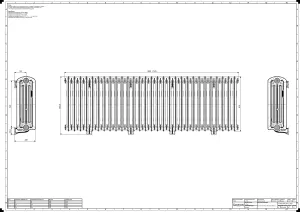

Specifications
| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 670mm |
| B | Pipe centre to floor | 100mm |
| C | Max section depth | 230mm |
| D | Interaxis distance | 522.5mm |
| E | Height without legs | 616mm |
| F | Mid section depth | 210mm |
| G | Pipe centre to wall (Atlas bracket) | 130mm |
| L | Section length | 66.5mm |
| – | Internal volume per section | 1.78L |
| – | Leg section weight | 10.7kg |
| – | Mid section weight | 9.6kg |
| – | Max single-piece delivery size | 9sections |
| – | Output at ΔT30 | 58.1W |
| – | Output at ΔT50 | 112.3W |
φ = Km × ΔTn · Km = 0.725 · n = 1.289
Tested to EN 442 · BSRIA · Test ref: 104331/2
Declaration of Performance: 202309-1088 · CE marked
