Florence 6 column 900mm steel column radiator

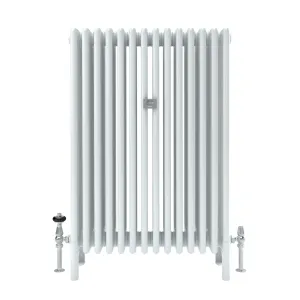

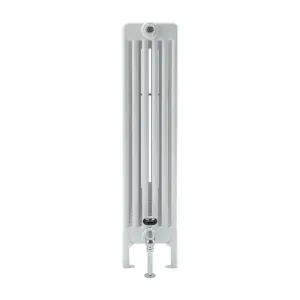

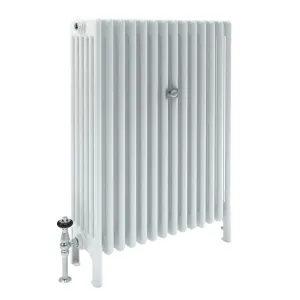

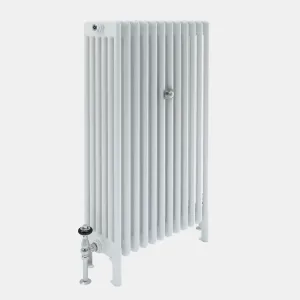

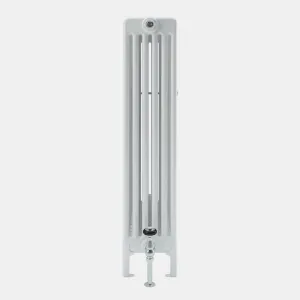

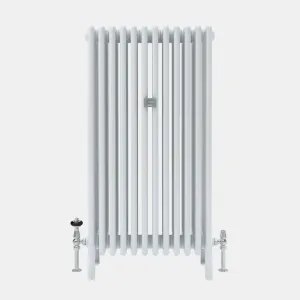

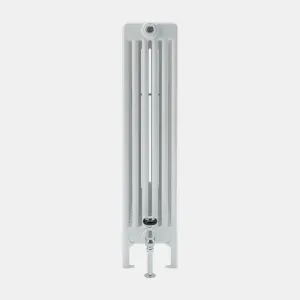

End view of a plain white Florence 6 Column steel radiator on feet, with a chrome angled valve at the base and a bleed valve at the top.Florence 6 Column steel radiator in white with plain columns on feet, a chrome angled valve and a central stay, on a pale grey background.Florence 6 column 1000mm steel column radiatorFlorence 6 Column steel radiator in white, plain tall columns on feet, with a chrome angled valve, shown at an angle on a grey background.End view of a white Florence 6 Column steel column radiator on feet, with a chrome valve at the base and a bleed valve at the top.Florence 6 Column 1000mm steel column radiator in white on feet, angled view, with a chrome thermostatic valve and central chrome wall stay.Florence 6 Column 1000mm steel column radiator in white on feet, front view, with chrome valves either side and a central wall stay.Side view of a white Florence 6 column 1000mm steel column radiator on feet, with a chrome valve below and a bleed valve at the top.Technical drawing: Florence 6 Column 1000mm steel column radiatorTechnical drawing: Florence 6 Column 1000mm steel column radiatorTechnical drawing: Florence 6 Column 1000mm steel column radiatorTechnical drawing: Florence 6 Column 1000mm steel column radiator

Florence 6 Column 1000mm

Na zamówienie

Każdy grzejnik powstaje w rozmiarze dopasowanym do pomieszczenia. Wybierz liczbę żeberek, wykończenie i zawory w konfiguratorze lub pozwól wyszukiwarce dobrać model do Twojej przestrzeni.

Skonfiguruj grzejnikZnajdź pasujący grzejnik

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F6C-1002

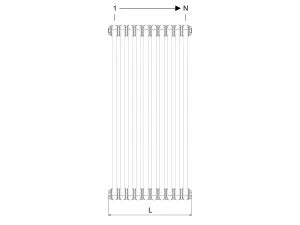

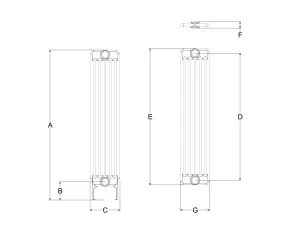

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs1102mm
BPipe centre to floor134mm
CMax section depth217mm
DInteraxis distance935mm
EHeight without legs1002mm
FMid section depth215mm
GPipe centre to wall (Atlas bracket)130mm
LSection length45mm
–Internal volume per section2.87L
–Leg section weight4.14kg
–Mid section weight3.84kg
–Max single-piece delivery size25sections
–Output at ΔT3088.1W
–Output at ΔT50179.1W

φ = Km × ΔTn · Km = 0.785 · n = 1.388
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_C
Declaration of Performance: 202009-1066 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F6C-1002-033165537264One piece——
SMC-F6C-1002-044210716353One piece——
SMC-F6C-1002-055255895441One piece——
SMC-F6C-1002-0663001074529One piece——
SMC-F6C-1002-0773451254617One piece——
SMC-F6C-1002-0883901433705One piece——
SMC-F6C-1002-0994351612793One piece——
SMC-F6C-1002-10104801791881One piece——
SMC-F6C-1002-11115251970969One piece——
SMC-F6C-1002-121257021491058One piece——
SMC-F6C-1002-131361523281146One piece——
SMC-F6C-1002-141466025071234One piece——
SMC-F6C-1002-151570526861322One piece——
SMC-F6C-1002-161675028651410One piece——
SMC-F6C-1002-171779530441498One piece——
SMC-F6C-1002-181884032231586One piece——
SMC-F6C-1002-191988534021674One piece——
SMC-F6C-1002-202093035821763One piece——
SMC-F6C-1002-212197537611851One piece——
SMC-F6C-1002-2222102039401939One piece——
SMC-F6C-1002-2323106541192027One piece——
SMC-F6C-1002-2424111042982115One piece——
SMC-F6C-1002-2525115544772203One piece——
SMC-F6C-1002-26261200465622912 pieces——
SMC-F6C-1002-27271245483523792 pieces——
SMC-F6C-1002-28281290501424682 pieces——
SMC-F6C-1002-29291335519325562 pieces——
SMC-F6C-1002-30301380537226442 pieces——
SMC-F6C-1002-31311425555127322 pieces——
SMC-F6C-1002-32321470573028202 pieces——
SMC-F6C-1002-33331515591029082 pieces——
SMC-F6C-1002-34341560608929962 pieces——
SMC-F6C-1002-35351605626830842 pieces——
SMC-F6C-1002-36361650644731732 pieces——
SMC-F6C-1002-37371695662632612 pieces——
SMC-F6C-1002-38381740680533492 pieces——
SMC-F6C-1002-39391785698434372 pieces——
SMC-F6C-1002-40401830716335252 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

045901351801520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1533.7
ΔT2050.2
ΔT2568.4
ΔT3088.1
ΔT35109.2
ΔT40131.4
ΔT45154.7
ΔT50179.1
