Grace 4 Column 500mm

Name: Grace 4 Column 500mm
SKU: CI-G4C-500

Na zamówienie

Każdy grzejnik powstaje w rozmiarze dopasowanym do pomieszczenia. Wybierz liczbę żeberek, wykończenie i zawory w konfiguratorze lub pozwól wyszukiwarce dobrać model do Twojej przestrzeni.

Skonfiguruj grzejnik Znajdź pasujący grzejnik

Low-level radiator, perfect under windows. A fluted design with linear moulding and inclined feet.

Shown here in Farrow & Ball Green Smoke with accessories in Antique Copper.

CI-G4C-500

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKU	Sections	Length (mm)	ΔT50 (W)	ΔT30 (W)	Delivered in	Signature	Branded Paints	Bare Metal
CI-G4C-500-03	3	212	195	103	One piece	—	—	—
CI-G4C-500-04	4	272	260	138	One piece	—	—	—
CI-G4C-500-05	5	333	325	172	One piece	—	—	—
CI-G4C-500-06	6	393	390	206	One piece	—	—	—
CI-G4C-500-07	7	454	455	241	One piece	—	—	—
CI-G4C-500-08	8	514	519	275	One piece	—	—	—
CI-G4C-500-09	9	575	584	309	One piece	—	—	—
CI-G4C-500-10	10	635	649	344	One piece	—	—	—
CI-G4C-500-11	11	696	714	378	One piece	—	—	—
CI-G4C-500-12	12	756	779	413	One piece	—	—	—
CI-G4C-500-13	13	817	844	447	One piece	—	—	—
CI-G4C-500-14	14	877	909	481	One piece	—	—	—
CI-G4C-500-15	15	938	974	516	One piece	—	—	—
CI-G4C-500-16	16	998	1039	550	One piece	—	—	—
CI-G4C-500-17	17	1059	1104	584	2 pieces	—	—	—
CI-G4C-500-18	18	1119	1169	619	2 pieces	—	—	—
CI-G4C-500-19	19	1180	1234	653	2 pieces	—	—	—
CI-G4C-500-20	20	1240	1299	688	2 pieces	—	—	—
CI-G4C-500-21	21	1301	1364	722	2 pieces	—	—	—
CI-G4C-500-22	22	1361	1428	756	2 pieces	—	—	—
CI-G4C-500-23	23	1422	1493	791	2 pieces	—	—	—
CI-G4C-500-24	24	1482	1558	825	2 pieces	—	—	—
CI-G4C-500-25	25	1543	1623	859	2 pieces	—	—	—
CI-G4C-500-26	26	1603	1688	894	2 pieces	—	—	—
CI-G4C-500-27	27	1664	1753	928	2 pieces	—	—	—
CI-G4C-500-28	28	1724	1818	963	2 pieces	—	—	—
CI-G4C-500-29	29	1785	1883	997	2 pieces	—	—	—
CI-G4C-500-30	30	1845	1948	1031	2 pieces	—	—	—
CI-G4C-500-31	31	1906	2013	1066	2 pieces	—	—	—
CI-G4C-500-32	32	1966	2078	1100	2 pieces	—	—	—
CI-G4C-500-33	33	2027	2143	1134	3 pieces	—	—	—
CI-G4C-500-34	34	2087	2208	1169	3 pieces	—	—	—
CI-G4C-500-35	35	2148	2273	1203	3 pieces	—	—	—
CI-G4C-500-36	36	2208	2337	1238	3 pieces	—	—	—
CI-G4C-500-37	37	2269	2402	1272	3 pieces	—	—	—
CI-G4C-500-38	38	2329	2467	1306	3 pieces	—	—	—
CI-G4C-500-39	39	2390	2532	1341	3 pieces	—	—	—
CI-G4C-500-40	40	2450	2597	1375	3 pieces	—	—	—

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

Heat output in watts per section at each temperature difference
ΔT (K)	Output per section (W)
ΔT15	14.5
ΔT20	20.7
ΔT25	27.4
ΔT30	34.4
ΔT35	41.6
ΔT40	49.2
ΔT45	56.9
ΔT50	64.9

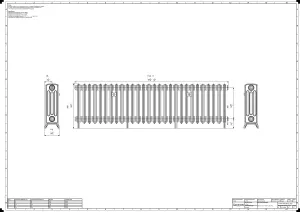

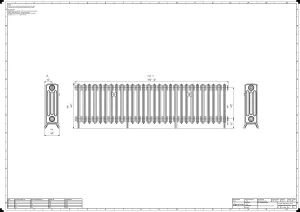

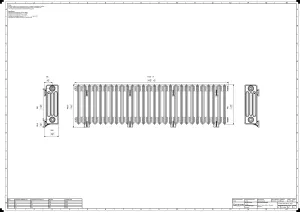

Specifications

Dimensions, weights and heat outputs for this model
Ref	Attribute	Value
A	Height with legs	500mm
B	Pipe centre to floor	104.4mm
C	Max section depth	175mm
D	Interaxis distance	352mm
E	Height without legs	450mm
F	Mid section depth	144mm
L	Section length	60.5mm
–	Internal volume per section	1.1L
–	Leg section weight	5kg
–	Mid section weight	4.67kg
–	Max single-piece delivery size	16sections
–	Output at ΔT30	34.4W
–	Output at ΔT50	64.9W

φ = K_m × ΔTⁿ · K_m = 0.498 · n = 1.245
Tested to EN 442 · BSRIA · Test ref: 101885/2
Declaration of Performance: 202009-1086 · CE marked
