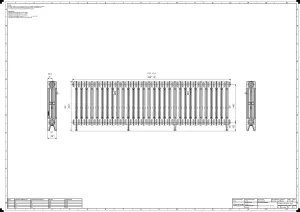

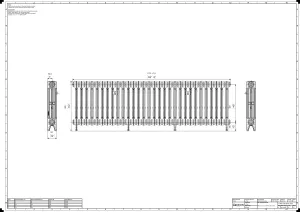

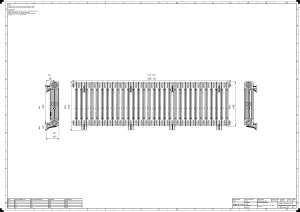

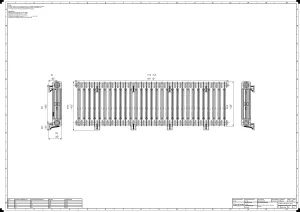

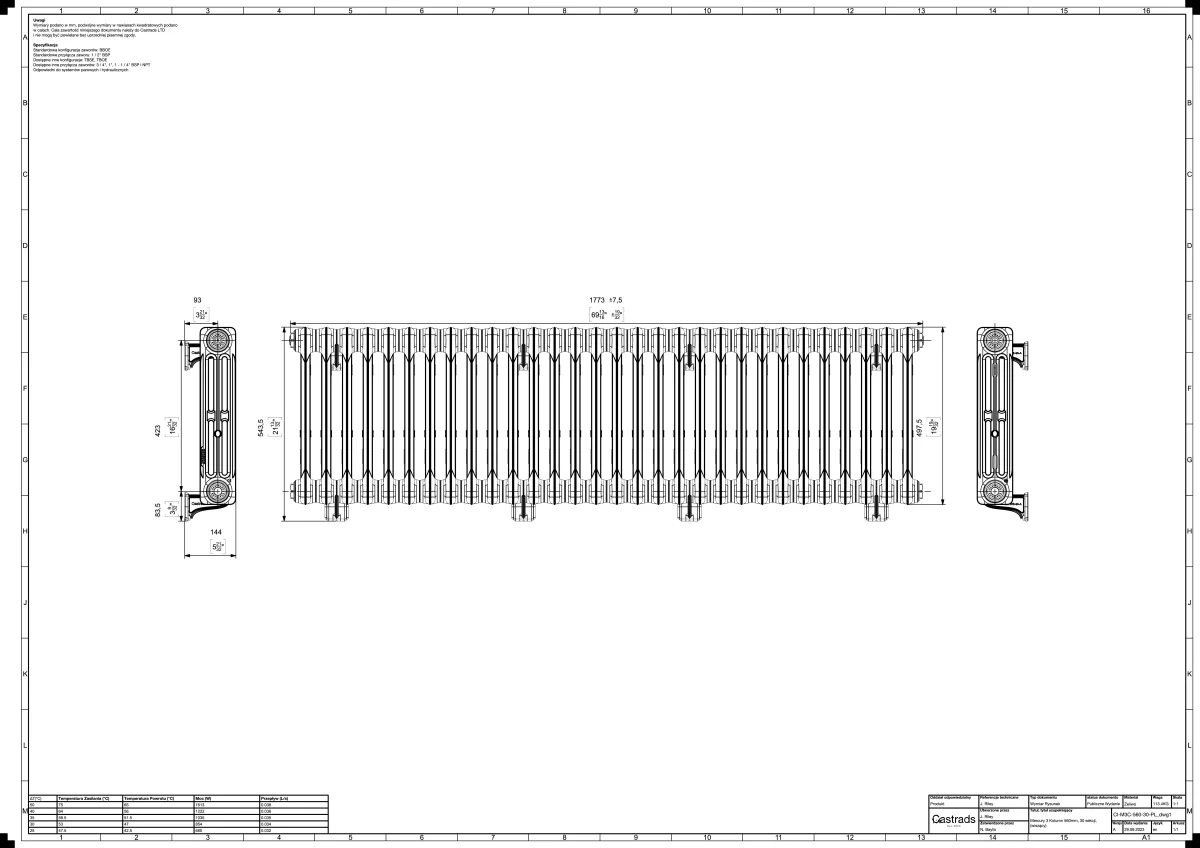

Technical drawing: Mercury 3 Column 560mm cast iron radiator

Mercury 3 Column 560mm

Name: Mercury 3 Column 560mm
SKU: CI-M3C-560

Na zamówienie

Każdy grzejnik powstaje w rozmiarze dopasowanym do pomieszczenia. Wybierz liczbę żeberek, wykończenie i zawory w konfiguratorze lub pozwól wyszukiwarce dobrać model do Twojej przestrzeni.

Skonfiguruj grzejnik Znajdź pasujący grzejnik

Mercury represents the new global standard in cast iron radiators, with curves that fall gracefully into the shadows and lines as crisp and straight as a die. Mercury 3 Column 560mm is ideal for under windows: knee-height and slimline.

CI-M3C-560

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKU	Sections	Length (mm)	ΔT50 (W)	ΔT30 (W)	Delivered in	Signature	Branded Paints	Bare Metal
CI-M3C-560-03	3	205	161	85	One piece	—	—	—
CI-M3C-560-04	4	263	215	114	One piece	—	—	—
CI-M3C-560-05	5	322	269	142	One piece	—	—	—
CI-M3C-560-06	6	380	322	171	One piece	—	—	—
CI-M3C-560-07	7	438	376	199	One piece	—	—	—
CI-M3C-560-08	8	496	430	228	One piece	—	—	—
CI-M3C-560-09	9	555	483	256	One piece	—	—	—
CI-M3C-560-10	10	613	537	284	One piece	—	—	—
CI-M3C-560-11	11	671	591	313	One piece	—	—	—
CI-M3C-560-12	12	730	645	341	One piece	—	—	—
CI-M3C-560-13	13	788	698	370	One piece	—	—	—
CI-M3C-560-14	14	846	752	398	One piece	—	—	—
CI-M3C-560-15	15	905	806	427	One piece	—	—	—
CI-M3C-560-16	16	963	859	455	One piece	—	—	—
CI-M3C-560-17	17	1021	913	483	2 pieces	—	—	—
CI-M3C-560-18	18	1079	967	512	2 pieces	—	—	—
CI-M3C-560-19	19	1138	1021	540	2 pieces	—	—	—
CI-M3C-560-20	20	1196	1074	569	2 pieces	—	—	—
CI-M3C-560-21	21	1254	1128	597	2 pieces	—	—	—
CI-M3C-560-22	22	1313	1182	626	2 pieces	—	—	—
CI-M3C-560-23	23	1371	1235	654	2 pieces	—	—	—
CI-M3C-560-24	24	1429	1289	683	2 pieces	—	—	—
CI-M3C-560-25	25	1488	1343	711	2 pieces	—	—	—
CI-M3C-560-26	26	1546	1397	739	2 pieces	—	—	—
CI-M3C-560-27	27	1604	1450	768	2 pieces	—	—	—
CI-M3C-560-28	28	1662	1504	796	2 pieces	—	—	—
CI-M3C-560-29	29	1721	1558	825	2 pieces	—	—	—
CI-M3C-560-30	30	1779	1612	853	2 pieces	—	—	—
CI-M3C-560-31	31	1837	1665	882	2 pieces	—	—	—
CI-M3C-560-32	32	1896	1719	910	2 pieces	—	—	—
CI-M3C-560-33	33	1954	1773	938	3 pieces	—	—	—
CI-M3C-560-34	34	2012	1826	967	3 pieces	—	—	—
CI-M3C-560-35	35	2071	1880	995	3 pieces	—	—	—
CI-M3C-560-36	36	2129	1934	1024	3 pieces	—	—	—
CI-M3C-560-37	37	2187	1988	1052	3 pieces	—	—	—
CI-M3C-560-38	38	2245	2041	1081	3 pieces	—	—	—
CI-M3C-560-39	39	2304	2095	1109	3 pieces	—	—	—
CI-M3C-560-40	40	2362	2149	1138	3 pieces	—	—	—

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

Heat output in watts per section at each temperature difference
ΔT (K)	Output per section (W)
ΔT15	12
ΔT20	17.2
ΔT25	22.7
ΔT30	28.4
ΔT35	34.5
ΔT40	40.7
ΔT45	47.1
ΔT50	53.7

Specifications

Dimensions, weights and heat outputs for this model
Ref	Attribute	Value
A	Height with legs	560mm
B	Pipe centre to floor	102.1mm
C	Max section depth	101mm
D	Interaxis distance	423mm
E	Height without legs	498mm
F	Mid section depth	101mm
G	Pipe centre to wall (Atlas bracket)	63mm
L	Section length	58.3mm
–	Internal volume per section	0.4L
–	Leg section weight	4.4kg
–	Mid section weight	3.7kg
–	Max single-piece delivery size	16sections
–	Output at ΔT30	28.4W
–	Output at ΔT50	53.7W

φ = K_m × ΔTⁿ · K_m = 0.412 · n = 1.245
Tested to EN 442 · BSRIA · Test ref: 101534
Declaration of Performance: 202009-1097 · CE marked
