Mercury 4 Column 360mm
Na zamówienie
Każdy grzejnik powstaje w rozmiarze dopasowanym do pomieszczenia. Wybierz liczbę żeberek, wykończenie i zawory w konfiguratorze lub pozwól wyszukiwarce dobrać model do Twojej przestrzeni.
CI-M4C-360
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints | Bare Metal |
|---|---|---|---|---|---|---|---|---|
| CI-M4C-360-03 | 3 | 205 | 132 | 71 | One piece | — | — | — |
| CI-M4C-360-04 | 4 | 263 | 176 | 94 | One piece | — | — | — |
| CI-M4C-360-05 | 5 | 322 | 220 | 118 | One piece | — | — | — |
| CI-M4C-360-06 | 6 | 380 | 264 | 141 | One piece | — | — | — |
| CI-M4C-360-07 | 7 | 438 | 308 | 165 | One piece | — | — | — |
| CI-M4C-360-08 | 8 | 496 | 352 | 188 | One piece | — | — | — |
| CI-M4C-360-09 | 9 | 555 | 396 | 212 | One piece | — | — | — |
| CI-M4C-360-10 | 10 | 613 | 440 | 236 | One piece | — | — | — |
| CI-M4C-360-11 | 11 | 671 | 484 | 259 | One piece | — | — | — |
| CI-M4C-360-12 | 12 | 730 | 528 | 283 | One piece | — | — | — |
| CI-M4C-360-13 | 13 | 788 | 572 | 306 | One piece | — | — | — |
| CI-M4C-360-14 | 14 | 846 | 616 | 330 | One piece | — | — | — |
| CI-M4C-360-15 | 15 | 905 | 660 | 353 | One piece | — | — | — |
| CI-M4C-360-16 | 16 | 963 | 704 | 377 | One piece | — | — | — |
| CI-M4C-360-17 | 17 | 1021 | 748 | 400 | 2 pieces | — | — | — |
| CI-M4C-360-18 | 18 | 1079 | 791 | 424 | 2 pieces | — | — | — |
| CI-M4C-360-19 | 19 | 1138 | 835 | 448 | 2 pieces | — | — | — |
| CI-M4C-360-20 | 20 | 1196 | 879 | 471 | 2 pieces | — | — | — |
| CI-M4C-360-21 | 21 | 1254 | 923 | 495 | 2 pieces | — | — | — |
| CI-M4C-360-22 | 22 | 1313 | 967 | 518 | 2 pieces | — | — | — |
| CI-M4C-360-23 | 23 | 1371 | 1011 | 542 | 2 pieces | — | — | — |
| CI-M4C-360-24 | 24 | 1429 | 1055 | 565 | 2 pieces | — | — | — |
| CI-M4C-360-25 | 25 | 1488 | 1099 | 589 | 2 pieces | — | — | — |
| CI-M4C-360-26 | 26 | 1546 | 1143 | 612 | 2 pieces | — | — | — |
| CI-M4C-360-27 | 27 | 1604 | 1187 | 636 | 2 pieces | — | — | — |
| CI-M4C-360-28 | 28 | 1662 | 1231 | 660 | 2 pieces | — | — | — |
| CI-M4C-360-29 | 29 | 1721 | 1275 | 683 | 2 pieces | — | — | — |
| CI-M4C-360-30 | 30 | 1779 | 1319 | 707 | 2 pieces | — | — | — |
| CI-M4C-360-31 | 31 | 1837 | 1363 | 730 | 2 pieces | — | — | — |
| CI-M4C-360-32 | 32 | 1896 | 1407 | 754 | 2 pieces | — | — | — |
| CI-M4C-360-33 | 33 | 1954 | 1451 | 777 | 3 pieces | — | — | — |
| CI-M4C-360-34 | 34 | 2012 | 1495 | 801 | 3 pieces | — | — | — |
| CI-M4C-360-35 | 35 | 2071 | 1539 | 824 | 3 pieces | — | — | — |
| CI-M4C-360-36 | 36 | 2129 | 1583 | 848 | 3 pieces | — | — | — |
| CI-M4C-360-37 | 37 | 2187 | 1627 | 872 | 3 pieces | — | — | — |
| CI-M4C-360-38 | 38 | 2245 | 1671 | 895 | 3 pieces | — | — | — |
| CI-M4C-360-39 | 39 | 2304 | 1715 | 919 | 3 pieces | — | — | — |
| CI-M4C-360-40 | 40 | 2362 | 1759 | 942 | 3 pieces | — | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 10.1 |
| ΔT20 | 14.4 |
| ΔT25 | 18.8 |
| ΔT30 | 23.6 |
| ΔT35 | 28.4 |
| ΔT40 | 33.5 |
| ΔT45 | 38.7 |
| ΔT50 | 44 |

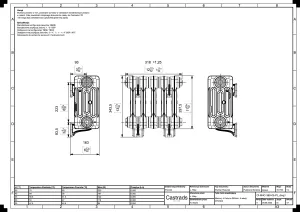

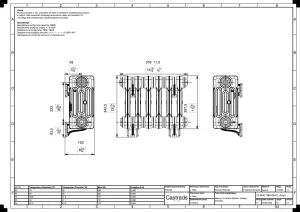

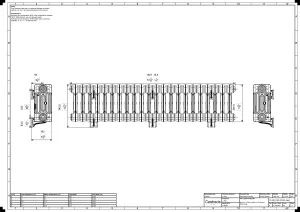

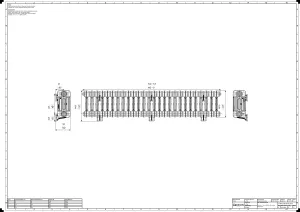

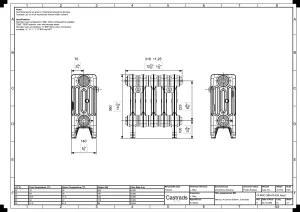

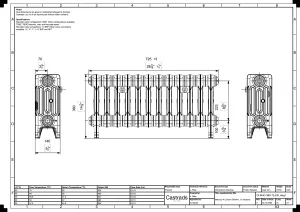

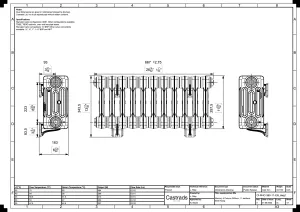

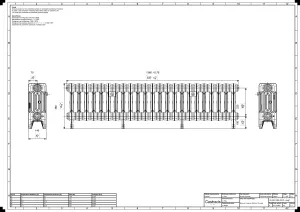

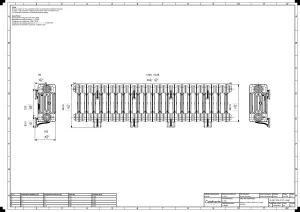

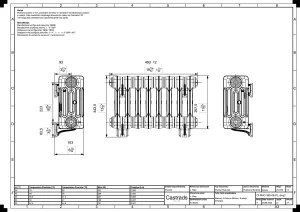

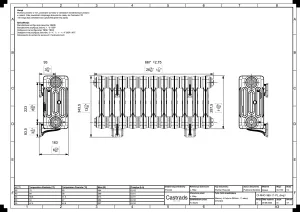

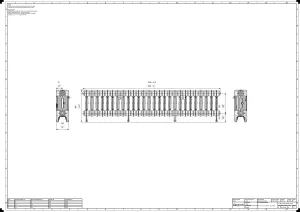

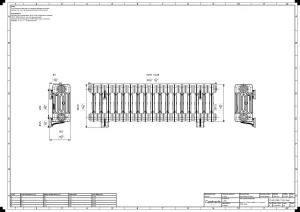

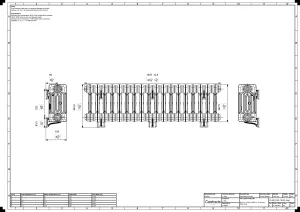

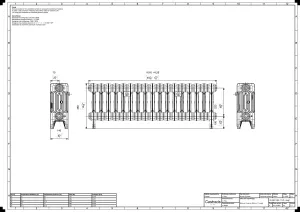

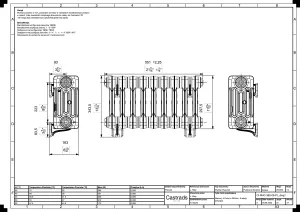

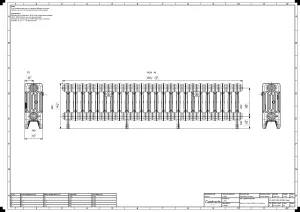

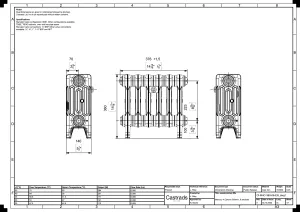

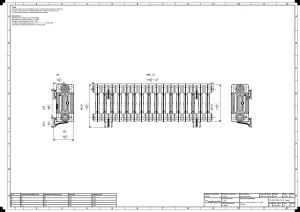

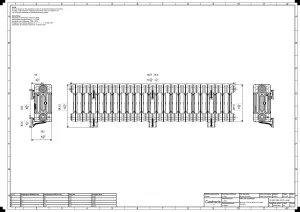

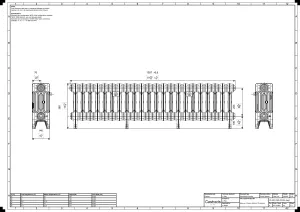

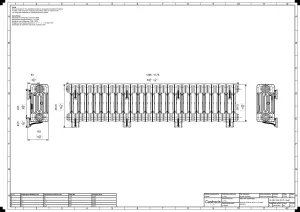

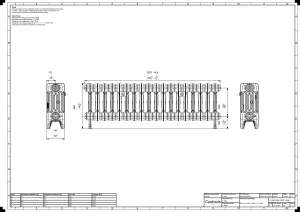

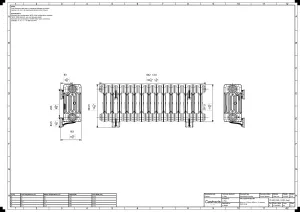

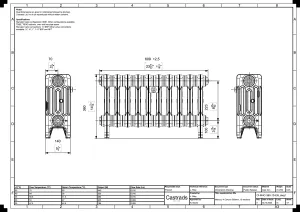

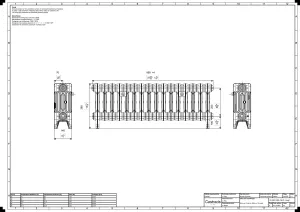

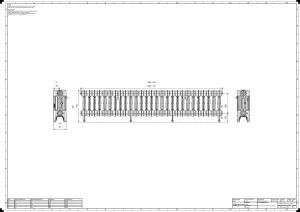

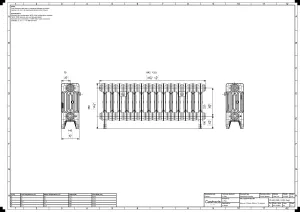

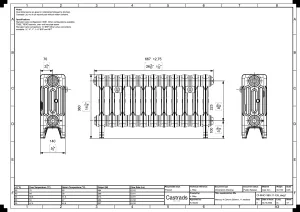

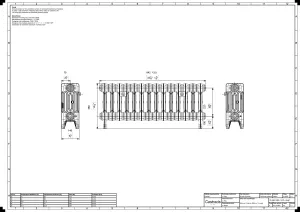

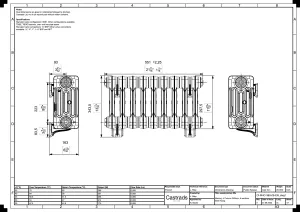

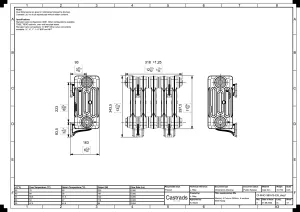

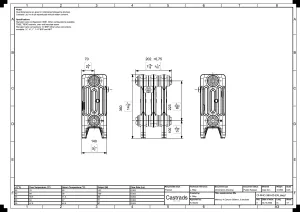

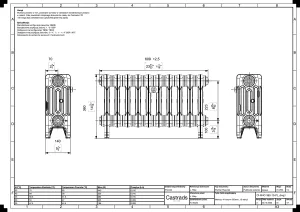

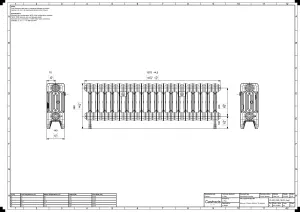

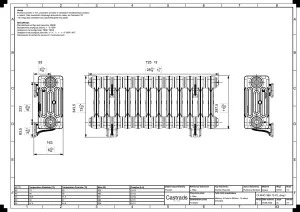

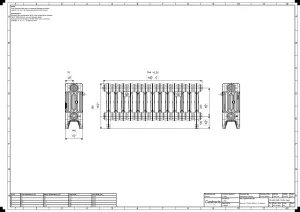

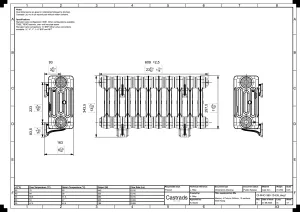

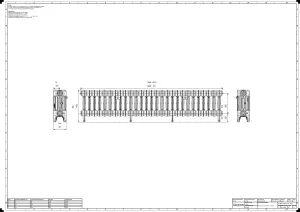

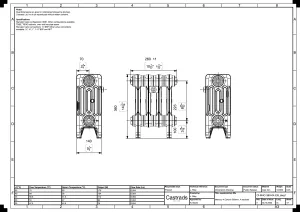

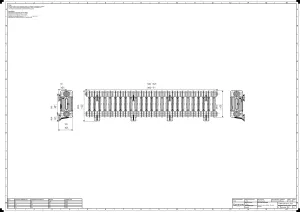

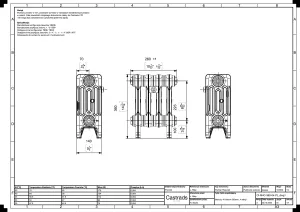

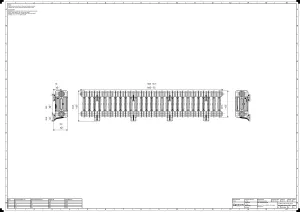

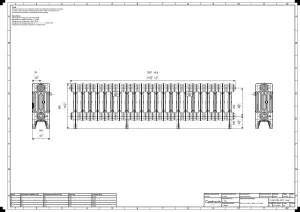

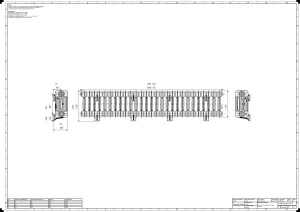

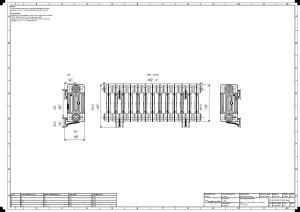

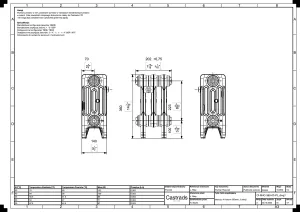

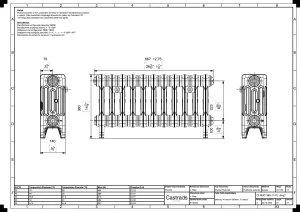

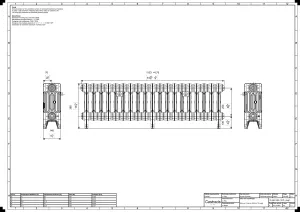

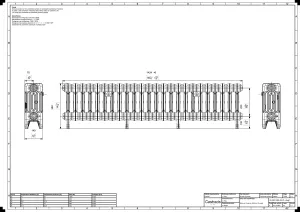

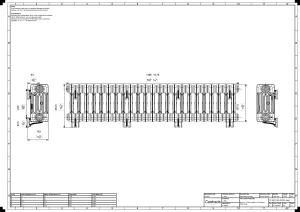

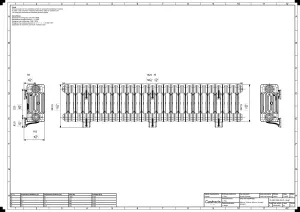

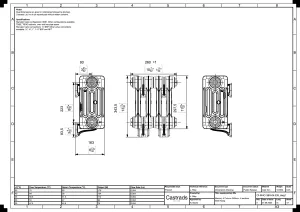

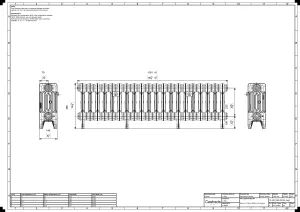

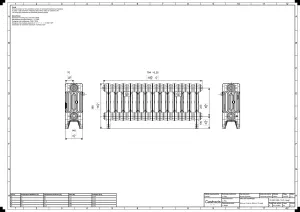

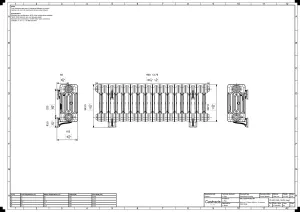

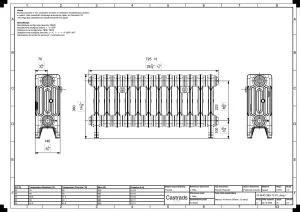

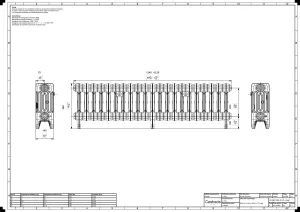

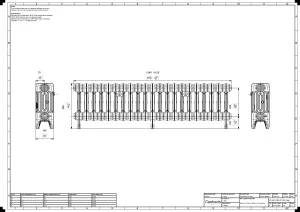

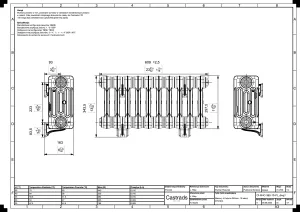

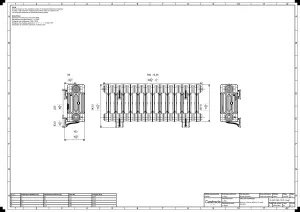

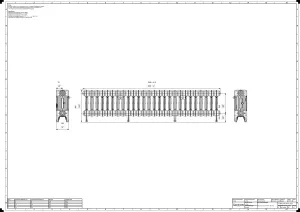

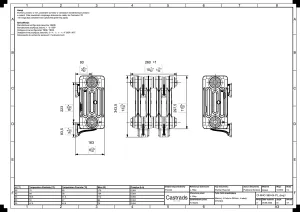

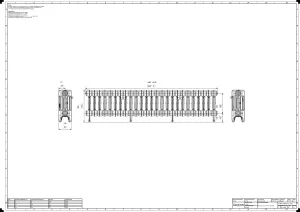

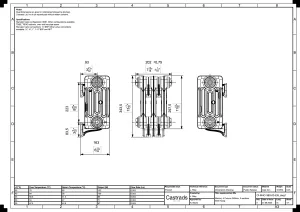

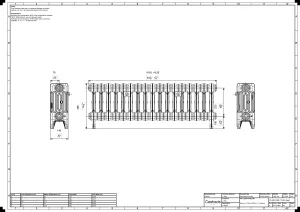

Specifications

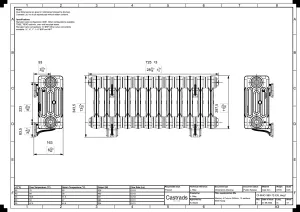

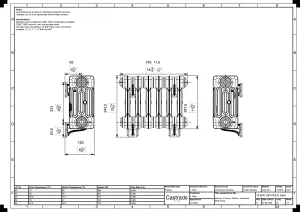

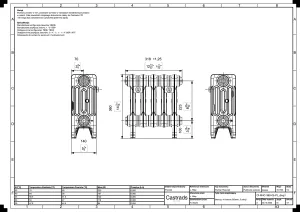

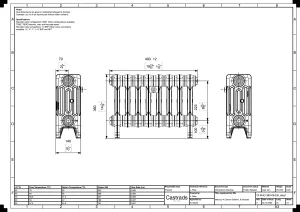

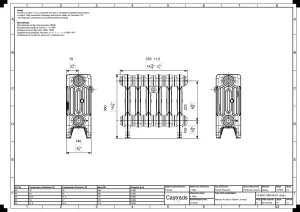

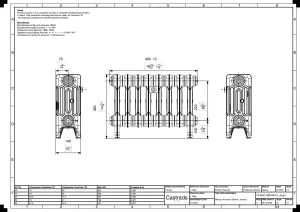

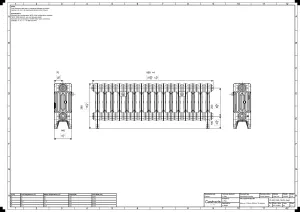

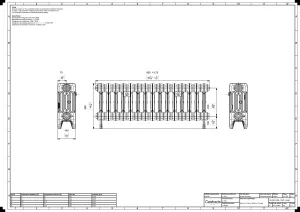

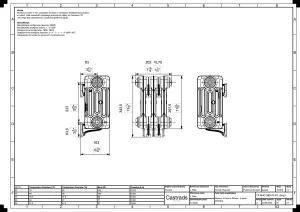

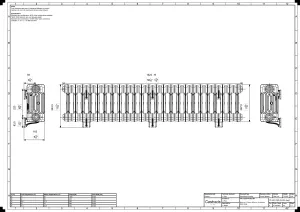

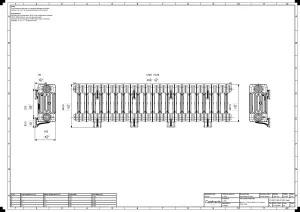

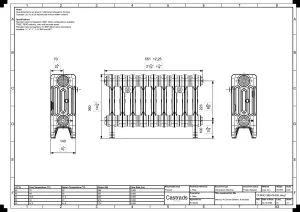

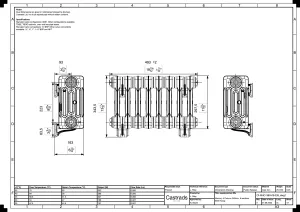

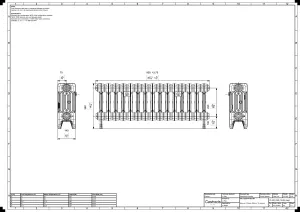

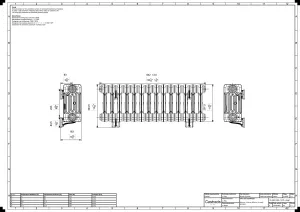

| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 360mm |
| B | Pipe centre to floor | 101.3mm |
| C | Max section depth | 140mm |
| D | Interaxis distance | 223mm |
| E | Height without legs | 298mm |
| F | Mid section depth | 140mm |
| G | Pipe centre to wall (Atlas bracket) | 93mm |
| L | Section length | 58.3mm |
| – | Internal volume per section | 0.55L |
| – | Leg section weight | 3.7kg |
| – | Mid section weight | 2.9kg |
| – | Max single-piece delivery size | 16sections |
| – | Output at ΔT30 | 23.6W |
| – | Output at ΔT50 | 44.0W |
φ = Km × ΔTn · Km = 0.369 · n = 1.222
Tested to EN 442 · BSRIA · Test ref: 103146A1PS
Declaration of Performance: 202009-1101 · CE marked
