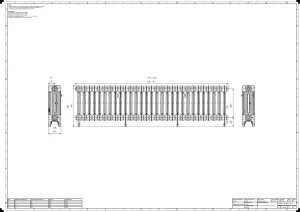

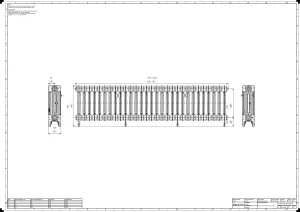

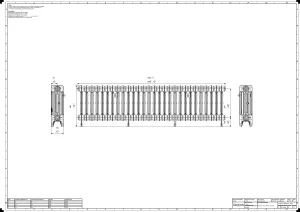

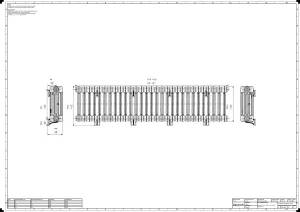

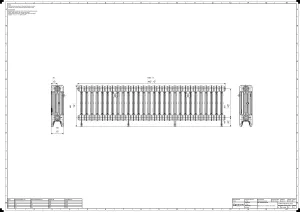

Mercury 4 Column 460mm - 10 Section Battery Technical Drawing - SVG

Mercury 4 Column 760mm cast iron radiator installed in Park Slope, Brooklyn on a two-pipe steam system

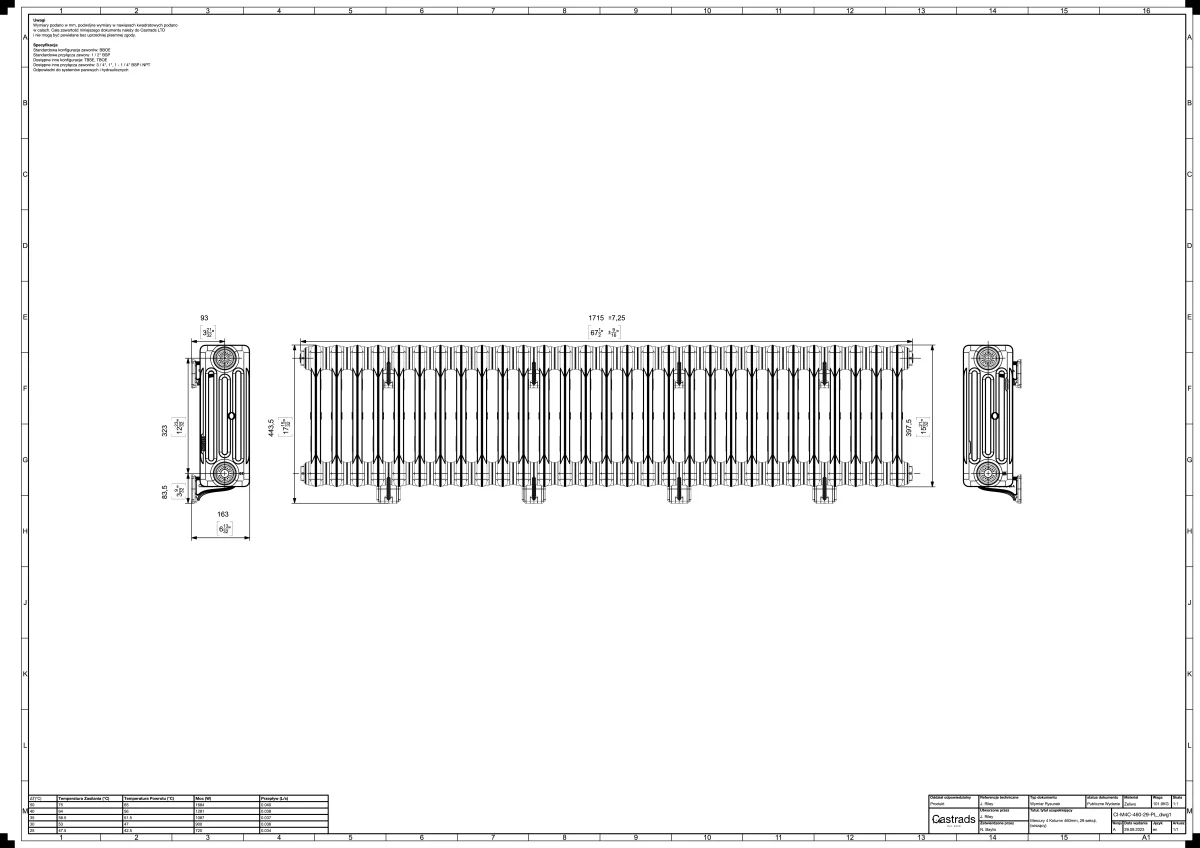

Technical drawing: Mercury 4 Column 460mm cast iron radiator

Mercury 4 Column 460mm - Single Section Technical Drawing - SVG

Mercury 4 Column 460mm

Name: Mercury 4 Column 460mm
SKU: CI-M4C-460

Na zamówienie

Każdy grzejnik powstaje w rozmiarze dopasowanym do pomieszczenia. Wybierz liczbę żeberek, wykończenie i zawory w konfiguratorze lub pozwól wyszukiwarce dobrać model do Twojej przestrzeni.

Skonfiguruj grzejnik Znajdź pasujący grzejnik

Mercury represents the new global standard in cast iron radiators, with curves that fall gracefully into the shadows and lines as crisp and straight as a die. Mercury 4 Column 460mm is perfect under windows, eliminating any cold draughts.

CI-M4C-460

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKU	Sections	Length (mm)	ΔT50 (W)	ΔT30 (W)	Delivered in	Signature	Branded Paints	Bare Metal
CI-M4C-460-03	3	205	174	93	One piece	—	—	—
CI-M4C-460-04	4	263	232	124	One piece	—	—	—
CI-M4C-460-05	5	322	290	155	One piece	—	—	—
CI-M4C-460-06	6	380	348	186	One piece	—	—	—
CI-M4C-460-07	7	438	406	217	One piece	—	—	—
CI-M4C-460-08	8	496	464	248	One piece	—	—	—
CI-M4C-460-09	9	555	522	279	One piece	—	—	—
CI-M4C-460-10	10	613	580	310	One piece	—	—	—
CI-M4C-460-11	11	671	638	341	One piece	—	—	—
CI-M4C-460-12	12	730	696	372	One piece	—	—	—
CI-M4C-460-13	13	788	754	403	One piece	—	—	—
CI-M4C-460-14	14	846	812	434	One piece	—	—	—
CI-M4C-460-15	15	905	870	465	One piece	—	—	—
CI-M4C-460-16	16	963	928	496	One piece	—	—	—
CI-M4C-460-17	17	1021	986	527	2 pieces	—	—	—
CI-M4C-460-18	18	1079	1044	558	2 pieces	—	—	—
CI-M4C-460-19	19	1138	1102	589	2 pieces	—	—	—
CI-M4C-460-20	20	1196	1160	620	2 pieces	—	—	—
CI-M4C-460-21	21	1254	1218	651	2 pieces	—	—	—
CI-M4C-460-22	22	1313	1276	682	2 pieces	—	—	—
CI-M4C-460-23	23	1371	1334	713	2 pieces	—	—	—
CI-M4C-460-24	24	1429	1392	744	2 pieces	—	—	—
CI-M4C-460-25	25	1488	1449	775	2 pieces	—	—	—
CI-M4C-460-26	26	1546	1507	806	2 pieces	—	—	—
CI-M4C-460-27	27	1604	1565	837	2 pieces	—	—	—
CI-M4C-460-28	28	1662	1623	868	2 pieces	—	—	—
CI-M4C-460-29	29	1721	1681	899	2 pieces	—	—	—
CI-M4C-460-30	30	1779	1739	930	2 pieces	—	—	—
CI-M4C-460-31	31	1837	1797	961	2 pieces	—	—	—
CI-M4C-460-32	32	1896	1855	992	2 pieces	—	—	—
CI-M4C-460-33	33	1954	1913	1023	3 pieces	—	—	—
CI-M4C-460-34	34	2012	1971	1054	3 pieces	—	—	—
CI-M4C-460-35	35	2071	2029	1085	3 pieces	—	—	—
CI-M4C-460-36	36	2129	2087	1116	3 pieces	—	—	—
CI-M4C-460-37	37	2187	2145	1147	3 pieces	—	—	—
CI-M4C-460-38	38	2245	2203	1178	3 pieces	—	—	—
CI-M4C-460-39	39	2304	2261	1209	3 pieces	—	—	—
CI-M4C-460-40	40	2362	2319	1240	3 pieces	—	—	—

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

Heat output in watts per section at each temperature difference
ΔT (K)	Output per section (W)
ΔT15	13.3
ΔT20	18.9
ΔT25	24.8
ΔT30	31
ΔT35	37.4
ΔT40	44.1
ΔT45	51
ΔT50	58

Specifications

Dimensions, weights and heat outputs for this model
Ref	Attribute	Value
A	Height with legs	460mm
B	Pipe centre to floor	101.3mm
C	Max section depth	140mm
D	Interaxis distance	323mm
E	Height without legs	398mm
F	Mid section depth	140mm
G	Pipe centre to wall (Atlas bracket)	93mm
L	Section length	58.3mm
–	Internal volume per section	0.61L
–	Leg section weight	4.4kg
–	Mid section weight	4kg
–	Max single-piece delivery size	16sections
–	Output at ΔT30	31.0W
–	Output at ΔT50	58.0W

φ = K_m × ΔTⁿ · K_m = 0.479 · n = 1.226
Tested to EN 442 · BSRIA · Test ref: 61431
Declaration of Performance: 202009-1102 · CE marked
