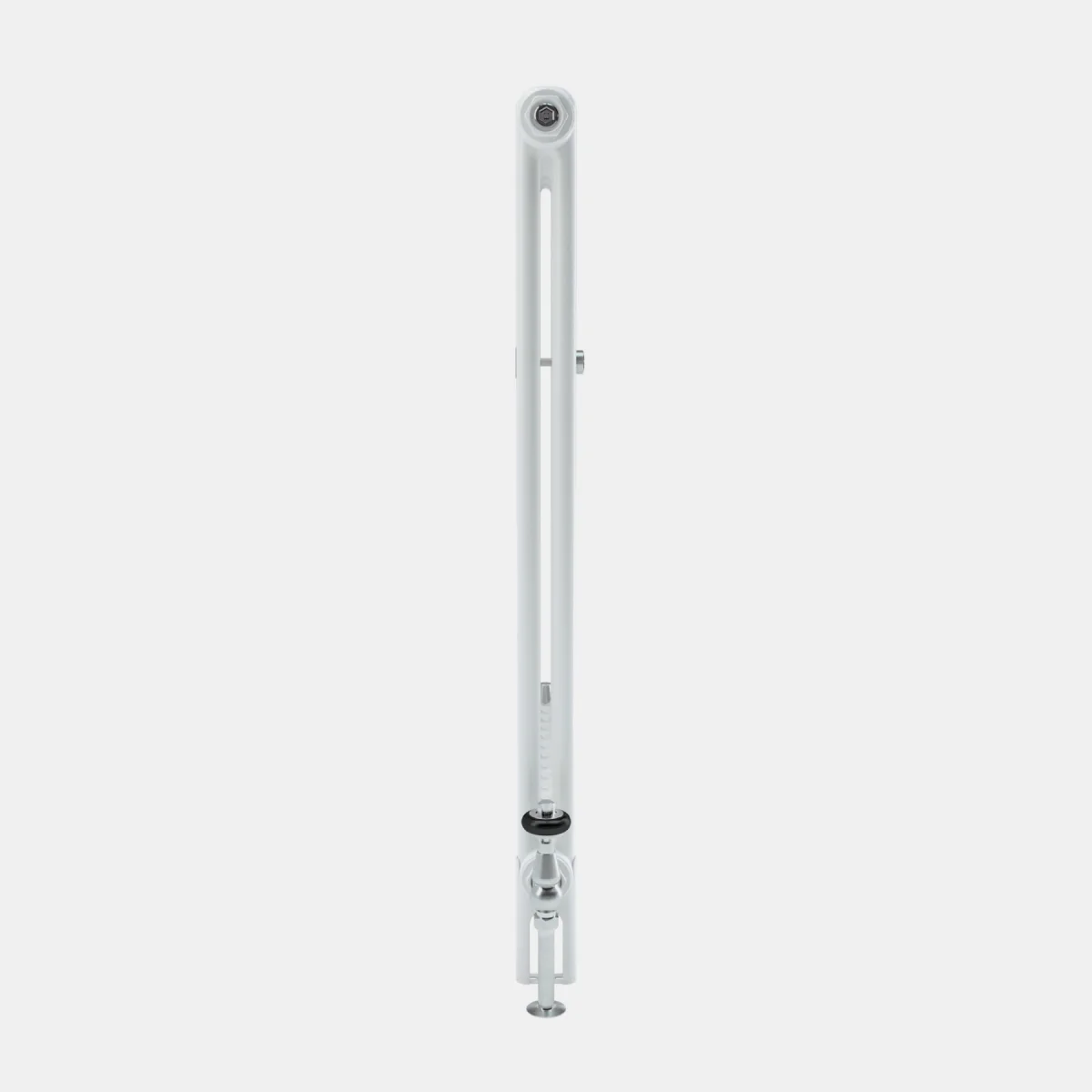

Side view of a white Florence 2 Column steel column radiator with a chrome valve, bleed plug and wall stay, on a plain grey background.

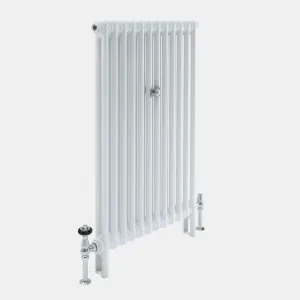

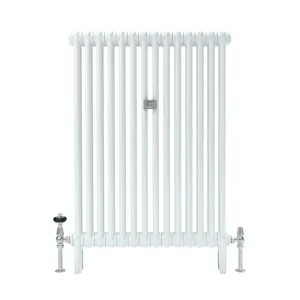

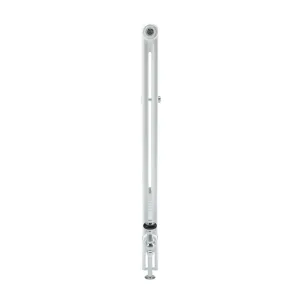

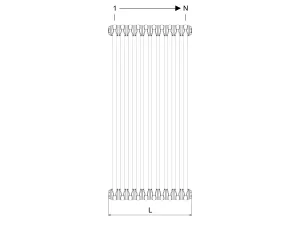

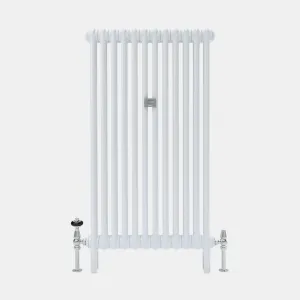

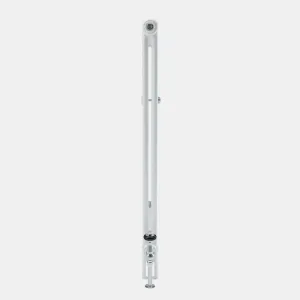

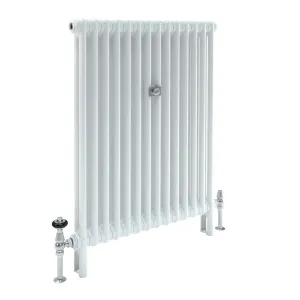

Plain white Florence 2 Column steel radiator on feet, angled view, with a central wall stay and chrome valves on chrome pipe shrouds.Florence 2 Column steel radiator in white, plain tall sections on feet, with chrome valves on both ends, one with a black head.Side view of a white Florence 2 Column steel radiator with a wall stay halfway up and a chrome valve at the base, on a plain grey background.Tall, plain white Florence 2 Column steel radiator on feet, with a central wall stay and chrome valves at each end, on a pale grey background.Florence 2 Column steel radiator in white, standing on feet, with chrome valves at each end and a wall stay, shown at an angle on grey.Florence 2 Column 1000mm steel column radiator in white on feet, with chrome thermostatic and lockshield valves, front view.Side view of a white Florence 2 column steel radiator, 1000mm high, with a wall stay, chrome valve and floor-standing foot.Florence 2 Column 1000mm steel column radiator in white on feet, with chrome valves and floor pipes, angled view on a white background.Technical drawing: Florence 2 Column 1000mm steel column radiatorTechnical drawing: Florence 2 Column 1000mm steel column radiatorTechnical drawing: Florence 2 Column 1000mm steel column radiatorTechnical drawing: Florence 2 Column 1000mm steel column radiator

Florence 2 Column 1000mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F2C-1002

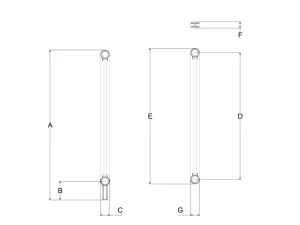

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs1102mm
BPipe centre to floor134mm
CMax section depth67mm
DInteraxis distance935mm
EHeight without legs1002mm
FMid section depth65mm
GPipe centre to wall (Atlas bracket)63mm
LSection length45mm
–Internal volume per section1L
–Leg section weight1.7kg
–Mid section weight1.4kg
–Max single-piece delivery size25sections
–Output at ΔT3035.7W
–Output at ΔT5069.2W

φ = Km × ΔTn · Km = 0.438 · n = 1.294
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_A
Declaration of Performance: 202009-1006 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F2C-1002-033165208107One piece——
SMC-F2C-1002-044210277143One piece——
SMC-F2C-1002-055255346179One piece——
SMC-F2C-1002-066300415214One piece——
SMC-F2C-1002-077345484250One piece——
SMC-F2C-1002-088390553286One piece——
SMC-F2C-1002-099435623321One piece——
SMC-F2C-1002-1010480692357One piece——
SMC-F2C-1002-1111525761393One piece——
SMC-F2C-1002-1212570830429One piece——
SMC-F2C-1002-1313615899464One piece——
SMC-F2C-1002-1414660968500One piece——
SMC-F2C-1002-15157051038536One piece——
SMC-F2C-1002-16167501107571One piece——
SMC-F2C-1002-17177951176607One piece——
SMC-F2C-1002-18188401245643One piece——
SMC-F2C-1002-19198851314679One piece——
SMC-F2C-1002-20209301383714One piece——
SMC-F2C-1002-21219751453750One piece——
SMC-F2C-1002-222210201522786One piece——
SMC-F2C-1002-232310651591821One piece——
SMC-F2C-1002-242411101660857One piece——
SMC-F2C-1002-252511551729893One piece——
SMC-F2C-1002-2626120017999292 pieces——
SMC-F2C-1002-2727124518689642 pieces——
SMC-F2C-1002-28281290193710002 pieces——
SMC-F2C-1002-29291335200610362 pieces——
SMC-F2C-1002-30301380207510712 pieces——
SMC-F2C-1002-31311425214411072 pieces——
SMC-F2C-1002-32321470221411432 pieces——
SMC-F2C-1002-33331515228311792 pieces——
SMC-F2C-1002-34341560235212142 pieces——
SMC-F2C-1002-35351605242112502 pieces——
SMC-F2C-1002-36361650249012862 pieces——
SMC-F2C-1002-37371695255913222 pieces——
SMC-F2C-1002-38381740262913572 pieces——
SMC-F2C-1002-39391785269813932 pieces——
SMC-F2C-1002-40401830276714292 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

0183553701520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1514.6
ΔT2021.1
ΔT2528.2
ΔT3035.7
ΔT3543.6
ΔT4051.8
ΔT4560.4
ΔT5069.2
