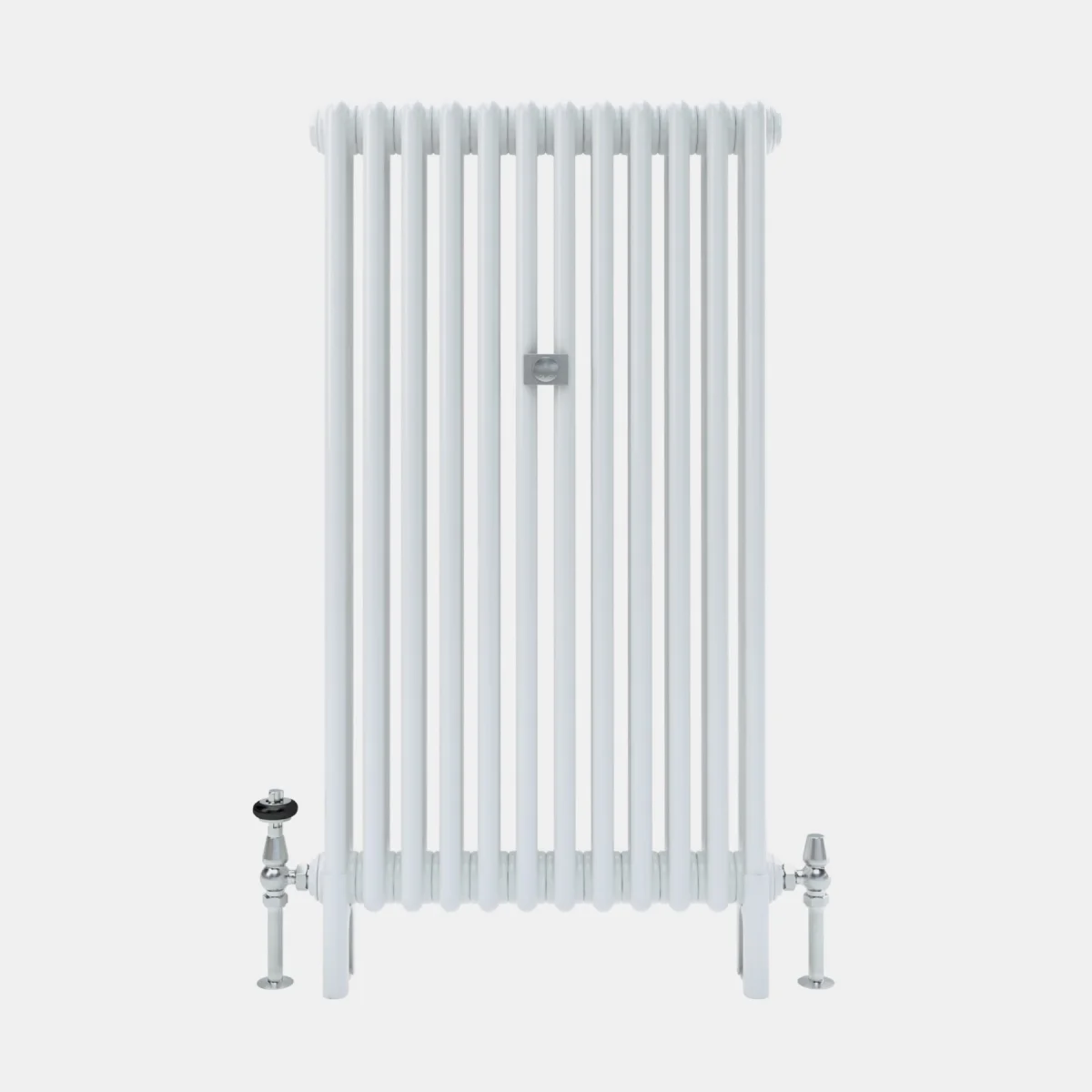

Tall white Florence 3 Column steel radiator on feet, with a central wall stay and chrome angled valves, one with a black head, at each end.

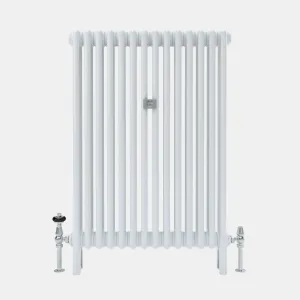

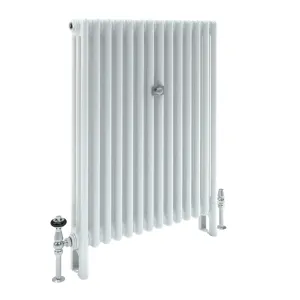

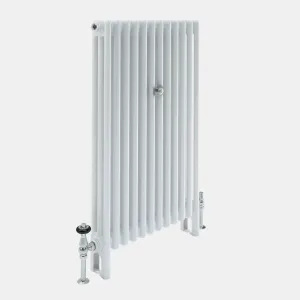

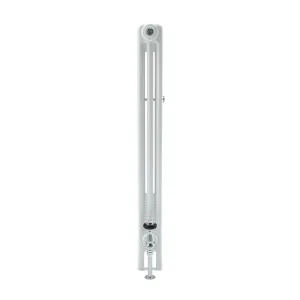

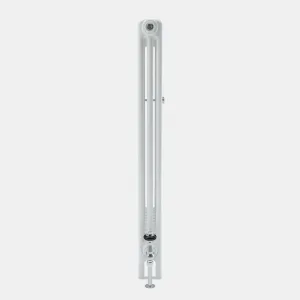

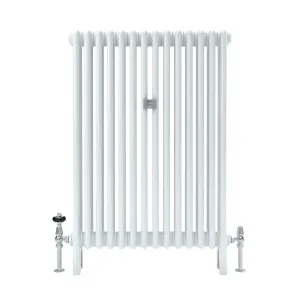

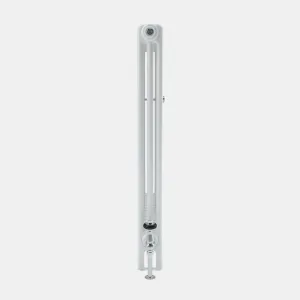

Tall Florence 3 Column steel radiator in white, standing on feet, with a central wall stay and chrome valves at each end.Florence 3 Column steel radiator in white on feet, with a chrome thermostatic valve on the left, a chrome valve on the right and a central wall stay.Side view of a white Florence three-column steel radiator with a chrome valve and floor pipe at the base and a wall stay, on a plain grey background.Side view of a white Florence 3 Column steel column radiator with a chrome valve and pipe at the base and a wall stay at mid-height.Plain white Florence 3 Column steel radiator on feet, with chrome valves and a black wheel head, shown at an angle on a pale grey background.Florence 3 column 1000mm steel column radiator in white on feet, with chrome valves and a central wall stay, on a white background.Florence 3 Column 1000mm plain white steel column radiator on feet, angled view, with chrome valves at each end and a central chrome wall stay.Side view of a white Florence 3 Column 1000mm steel column radiator with a chrome valve and pipe at the base, on a white background.Technical drawing: Florence 3 Column 1000mm steel column radiatorTechnical drawing: Florence 3 Column 1000mm steel column radiatorTechnical drawing: Florence 3 Column 1000mm steel column radiatorTechnical drawing: Florence 3 Column 1000mm steel column radiator

Florence 3 Column 1000mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F3C-1002

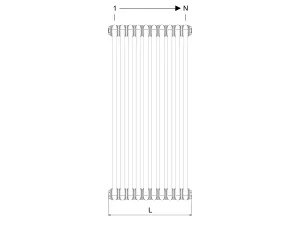

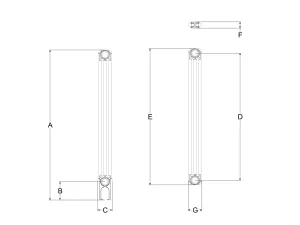

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs1102mm
BPipe centre to floor134mm
CMax section depth103mm
DInteraxis distance935mm
EHeight without legs1002mm
FMid section depth101mm
GPipe centre to wall (Atlas bracket)63mm
LSection length45mm
–Internal volume per section1.5L
–Leg section weight2.3kg
–Mid section weight2kg
–Max single-piece delivery size25sections
–Output at ΔT3049.5W
–Output at ΔT5096.9W

φ = Km × ΔTn · Km = 0.561 · n = 1.317
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.ITPL.01004
Declaration of Performance: 202009-1021 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F3C-1002-033165291148One piece——
SMC-F3C-1002-044210388198One piece——
SMC-F3C-1002-055255485247One piece——
SMC-F3C-1002-066300582297One piece——
SMC-F3C-1002-077345679346One piece——
SMC-F3C-1002-088390776396One piece——
SMC-F3C-1002-099435872445One piece——
SMC-F3C-1002-1010480969495One piece——
SMC-F3C-1002-11115251066544One piece——
SMC-F3C-1002-12125701163594One piece——
SMC-F3C-1002-13136151260643One piece——
SMC-F3C-1002-14146601357693One piece——
SMC-F3C-1002-15157051454742One piece——
SMC-F3C-1002-16167501551792One piece——
SMC-F3C-1002-17177951648841One piece——
SMC-F3C-1002-18188401745890One piece——
SMC-F3C-1002-19198851842940One piece——
SMC-F3C-1002-20209301939989One piece——
SMC-F3C-1002-212197520361039One piece——
SMC-F3C-1002-2222102021331088One piece——
SMC-F3C-1002-2323106522301138One piece——
SMC-F3C-1002-2424111023271187One piece——
SMC-F3C-1002-2525115524241237One piece——
SMC-F3C-1002-26261200252012862 pieces——
SMC-F3C-1002-27271245261713362 pieces——
SMC-F3C-1002-28281290271413852 pieces——
SMC-F3C-1002-29291335281114352 pieces——
SMC-F3C-1002-30301380290814842 pieces——
SMC-F3C-1002-31311425300515342 pieces——
SMC-F3C-1002-32321470310215832 pieces——
SMC-F3C-1002-33331515319916322 pieces——
SMC-F3C-1002-34341560329616822 pieces——
SMC-F3C-1002-35351605339317312 pieces——
SMC-F3C-1002-36361650349017812 pieces——
SMC-F3C-1002-37371695358718302 pieces——
SMC-F3C-1002-38381740368418802 pieces——
SMC-F3C-1002-39391785378119292 pieces——
SMC-F3C-1002-40401830387819792 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

02550751001520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1519.9
ΔT2029
ΔT2538.9
ΔT3049.5
ΔT3560.6
ΔT4072.3
ΔT4584.4
ΔT5096.9
