Technical drawing: Florence 3 Column 500mm steel column radiator

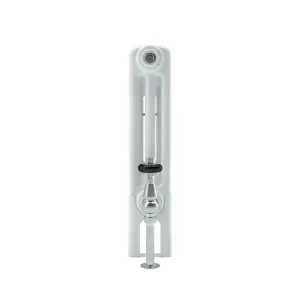

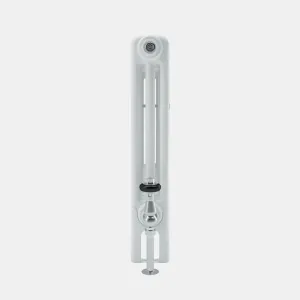

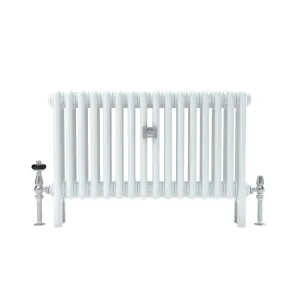

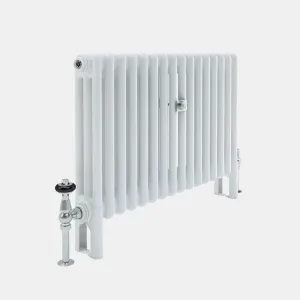

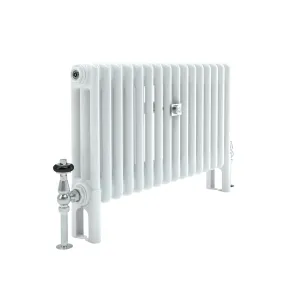

Side view of a white Florence 3 column steel radiator with a chrome angled valve with black handle and a floor-mounted pipe, on a plain grey background.Florence 3 column steel radiator in white on feet, with a chrome angled valve and black handwheel, shown at an angle on a plain background.Technical drawing: Florence 3 Column 500mm steel column radiatorTechnical drawing: Florence 3 Column 500mm steel column radiatorFlorence 3 column steel radiator in white on feet, front view, with chrome thermostatic and lockshield valves and a central wall stay.White Florence 3 Column 500mm steel radiator on feet, angled view, with a chrome valve with black collar on a white background.Side view of a white Florence 3 column 500mm steel radiator with a chrome valve and black handle, on a white background.Florence 3 column 500mm steel column radiator in white on feet, with chrome thermostatic and lockshield valves, front view on white.Technical drawing: Florence 3 Column 500mm steel column radiatorFlorence 3 column 600mm curved steel column radiatorWhite Florence 3 column steel radiator on feet, angled view, with a chrome thermostatic valve, black collar and chrome lockshield valve.Side view of a white Florence 3 column steel radiator on feet, with a chrome valve and black-trimmed head at the base, on a plain grey background.

Florence 3 Column 500mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F3C-502

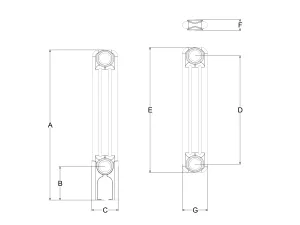

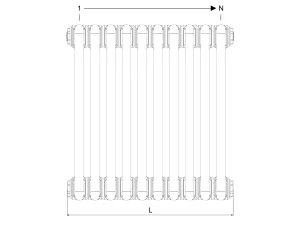

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs602mm
BPipe centre to floor134mm
CMax section depth103mm
DInteraxis distance435mm
EHeight without legs502mm
FMid section depth101mm
GPipe centre to wall (Atlas bracket)63mm
LSection length45mm
–Internal volume per section0.8L
–Leg section weight1.3kg
–Mid section weight1kg
–Max single-piece delivery size25sections
–Output at ΔT3026.8W
–Output at ΔT5051.3W

φ = Km × ΔTn · Km = 0.357 · n = 1.27
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.ITPL.01004
Declaration of Performance: 202009-1031 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F3C-502-03316515480One piece——
SMC-F3C-502-044210205107One piece——
SMC-F3C-502-055255257134One piece——
SMC-F3C-502-066300308161One piece——
SMC-F3C-502-077345359188One piece——
SMC-F3C-502-088390411215One piece——
SMC-F3C-502-099435462241One piece——
SMC-F3C-502-1010480513268One piece——
SMC-F3C-502-1111525565295One piece——
SMC-F3C-502-1212570616322One piece——
SMC-F3C-502-1313615667349One piece——
SMC-F3C-502-1414660719376One piece——
SMC-F3C-502-1515705770402One piece——
SMC-F3C-502-1616750821429One piece——
SMC-F3C-502-1717795873456One piece——
SMC-F3C-502-1818840924483One piece——
SMC-F3C-502-1919885975510One piece——
SMC-F3C-502-20209301027537One piece——
SMC-F3C-502-21219751078563One piece——
SMC-F3C-502-222210201129590One piece——
SMC-F3C-502-232310651181617One piece——
SMC-F3C-502-242411101232644One piece——
SMC-F3C-502-252511551283671One piece——
SMC-F3C-502-2626120013356982 pieces——
SMC-F3C-502-2727124513867242 pieces——
SMC-F3C-502-2828129014377512 pieces——
SMC-F3C-502-2929133514897782 pieces——
SMC-F3C-502-3030138015408052 pieces——
SMC-F3C-502-3131142515918322 pieces——
SMC-F3C-502-3232147016438592 pieces——
SMC-F3C-502-3333151516948852 pieces——
SMC-F3C-502-3434156017459122 pieces——
SMC-F3C-502-3535160517979392 pieces——
SMC-F3C-502-3636165018489662 pieces——
SMC-F3C-502-3737169518999932 pieces——
SMC-F3C-502-38381740195010202 pieces——
SMC-F3C-502-39391785200210462 pieces——
SMC-F3C-502-40401830205310732 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

0153045601520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1511.1
ΔT2016
ΔT2521.3
ΔT3026.8
ΔT3532.6
ΔT4038.7
ΔT4544.9
ΔT5051.3
