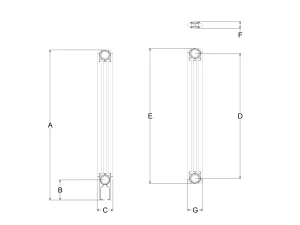

Technical drawing: Florence 3 Column 900mm steel column radiator
Technical drawing: Florence 3 Column 900mm steel column radiatorTechnical drawing: Florence 3 Column 900mm steel column radiatorTechnical drawing: Florence 3 Column 900mm steel column radiatorSide view of a white Florence 3 Column steel column radiator with a chrome valve and pipe at the base and a wall stay at mid-height.Plain white Florence 3 Column steel radiator on feet, with chrome valves and a black wheel head, shown at an angle on a pale grey background.Florence 3 Column steel radiator in white on feet, with a chrome thermostatic valve on the left, a chrome valve on the right and a central wall stay.

Florence 3 Column 900mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F3C-902

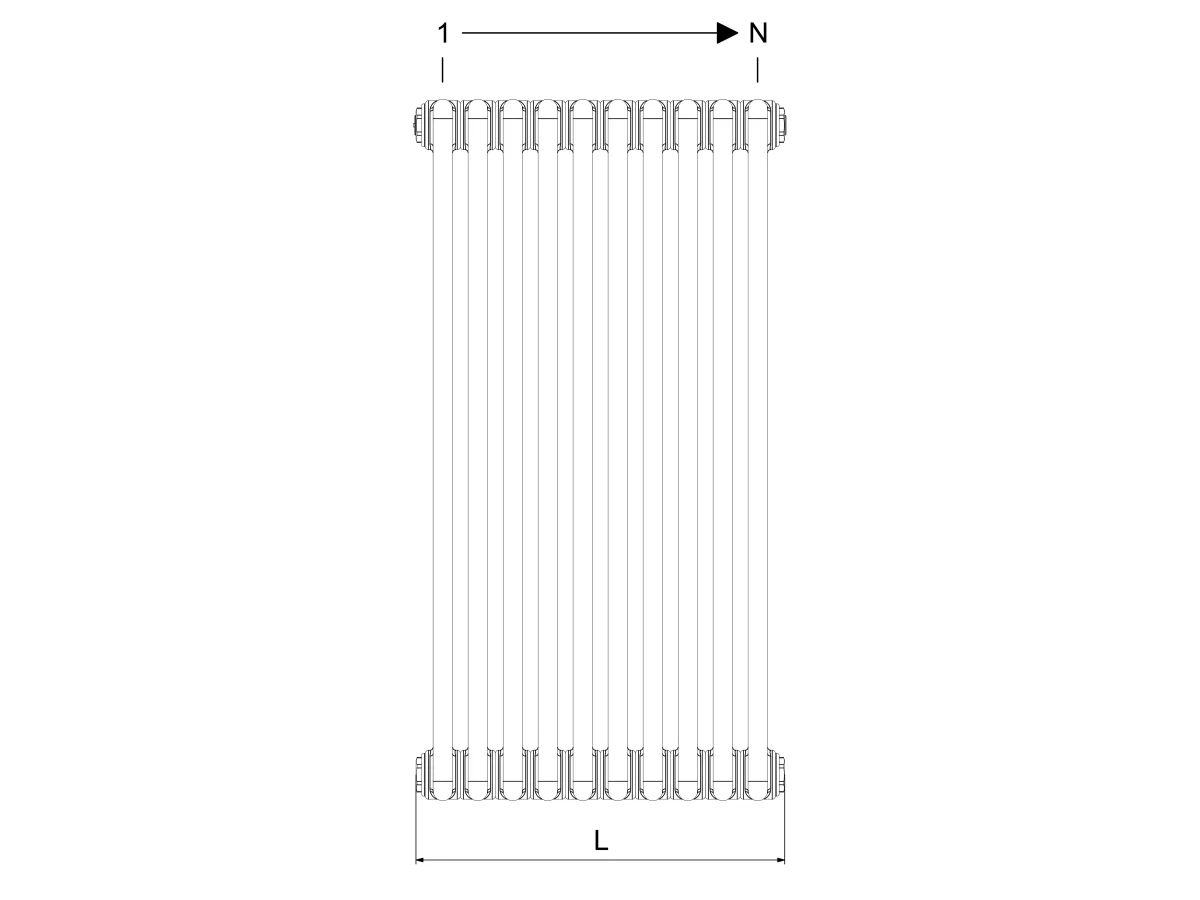

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs1002mm
BPipe centre to floor134mm
CMax section depth103mm
DInteraxis distance835mm
EHeight without legs902mm
FMid section depth101mm
GPipe centre to wall (Atlas bracket)63mm
LSection length45mm
–Internal volume per section1.3L
–Leg section weight2kg
–Mid section weight1.7kg
–Max single-piece delivery size25sections
–Output at ΔT3044.9W
–Output at ΔT5087.8W

φ = Km × ΔTn · Km = 0.514 · n = 1.314
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.ITPL.01004
Declaration of Performance: 202009-1035 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F3C-902-033165263135One piece——
SMC-F3C-902-044210351179One piece——
SMC-F3C-902-055255439224One piece——
SMC-F3C-902-066300527269One piece——
SMC-F3C-902-077345614314One piece——
SMC-F3C-902-088390702359One piece——
SMC-F3C-902-099435790404One piece——
SMC-F3C-902-1010480878449One piece——
SMC-F3C-902-1111525966494One piece——
SMC-F3C-902-12125701053538One piece——
SMC-F3C-902-13136151141583One piece——
SMC-F3C-902-14146601229628One piece——
SMC-F3C-902-15157051317673One piece——
SMC-F3C-902-16167501405718One piece——
SMC-F3C-902-17177951492763One piece——
SMC-F3C-902-18188401580808One piece——
SMC-F3C-902-19198851668852One piece——
SMC-F3C-902-20209301756897One piece——
SMC-F3C-902-21219751843942One piece——
SMC-F3C-902-222210201931987One piece——
SMC-F3C-902-2323106520191032One piece——
SMC-F3C-902-2424111021071077One piece——
SMC-F3C-902-2525115521951122One piece——
SMC-F3C-902-26261200228211662 pieces——
SMC-F3C-902-27271245237012112 pieces——
SMC-F3C-902-28281290245812562 pieces——
SMC-F3C-902-29291335254613012 pieces——
SMC-F3C-902-30301380263313462 pieces——
SMC-F3C-902-31311425272113912 pieces——
SMC-F3C-902-32321470280914362 pieces——
SMC-F3C-902-33331515289714812 pieces——
SMC-F3C-902-34341560298515252 pieces——
SMC-F3C-902-35351605307215702 pieces——
SMC-F3C-902-36361650316016152 pieces——
SMC-F3C-902-37371695324816602 pieces——
SMC-F3C-902-38381740333617052 pieces——
SMC-F3C-902-39391785342417502 pieces——
SMC-F3C-902-40401830351117952 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

0234568901520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1518
ΔT2026.3
ΔT2535.3
ΔT3044.9
ΔT3554.9
ΔT4065.5
ΔT4576.4
ΔT5087.8
