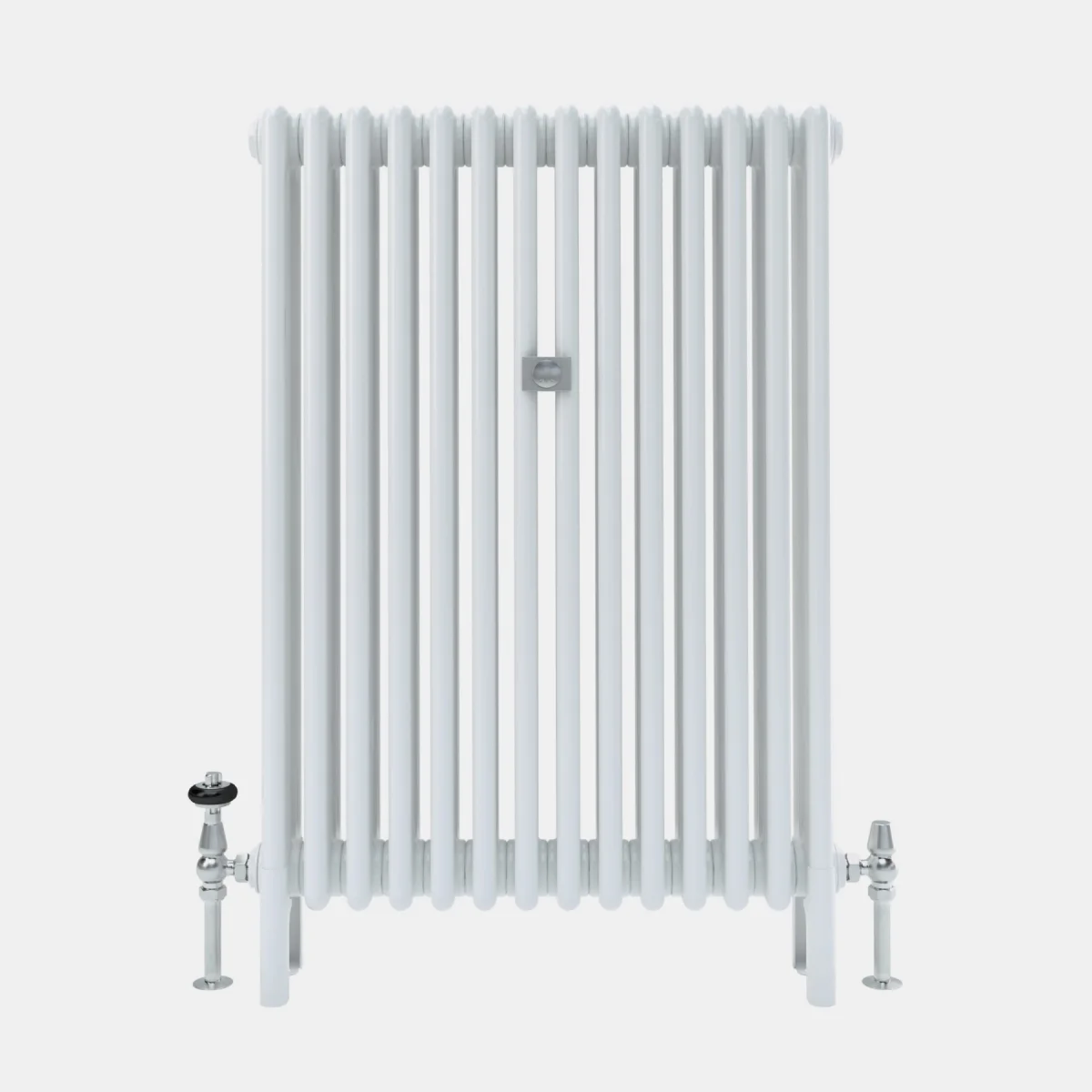

White Florence 4 Column steel radiator on feet, with a chrome thermostatic valve on the left and a chrome lockshield valve on the right.

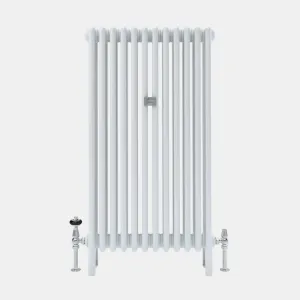

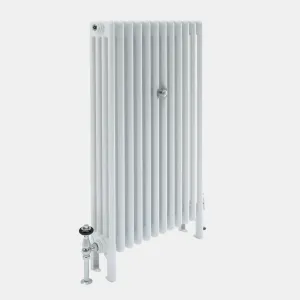

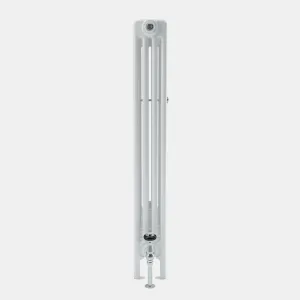

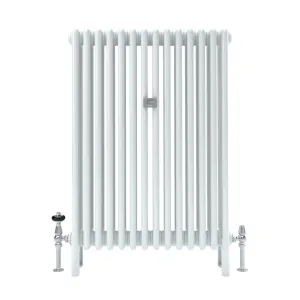

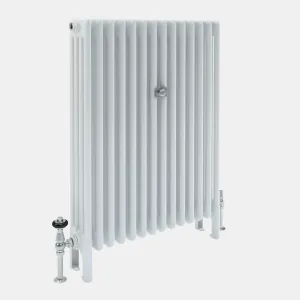

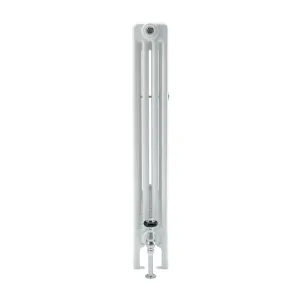

Florence 4 column steel radiator in white on feet, with chrome valves at each end and a black-topped valve head, against a plain grey background.Plain white Florence 4 Column steel radiator on feet, with a chrome valve and black head, a chrome wall stay and a bleed valve.Tall plain Florence 4 Column steel radiator in white on feet, with a chrome thermostatic valve, lockshield valve and a central wall stay.Side view of a white Florence 4 Column steel radiator on feet, with a chrome valve and black handle at the base.End view of a Florence 4 Column steel radiator in white, standing on feet, with a chrome valve at the base and a bleed valve at the top.Florence 4 Column 1000mm steel column radiator in white on feet, with chrome valves at each end, shown front-on against a white background.Florence 4 Column 1000mm steel column radiator in white on feet, angled view with chrome valves and a central wall stay, on a white background.Side view of a white Florence 4 column steel radiator on feet, with a chrome valve at the base and a bleed valve at the top.Technical drawing: Florence 4 Column 1000mm steel column radiatorTechnical drawing: Florence 4 Column 1000mm steel column radiatorTechnical drawing: Florence 4 Column 1000mm steel column radiatorTechnical drawing: Florence 4 Column 1000mm steel column radiator

Florence 4 Column 1000mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F4C-1002

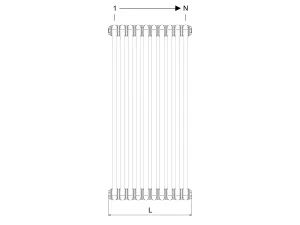

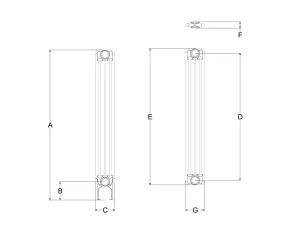

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs1102mm
BPipe centre to floor134mm
CMax section depth141mm
DInteraxis distance935mm
EHeight without legs1002mm
FMid section depth139mm
GPipe centre to wall (Atlas bracket)93mm
LSection length45mm
–Internal volume per section1.92L
–Leg section weight2.97kg
–Mid section weight2.67kg
–Max single-piece delivery size25sections
–Output at ΔT3063.4W
–Output at ΔT50125.7W

φ = Km × ΔTn · Km = 0.665 · n = 1.34
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.ITPL.01005
Declaration of Performance: 202009-1036 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F4C-1002-033165377190One piece——
SMC-F4C-1002-044210503254One piece——
SMC-F4C-1002-055255629317One piece——
SMC-F4C-1002-066300754380One piece——
SMC-F4C-1002-077345880444One piece——
SMC-F4C-1002-0883901006507One piece——
SMC-F4C-1002-0994351132571One piece——
SMC-F4C-1002-10104801257634One piece——
SMC-F4C-1002-11115251383698One piece——
SMC-F4C-1002-12125701509761One piece——
SMC-F4C-1002-13136151634824One piece——
SMC-F4C-1002-14146601760888One piece——
SMC-F4C-1002-15157051886951One piece——
SMC-F4C-1002-161675020121015One piece——
SMC-F4C-1002-171779521371078One piece——
SMC-F4C-1002-181884022631141One piece——
SMC-F4C-1002-191988523891205One piece——
SMC-F4C-1002-202093025151268One piece——
SMC-F4C-1002-212197526401332One piece——
SMC-F4C-1002-2222102027661395One piece——
SMC-F4C-1002-2323106528921458One piece——
SMC-F4C-1002-2424111030181522One piece——
SMC-F4C-1002-2525115531431585One piece——
SMC-F4C-1002-26261200326916492 pieces——
SMC-F4C-1002-27271245339517122 pieces——
SMC-F4C-1002-28281290352017762 pieces——
SMC-F4C-1002-29291335364618392 pieces——
SMC-F4C-1002-30301380377219022 pieces——
SMC-F4C-1002-31311425389819662 pieces——
SMC-F4C-1002-32321470402320292 pieces——
SMC-F4C-1002-33331515414920932 pieces——
SMC-F4C-1002-34341560427521562 pieces——
SMC-F4C-1002-35351605440122192 pieces——
SMC-F4C-1002-36361650452622832 pieces——
SMC-F4C-1002-37371695465223462 pieces——
SMC-F4C-1002-38381740477824102 pieces——
SMC-F4C-1002-39391785490324732 pieces——
SMC-F4C-1002-40401830502925362 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

03365981301520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1525
ΔT2036.8
ΔT2549.7
ΔT3063.4
ΔT3578
ΔT4093.2
ΔT45109.2
ΔT50125.7
