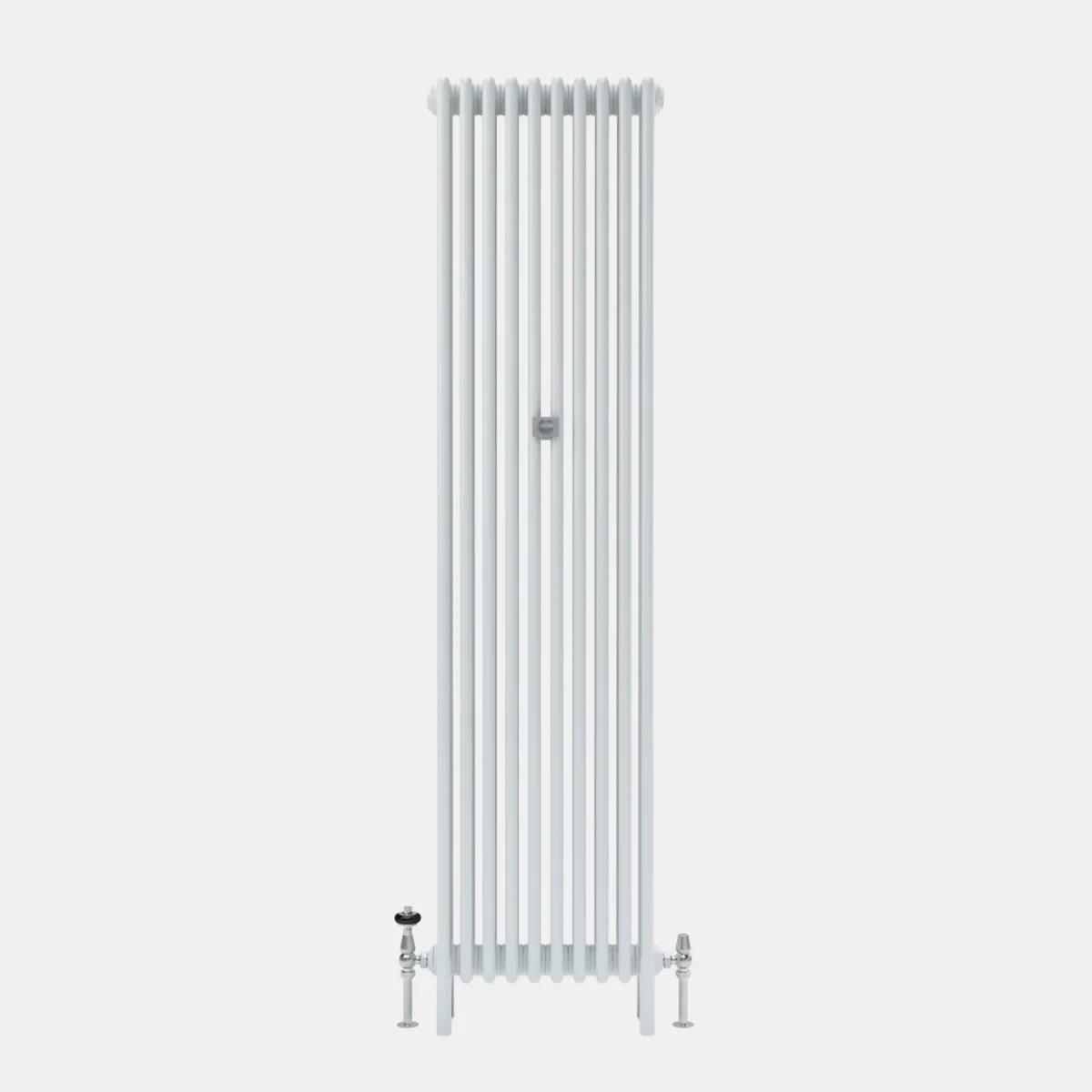

Tall, plain Florence 4 Column steel radiator in white, standing on its feet, with chrome angled valves at each end and a central wall stay.

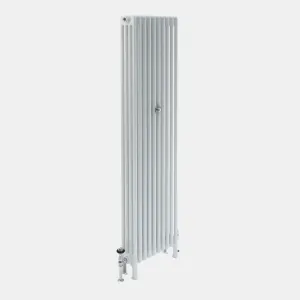

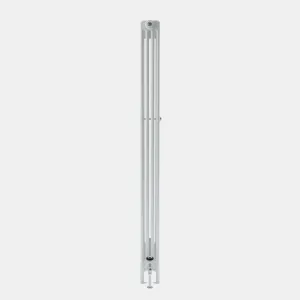

Tall, plain Florence 4 Column steel radiator in white on feet, with a chrome valve with black head and a central wall stay, on a grey background.Side view of a tall white Florence 4 column steel radiator on feet, with a chrome valve at the base and a wall stay at mid-height.Technical drawing: Florence 4 Column 1800mm steel column radiatorTechnical drawing: Florence 4 Column 1800mm steel column radiatorTechnical drawing: Florence 4 Column 1800mm steel column radiatorTechnical drawing: Florence 4 Column 1800mm steel column radiator

Florence 4 Column 1800mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F4C-1802

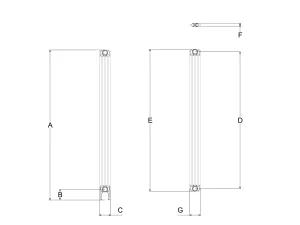

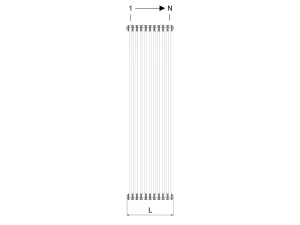

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs1902mm
BPipe centre to floor134mm
CMax section depth141mm
DInteraxis distance1735mm
EHeight without legs1802mm
FMid section depth139mm
GPipe centre to wall (Atlas bracket)93mm
LSection length45mm
–Internal volume per section3.23L
–Leg section weight5.04kg
–Mid section weight4.74kg
–Max single-piece delivery size25sections
–Output at ΔT30110.1W
–Output at ΔT50216.2W

φ = Km × ΔTn · Km = 1.232 · n = 1.321
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.ITPL.01005
Declaration of Performance: 202009-1039 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F4C-1802-033165649330One piece——
SMC-F4C-1802-044210865441One piece——
SMC-F4C-1802-0552551081551One piece——
SMC-F4C-1802-0663001297661One piece——
SMC-F4C-1802-0773451514771One piece——
SMC-F4C-1802-0883901730881One piece——
SMC-F4C-1802-0994351946991One piece——
SMC-F4C-1802-101048021621101One piece——
SMC-F4C-1802-111152523791211One piece——
SMC-F4C-1802-121257025951322One piece——
SMC-F4C-1802-131361528111432One piece——
SMC-F4C-1802-141466030271542One piece——
SMC-F4C-1802-151570532441652One piece——
SMC-F4C-1802-161675034601762One piece——
SMC-F4C-1802-171779536761872One piece——
SMC-F4C-1802-181884038921982One piece——
SMC-F4C-1802-191988541092092One piece——
SMC-F4C-1802-202093043252203One piece——
SMC-F4C-1802-212197545412313One piece——
SMC-F4C-1802-2222102047572423One piece——
SMC-F4C-1802-2323106549742533One piece——
SMC-F4C-1802-2424111051902643One piece——
SMC-F4C-1802-2525115554062753One piece——
SMC-F4C-1802-26261200562228632 pieces——
SMC-F4C-1802-27271245583929732 pieces——
SMC-F4C-1802-28281290605530842 pieces——
SMC-F4C-1802-29291335627131942 pieces——
SMC-F4C-1802-30301380648733042 pieces——
SMC-F4C-1802-31311425670434142 pieces——
SMC-F4C-1802-32321470692035242 pieces——
SMC-F4C-1802-33331515713636342 pieces——
SMC-F4C-1802-34341560735237442 pieces——
SMC-F4C-1802-35351605756938542 pieces——
SMC-F4C-1802-36361650778539652 pieces——
SMC-F4C-1802-37371695800140752 pieces——
SMC-F4C-1802-38381740821741852 pieces——
SMC-F4C-1802-39391785843442952 pieces——
SMC-F4C-1802-40401830865044052 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

0551101652201520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1544.1
ΔT2064.5
ΔT2586.6
ΔT30110.1
ΔT35135
ΔT40161
ΔT45188.2
ΔT50216.2
