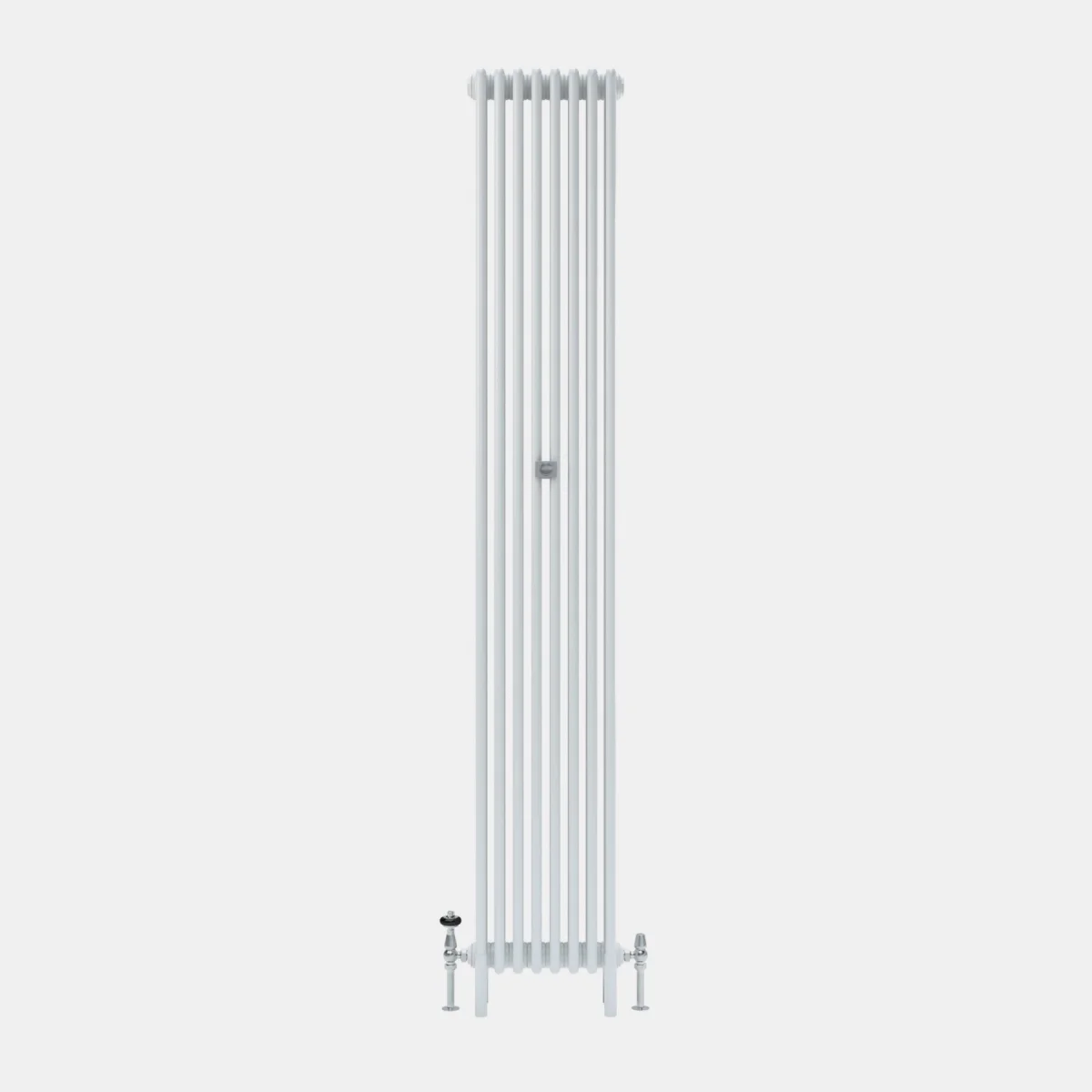

Tall vertical Florence 4 Column steel radiator in white on short feet, with chrome valves at each side of the base and a central wall stay.

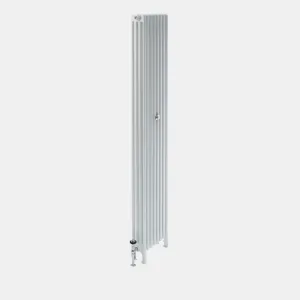

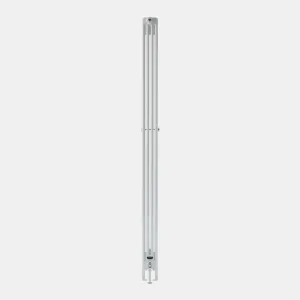

Side view of a tall, slim Florence 4 Column steel radiator in a white finish, on feet, with a central wall stay and a valve at the base.Tall, narrow Florence 4 Column steel radiator in white on feet, with a chrome valve at the bottom and a single wall stay, angled view.Technical drawing: Florence 4 Column 2200mm steel column radiatorTechnical drawing: Florence 4 Column 2200mm steel column radiatorTechnical drawing: Florence 4 Column 2200mm steel column radiatorTechnical drawing: Florence 4 Column 2200mm steel column radiator

Florence 4 Column 2200mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F4C-2202

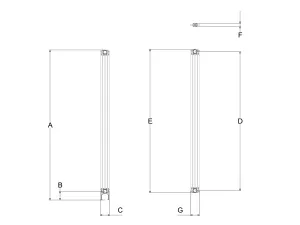

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs2302mm
BPipe centre to floor134mm
CMax section depth141mm
DInteraxis distance2135mm
EHeight without legs2202mm
FMid section depth139mm
GPipe centre to wall (Atlas bracket)93mm
LSection length45mm
–Internal volume per section3.88L
–Leg section weight6.08kg
–Mid section weight5.78kg
–Max single-piece delivery size25sections
–Output at ΔT30132.9W
–Output at ΔT50259.8W

φ = Km × ΔTn · Km = 1.533 · n = 1.312
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.ITPL.01005
Declaration of Performance: 202009-1042 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F4C-2202-033165779399One piece——
SMC-F4C-2202-0442101039532One piece——
SMC-F4C-2202-0552551299665One piece——
SMC-F4C-2202-0663001559797One piece——
SMC-F4C-2202-0773451818930One piece——
SMC-F4C-2202-08839020781063One piece——
SMC-F4C-2202-09943523381196One piece——
SMC-F4C-2202-101048025981329One piece——
SMC-F4C-2202-111152528571462One piece——
SMC-F4C-2202-121257031171595One piece——
SMC-F4C-2202-131361533771728One piece——
SMC-F4C-2202-141466036371861One piece——
SMC-F4C-2202-151570538971994One piece——
SMC-F4C-2202-161675041562126One piece——
SMC-F4C-2202-171779544162259One piece——
SMC-F4C-2202-181884046762392One piece——
SMC-F4C-2202-191988549362525One piece——
SMC-F4C-2202-202093051952658One piece——
SMC-F4C-2202-212197554552791One piece——
SMC-F4C-2202-2222102057152924One piece——
SMC-F4C-2202-2323106559753057One piece——
SMC-F4C-2202-2424111062353190One piece——
SMC-F4C-2202-2525115564943323One piece——
SMC-F4C-2202-26261200675434552 pieces——
SMC-F4C-2202-27271245701435882 pieces——
SMC-F4C-2202-28281290727437212 pieces——
SMC-F4C-2202-29291335753338542 pieces——
SMC-F4C-2202-30301380779339872 pieces——
SMC-F4C-2202-31311425805341202 pieces——
SMC-F4C-2202-32321470831342532 pieces——
SMC-F4C-2202-33331515857243862 pieces——
SMC-F4C-2202-34341560883245192 pieces——
SMC-F4C-2202-35351605909246522 pieces——
SMC-F4C-2202-36361650935247842 pieces——
SMC-F4C-2202-37371695961249172 pieces——
SMC-F4C-2202-38381740987150502 pieces——
SMC-F4C-2202-393917851013151832 pieces——
SMC-F4C-2202-404018301039153162 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

0651301952601520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1553.5
ΔT2078.1
ΔT25104.6
ΔT30132.9
ΔT35162.7
ΔT40193.8
ΔT45226.2
ΔT50259.8
