Technical drawing: Florence 4 Column 900mm steel column radiator

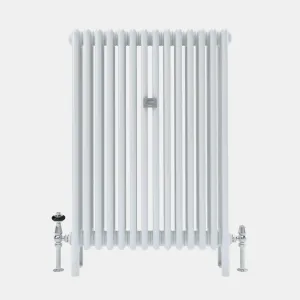

Technical drawing: Florence 4 Column 900mm steel column radiatorTechnical drawing: Florence 4 Column 900mm steel column radiatorTechnical drawing: Florence 4 Column 900mm steel column radiatorFlorence 4 column steel radiator in white on feet, with chrome valves at each end and a black-topped valve head, against a plain grey background.Side view of a white Florence 4 Column steel radiator on feet, with a chrome valve and black handle at the base.White Florence 4 Column steel radiator on feet, with a chrome thermostatic valve on the left and a chrome lockshield valve on the right.

Florence 4 Column 900mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F4C-902

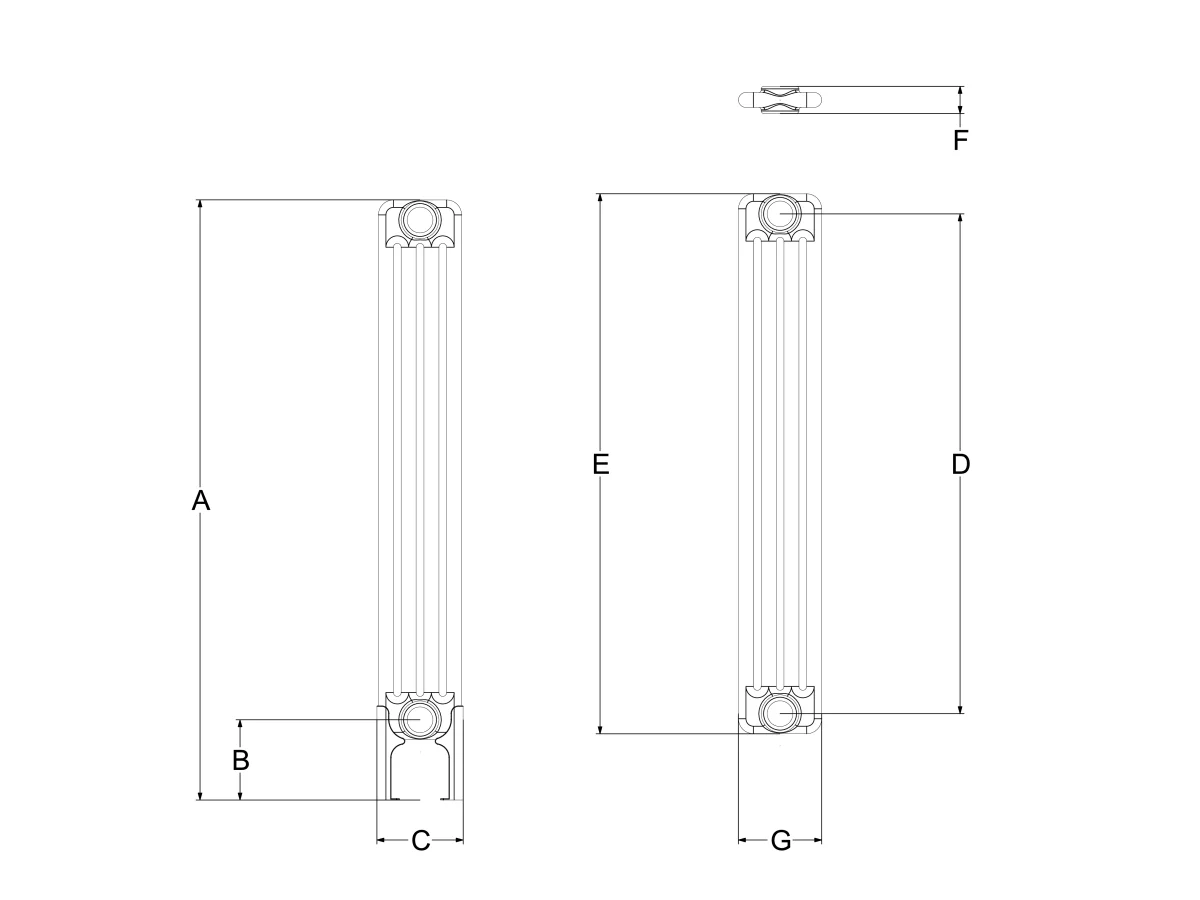

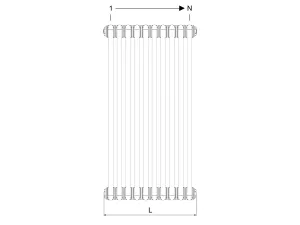

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs1002mm
BPipe centre to floor134mm
CMax section depth141mm
DInteraxis distance835mm
EHeight without legs902mm
FMid section depth139mm
GPipe centre to wall (Atlas bracket)93mm
LSection length45mm
–Internal volume per section1.78L
–Leg section weight2.55kg
–Mid section weight2.25kg
–Max single-piece delivery size25sections
–Output at ΔT3057.6W
–Output at ΔT50114.4W

φ = Km × ΔTn · Km = 0.598 · n = 1.343
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.ITPL.01005
Declaration of Performance: 202009-1050 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F4C-902-033165343173One piece——
SMC-F4C-902-044210458230One piece——
SMC-F4C-902-055255572288One piece——
SMC-F4C-902-066300686346One piece——
SMC-F4C-902-077345801403One piece——
SMC-F4C-902-088390915461One piece——
SMC-F4C-902-0994351030518One piece——
SMC-F4C-902-10104801144576One piece——
SMC-F4C-902-11115251258634One piece——
SMC-F4C-902-12125701373691One piece——
SMC-F4C-902-13136151487749One piece——
SMC-F4C-902-14146601602806One piece——
SMC-F4C-902-15157051716864One piece——
SMC-F4C-902-16167501830922One piece——
SMC-F4C-902-17177951945979One piece——
SMC-F4C-902-181884020591037One piece——
SMC-F4C-902-191988521741095One piece——
SMC-F4C-902-202093022881152One piece——
SMC-F4C-902-212197524021210One piece——
SMC-F4C-902-2222102025171267One piece——
SMC-F4C-902-2323106526311325One piece——
SMC-F4C-902-2424111027461383One piece——
SMC-F4C-902-2525115528601440One piece——
SMC-F4C-902-26261200297414982 pieces——
SMC-F4C-902-27271245308915552 pieces——
SMC-F4C-902-28281290320316132 pieces——
SMC-F4C-902-29291335331816712 pieces——
SMC-F4C-902-30301380343217282 pieces——
SMC-F4C-902-31311425354617862 pieces——
SMC-F4C-902-32321470366118432 pieces——
SMC-F4C-902-33331515377519012 pieces——
SMC-F4C-902-34341560389019592 pieces——
SMC-F4C-902-35351605400420162 pieces——
SMC-F4C-902-36361650411820742 pieces——
SMC-F4C-902-37371695423321312 pieces——
SMC-F4C-902-38381740434721892 pieces——
SMC-F4C-902-39391785446222472 pieces——
SMC-F4C-902-40401830457623042 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

03060901201520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1522.7
ΔT2033.4
ΔT2545.1
ΔT3057.6
ΔT3570.9
ΔT4084.8
ΔT4599.3
ΔT50114.4
