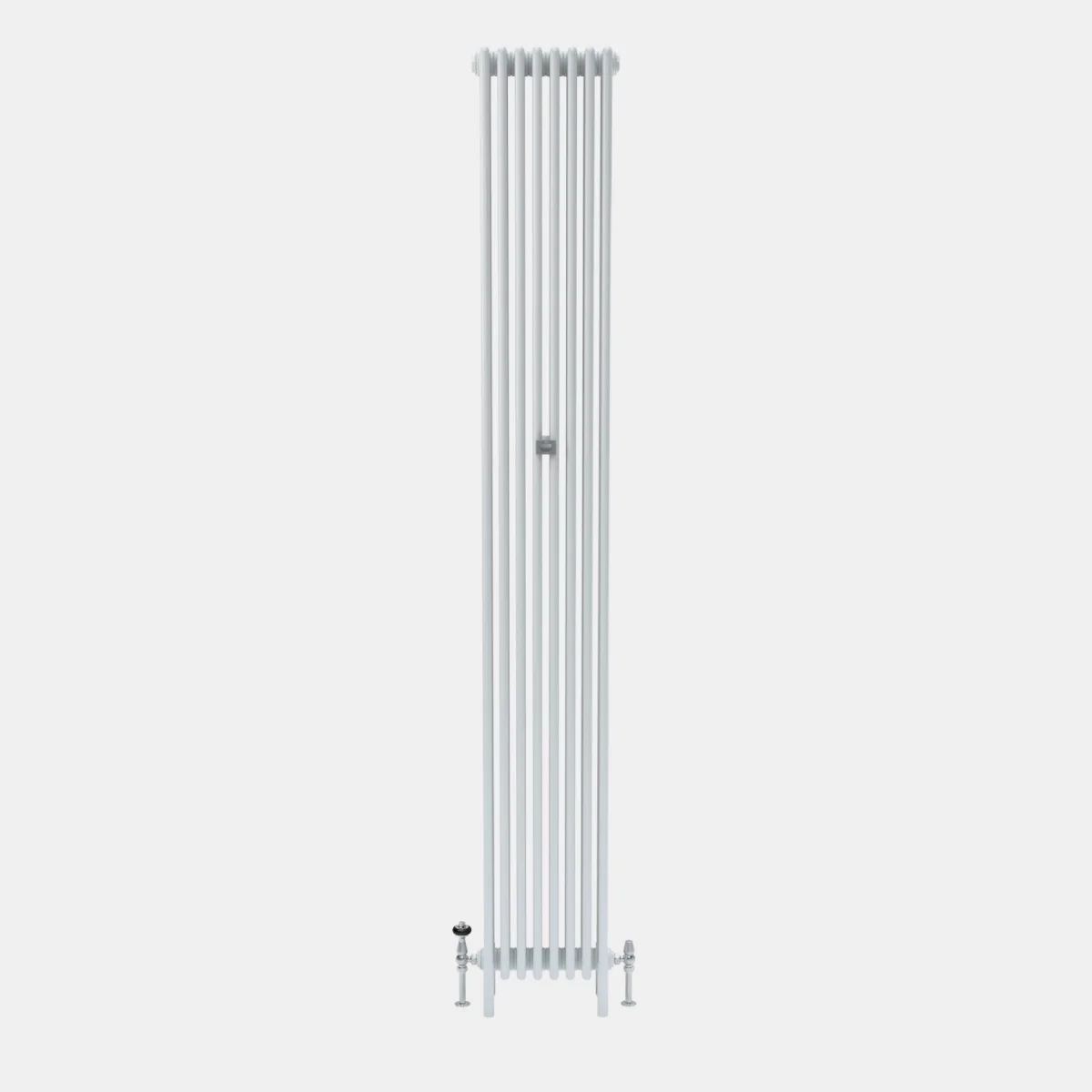

Tall vertical Florence 5 Column steel radiator in white, standing on feet with a central wall stay and chrome valves at each end.

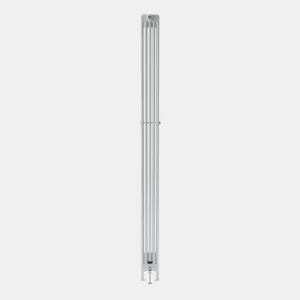

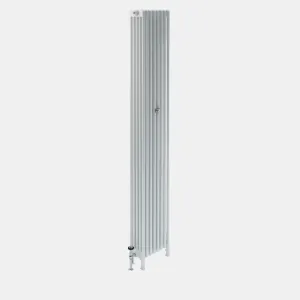

Tall, narrow Florence 5 Column steel radiator in white on feet, with a chrome valve with black head at the base and a wall stay.Side view of a tall, slim Florence 5 Column steel column radiator in white, with a central wall stay and a valve at the base.Technical drawing: Florence 5 Column 2500mm steel column radiatorTechnical drawing: Florence 5 Column 2500mm steel column radiatorTechnical drawing: Florence 5 Column 2500mm steel column radiatorTechnical drawing: Florence 5 Column 2500mm steel column radiator

Florence 5 Column 2500mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F5C-2502

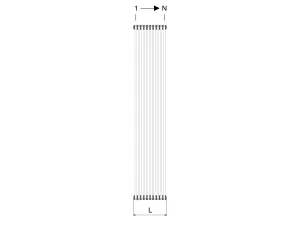

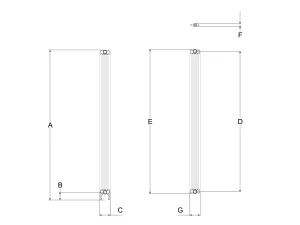

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs2602mm
BPipe centre to floor134mm
CMax section depth179mm
DInteraxis distance2435mm
EHeight without legs2502mm
FMid section depth177mm
GPipe centre to wall (Atlas bracket)130mm
LSection length45mm
–Internal volume per section5.44L
–Leg section weight8.59kg
–Mid section weight8.29kg
–Max single-piece delivery size25sections
–Output at ΔT30181.4W
–Output at ΔT50354.9W

φ = Km × ΔTn · Km = 2.078 · n = 1.314
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_C
Declaration of Performance: 202009-1058 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F5C-2502-0331651065544One piece——
SMC-F5C-2502-0442101420726One piece——
SMC-F5C-2502-0552551774907One piece——
SMC-F5C-2502-06630021291088One piece——
SMC-F5C-2502-07734524841270One piece——
SMC-F5C-2502-08839028391451One piece——
SMC-F5C-2502-09943531941632One piece——
SMC-F5C-2502-101048035491814One piece——
SMC-F5C-2502-111152539041995One piece——
SMC-F5C-2502-121257042592177One piece——
SMC-F5C-2502-131361546142358One piece——
SMC-F5C-2502-141466049682539One piece——
SMC-F5C-2502-151570553232721One piece——
SMC-F5C-2502-161675056782902One piece——
SMC-F5C-2502-171779560333083One piece——
SMC-F5C-2502-181884063883265One piece——
SMC-F5C-2502-191988567433446One piece——
SMC-F5C-2502-202093070983628One piece——
SMC-F5C-2502-212197574533809One piece——
SMC-F5C-2502-2222102078083990One piece——
SMC-F5C-2502-2323106581624172One piece——
SMC-F5C-2502-2424111085174353One piece——
SMC-F5C-2502-2525115588724534One piece——
SMC-F5C-2502-26261200922747162 pieces——
SMC-F5C-2502-27271245958248972 pieces——
SMC-F5C-2502-28281290993750792 pieces——
SMC-F5C-2502-292913351029252602 pieces——
SMC-F5C-2502-303013801064754412 pieces——
SMC-F5C-2502-313114251100256232 pieces——
SMC-F5C-2502-323214701135658042 pieces——
SMC-F5C-2502-333315151171159852 pieces——
SMC-F5C-2502-343415601206661672 pieces——
SMC-F5C-2502-353516051242163482 pieces——
SMC-F5C-2502-363616501277665302 pieces——
SMC-F5C-2502-373716951313167112 pieces——
SMC-F5C-2502-383817401348668922 pieces——
SMC-F5C-2502-393917851384170742 pieces——
SMC-F5C-2502-404018301419672552 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

0901802703601520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1573
ΔT20106.5
ΔT25142.7
ΔT30181.4
ΔT35222.1
ΔT40264.7
ΔT45309
ΔT50354.9
