Technical drawing: Florence 5 Column 500mm steel column radiator

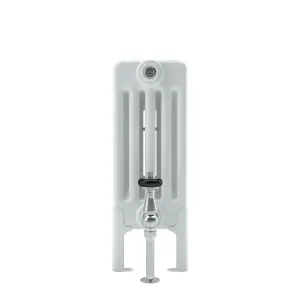

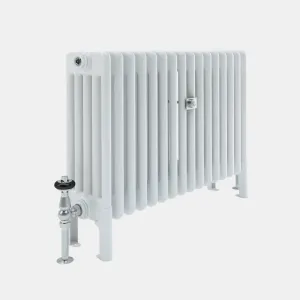

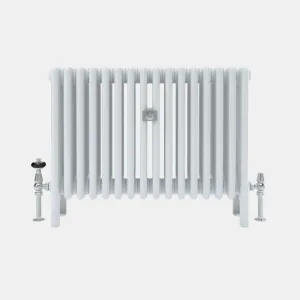

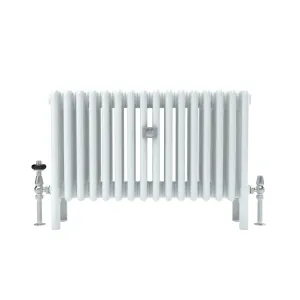

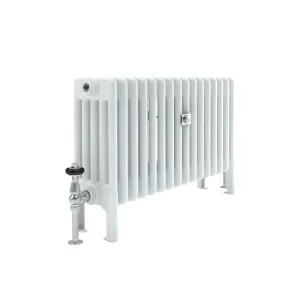

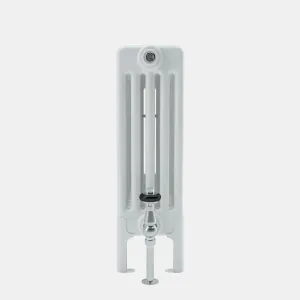

Technical drawing: Florence 5 Column 500mm steel column radiatorTechnical drawing: Florence 5 Column 500mm steel column radiatorFlorence 5 Column steel column radiator in white on feet, with a central wall stay and chrome thermostatic and lockshield valves, front view.End view of a white Florence 5 Column steel radiator on floor-mounted feet, with a chrome valve and black collar below a bleed plug.Florence 5 Column plain steel column radiator in white on feet, with a chrome valve and black-ringed head on the left and a chrome wall stay.Florence 5 Column 500mm steel column radiator in white on feet, front view, with chrome valves at each end, on a white background.End view of a white Florence 5 column steel radiator on feet, with a chrome valve with black collar and a pipe running down to the floor.Florence 5 Column 500mm steel column radiator in white on feet, angled view, with a chrome thermostatic valve and wall stay.Technical drawing: Florence 5 Column 500mm steel column radiatorSide view of a white Florence 5 Column steel radiator on feet, with a chrome valve and black collar at the base and a bleed valve at the top.Plain white Florence 5 Column steel radiator on feet, with a chrome angled valve and a wall stay, on a light grey background.Plain white Florence 5 Column steel radiator on feet, with chrome thermostatic and manual valves and a central wall stay, front view.

Florence 5 Column 500mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F5C-502

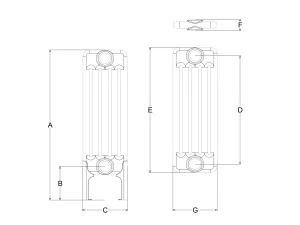

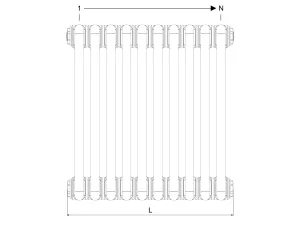

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs602mm
BPipe centre to floor134mm
CMax section depth179mm
DInteraxis distance435mm
EHeight without legs502mm
FMid section depth177mm
GPipe centre to wall (Atlas bracket)130mm
LSection length45mm
–Internal volume per section1.36L
–Leg section weight2.02kg
–Mid section weight1.72kg
–Max single-piece delivery size25sections
–Output at ΔT3041.8W
–Output at ΔT5081.4W

φ = Km × ΔTn · Km = 0.49 · n = 1.307
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_C
Declaration of Performance: 202009-1061 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F5C-502-033165244125One piece——
SMC-F5C-502-044210326167One piece——
SMC-F5C-502-055255407209One piece——
SMC-F5C-502-066300489251One piece——
SMC-F5C-502-077345570292One piece——
SMC-F5C-502-088390651334One piece——
SMC-F5C-502-099435733376One piece——
SMC-F5C-502-1010480814418One piece——
SMC-F5C-502-1111525896459One piece——
SMC-F5C-502-1212570977501One piece——
SMC-F5C-502-13136151059543One piece——
SMC-F5C-502-14146601140585One piece——
SMC-F5C-502-15157051221626One piece——
SMC-F5C-502-16167501303668One piece——
SMC-F5C-502-17177951384710One piece——
SMC-F5C-502-18188401466752One piece——
SMC-F5C-502-19198851547794One piece——
SMC-F5C-502-20209301628835One piece——
SMC-F5C-502-21219751710877One piece——
SMC-F5C-502-222210201791919One piece——
SMC-F5C-502-232310651873961One piece——
SMC-F5C-502-2424111019541002One piece——
SMC-F5C-502-2525115520361044One piece——
SMC-F5C-502-26261200211710862 pieces——
SMC-F5C-502-27271245219811282 pieces——
SMC-F5C-502-28281290228011692 pieces——
SMC-F5C-502-29291335236112112 pieces——
SMC-F5C-502-30301380244312532 pieces——
SMC-F5C-502-31311425252412952 pieces——
SMC-F5C-502-32321470260613362 pieces——
SMC-F5C-502-33331515268713782 pieces——
SMC-F5C-502-34341560276814202 pieces——
SMC-F5C-502-35351605285014622 pieces——
SMC-F5C-502-36361650293115032 pieces——
SMC-F5C-502-37371695301315452 pieces——
SMC-F5C-502-38381740309415872 pieces——
SMC-F5C-502-39391785317616292 pieces——
SMC-F5C-502-40401830325716712 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

0234568901520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1516.9
ΔT2024.6
ΔT2532.9
ΔT3041.8
ΔT3551.1
ΔT4060.8
ΔT4570.9
ΔT5081.4
