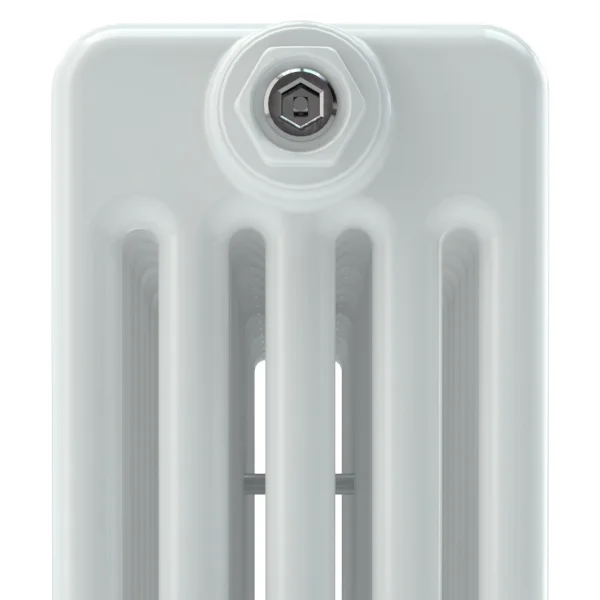

Close-up of the top of a white Florence 5 Column steel column radiator, showing its plain rounded columns and a chrome hexagonal end plug.

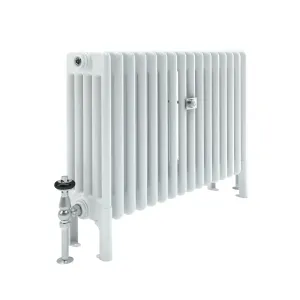

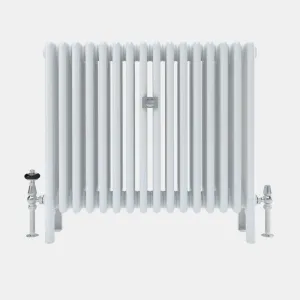

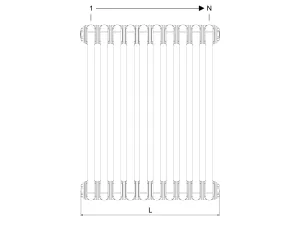

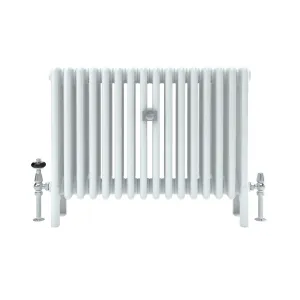

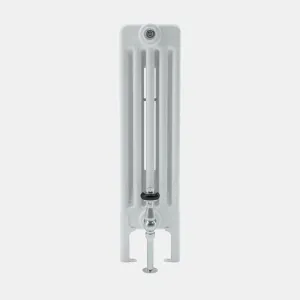

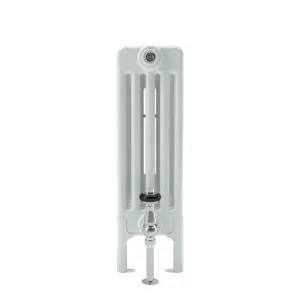

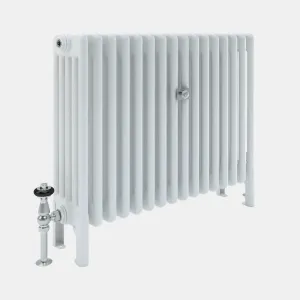

White Florence 5 Column steel radiator on feet, angled, with a chrome valve with black wheel head and a central wall stay, on a plain background.Florence 5 Column steel radiator in white on feet, with a chrome thermostatic valve and lockshield valve, on a plain grey background.Side view of a white Florence 5 Column steel radiator on feet, with a chrome valve and black collar at the base and a bleed valve at the top.Plain white Florence 5 Column steel radiator on feet, with a chrome angled valve and a wall stay, on a light grey background.Plain white Florence 5 Column steel radiator on feet, with chrome thermostatic and manual valves and a central wall stay, front view.Florence 5 Column 600mm plain steel column radiator in white on feet, with a chrome thermostatic valve and wall stay, on a white background.End view of a white Florence 5 Column steel radiator on feet, with a chrome valve and black-ringed head at the base and a bleed valve at the top.Side view of a Florence 5 Column 600mm steel radiator in white on feet, with a chrome angled valve and a bleed valve, on a white background.Technical drawing: Florence 5 Column 600mm steel column radiatorTechnical drawing: Florence 5 Column 600mm steel column radiatorTechnical drawing: Florence 5 Column 600mm steel column radiatorTechnical drawing: Florence 5 Column 600mm steel column radiatorA plain white Florence 5 Column steel column radiator on feet, with chrome valves on each side and a small central bracket, on a white background.

Florence 5 Column 600mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F5C-602

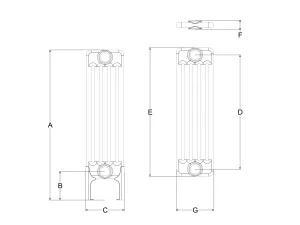

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs702mm
BPipe centre to floor134mm
CMax section depth179mm
DInteraxis distance535mm
EHeight without legs602mm
FMid section depth177mm
GPipe centre to wall (Atlas bracket)130mm
LSection length45mm
–Internal volume per section1.57L
–Leg section weight2.32kg
–Mid section weight2.02kg
–Max single-piece delivery size25sections
–Output at ΔT3048.7W
–Output at ΔT5095.7W

φ = Km × ΔTn · Km = 0.543 · n = 1.322
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_C
Declaration of Performance: 202009-1062 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F5C-602-033165287146One piece——
SMC-F5C-602-044210383195One piece——
SMC-F5C-602-055255478244One piece——
SMC-F5C-602-066300574292One piece——
SMC-F5C-602-077345670341One piece——
SMC-F5C-602-088390765390One piece——
SMC-F5C-602-099435861438One piece——
SMC-F5C-602-1010480957487One piece——
SMC-F5C-602-11115251053536One piece——
SMC-F5C-602-12125701148584One piece——
SMC-F5C-602-13136151244633One piece——
SMC-F5C-602-14146601340682One piece——
SMC-F5C-602-15157051435731One piece——
SMC-F5C-602-16167501531779One piece——
SMC-F5C-602-17177951627828One piece——
SMC-F5C-602-18188401722877One piece——
SMC-F5C-602-19198851818925One piece——
SMC-F5C-602-20209301914974One piece——
SMC-F5C-602-212197520091023One piece——
SMC-F5C-602-2222102021051071One piece——
SMC-F5C-602-2323106522011120One piece——
SMC-F5C-602-2424111022961169One piece——
SMC-F5C-602-2525115523921218One piece——
SMC-F5C-602-26261200248812662 pieces——
SMC-F5C-602-27271245258313152 pieces——
SMC-F5C-602-28281290267913642 pieces——
SMC-F5C-602-29291335277514122 pieces——
SMC-F5C-602-30301380287114612 pieces——
SMC-F5C-602-31311425296615102 pieces——
SMC-F5C-602-32321470306215582 pieces——
SMC-F5C-602-33331515315816072 pieces——
SMC-F5C-602-34341560325316562 pieces——
SMC-F5C-602-35351605334917052 pieces——
SMC-F5C-602-36361650344517532 pieces——
SMC-F5C-602-37371695354018022 pieces——
SMC-F5C-602-38381740363618512 pieces——
SMC-F5C-602-39391785373218992 pieces——
SMC-F5C-602-40401830382719482 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

02550751001520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1519.5
ΔT2028.5
ΔT2538.3
ΔT3048.7
ΔT3559.7
ΔT4071.2
ΔT4583.2
ΔT5095.7
