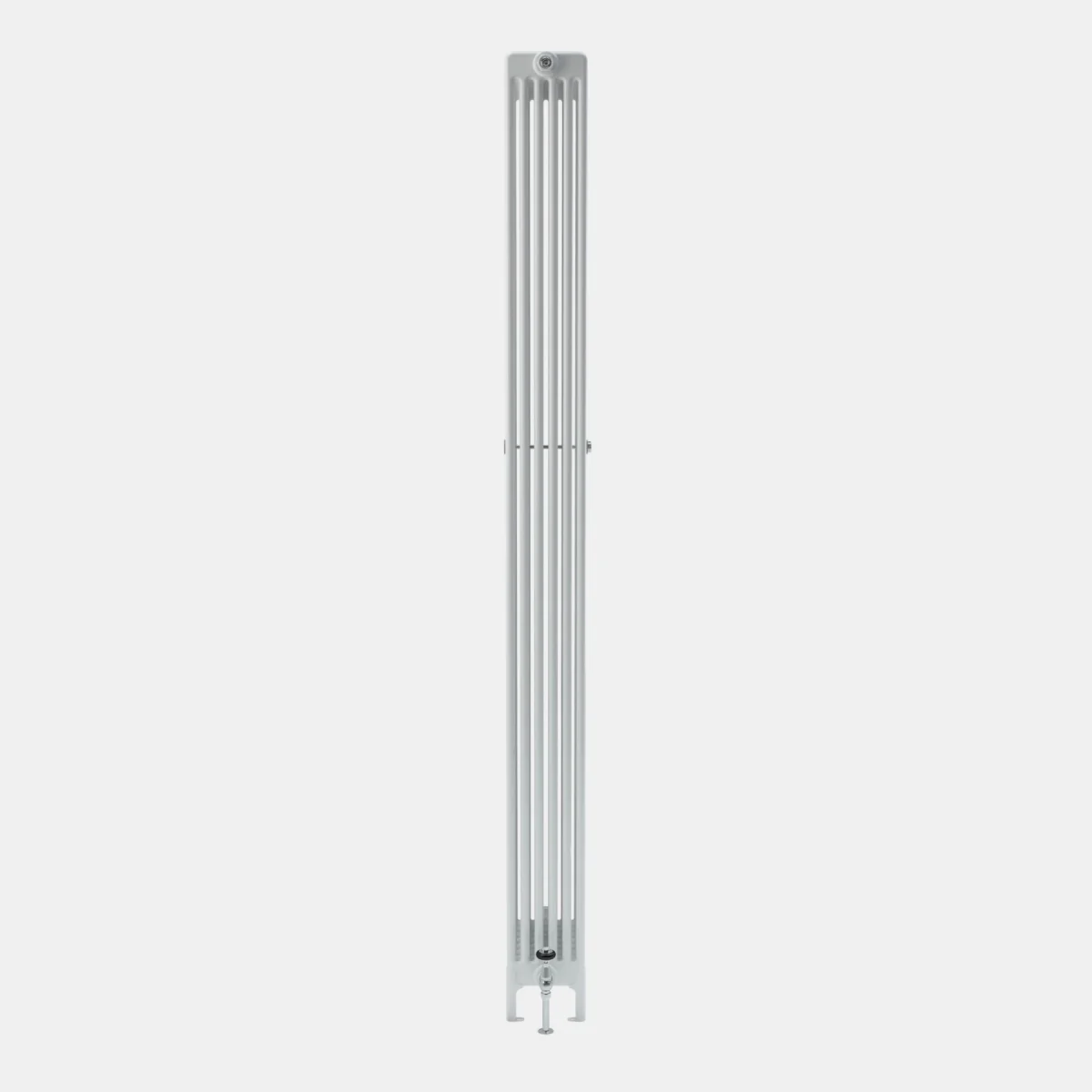

Tall, narrow Florence 6 Column steel radiator in white, seen end-on, with a mid-height wall stay and a valve at the base.

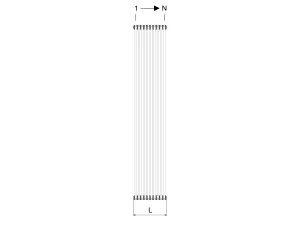

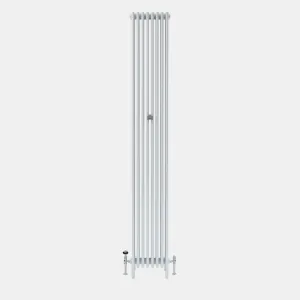

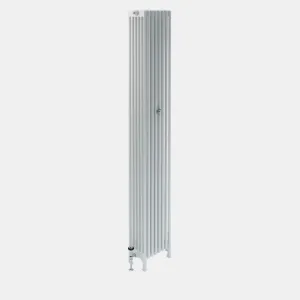

Florence 6 column 2500mm steel column radiatorTall, narrow plain white Florence 6 column steel radiator on feet, with a chrome valve at the base and a wall stay halfway up.Technical drawing: Florence 6 Column 2500mm steel column radiatorTechnical drawing: Florence 6 Column 2500mm steel column radiatorTechnical drawing: Florence 6 Column 2500mm steel column radiatorTechnical drawing: Florence 6 Column 2500mm steel column radiator

Florence 6 Column 2500mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F6C-2502

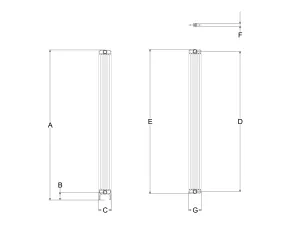

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs2602mm
BPipe centre to floor134mm
CMax section depth217mm
DInteraxis distance2435mm
EHeight without legs2502mm
FMid section depth215mm
GPipe centre to wall (Atlas bracket)130mm
LSection length45mm
–Internal volume per section6.51L
–Leg section weight10.24kg
–Mid section weight9.94kg
–Max single-piece delivery size25sections
–Output at ΔT30212.2W
–Output at ΔT50416.9W

φ = Km × ΔTn · Km = 2.366 · n = 1.322
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_C
Declaration of Performance: 202009-1073 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F6C-2502-0331651251637One piece——
SMC-F6C-2502-0442101668849One piece——
SMC-F6C-2502-05525520851061One piece——
SMC-F6C-2502-06630025021273One piece——
SMC-F6C-2502-07734529181485One piece——
SMC-F6C-2502-08839033351698One piece——
SMC-F6C-2502-09943537521910One piece——
SMC-F6C-2502-101048041692122One piece——
SMC-F6C-2502-111152545862334One piece——
SMC-F6C-2502-121257050032547One piece——
SMC-F6C-2502-131361554202759One piece——
SMC-F6C-2502-141466058372971One piece——
SMC-F6C-2502-151570562543183One piece——
SMC-F6C-2502-161675066713395One piece——
SMC-F6C-2502-171779570883608One piece——
SMC-F6C-2502-181884075053820One piece——
SMC-F6C-2502-191988579214032One piece——
SMC-F6C-2502-202093083384244One piece——
SMC-F6C-2502-212197587554456One piece——
SMC-F6C-2502-2222102091724669One piece——
SMC-F6C-2502-2323106595894881One piece——
SMC-F6C-2502-24241110100065093One piece——
SMC-F6C-2502-25251155104235305One piece——
SMC-F6C-2502-262612001084055182 pieces——
SMC-F6C-2502-272712451125757302 pieces——
SMC-F6C-2502-282812901167459422 pieces——
SMC-F6C-2502-292913351209161542 pieces——
SMC-F6C-2502-303013801250863662 pieces——
SMC-F6C-2502-313114251292565792 pieces——
SMC-F6C-2502-323214701334167912 pieces——
SMC-F6C-2502-333315151375870032 pieces——
SMC-F6C-2502-343415601417572152 pieces——
SMC-F6C-2502-353516051459274272 pieces——
SMC-F6C-2502-363616501500976402 pieces——
SMC-F6C-2502-373716951542678522 pieces——
SMC-F6C-2502-383817401584380642 pieces——
SMC-F6C-2502-393917851626082762 pieces——
SMC-F6C-2502-404018301667784882 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

01052103154201520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1584.9
ΔT20124.2
ΔT25166.8
ΔT30212.2
ΔT35260.2
ΔT40310.4
ΔT45362.7
ΔT50416.9
