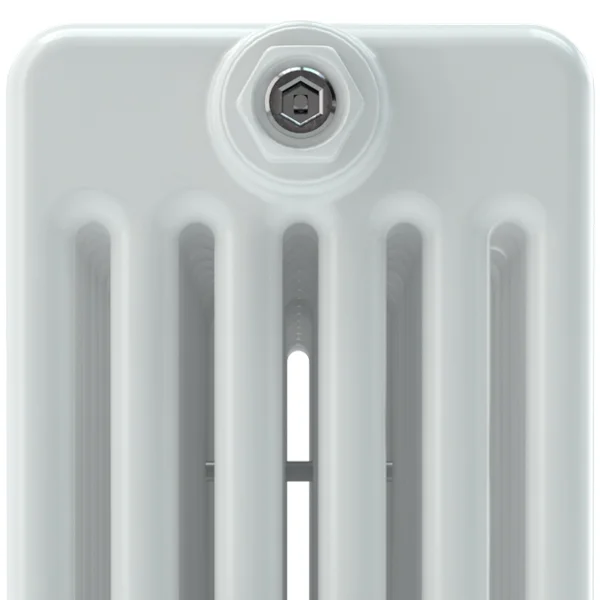

Close-up of the top of a Florence six-column steel radiator in gloss white, with a chrome hex bleed plug in the end cap.

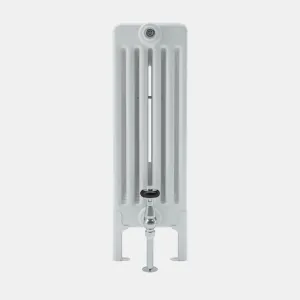

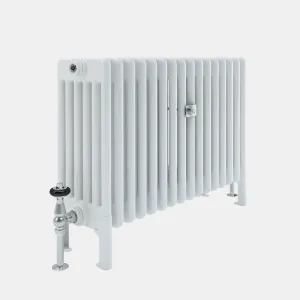

Plain white Florence 6 Column steel radiator on feet, with a chrome valve with black head, a chrome wall stay and a bleed valve.End view of a white Florence 6 Column steel radiator on feet, with a chrome thermostatic valve and pipe running down to the floor.Florence 6 column 600mm steel column radiatorFlorence 6 Column plain steel column radiator in white on feet, with a chrome angled valve and a chrome wall stay, on a grey background.End view of a white Florence 6 Column steel radiator on feet, with a chrome valve and floor pipe below and a bleed plug at the top.Florence 6 Column 600mm steel column radiator in white on feet, with chrome valves either side and a central wall stay, front view.Florence 6 column 500mm steel column radiatorFlorence 6 Column 600mm steel column radiator in white on feet, with a chrome angled valve and wall stay, on a white background.Technical drawing: Florence 6 Column 600mm steel column radiatorTechnical drawing: Florence 6 Column 600mm steel column radiatorTechnical drawing: Florence 6 Column 600mm steel column radiatorTechnical drawing: Florence 6 Column 600mm steel column radiatorSide view of a white Florence 6 column steel radiator on feet, with a chrome angled valve and black-topped head, on a white background.

Florence 6 Column 600mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F6C-602

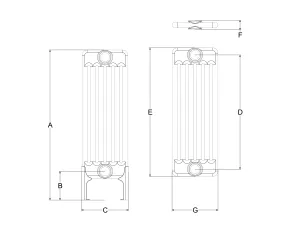

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs702mm
BPipe centre to floor134mm
CMax section depth217mm
DInteraxis distance535mm
EHeight without legs602mm
FMid section depth215mm
GPipe centre to wall (Atlas bracket)130mm
LSection length45mm
–Internal volume per section1.88L
–Leg section weight2.72kg
–Mid section weight2.42kg
–Max single-piece delivery size25sections
–Output at ΔT3056.8W
–Output at ΔT50113.0W

φ = Km × ΔTn · Km = 0.586 · n = 1.345
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_C
Declaration of Performance: 202009-1077 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F6C-602-033165339171One piece——
SMC-F6C-602-044210452227One piece——
SMC-F6C-602-055255565284One piece——
SMC-F6C-602-066300678341One piece——
SMC-F6C-602-077345791398One piece——
SMC-F6C-602-088390904455One piece——
SMC-F6C-602-0994351017512One piece——
SMC-F6C-602-10104801130568One piece——
SMC-F6C-602-11115251243625One piece——
SMC-F6C-602-12125701356682One piece——
SMC-F6C-602-13136151469739One piece——
SMC-F6C-602-14146601582796One piece——
SMC-F6C-602-15157051695853One piece——
SMC-F6C-602-16167501808909One piece——
SMC-F6C-602-17177951921966One piece——
SMC-F6C-602-181884020341023One piece——
SMC-F6C-602-191988521471080One piece——
SMC-F6C-602-202093022601137One piece——
SMC-F6C-602-212197523731194One piece——
SMC-F6C-602-2222102024861250One piece——
SMC-F6C-602-2323106525991307One piece——
SMC-F6C-602-2424111027121364One piece——
SMC-F6C-602-2525115528251421One piece——
SMC-F6C-602-26261200293814782 pieces——
SMC-F6C-602-27271245305115352 pieces——
SMC-F6C-602-28281290316415912 pieces——
SMC-F6C-602-29291335327716482 pieces——
SMC-F6C-602-30301380338917052 pieces——
SMC-F6C-602-31311425350217622 pieces——
SMC-F6C-602-32321470361518192 pieces——
SMC-F6C-602-33331515372818762 pieces——
SMC-F6C-602-34341560384119322 pieces——
SMC-F6C-602-35351605395419892 pieces——
SMC-F6C-602-36361650406720462 pieces——
SMC-F6C-602-37371695418021032 pieces——
SMC-F6C-602-38381740429321602 pieces——
SMC-F6C-602-39391785440622172 pieces——
SMC-F6C-602-40401830451922732 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

03060901201520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1522.4
ΔT2032.9
ΔT2544.5
ΔT3056.8
ΔT3569.9
ΔT4083.7
ΔT4598.1
ΔT50113
