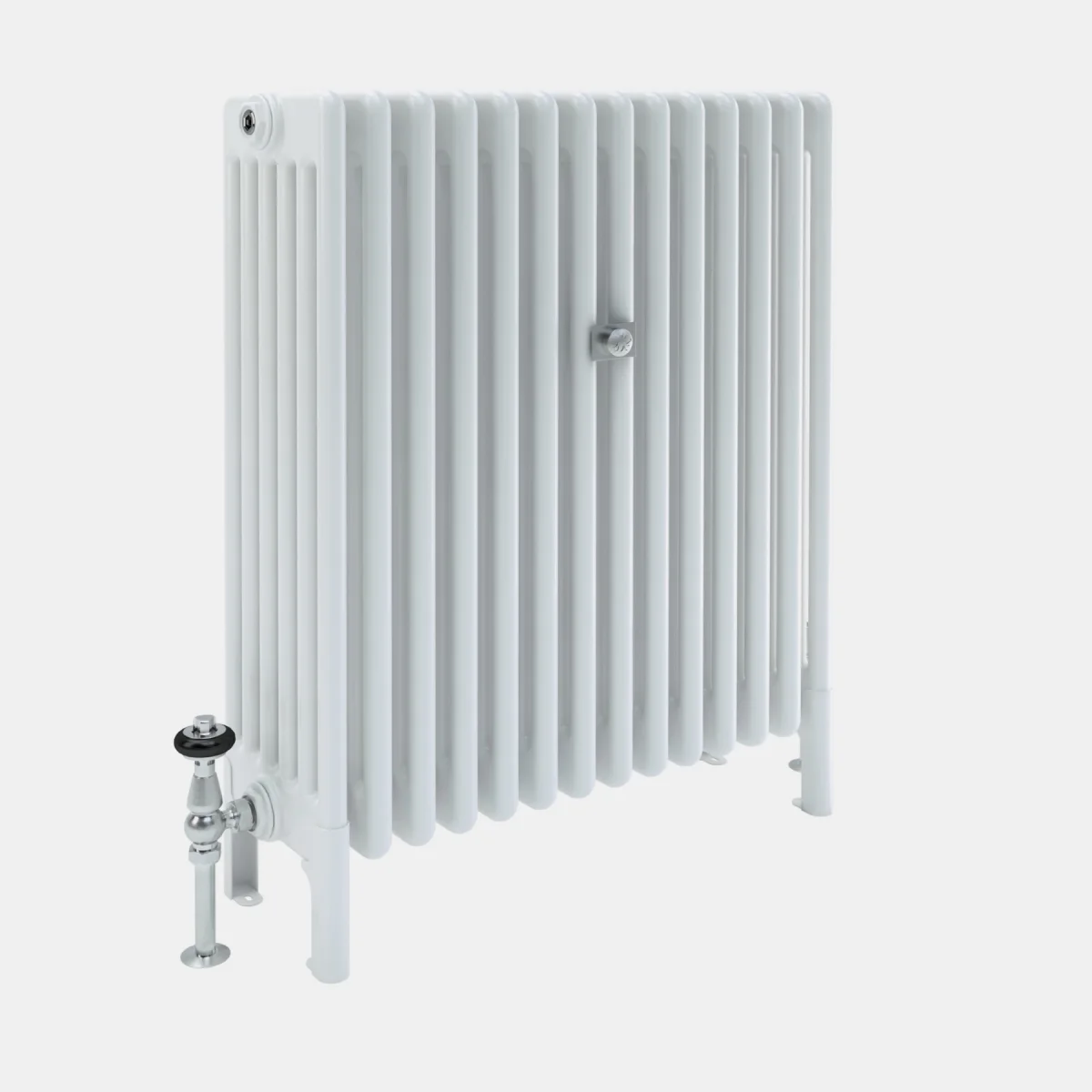

Plain white Florence 6 Column steel radiator on feet, angled view, with a chrome valve with black head and a central wall stay.

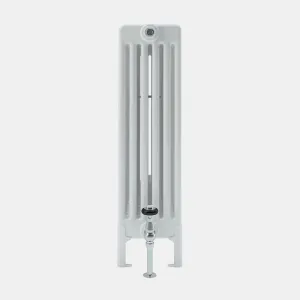

Florence 6 column 765mm steel column radiatorEnd view of a Florence 6 Column steel radiator in white, standing on feet, with a chrome valve at the base and a bleed valve at the top.Technical drawing: Florence 6 Column 765mm steel column radiatorTechnical drawing: Florence 6 Column 765mm steel column radiatorTechnical drawing: Florence 6 Column 765mm steel column radiatorTechnical drawing: Florence 6 Column 765mm steel column radiator

Florence 6 Column 765mm

Made to order

Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.

Build your radiatorFind a radiator to fit

STANDARD WHITE. Made of steel and unadorned, Florence is perfect in any interior. Available in a wide range of sizes. Florence radiators can be floor mounted or wall hung.

SMC-F6C-767

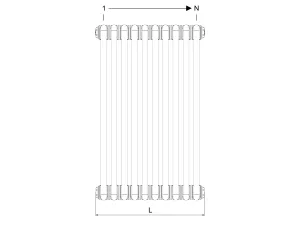

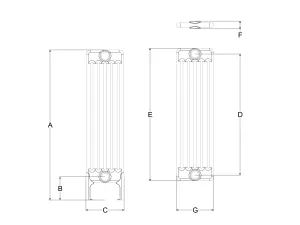

Dimensioned technical drawing, Generic dimensioned drawing — Floor standing. Dimension references A to G are listed in the specifications table.
Generic dimensioned drawing — Floor standing

Specifications

Dimensions, weights and heat outputs for this model
RefAttributeValue
AHeight with legs867mm
BPipe centre to floor134mm
CMax section depth217mm
DInteraxis distance700mm
EHeight without legs767mm
FMid section depth215mm
GPipe centre to wall (Atlas bracket)130mm
LSection length45mm
–Internal volume per section2.29L
–Leg section weight3.31kg
–Mid section weight3.01kg
–Max single-piece delivery size25sections
–Output at ΔT3069.7W
–Output at ΔT50140.5W

φ = Km × ΔTn · Km = 0.653 · n = 1.373
Tested to EN 442 · Politecnico di Milano · Test ref: ENE/MRT.RES.01003_C
Declaration of Performance: 202009-1079 · CE marked

Available sizes

Outputs in watts per radiator, at the stated temperature difference.

Length, heat output and delivery for each available section count
SKUSectionsLength (mm)ΔT50 (W)ΔT30 (W)Delivered inSignatureBranded Paints
SMC-F6C-767-033165421209One piece——
SMC-F6C-767-044210562279One piece——
SMC-F6C-767-055255702348One piece——
SMC-F6C-767-066300843418One piece——
SMC-F6C-767-077345983488One piece——
SMC-F6C-767-0883901124557One piece——
SMC-F6C-767-0994351264627One piece——
SMC-F6C-767-10104801405697One piece——
SMC-F6C-767-11115251545766One piece——
SMC-F6C-767-12125701686836One piece——
SMC-F6C-767-13136151826906One piece——
SMC-F6C-767-14146601967975One piece——
SMC-F6C-767-151570521071045One piece——
SMC-F6C-767-161675022481115One piece——
SMC-F6C-767-171779523881184One piece——
SMC-F6C-767-181884025291254One piece——
SMC-F6C-767-191988526691324One piece——
SMC-F6C-767-202093028091393One piece——
SMC-F6C-767-212197529501463One piece——
SMC-F6C-767-2222102030901533One piece——
SMC-F6C-767-2323106532311602One piece——
SMC-F6C-767-2424111033711672One piece——
SMC-F6C-767-2525115535121742One piece——
SMC-F6C-767-26261200365218112 pieces——
SMC-F6C-767-27271245379318812 pieces——
SMC-F6C-767-28281290393319512 pieces——
SMC-F6C-767-29291335407420202 pieces——
SMC-F6C-767-30301380421420902 pieces——
SMC-F6C-767-31311425435521602 pieces——
SMC-F6C-767-32321470449522292 pieces——
SMC-F6C-767-33331515463622992 pieces——
SMC-F6C-767-34341560477623692 pieces——
SMC-F6C-767-35351605491724382 pieces——
SMC-F6C-767-36361650505725082 pieces——
SMC-F6C-767-37371695519825782 pieces——
SMC-F6C-767-38381740533826472 pieces——
SMC-F6C-767-39391785547927172 pieces——
SMC-F6C-767-40401830561927872 pieces——

Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands

Heat output

Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.

038751131501520253035404550ΔT (K)
Heat output in watts per section at each temperature difference
ΔT (K)Output per section (W)
ΔT1526.9
ΔT2039.9
ΔT2554.2
ΔT3069.7
ΔT3586.1
ΔT40103.4
ΔT45121.6
ΔT50140.5
