Mercury 4 Column 560mm
Made to order
Every radiator is built to the size your room needs. Choose sections, finish and valves in the builder, or let the finder suggest a model for your space.
CI-M4C-560
Available sizes
Outputs in watts per radiator, at the stated temperature difference.
| SKU | Sections | Length (mm) | ΔT50 (W) | ΔT30 (W) | Delivered in | Signature | Branded Paints | Bare Metal |
|---|---|---|---|---|---|---|---|---|
| CI-M4C-560-03 | 3 | 205 | 208 | 107 | One piece | — | — | — |
| CI-M4C-560-04 | 4 | 263 | 277 | 143 | One piece | — | — | — |
| CI-M4C-560-05 | 5 | 322 | 347 | 179 | One piece | — | — | — |
| CI-M4C-560-06 | 6 | 380 | 416 | 214 | One piece | — | — | — |
| CI-M4C-560-07 | 7 | 438 | 486 | 250 | One piece | — | — | — |
| CI-M4C-560-08 | 8 | 496 | 555 | 286 | One piece | — | — | — |
| CI-M4C-560-09 | 9 | 555 | 624 | 321 | One piece | — | — | — |
| CI-M4C-560-10 | 10 | 613 | 694 | 357 | One piece | — | — | — |
| CI-M4C-560-11 | 11 | 671 | 763 | 393 | One piece | — | — | — |
| CI-M4C-560-12 | 12 | 730 | 832 | 428 | One piece | — | — | — |
| CI-M4C-560-13 | 13 | 788 | 902 | 464 | One piece | — | — | — |
| CI-M4C-560-14 | 14 | 846 | 971 | 500 | One piece | — | — | — |
| CI-M4C-560-15 | 15 | 905 | 1040 | 536 | One piece | — | — | — |
| CI-M4C-560-16 | 16 | 963 | 1110 | 571 | One piece | — | — | — |
| CI-M4C-560-17 | 17 | 1021 | 1179 | 607 | 2 pieces | — | — | — |
| CI-M4C-560-18 | 18 | 1079 | 1249 | 643 | 2 pieces | — | — | — |
| CI-M4C-560-19 | 19 | 1138 | 1318 | 678 | 2 pieces | — | — | — |
| CI-M4C-560-20 | 20 | 1196 | 1387 | 714 | 2 pieces | — | — | — |
| CI-M4C-560-21 | 21 | 1254 | 1457 | 750 | 2 pieces | — | — | — |
| CI-M4C-560-22 | 22 | 1313 | 1526 | 785 | 2 pieces | — | — | — |
| CI-M4C-560-23 | 23 | 1371 | 1595 | 821 | 2 pieces | — | — | — |
| CI-M4C-560-24 | 24 | 1429 | 1665 | 857 | 2 pieces | — | — | — |
| CI-M4C-560-25 | 25 | 1488 | 1734 | 893 | 2 pieces | — | — | — |
| CI-M4C-560-26 | 26 | 1546 | 1803 | 928 | 2 pieces | — | — | — |
| CI-M4C-560-27 | 27 | 1604 | 1873 | 964 | 2 pieces | — | — | — |
| CI-M4C-560-28 | 28 | 1662 | 1942 | 1000 | 2 pieces | — | — | — |
| CI-M4C-560-29 | 29 | 1721 | 2011 | 1035 | 2 pieces | — | — | — |
| CI-M4C-560-30 | 30 | 1779 | 2081 | 1071 | 2 pieces | — | — | — |
| CI-M4C-560-31 | 31 | 1837 | 2150 | 1107 | 2 pieces | — | — | — |
| CI-M4C-560-32 | 32 | 1896 | 2220 | 1143 | 2 pieces | — | — | — |
| CI-M4C-560-33 | 33 | 1954 | 2289 | 1178 | 3 pieces | — | — | — |
| CI-M4C-560-34 | 34 | 2012 | 2358 | 1214 | 3 pieces | — | — | — |
| CI-M4C-560-35 | 35 | 2071 | 2428 | 1250 | 3 pieces | — | — | — |
| CI-M4C-560-36 | 36 | 2129 | 2497 | 1285 | 3 pieces | — | — | — |
| CI-M4C-560-37 | 37 | 2187 | 2566 | 1321 | 3 pieces | — | — | — |
| CI-M4C-560-38 | 38 | 2245 | 2636 | 1357 | 3 pieces | — | — | — |
| CI-M4C-560-39 | 39 | 2304 | 2705 | 1392 | 3 pieces | — | — | — |
| CI-M4C-560-40 | 40 | 2362 | 2774 | 1428 | 3 pieces | — | — | — |
Branded Paints: Little Greene, Farrow & Ball, Paint & Paper Library, Mylands
Heat output
Output varies with flow temperature. The curve shows watts per section across the usual range of ΔT.
| ΔT (K) | Output per section (W) |
|---|---|
| ΔT15 | 14.5 |
| ΔT20 | 21.1 |
| ΔT25 | 28.2 |
| ΔT30 | 35.7 |
| ΔT35 | 43.6 |
| ΔT40 | 51.9 |
| ΔT45 | 60.5 |
| ΔT50 | 69.4 |

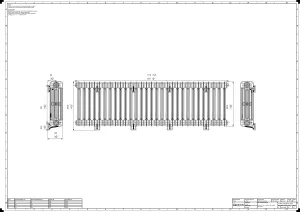

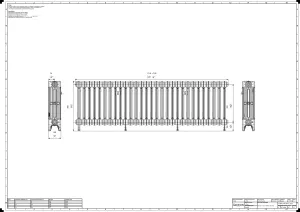

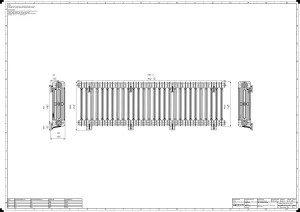

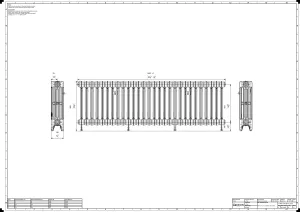

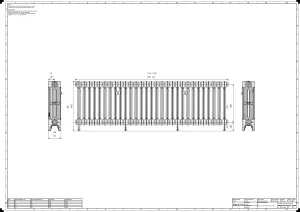

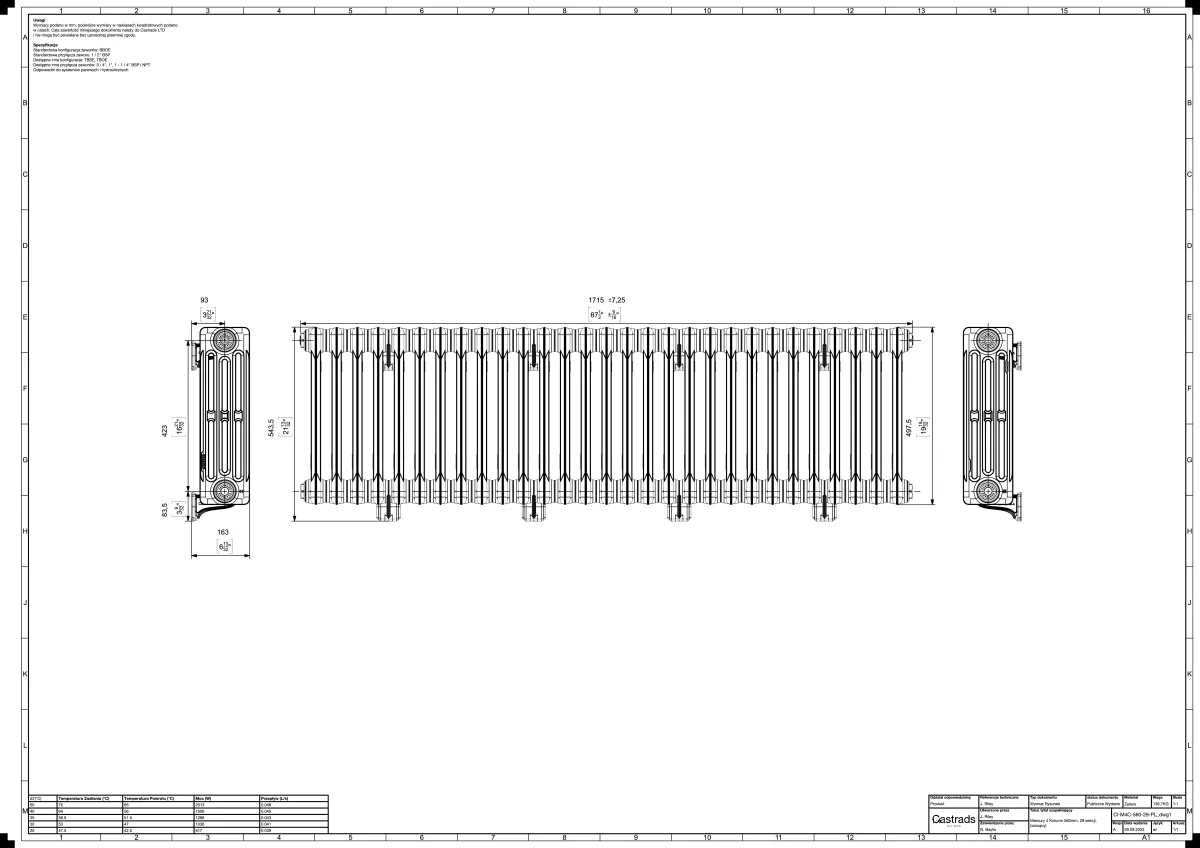

Specifications
| Ref | Attribute | Value |
|---|---|---|
| A | Height with legs | 560mm |
| B | Pipe centre to floor | 101.3mm |
| C | Max section depth | 140mm |
| D | Interaxis distance | 423mm |
| E | Height without legs | 498mm |
| F | Mid section depth | 140mm |
| G | Pipe centre to wall (Atlas bracket) | 93mm |
| L | Section length | 58.3mm |
| – | Internal volume per section | 0.7L |
| – | Leg section weight | 5.3kg |
| – | Mid section weight | 4.9kg |
| – | Max single-piece delivery size | 16sections |
| – | Output at ΔT30 | 35.7W |
| – | Output at ΔT50 | 69.4W |
φ = Km × ΔTn · Km = 0.429 · n = 1.3
Tested to EN 442 · BSRIA · Test ref: 101885/3
Declaration of Performance: 202009-1103 · CE marked
